Omron NX-EC0142 — NX 1-Ch Encoder Input, PNP
SKU: NX-EC0142USD 122.00
Omron NX-EC0142 NX-series 1-channel incremental encoder input with RS-422 line receiver, PNP, 4 MHz A/B phases. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

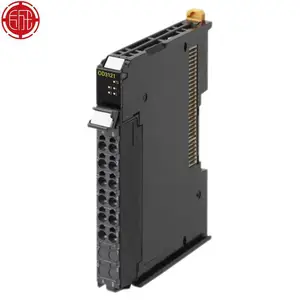

The Omron NX-EC0142 is the NX-series 1-channel incremental encoder input unit with line receiver (RS-422) input and PNP external inputs, manufactured by Omron Corporation. Hengyixin Automation stocks this controller option board in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. Specifications on this page were checked against Omron's NX-series Position Interface Unit datasheet.
It sits on the NX I/O bus behind an NX-ECC201 EtherCAT Coupler, NX102, or NX1P2 CPU and reads one incremental encoder. Phases A and B accept single-phase pulses at 4 MHz, or 1 MHz in 4x mode; phase Z accepts 1 MHz. The 32-bit counter covers +/-2,147,483,647 pulses in linear or ring mode, with two external plus one internal latch.
Three external 24 VDC PNP inputs (1 us ON / 2 us OFF response) handle gate, reset, and presets. The slice supplies 5 VDC at 500 mA to the encoder from an isolated supply. 24 mm wide, 100 x 71 mm, 130 g, with two 12-terminal screwless push-in connectors. For the same input with NPN external inputs pick NX-EC0132. SIL None.
Key Features
- NX-series 1-channel incremental encoder input with RS-422 line receiver, PNP external inputs (24 VDC sourcing)
- Phases A and B 4 MHz single-phase / 1 MHz x4 phase-difference, phase Z 1 MHz, 32-bit counter range plus ring/linear mode
- 3 external 24 VDC PNP gate/reset inputs with 1 microsecond response, 5 VDC +/-5% 500 mA max encoder supply (non-isolated supply; A/B/Z signals digitally isolated)
- Screwless push-in 12-terminal x 2 connector, 12 x 100 x 71 mm, 130 g, Free-Run / Synchronous / Task Period Prioritized refreshing
- SKU: NX-EC0142
- Series: NX-series Position Interface Unit (NX-EC family) on NX I/O Bus and EtherCAT Coupler
Best-Fit Applications
- Press-feed registration on a stamping press where a 1,000 P/R encoder reports die position every 500 microseconds over EtherCAT
- Bottle-index timing on a rotary filler where the NX-EC0142 reads a 600 P/R cam encoder and gates the fill-valve on a PNP prox
- Spare replacement on a labeling line where the original NX-EC0142 was lost and Sysmac Studio holds the I/O map
Buying Checklist
- Pick the NX-EC0142 when the project needs one RS-422 line-receiver encoder channel with PNP external inputs on a 24 mm wide NX slice.
- Pick the NX-EC0132 instead when the external inputs need NPN (sinking) instead of PNP (sourcing) on the same 1-channel line receiver.
- Pick the NX-EC0112 instead when the encoder outputs 24 VDC voltage instead of RS-422 differential and the inputs are NPN.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | NX-series Position Interface Unit (NX-EC family) on NX I/O Bus and EtherCAT Coupler |
| Model / SKU | NX-EC0142 |
| Number of Channels | 1 encoder channel |
| Input Signal | Line receiver (RS-422); phases A and B 4 MHz single-phase / 1 MHz x4 phase-difference; phase Z 1 MHz |
| Counter Range | -2,147,483,648 to +2,147,483,647 pulses (32-bit); ring or linear counter |
| External Inputs | 3 points PNP, 24 VDC +20%/-15%, 1 us ON / 2 us OFF response, 4.6 mA typical at 24 VDC |
| Encoder Supply | 5 VDC +/-5%, 500 mA max output from a non-isolated supply; A/B/Z signals use a digital isolator |
| Input Modes | Phase difference x2 / x4, pulse + direction, up/down pulse |
| Refreshing | Free-Run, Synchronous, or Task Period Prioritized refreshing |
| Connection / Power | Screwless push-in 12-terminal x 2; NX unit power 1.05 W max; I/O power 30 mA; 24 VDC via NX bus |
| Dimensions / Approvals | 12 (W) x 100 (H) x 71 (D) mm; 130 g; IP20; SIL None (not for safety); CE, cULus, RCM, KC, EAC |
FAQ for NX-EC0142
What is the Omron NX-EC0142 used for?
It is the NX-series 1-channel incremental encoder input unit for RS-422 line-receiver signals with PNP external inputs. Typical uses are press-feed registration on a stamping press, bottle-index timing on a rotary filler, and spare replacement on a labeling line where the Sysmac Studio tag database points at the same I/O map.
NX-EC0142 vs NX-EC0132 - what is the difference?
Both are NX-series 1-channel incremental encoder inputs with RS-422 line-receiver input. The NX-EC0142 has 3 PNP external inputs (sourcing, switch to 24 V); the NX-EC0132 has 3 NPN external inputs (sinking, switch to 0 V). Maximum encoder input frequency (4 MHz on A/B, 1 MHz on Z), 5 VDC 500 mA encoder supply, and 24 x 100 x 71 mm body are the same on both. Pick the NX-EC0142 for PNP field devices; pick the NX-EC0132 for NPN field devices.
What is the maximum encoder frequency for the NX-EC0142?
4 MHz on phases A and B in single-phase mode, 1 MHz in 4x phase-difference mode, and 1 MHz on phase Z. The 32-bit counter covers +/-2,147,483,647 pulses in ring or linear mode with two external latch inputs plus one internal latch. Refresh mode can be Free-Run, Synchronous, or Task Period Prioritized in Sysmac Studio.
