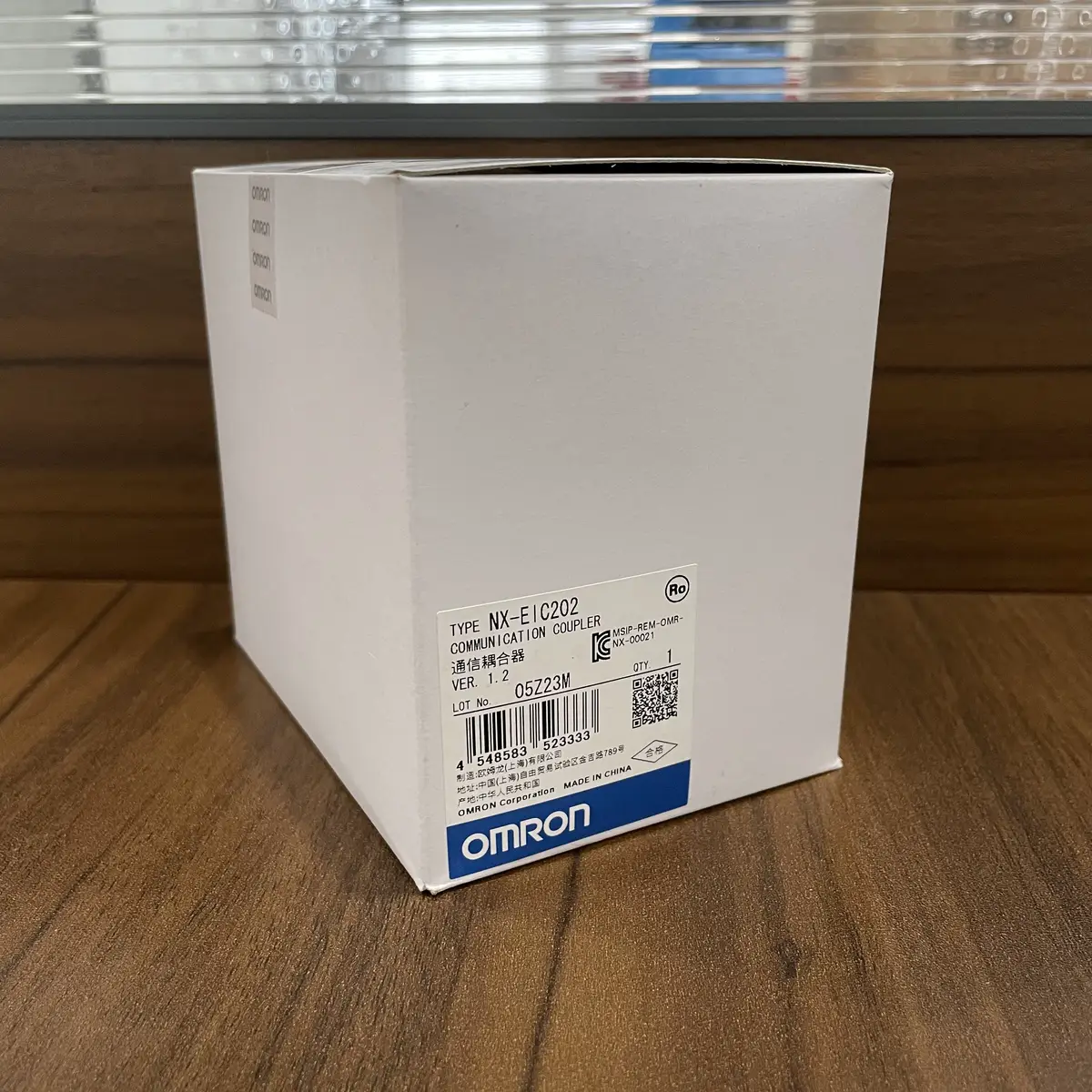

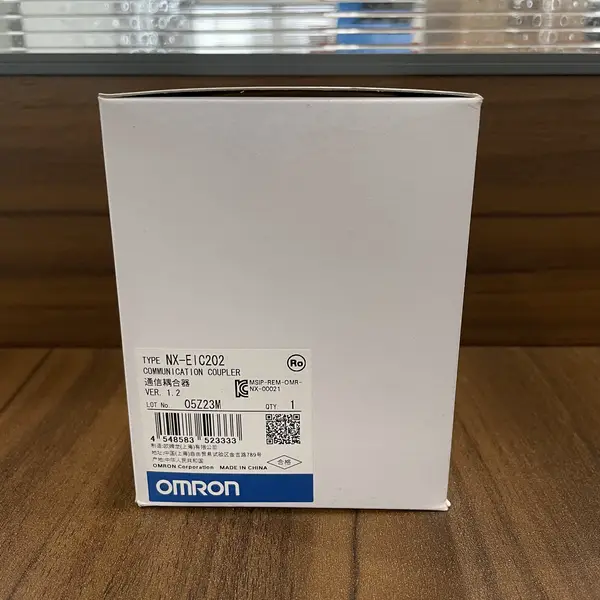

Omron NX-EIC202 — EtherNet/IP Coupler, 63 NX Units
SKU: NX-EIC202USD 125.00
EtherNet/IP Coupler, 2 ports, CIP Safety, 63 NX units, 10 A I/O. In stock, China.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NX-EIC202 is an NX-series EtherNet/IP Coupler Unit that links up to 63 NX I/O slices to a CIP-Safety or standard EtherNet/IP scanner It is manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
Two 100BASE-TX RJ45 ports deliver line, star or tree topology at 100 Mbps. The EtherNet/IP I/O connection is 504 bytes per direction and the RPI ranges from 4 ms to 1,000 ms.
Body size is 46 x 100 x 80 mm at 150 g. Key specs: Number of Connectable NX Units 63 NX units maximum; Communication Protocols EtherNet/IP (UDP/IP and TCP/IP); NX Bus I/O Data Size 512 bytes input, 512 bytes output; EtherNet/IP I/O Connection Size 504 bytes input, 504 bytes output; RPI (Refresh Cycle) 4 ms to 1,000 ms; Allowed Bandwidth 1,000 pps to the local node; Physical Layer 100BASE-TX (IEEE 802.3), 100 Mbps; Topology Line, star, tree.
Key Features

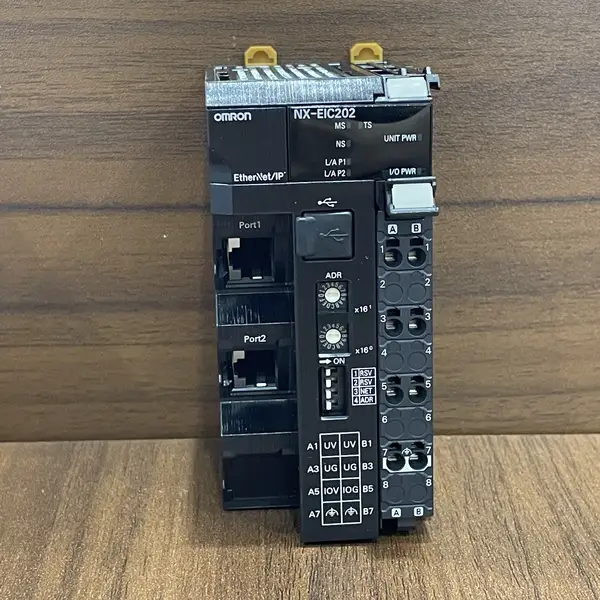

- NX-series EtherNet/IP Coupler with 2 shielded RJ45 ports, 100 Mbps
- Supports local CIP Safety with NX-SL3300 / NX-SL3500 on the same rack
- 504-byte I/O connection size, 4-1000 ms RPI, line / star / tree topology
- 10 W unit power, 10 A I/O power, 46 x 100 x 80 mm, 150 g
- SKU: NX-EIC202
- Series: NX-series EtherNet/IP Coupler Unit
- Voltage: 24 VDC
- I/O: 512 I/O
Best-Fit Applications
- Retrofit cabinet upgrading a CJ1W-IC101 I/O control unit to remote NX slices reached over the existing EtherNet/IP trunk.
- Machine cell where the NX-EIC202 hosts an NX-SL3300 safety CPU for CIP-Safety I/O alongside standard I/O on the same rack.
- Standalone skid with an NX1P2 PLC and NX-IO slices bridged via the EIC202 to a factory MES for non-stop data acquisition.
Buying Checklist
- Choose the NX-ECC203 instead when EtherCAT motion and 125 us cycle are the primary requirements.
- Choose the NX-EIC202 when the cabinet needs CIP Safety mixed with standard I/O on one coupler.
- Choose the NX-EIC201 instead when only standard EtherNet/IP messaging is required and lower cost is preferred.
Technical Specifications
| Series | NX-series EtherNet/IP Coupler Unit |
|---|---|
| Number of Connectable NX Units | 63 NX units maximum |
| Communication Protocols | EtherNet/IP (UDP/IP and TCP/IP) |
| NX Bus I/O Data Size | 512 bytes input, 512 bytes output |
| EtherNet/IP I/O Connection Size | 504 bytes input, 504 bytes output |
| RPI (Refresh Cycle) | 4 ms to 1,000 ms |
| Allowed Bandwidth | 1,000 pps to the local node |
| Physical Layer | 100BASE-TX (IEEE 802.3), 100 Mbps |
| Topology | Line, star, tree |

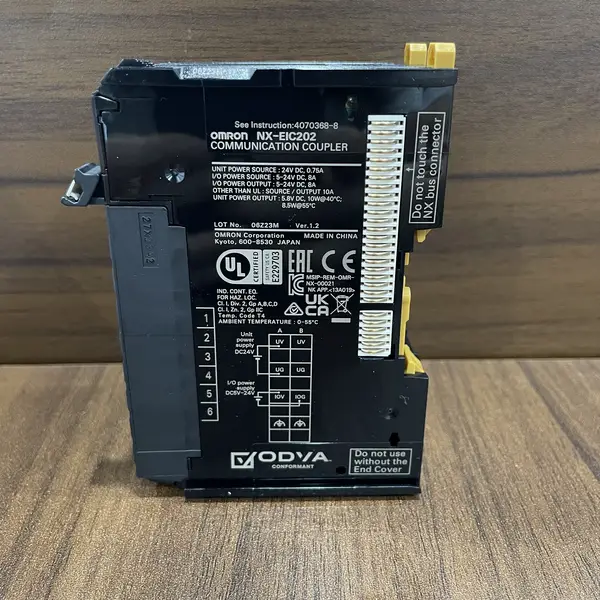

| Unit Power Supply | 24 VDC (20.4-28.8 VDC), up to 10 W |
| I/O Power Supply | 5-24 VDC (4.5-28.8 VDC), up to 10 A |
| Dimensions | 46 x 100 x 80 mm, 150 g, IP20 |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for NX-EIC202
Does the NX-EIC202 support CIP Safety?
Yes - the NX-EIC202 supports local CIP Safety when an NX-SL3300 or NX-SL3500 Safety CPU mounts on the same rack. Safety I/O units like NX-SID800 and NX-SOD400 sit alongside standard NX I/O. The CJ1W-EIP21S, CS1W-EIP21S or NJ501-1500 must be the safety scanner on the network.
How many NX units can the NX-EIC202 attach?
Up to 63 NX slices per coupler. The NX-bus I/O data size is 512 bytes each direction, and the EtherNet/IP connection size is 504 bytes per direction. For larger cabinets, split across multiple NX-EIC202 couplers on the same scanner.
What is the difference between NX-EIC202 and NX-EIC201?
The EIC201 is the standard EtherNet/IP coupler for non-safety cabinets. The EIC202 adds support for CIP Safety over the same network and local safety control via the NX-SL3 family. For most new safety applications, pick the EIC202 over the older EIC201.
Can the NX-EIC202 work with non-Omron PLCs?
Yes - the NX-EIC202 speaks standard EtherNet/IP, so Rockwell ControlLogix, Schneider M340 and any EtherNet/IP scanner can read NX I/O via the EDS file. The EDS file ships on the Omron Europe support site and is imported into Studio 5000 or Unity Pro during commissioning.
