Omron NX-SL3300 — NX Safety CPU, 32 FSoE, 256 I/O
SKU: NX-SL3300USD 175.00
Omron NX-SL3300 NX-series Safety CPU Unit, 32 FSoE master connections, up to 256 safety I/O points, SIL 3 / PLe. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NX-SL3300 is the NX-series Safety CPU Unit, manufactured by Omron Corporation. Hengyixin Automation stocks this safety device in Xiamen and ships within 3-5 business days; safety-rated components ship with a batch-trace certificate. Specifications on this page were checked against Omron's NX-series I/O System brochure (R183).
It runs the safety logic for an NX-series EtherCAT safety network: 32 FSoE master connections, up to 256 safety I/O points, 512 KB program capacity. It covers SIL 3 (IEC 61508, IEC 62061) and PLe / Category 4 (EN ISO 13849-1). It plugs onto the NX I/O bus behind an NX-ECC201 / NX-ECC202 EtherCAT Coupler, an NX-EIC202 EtherNet/IP Coupler for a stand-alone safety island, or onto the right side of an NX102 CPU.
Free-Run refreshing only. NX unit power 1.25 W max on NX102 / NX502 CPU, 0.90 W max on Coupler. No external connection terminals - safety I/O lands through FSoE on NX-SID800, NX-SIH400 input slices and NX-SOD400, NX-SOH200 output slices. 30 x 100 x 71 mm, 75 g. IP20. 0 to 55 C ambient. For larger safety systems step up to NX-SL3500.
Key Features
- NX-series Safety CPU Unit with 32 FSoE master connections and up to 256 safety I/O points on the NX I/O bus
- SIL 3 (IEC 61508, IEC 62061) and PLe / Category 4 (EN ISO 13849-1) for emergency stop, safety gate, and light-curtain applications
- 512 KB program capacity, Free-Run refreshing, NX unit power 1.25 W max on CPU / 0.90 W max on Coupler, 24 VDC via NX bus
- Sits on NX-ECC201 / NX-ECC202 / NX-EIC202 Coupler or on an NX102 CPU; safety I/O lands via NX-SID800, NX-SIH400, NX-SOD400, NX-SOH200 slices
- SKU: NX-SL3300
- Series: NX-series Safety CPU Unit (NX-SL3 family) on NX I/O Bus
- I/O: 32 I/O
Best-Fit Applications
- Stand-alone safety island in a robot cell where NX-SL3300 on NX-EIC202 controls two NX-SID800 8-input slices and one NX-SOD400 4-output slice via FSoE
- Integrated safety on a packaging line where NX-SL3300 sits on NX-ECC202 next to an NX102-1200 and reads NX-SIH400 four-side light curtains on the operator doors
- Spare replacement on a CJ1W-SCU21 safety network where the original NX-SL3300 was lost and the Sysmac Studio project backup holds the FSoE node map
Buying Checklist
- Pick the NX-SL3300 when the safety network needs up to 256 safety I/O points on 32 FSoE connections on a 30 mm wide NX slice.
- Pick the NX-SL3500 instead when the safety network needs up to 1024 safety I/O points on 128 FSoE connections with 2048 KB program capacity.
- Pick the G9SA-301 AC-DC24 safety relay instead when the safety function is a single emergency-stop loop with no FSoE network and no safety I/O slices.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | NX-series Safety CPU Unit (NX-SL3 family) on NX I/O Bus |
| Model / SKU | NX-SL3300 |
| Safety Integrity | SIL 3 (IEC 61508 parts 1-7, IEC 62061); PLe and Category 4 (EN ISO 13849-1, EN ISO 13849-2); shipbuilding NK, LK |
| Safety I/O Capacity | 32 FSoE master connections; 32 safety I/O connections; up to 256 safety I/O points; 0 CIP Safety originator/target connections |
| Program Capacity | 512 KB program memory; Sysmac Studio Safety Edition Ver. 1.07 or higher |
| Communication | Safety over EtherCAT (FSoE) on the NX I/O bus; CIP Safety not supported; no external connection terminals |
| Refreshing | Free-Run refreshing only |
| Connection / Power | Plugs onto NX-ECC201 / NX-ECC202 / NX-ECC203 EtherCAT Coupler or NX-EIC202 EtherNet/IP Coupler, or onto NX102 / NX502 CPU right side; 24 VDC via NX bus |
| Unit Power | Connected to NX102 / NX502 CPU: 1.25 W max; Connected to NX-ECC20[] Coupler or NX-EIC202 Coupler: 0.90 W max; no I/O power terminals |

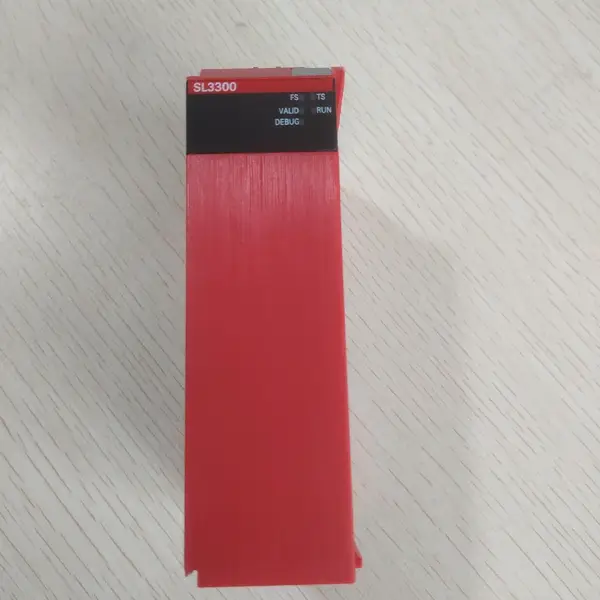

| Indicators | FS, VALID, DEBUG, TS, RUN LED indicators on the front face |

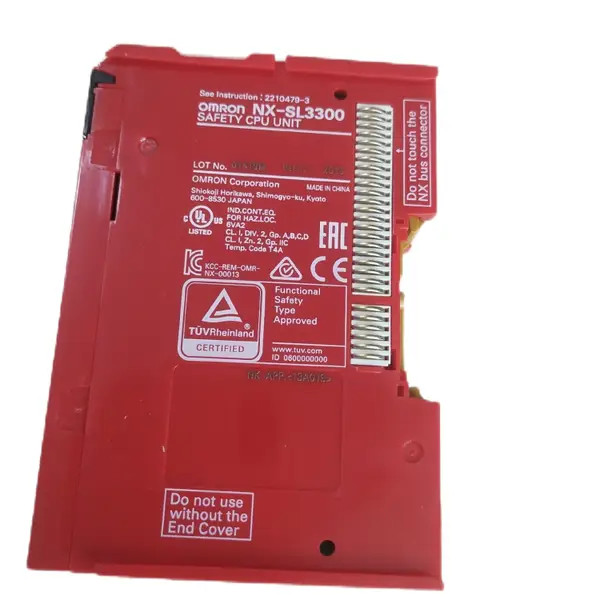

| Dimensions / Approvals | 30 (W) x 100 (H) x 71 (D) mm; 75 g max; IP20; 0 to 55 C ambient; CE, cULus (UL 508, ANSI/ISA 12.12.01), TUV Rheinland, RCM, KC |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for NX-SL3300
What is the Omron NX-SL3300 used for?
It is the NX-series Safety CPU Unit that runs the safety logic on the NX I/O bus. Typical uses are stand-alone safety islands in a robot cell, integrated safety on a packaging line where the NX-SL3300 sits next to an NX102-1200, and spare replacement on a safety network where the Sysmac Studio project backup holds the FSoE node map.
NX-SL3300 vs NX-SL3500 - what is the difference?
Both are NX-series Safety CPU Units with SIL 3 / PLe Cat 4. The NX-SL3300 supports 32 FSoE master connections, up to 256 safety I/O points, and 512 KB program capacity. The NX-SL3500 supports 128 FSoE master connections, up to 1024 safety I/O points, and 2048 KB program capacity. Both can sit on an NX102 CPU, NX-ECC20[] Coupler, or NX-EIC202 Coupler. Pick the NX-SL3300 for small to medium safety systems; pick the NX-SL3500 for large safety systems with many FSoE nodes.
What safety I/O units work with the NX-SL3300?
NX-SID800 (8 safety inputs + 2 test outputs, 12 mm wide), NX-SIH400 (4 safety inputs + 2 test outputs, 12 mm wide), NX-SOD400 (4 safety outputs 0.5 A per point, 12 mm wide), and NX-SOH200 (2 safety outputs 2.0 A per point, 12 mm wide). All communicate with the NX-SL3300 over FSoE on the NX I/O bus. The I/O points count toward the 256-point total.
Does the NX-SL3300 work with a non-Omron EtherCAT master?
No. The NX-SL3300 sits on an NX-ECC201 / NX-ECC202 / NX-ECC203 EtherCAT Coupler, and the coupler needs an Omron Sysmac master (NX102 / NX502 CPU or NJ-series controller) as the FSoE host. For a non-Omron EtherCAT master, the FSoE stack is not supported. For a stand-alone safety island with no Sysmac master on the same network, use the NX-SL3300 on an NX-EIC202 EtherNet/IP Coupler as a stand-alone safety controller.
How do I program the NX-SL3300?
In Sysmac Studio Safety Edition Ver. 1.07 or higher. Add the NX-SL3300 under Configurations - CPU Rack or EtherCAT, register each FSoE slave (NX-SID800, NX-SOD400, etc.) under the Safety I/O tab, and write the safety logic with the safety function blocks. Download and verify online. The right-side LED indicates FS (FSoE state), VALID (configuration match), DEBUG, TS, and RUN.
