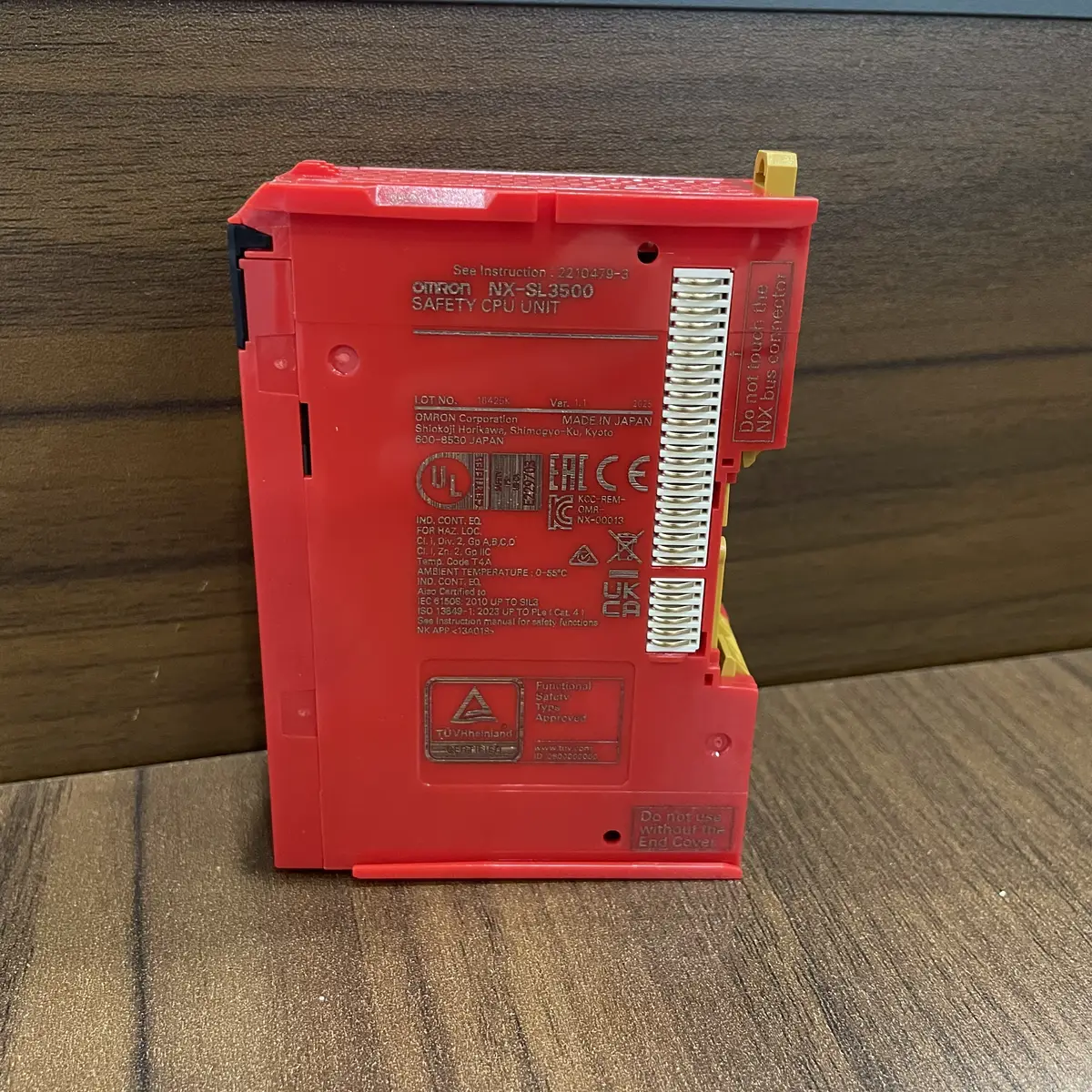

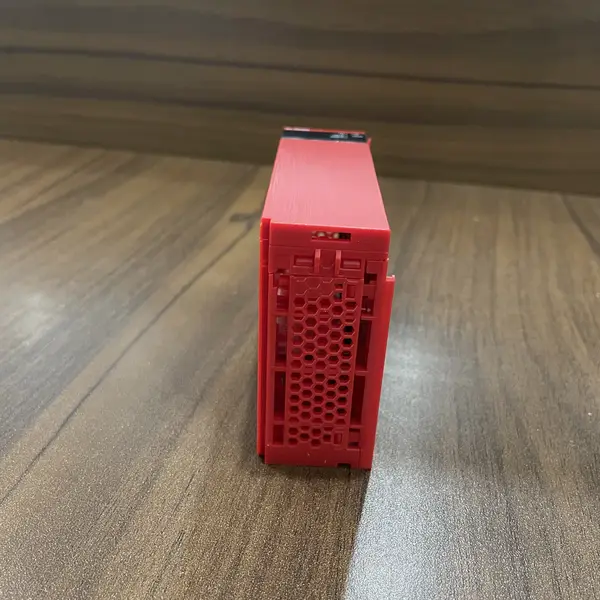

Omron NX-SL3500 — NX Safety CPU, 1024 I/O, 2 MB
SKU: NX-SL3500USD 470.00
NX safety CPU, 1024 safety I/O, 128 FSoE masters, 2 MB memory, SIL 3 / PLe. In stock, China.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NX-SL3500 is an NX-series safety CPU unit for mid-to-large machine cells It is manufactured by Omron Corporation. Hengyixin Automation stocks this safety device in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. Specifications on this page were checked against Omron's NX-series I/O System brochure (R183).
The unit handles up to 1024 safety I/O points and 128 Safety-over-EtherCAT (FSoE) master connections. Program memory is 2 MB, certified to SIL 3 / PLe Cat 4 under IEC 61508 and EN ISO 13849-1.
For a smaller safety build, pick the NX-SL3300 with 256 I/O points and 512 KB of program memory. Key specs: Safety I/O Points 1024 points maximum; FSoE Master Connections 128 (Safety over EtherCAT); Program Memory 2048 KB (2 MB); Safety Rating SIL 3 (IEC 61508), PLe Cat 4 (EN ISO 13849-1); I/O Refreshing Free-Run refreshing; Indicators FS, VALID, DEBUG, TS and RUN LEDs; Dimensions 30 x 100 x 71 mm, 75 g; NX Bus Power 0.90 W (Coupler) / 1.25 W (CPU-connected).
Key Features
- NX-series safety CPU unit, 1024 safety I/O, 128 FSoE masters
- 2 MB program memory, SIL 3 / PLe Cat 4 certified
- Connects to NX-ECC201 / NX-ECC202 EtherCAT Coupler
- 30 x 100 x 71 mm, 75 g, 0.90 W NX bus power
- SKU: NX-SL3500
- Series: NX-series safety CPU unit
- I/O: 1024 points
Best-Fit Applications
- Packaging machine with safety zone control and Safe Speed monitoring over FSoE drives running on EtherCAT.
- Pharmaceutical or food line needing multiple independent safety zones split cleanly across FSoE master connections.
- Mid-size robotic cell with safety scanners, light curtains and interlocks spread across 30+ stations and zones.
Buying Checklist
- Confirm NX-SID800 safety input units for E-stops and gate switches, plus NX-SOD400 for safety outputs.
- Choose the NX-SL3300 instead when the safety zone count stays small and 256 points is enough.
- Choose the NX-SL3500 when the safety program needs more than 256 I/O points or 32 FSoE connections.
Technical Specifications
| Series | NX-series safety CPU unit |
|---|---|
| Safety I/O Points | 1024 points maximum |
| FSoE Master Connections | 128 (Safety over EtherCAT) |
| Program Memory | 2048 KB (2 MB) |
| Safety Rating | SIL 3 (IEC 61508), PLe Cat 4 (EN ISO 13849-1) |
| I/O Refreshing | Free-Run refreshing |
| Indicators | FS, VALID, DEBUG, TS and RUN LEDs |
| Dimensions | 30 x 100 x 71 mm, 75 g |
| NX Bus Power | 0.90 W (Coupler) / 1.25 W (CPU-connected) |
| Mounting | DIN rail IEC 60715 TH35-7.5 / TH35-15 |
| Operating Temperature | 0 to 55 degC, 10 to 95 percent RH |
| Approvals | TUV Rheinland, UL, cULus, NK, LR, KC |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for NX-SL3500
How many safety I/O points does the NX-SL3500 support?
Up to 1024 safety I/O points across 128 FSoE master connections. Each NX-SID800 adds 8 inputs; each NX-SOD400 adds 4 outputs. Mix and match with standard NX I/O on the same EtherCAT Coupler for a single-cable safety and standard control system.
Does the NX-SL3500 connect directly to the NX EtherCAT Coupler?
Yes - the SL3500 mounts on an NX-ECC201 or NX-ECC202 EtherCAT Coupler on the DIN rail. It cannot mount directly on an NX102 CPU; route the safety CPU through a Coupler instead. The SL3500 does not run on an NX-EIC202 EtherNet/IP Coupler per the official compatibility matrix.
What software configures the NX-SL3500?
Sysmac Studio V1.10 or later handles safety logic, FSoE connections and verification. Programming is in function block diagram with safety function blocks from the Sysmac library. Online monitoring of the safety program runs alongside the standard NJ / NX ladder program.
Is the NX-SL3500 SIL 3 rated?
Yes - SIL 3 per IEC 61508 and Performance Level e Category 4 per EN ISO 13849-1. The certification applies to the full safety chain including the connected NX-SID800 inputs and NX-SOD400 outputs. TUV Rheinland and UL 1998 / UL 508 are the primary approvals.
