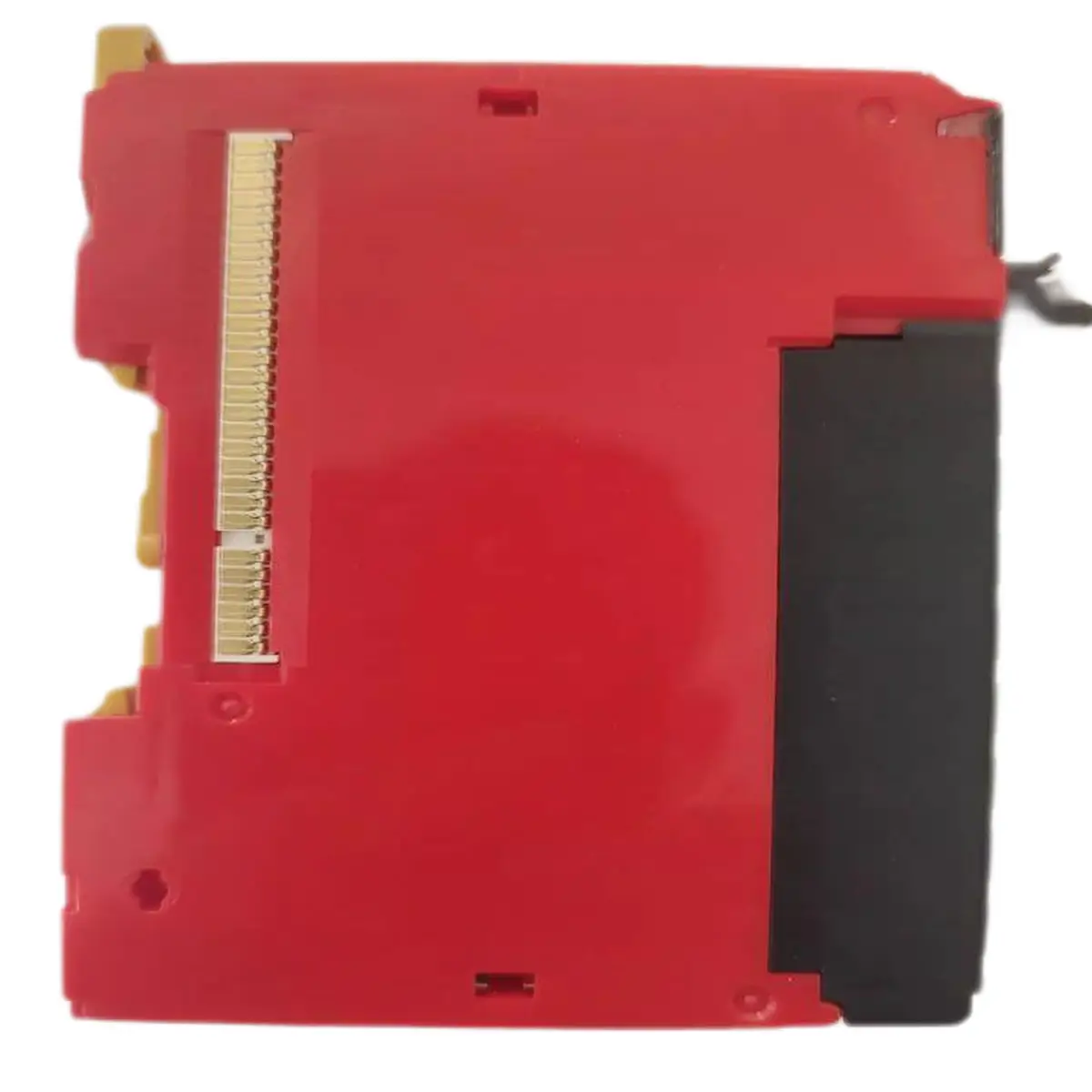

Omron NX-SOD400 — NX Safety Output, 4-Point PNP, 24 VDC
SKU: NX-SOD400USD 128.00
NX safety output, 4-point PNP, 0.5 A/point (2 A/unit), 24 VDC, 12 mm wide. PLe / Cat 4 / SIL 3 with NX-SL Safety CPU.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The NX-SOD400 is a 4-point safety output module for an NX-series EtherCAT slice. Each point is a 24 VDC PNP output rated at 0.5 A, with a total of 2 A per unit. Wire a redundant pair of outputs to a safety contactor coil and you get PLe / Category 4 / SIL 3 — the level most European and global machine builders target. The unit runs internal cross-fault checks on each output every cycle so ground or short faults are caught immediately.
Where it fits in a safety panel
Use the NX-SOD400 in panels that need four safe outputs — typically a robot-cell controller driving the robot stop, a door-lock release, an EDM (External Device Monitoring) input, and one spare. It pairs only with NX-SL Safety CPUs (SL3300 up to 16 safe I/O, SL3500 up to 32, SL5500 up to 128). It does not work with the regular NX102, NX502, or NX1P2 non-safety CPUs.
Getting the safety classification right
Two redundant outputs wired and cross-fault monitored together give PLe / Cat 4. A single wired-only output drops to Cat 1 / PL c, which is rarely the level you want. The wiring diagrams in the NX-series Safety Control Unit manual (z930) show the certified configurations for Cat 4. If you need higher current per output (2 A instead of 0.5 A) but only two outputs, use the NX-SOH200 instead.
Before ordering or installing
Order a matching NX-SL Safety CPU (SL3300, SL3500, or SL5500) — the NX-SOD400 does not work with non-safety NX CPUs. Plan the slice unit-power budget: high-density safety I/O can exhaust the coupler, in which case add an NX-PD1000. Use the manual's wiring diagrams to wire each redundant output pair; do not rely on a single output for Cat 4.
Key Features
- 4 safety outputs, 24 VDC PNP sourcing
- 0.5 A per point, 2 A per unit
- PLe / Cat 4 / SIL 3 when properly wired and monitored
- 12 mm wide — same as standard NX I/O units
- Screwless push-in terminals
- Pairs with NX-SL3300 / SL3500 / SL5500 Safety CPU
- Safety over EtherCAT (FSoE) or CIP Safety protocol
- SKU: NX-SOD400
- Series: NX-series safety I/O
- I/O: 4 I/O
Best-Fit Applications
- Robot-cell safety stop outputs
- Muting-light-curtain safety panel
- Body-in-white welding cell stop circuits
- Two-station e-stop replacement for G9SB panels
Buying Checklist
- Pick NX-SOD400 for 4-pt PNP safety output at 0.5 A/point (this SKU)
- Pick NX-SOH200 for 2-pt at 2 A/point when current is the limit
- Match with NX-SL3300 (≤16 safe I/O) or SL3500 (≤32 safe I/O)
- Add NX-PD1000 if the slice unit-power budget runs out
- Wire both outputs of each redundant pair for PLe / Cat 4
Technical Specifications
| Model | NX-SOD400 |
|---|---|
| Series | NX-series safety I/O |
| Outputs | 4 × 24 VDC PNP sourcing |
| Rated Load | 0.5 A per point, 2 A per unit |
| Safety Integrity | PLe / Cat 4 / SIL 3 (when properly wired) |
| Connection | Screwless push-in, 4-wire |
| Required CPU | NX-SL3300, SL3500, or SL5500 Safety CPU |
| Mounting | 35 mm DIN rail |
| Width | 12 mm |
| Operating Temperature | 0 to +55 °C |
Resources & Downloads
FAQ for NX-SOD400
What is the difference between NX-SOD400 and NX-SOH200?
Both are NX safety outputs with PNP sourcing at 24 VDC. NX-SOD400 (this SKU) has 4 outputs at 0.5 A per point and 2 A per unit. NX-SOH200 has 2 outputs at 2 A per point and 4 A per unit. Pick the SOD400 when you need four outputs of normal safety contactor current. Pick SOH200 when you need to drive a high-inrush load or a stack of indicator lamps.
Which Safety CPU do I need?
An NX-SL Safety CPU. SL3300 supports up to 16 safe I/O points, SL3500 up to 32, SL5500 up to 128. The NX-SOD400 cannot operate on NX102, NX502, NX1P2, or other non-safety NX CPUs — the safety protocol (FSoE or CIP Safety) requires the dedicated SafetyLogic CPU.
Can I use this as a regular output?
No. The NX-SOD400 only works under an NX-SL Safety CPU using FSoE or CIP Safety. For non-safety PNP outputs in an NX slice, use NX-OD4121 or NX-OD4256. You can mix safety and standard I/O in the same slice, but only via the right products.
What is the maximum load per point?
0.5 A continuous per point, with a total 2 A per unit. The on-state residual voltage is 1.2 V and the off-state leakage is 1 mA per point. A standard safety contactor coil pulls in well under 0.5 A, so 0.5 A is usually enough. If your load exceeds this, switch to NX-SOH200 (2 A per point) rather than adding a second NX-SOD400.
