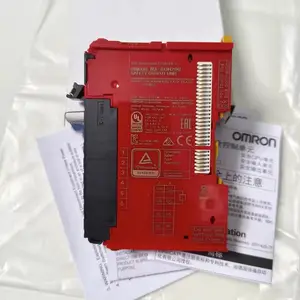

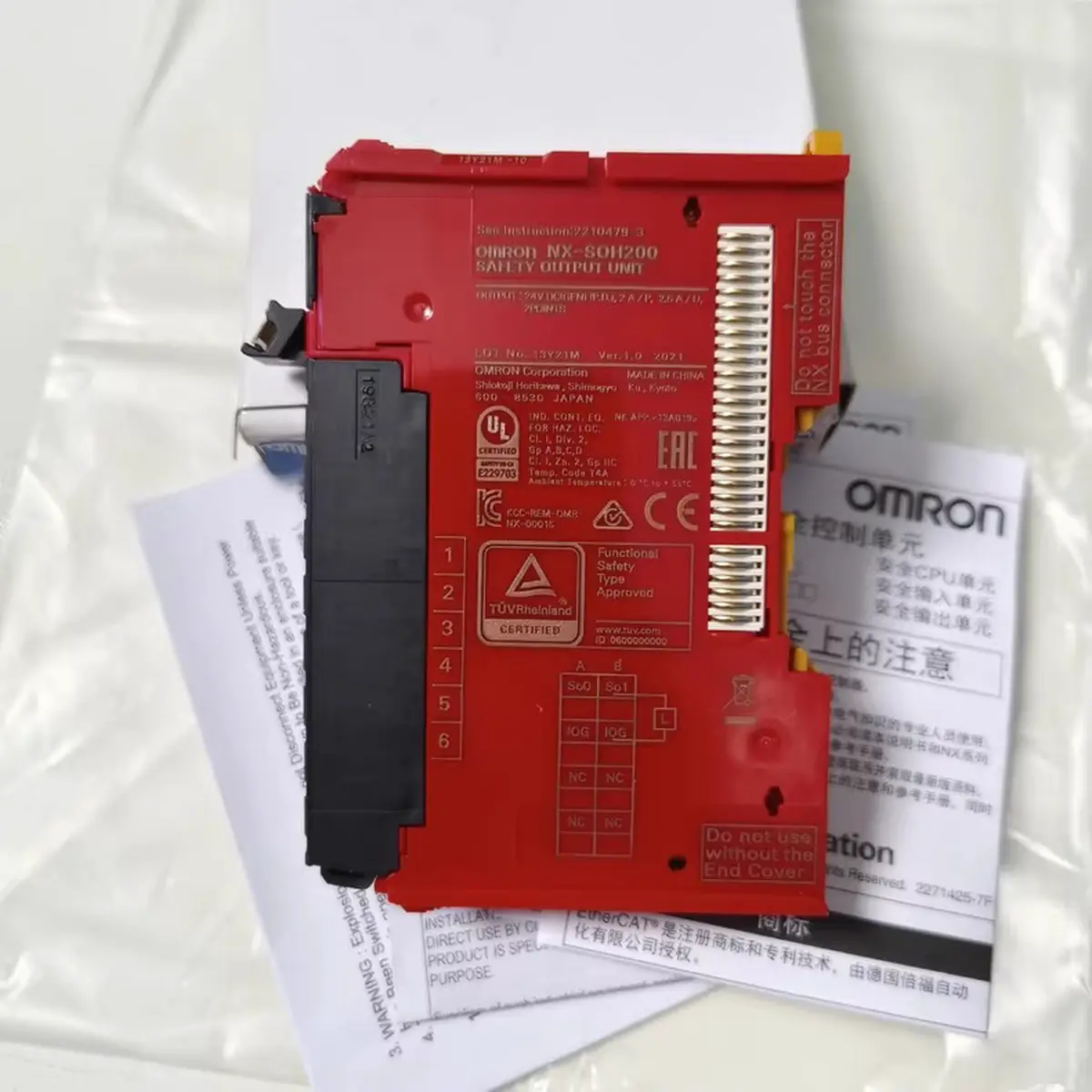

Omron NX-SOH200 — Safety Output, 2 PNP, 2.0 A, SIL 3
SKU: NX-SOH200USD 140.00
Omron NX-SOH200 NX safety output unit, 2 PNP points, 2.0 A per point, 24 VDC, SIL 3 / PLe Cat 4. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NX-SOH200 is a 2-point safety output unit from the NX-series safety I/O family, manufactured by Omron Corporation. Hengyixin Automation stocks this safety device in Xiamen and ships within 3-5 business days; safety-rated components ship with a batch-trace certificate. Specifications on this page were checked against Omron's NX-series I/O System brochure (R183).
The two safety outputs are PNP (sourcing) and switch up to 2.0 A per point, 4.0 A total at 40 degC and 2.5 A total at 55 degC. Rated voltage is 24 VDC 20.4 to 28.8 V. The screwless push-in 8-terminal connector handles the output wiring. ON residual is 1.2 V max, OFF leakage 0.1 mA max, phot coupler isolation.
The unit is SIL 3 per IEC 61508 and PLe Category 4 per EN ISO 13849-1. It draws 1.05 W max from the NX bus. The body is 12 x 100 x 71 mm, 90 g. It mounts on an NX-series CPU or Safety Control Unit. For 4 safety outputs, use the NX-SOD400. For 8 safety inputs, use the NX-SID800.
Key Features
- NX-series safety output unit, 2 PNP (sourcing) safety output points
- 2.0 A per point, 4.0 A total at 40 degC, 24 VDC 20.4 to 28.8 V rated
- SIL 3 per IEC 61508, PLe Category 4 per EN ISO 13849-1
- Screwless push-in 8-terminal connector, 12 x 100 x 71 mm, 90 g
- SKU: NX-SOH200
- Series: Omron NX-series safety I/O output unit
- Voltage: 24 VDC
Best-Fit Applications
- Driving a safety contactor coil and a guard-door lock on a robotic cell where the 2.0 A per point covers both loads from one NX-SOH200
- Safe-shutdown output on a packaging line where the two PNP points feed two independent stop circuits and meet the CE risk assessment
- Spare replacement on an existing NX-SOD400 application where the cell needs to scale down to 2 safety outputs without changing the rack
Buying Checklist
- Pick the NX-SOH200 for a 2-point PNP safety output on the NX bus rated SIL 3 / PLe Cat 4 and 2.0 A per point.
- Pick the NX-SOD400 instead when the application needs 4 safety outputs at 0.5 A per point on the same NX bus.
- Pick the NX-SID800 instead when the panel needs 8 safety inputs (light curtains, e-stops, guard switches) on the same NX bus.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron NX-series safety I/O output unit |
| Model / SKU | NX-SOH200 |
| Safety Outputs | 2 PNP (sourcing) |
| Load Current | 2.0 A per point; 4.0 A total at 40 degC; 2.5 A total at 55 degC |
| Rated Voltage | 24 VDC (20.4 to 28.8 VDC) |
| ON / OFF Residual | 1.2 V max ON; 2 V max OFF residual; 0.1 mA max OFF leakage |
| I/O Connection | Screwless push-in, 8 terminals |
| Isolation | Photocoupler; 20 MOhm at 100 VDC; 510 VAC 1 min dielectric |
| Functional Safety | SIL 3 per IEC 61508; PLe Category 4 per EN ISO 13849-1 |
| NX Bus Power | 1.05 W max |
| Dimensions / Weight | 12 (W) x 100 (H) x 71 (D) mm; 90 g |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for NX-SOH200
Is the NX-SOH200 SIL 3 rated?
Yes. The NX-SOH200 is certified to SIL 3 per IEC 61508 and Performance Level e Category 4 per EN ISO 13849-1. The unit achieves this through redundant output channels, internal cross-checking and the standard NX-series safety diagnostics.
What Safety CPU does the NX-SOH200 need?
An NX-SL3300 (32 I/O), NX-SL3500 (96 I/O) or NX-SL5500 (1024 I/O) Safety CPU. The unit also works on an NJ-series NX-ECC201 / NX-ECC202 EtherCAT coupler driven by a third-party safety master.
What do the LED indicators on the NX-SOH200 mean?
TS (green) = NX bus traffic normal. FS (red) = a safety-related fault. OUT (yellow) = the safety output is ON. OUT ERR (red) = output error such as overcurrent or ground fault.
Can I parallel the two outputs of the NX-SOH200?
No. The two outputs are independent safety channels and should drive separate safety loads, not the same load in parallel. Paralleling them would defeat the dual-channel safety architecture.
