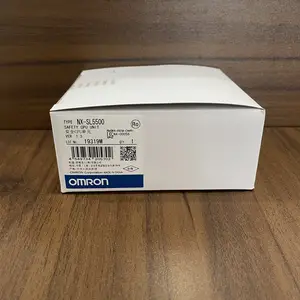

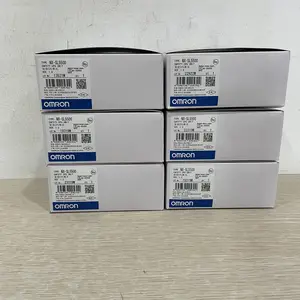

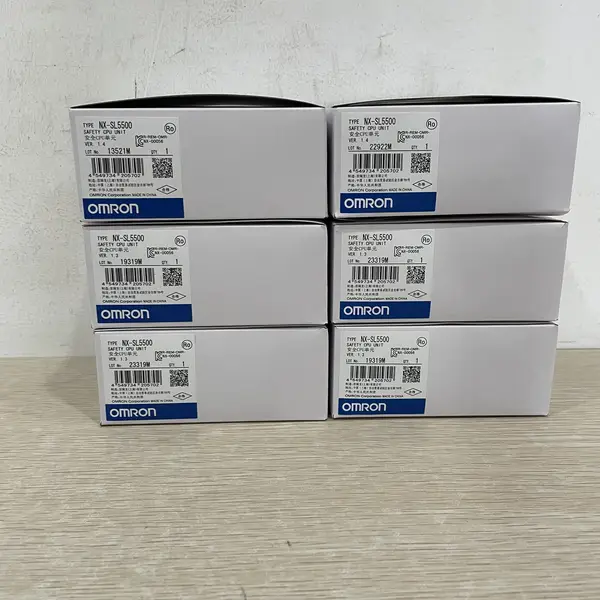

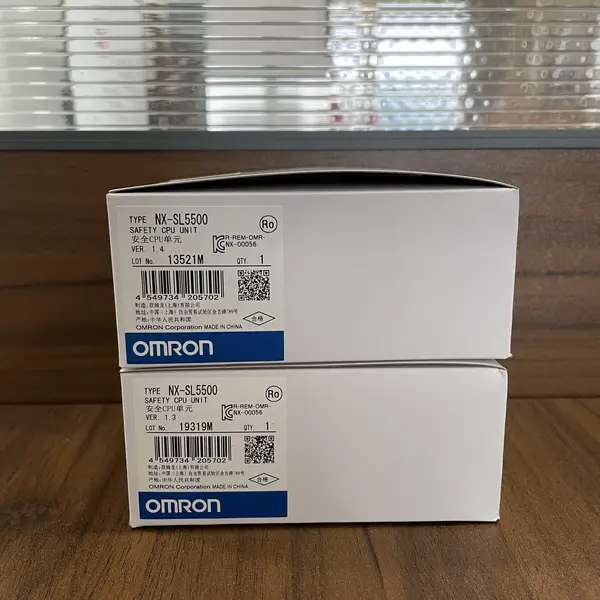

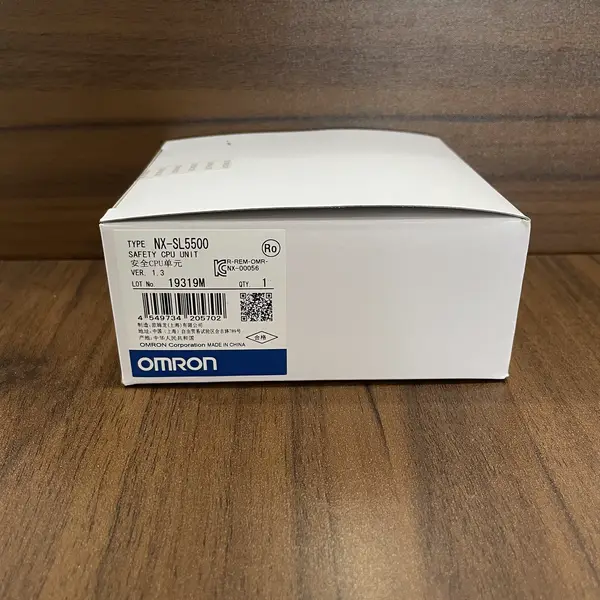

Omron NX-SL5500 — Safety CPU, 1024 I/O, SIL3
SKU: NX-SL5500USD 1050.00
Omron NX-SL5500 NX-series Safety CPU, 1024 safety I/O, CIP-Safety + FSoE, 2 MB program, SIL3 / PLe. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

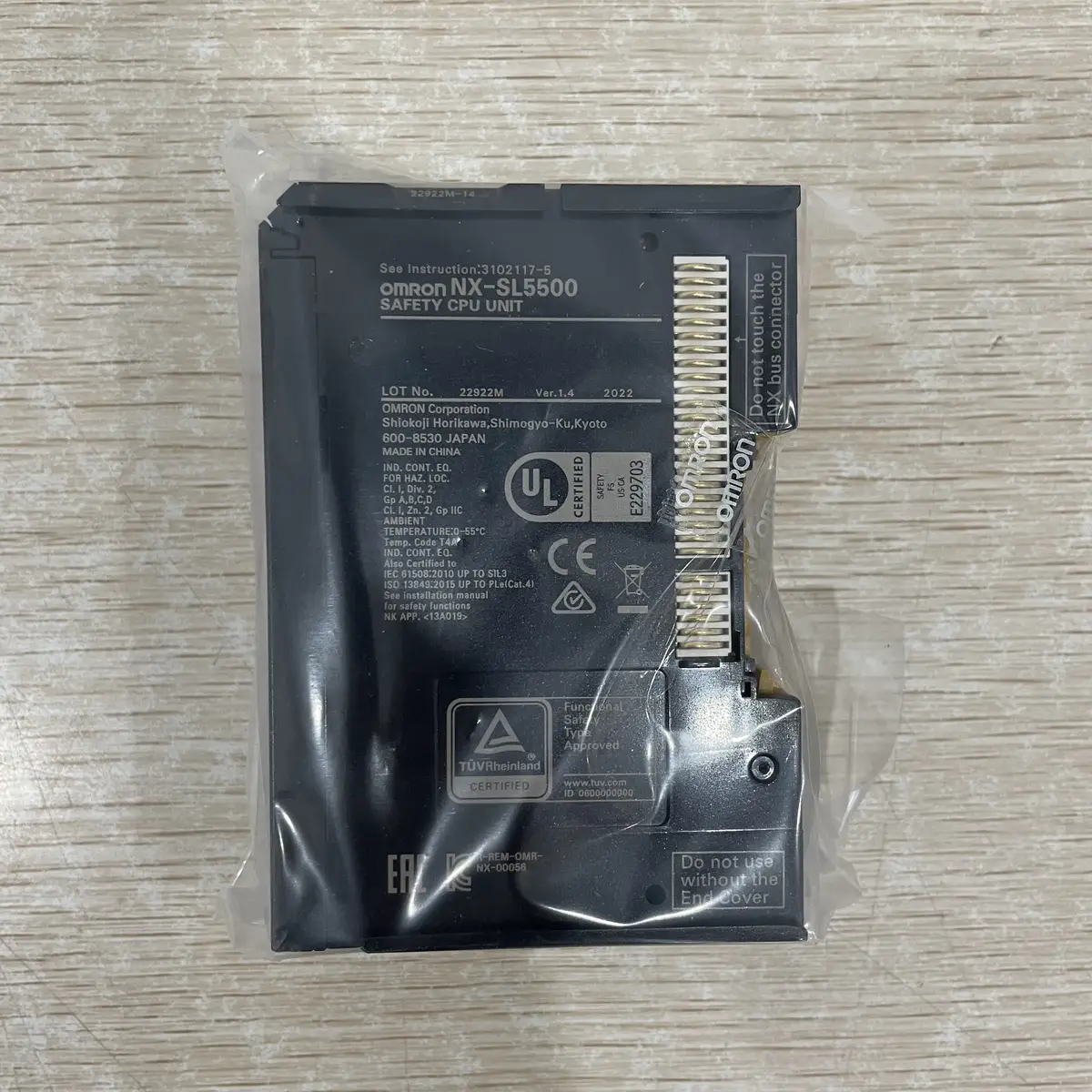

The Omron NX-SL5500 is an NX-series Safety CPU Unit, manufactured by Omron Corporation. Hengyixin Automation stocks this safety device in Xiamen and ships within 3-5 business days; safety-rated components ship with a batch-trace certificate. Specifications on this page were checked against Omron's NX-series I/O System brochure (R183).
The unit runs a safety logic program certified to SIL 3 per IEC 61508 and PLe Category 4 per EN ISO 13849-1. Up to 1024 safety I/O points connect through 128 safety master connections. The unit supports CIP Safety on EtherNet/IP and FSoE master on EtherCAT in the same program, so a single Safety CPU can interlock EtherNet/IP devices and EtherCAT safety slaves.
Program memory is 2048 KB. The unit runs Free-Run refreshing refreshing and supports SD card backup and restore of the safety project. Power consumption is 3.35 W max from the NX bus. The body is 30 x 100 x 71 mm, 130 g. Mounts on an NX-series CPU rack under an NX102 / NX502 / NX1P2 CPU or an NX-CSG320 Communication Control Unit.
Key Features
- NX-series Safety CPU Unit, SIL 3 per IEC 61508, PLe Cat 4 per EN ISO 13849-1
- Up to 1024 safety I/O points through 128 safety master connections
- CIP-Safety on EtherNet/IP + FSoE master on EtherCAT in one program
- 2048 KB program memory, Free-Run refreshing, SD card backup / restore
- SKU: NX-SL5500
- Series: Omron NX-series Safety Control Unit (NX-SL5)
- I/O: 1024 points
Best-Fit Applications
- Robotic welding cell where the NX-SL5500 interlocks the light curtain and the safety door over FSoE and reports to the NJ CPU over CIP-Safety
- Modular packaging line where the same Safety CPU serves three machine cells over CIP-Safety on EtherNet/IP and 32 local NX safety I/O units
- Spare replacement on an existing NX-SL3 application where the cell needs to scale up to 1024 safety I/O without changing the rack
Buying Checklist
- Pick the NX-SL5500 for an NX Safety CPU with 1024 safety I/O, 128 safety master connections and CIP-Safety + FSoE on one program.
- Pick the NX-SL3500 instead when the application needs only 96 safety I/O and 32 master connections on the same NX bus.
- Pick the NX-CSG320 Communication Control Unit instead when the cabinet needs a non-safety EtherNet/IP + EtherCAT master that the NX-SL5500 can pair with.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron NX-series Safety Control Unit (NX-SL5) |
| Model / SKU | NX-SL5500 |
| Functional Safety | SIL 3 per IEC 61508; PLe Cat 4 per EN ISO 13849-1 |
| Maximum Safety I/O | 1024 points |
| Program Capacity | 2048 KB |
| Safety Master Connections | 128 (CIP-Safety + FSoE) |
| CIP-Safety Originator Connections | 128 |
| FSoE Master Connections | 128 |
| Signal Processing | Free-Run refreshing |
| Backup / Restore | SD card slot |
| Dimensions / Weight | 30 (W) x 100 (H) x 71 (D) mm; 130 g; 3.35 W max from NX bus |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for NX-SL5500
What is the difference between NX-SL5500 and NX-SL5700?
Both are NX-series Safety CPUs. The NX-SL5500 supports 1024 safety I/O points and 128 master connections. The NX-SL5700 supports 2032 safety I/O points and 254 master connections. Pick the 5700 for larger lines.
Does the NX-SL5500 run both EtherNet/IP CIP-Safety and EtherCAT FSoE?
Yes. The unit has one CIP-Safety originator port on EtherNet/IP and one FSoE master port on EtherCAT, both running in the same safety program. It can interlock safety devices on both networks simultaneously.
Which CPU pairs with the NX-SL5500?
Mounts on an NX-series rack under an NX102, NX502 or NX1P2 CPU, or under an NX-CSG320 Communication Control Unit. The safety logic programs in Sysmac Studio Safety Edition.
How many safety I/O units can the NX-SL5500 host locally?
Up to 32 local NX safety I/O units on the same NX bus (NX-SID safety inputs, NX-SOH / NX-SOD safety outputs). The 1024-point cap is the sum of local I/O plus remote FSoE / CIP-Safety connections.
How is the NX-SL5500 different from the NX-SL3300?
The NX-SL3300 supports only 32 safety I/O points and 32 safety connections. The NX-SL5500 supports 1024 safety I/O points and 128 connections. Both run CIP-Safety and FSoE. The SL3300 is for small cells; the SL5500 for full production lines.
