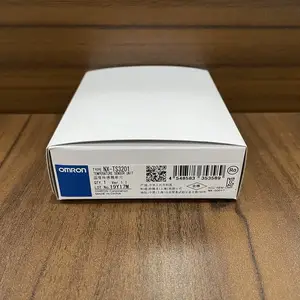

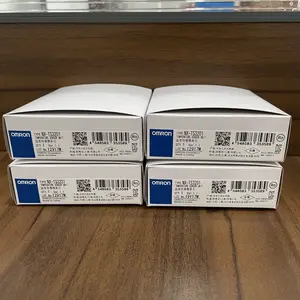

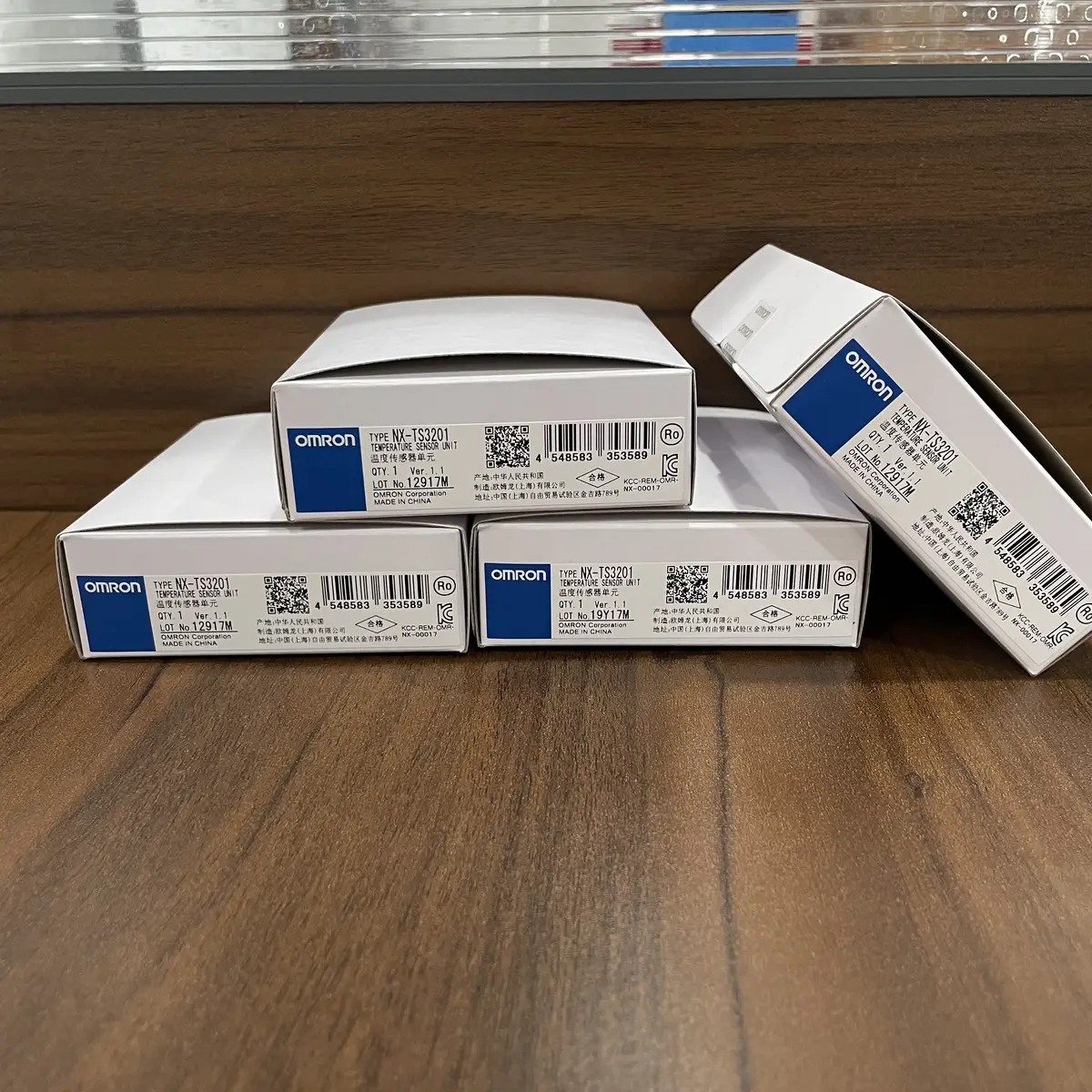

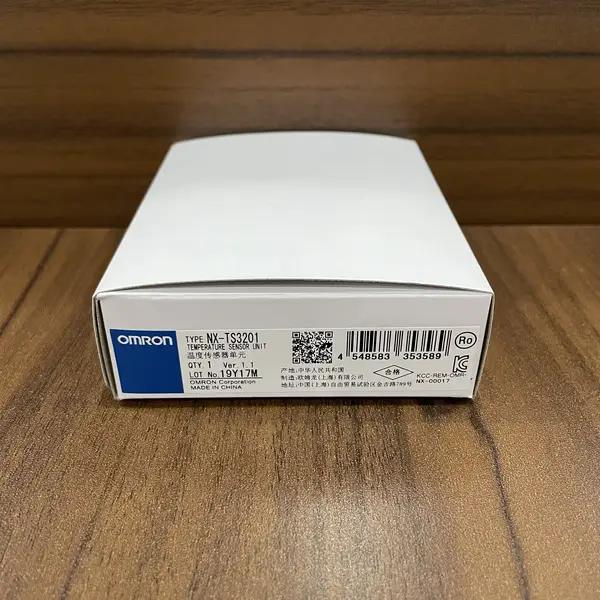

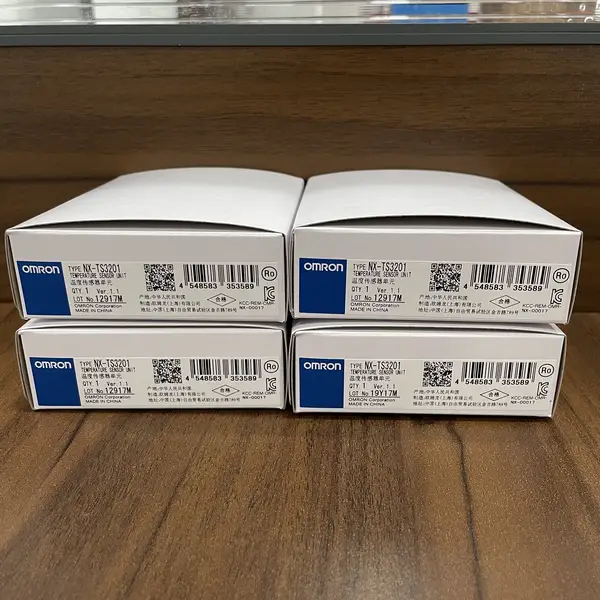

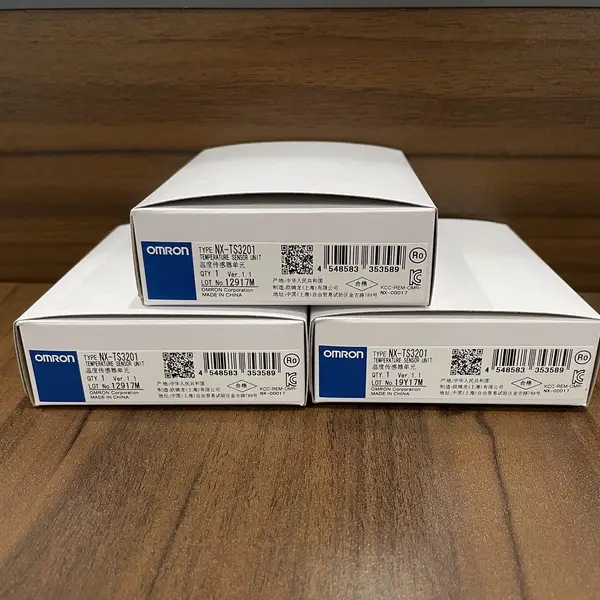

Omron NX-TS3201 — 4-Ch RTD Input, Pt100 / Pt1000
SKU: NX-TS3201USD 224.00
Omron NX-TS3201 NX temperature input, 4 Pt100/Pt1000 3-wire, 0.1 C, 250 ms. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NX-TS3201 is a temperature input unit from the NX-series I/O family, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
The unit reads 4 RTD sensors (Pt100 or Pt1000, 3-wire) with 0.1 C resolution and 250 ms conversion across all 4 channels. Input detection current is around 0.25 mA per channel. Reference accuracy over -200 to +850 C is +/-1.0 C from -200 to +300 C, +/-2.0 C from +300 to +700 C, and +/-2.5 C from +700 to +850 C.
Conductor-resistance effect is 0.06 C/Ohm max at 20 Ohm max. I/O refresh is free-run only. Photocoupler and transformer isolation separates inputs from the NX bus. Warm-up 10 minutes. Power consumption 1.75 W max on CPU or 1.30 W max on coupler. For thermocouple inputs (J, K, R, S, T), pick the NX-TS3101; for 4-point closed-loop PID control, the NX-TC3405. Programming is in Sysmac Studio.
Key Features
- NX-series temperature input unit, 4 channels Pt100 or Pt1000 RTD (3-wire), 0.1 C resolution
- 250 ms conversion time per unit (all 4 channels), 0.25 mA detection current per channel
- Reference accuracy +/-1.0 C from -200 to +300 C, +/-2.5 C from +700 to +850 C
- Free-run I/O refreshing, transformer + photocoupler isolation, 24 mm wide, 140 g, IP20
- SKU: NX-TS3201
- Series: Omron NX-series temperature input unit (RTD)
- I/O: 4 I/O
Best-Fit Applications
- Multi-zone oven where 4 Pt100 probes monitor 4 heating zones and report every 250 ms to the NX102 controller for closed-loop trim
- Cold-chain warehouse where Pt1000 sensors on 4 air-handling units feed temperature data to a SCADA via the NX bus, no extra wiring
- Spare replacement on a heat-treat furnace where the previous 4-channel thermocouple unit has been upgraded to RTD for tighter accuracy
Buying Checklist
- Pick the NX-TS3201 for 4-channel RTD temperature input on the NX bus with 0.1 C resolution and 250 ms cycle.
- Pick the NX-TS3101 instead when the sensors are thermocouples (J, K, R, S, T) rather than RTDs.
- Pick the NX-TC3405 instead when the application needs 4 built-in PID control outputs for closed-loop temperature control.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron NX-series temperature input unit (RTD) |
| Model / SKU | NX-TS3201 |
| Number of Points | 4 RTD inputs |
| Sensor Type | Pt100 (3-wire) / Pt1000 (3-wire) |
| Resolution | 0.1 C max |
| Conversion Time | 250 ms per unit (all 4 channels) |
| Reference Accuracy | +/-1.0 C (-200 to +300 C), +/-2.0 C (+300 to +700 C), +/-2.5 C (+700 to +850 C) |
| Temperature Coefficient | +/-0.1 C/C (-200 to +300 C), up to +/-0.25 C/C (+700 to +850 C) |
| Conductor Resistance Effect | 0.06 C/Ohm max at 20 Ohm max lead resistance |
| I/O Refreshing | Free-run refreshing only |
| Connection / Environment | Two 16-terminal detachable screwless push-in connectors, IP20, 0 to 55 C, 24 (W) x 100 (H) x 71 (D) mm, 140 g |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for NX-TS3201
What sensors work with the NX-TS3201?
Any 3-wire Pt100 or Pt1000 RTD. Two-wire and 4-wire RTDs are not supported on this unit; for thermocouple sensors (J, K, R, S, T) use the NX-TS3101 sibling.
How fast does the NX-TS3201 convert?
250 ms per unit, covering all 4 channels in a single scan. This sets the temperature loop cycle at the controller side. For faster 10 ms scans on Pt100 only, pick the NX-TS3202.
Does the NX-TS3201 need warm-up time?
Yes. The published accuracy spec assumes a 10 minute warm-up period after power-on. Allow that before trusting readings in cold-start scenarios.
What is the accuracy of the NX-TS3201?
Reference accuracy is +/-1.0 C from -200 to +300 C, +/-2.0 C from +300 to +700 C, and +/-2.5 C from +700 to +850 C. This is the unit accuracy, plus the effect of lead resistance (0.06 C/Ohm at 20 Ohm max).
Can the NX-TS3201 run on an EtherCAT coupler?
Yes. The NX-TS3201 mounts on any NX-series CPU backplane (NX102, NX1P2, NJ-series) or on an NX-ECC EtherCAT coupler. Power consumption drops to 1.30 W max on a coupler vs 1.75 W max on a CPU.
