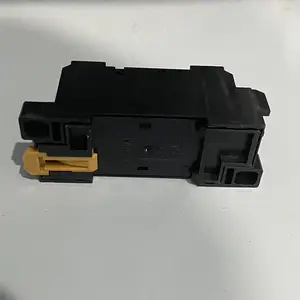

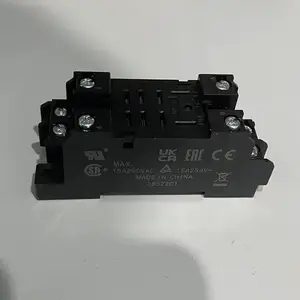

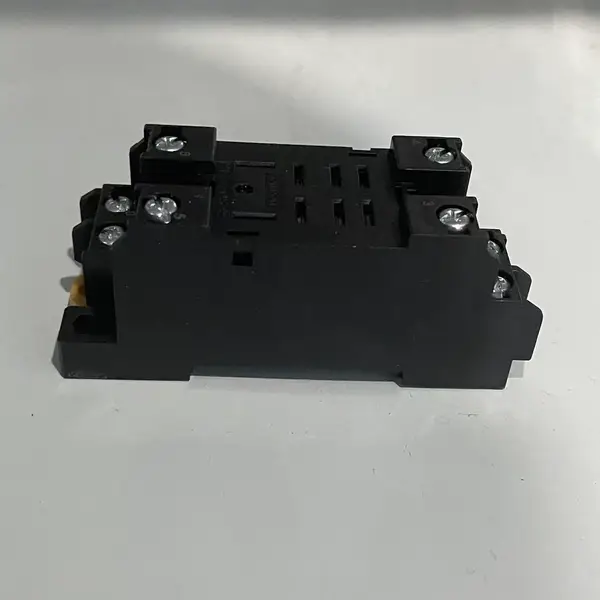

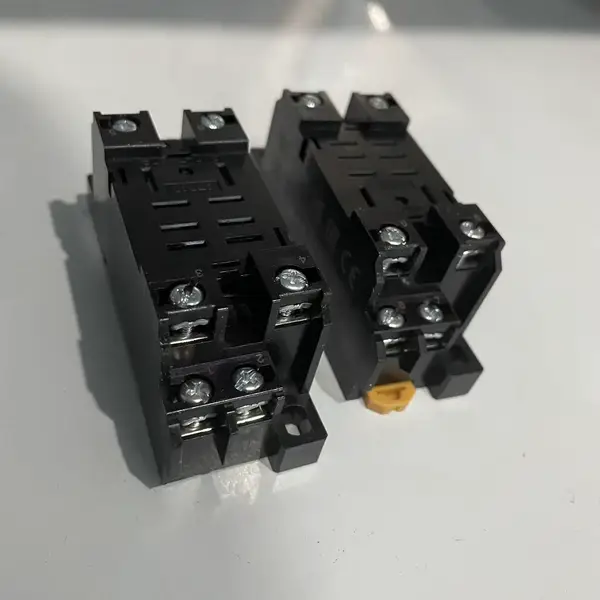

Omron PTFZ-08-E — 8-Pin Relay Socket, LY1/LY2
SKU: PTFZ-08-EUSD 2.00
Omron PTFZ-08-E 8-pin DIN-rail relay socket for LY1 / LY2 / G3H, screw terminals, 15 A, 250 VAC. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron PTFZ-08-E is the PTF-series 8-pin front-mount relay socket for the LY1, LY2 and G3H bi-power relay families, manufactured by Omron Corporation. Hengyixin Automation stocks this relay in Xiamen and ships within 3-5 business days in original Omron packaging with the lot code visible.
It accepts LY1, LY2 and G3H plug-in relays on M3.5 screw terminals rated 15 A carry current at 50 degrees C and 12 A at 70 degrees C. Rated insulation voltage is 250 VAC. Dielectric strength is 2500 VAC for 1 minute and insulation resistance is 1000 MOhm min at 500 VDC. A finger-protection barrier covers the live terminals.
Mounting is DIN rail or surface screw. Hold-down clip and release lever are sold separately. Forked ferrules only (round terminals are not supported). Approximate dimensions 28.5 x 78.5 x 33 mm. Approvals include CE, CSA LR31928, TUV EN 61984 and UL E87929. For 14-pin sockets use PYFZ-14-E. For 8-pin G2R round base use P2CF-08-E.
Key Features
- PTF-series 8-pin front-mount relay socket for LY1, LY2 and G3H bi-power relays, screw terminals (M3.5)
- 15 A carry current at 50 C, 12 A at 70 C, 250 VAC rated insulation voltage, dielectric 2500 VAC for 1 minute
- Finger-protection barrier over the screw terminals, DIN rail or surface-screw mounting, forked ferrules only
- Hold-down clip and release lever sold separately, 28.5 x 78.5 x 33 mm, CE / CSA / TUV EN 61984 / UL E87929
- SKU: PTFZ-08-E
- Series: Omron PTF-series relay sockets, 8-pin front-mount
- Voltage: 250 VAC
Best-Fit Applications
- Control panel interface-relay bay where 8-pin LY2N-J DC24 relays sit on PTFZ-08-E bases with screw terminals landing 24 VDC field inputs to a CJ2M PLC
- Spare replacement for a damaged LY-series socket on a maintenance shelf where the original PTFZ-08-E was lost during a relay swap
- G3H solid-state relay socket on a heater control sub-panel where the PTFZ-08-E base carries the screw-terminal wiring for SSR switching
Buying Checklist
- Pick the PTFZ-08-E for an 8-pin DIN-rail or surface-mount screw socket for LY1, LY2 or G3H relays with finger protection.
- Pick the P2CF-08-E instead when the relay is a G2R round-base 8-pin plug-in and the panel uses the round PTF-style base.
- Pick the PYFZ-14-E instead when the relay is a 14-pin MY4, MY2K, MY4-GS or H3YN timer and the panel uses the square-blade 14-pin layout.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron PTF-series relay sockets, 8-pin front-mount |
| Model / SKU | PTFZ-08-E |
| Pin Count | 8-pin, octal layout for LY1 / LY2 / G3H |
| Compatible Relays | Omron LY1, LY2, LY2-CR bi-power relays; G3H solid-state relay |
| Terminal Type | Screw terminals, M3.5 screws, forked ferrules only (round terminals not accepted) |
| Rated Voltage | 250 VAC insulation voltage |
| Rated Current | 15 A carry current at 50 C; 12 A at 70 C |
| Mounting | DIN rail (track) or surface screw mount |
| Dielectric / Insulation | Dielectric 2500 VAC for 1 minute; insulation resistance 1000 MOhm min at 500 VDC |
| Protection | Finger-protection barrier; hold-down clip not included (Y92H-3 sold separately); release lever not included |
| Environment / Wiring | -25 to 55 C operating; 78.5 (H) x 28.5 (W) x 33 (D) mm; black body; CE, CSA LR31928, TUV EN 61984, UL E87929 approvals |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for PTFZ-08-E
Which relays fit the PTFZ-08-E?
Omron LY1, LY2, LY2-CR bi-power relays and the G3H solid-state relay. The LY2 is the 8-pin DPDT; the LY1 is the 8-pin SPDT; the G3H is a solid-state version that uses the same 8-pin footprint. The PTFZ-08-E is not a 14-pin socket - for MY4 or H3YN relays use the PYFZ-14-E.
What is the rated current of the PTFZ-08-E?
15 A carry current at 50 C ambient, derated to 12 A at 70 C ambient. Rated insulation voltage is 250 VAC. Dielectric strength is 2500 VAC for 1 minute and insulation resistance is 1000 MOhm min at 500 VDC. The screw-terminal rating assumes forked ferrules; round terminals will not seat under the M3.5 screw heads.
Does the PTFZ-08-E include a hold-down clip?
No. The hold-down clip is sold separately. The matching Y92H-3 clip locks an LY relay with a CR (surge) circuit to the base. A standard Y92H-1 or PYC-A1 clip is used for non-CR LY relays. The release lever for tool-free relay extraction is also sold separately.
PTFZ-08-E vs P2CF-08-E - what is the difference?
Both are 8-pin Omron relay sockets, but they fit different relay families. The PTFZ-08-E is the PTF-series 8-pin square-base socket for the LY1, LY2 and G3H relays. The P2CF-08-E is the round-base 8-pin socket for the G2R-series relays. Pick the PTFZ-08-E when the relay is LY-series or G3H; pick the P2CF-08-E when the relay is G2R-series.
