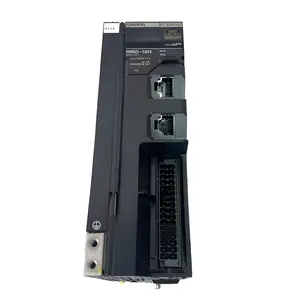

Omron R88D-1SN04H-ECT-06 — front view of the 1S servo drive showing the Omron model label, the EtherCAT RJ45 port pair, the seven-segment status display, the CHARGE indicator, and the RUN / ERROR LEDs

Omron R88D-1SN04H-ECT-06 — 1S Servo Drive, 400 W, EtherCAT

SKU: R88D-1SN04H-ECT-06

USD 250.00

1S servo drive 400 W EtherCAT, 200-240 VAC, 23-bit encoder, motor cable set. In stock.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron R88D-1SN04H-ECT-06 is a 1S-series AC servo drive rated 400 W It is manufactured by Omron Corporation. Hengyixin Automation ships this drive from Xiamen with the matching motor or PSU pairing recommended in the related products row below.

The drive runs on single-phase or three-phase 200 to 240 VAC at 50/60 Hz and delivers 2.5 Arms rated (9.1 Arms max). It uses built-in EtherCAT with CiA 402 drive profile and a 23-bit battery-less absolute encoder.

For the same 400 W drive without the cable set, pick the R88D-1SN04H-ECT. Key specs: Rated Output 400 W (0.4 kW); Supply Voltage Single-phase or three-phase 200 to 240 VAC, 50/60 Hz; Rated / Max Current 2.5 Arms rated; 9.1 Arms max; Control Power 24 VDC, 21.6 to 26.4 V; Fieldbus EtherCAT (CoE, CiA 402); Encoder 23-bit battery-less absolute; Current Loop / Safety 125 us loop; network STO PLd Cat.3 / SIL2, hardwired STO PLe / SIL3; Dimensions / Weight 223 (H) x 55 (W) x 196 (D) mm; approx. 1.5 kg.

Key Features

  • 1S-series servo drive rated 400 W, single-phase or three-phase 200 to 240 VAC
  • Built-in EtherCAT with CiA 402 profile, 23-bit battery-less absolute encoder
  • 2.5 Arms rated (9.1 Arms max), 125 microsecond current loop, network STO PLd / hardwired STO PLe
  • -06 bundle includes the motor power and encoder cable set; 223 x 55 x 196 mm, 1.5 kg, IP20
  • SKU: R88D-1SN04H-ECT-06
  • Series: Omron 1S-series AC Servo Drive (EtherCAT)
  • Voltage: 200 TO 240 VAC

Best-Fit Applications

  • Pick-and-place axis on an assembly cell where the 1S servo pairs with an R88M-1M40030T-S2 motor and the EtherCAT master is an NJ501-1500
  • Index table on a packaging line where the 400 W class covers the index load and the -06 cable set skips a separate cable order
  • Spare drive drop-in for an existing 1S cell where the previous drive failed and the cabinet already has the matching motor and cable

Buying Checklist

  • Pick the R88D-1SN04H-ECT-06 for a 400 W 1S servo drive that ships with the motor power and encoder cable set.
  • Pick the R88D-1SN04H-ECT instead when the cables are already in place and only the drive is being replaced.
  • Pick the R88D-KN04H-ECT-Z instead when the cell uses the Accurax G5 series instead of the 1S series.

Technical Specifications

Manufacturer Omron Corporation (Japan)
Series Omron 1S-series AC Servo Drive (EtherCAT)
Model / SKU R88D-1SN04H-ECT-06
Rated Output 400 W (0.4 kW)
Supply Voltage Single-phase or three-phase 200 to 240 VAC, 50/60 Hz
Rated / Max Current 2.5 Arms rated; 9.1 Arms max
Control Power 24 VDC, 21.6 to 26.4 V
Fieldbus EtherCAT (CoE, CiA 402)
Encoder 23-bit battery-less absolute
Current Loop / Safety 125 us loop; network STO PLd Cat.3 / SIL2, hardwired STO PLe / SIL3
Dimensions / Weight 223 (H) x 55 (W) x 196 (D) mm; approx. 1.5 kg
Bundle / Protection -06 suffix includes motor power and encoder cable set; IP20

FAQ for R88D-1SN04H-ECT-06

What does the -06 suffix on the R88D-1SN04H-ECT-06 mean?
The -06 suffix is a bundle code. It means the drive ships with the matching 1S-series motor power and encoder cable set so a complete installation does not need a separate cable order.
Which servo motor pairs with the R88D-1SN04H-ECT-06?
Any 1S-series 400 W servo motor such as the R88M-1M40030T-S2 (3000 rpm, 24 VDC brake option). Pair via Sysmac Studio on an NJ- or NX-series EtherCAT master.
Does the R88D-1SN04H-ECT-06 support STO?
Yes. The drive has both a network STO (via EtherCAT, PLd Cat.3 / SIL2) and a hardwired STO input (PLe / SIL3). Wire the hardwired STO to the safety circuit when the cell needs the higher category.
How is the R88D-1SN04H-ECT-06 set up?
Configure from Sysmac Studio on an NJ- or NX-series EtherCAT master. The ESI file is on the Omron automation.omron.com download page; install it into Sysmac Studio, drag the drive onto the EtherCAT configuration, then commission the motor.
