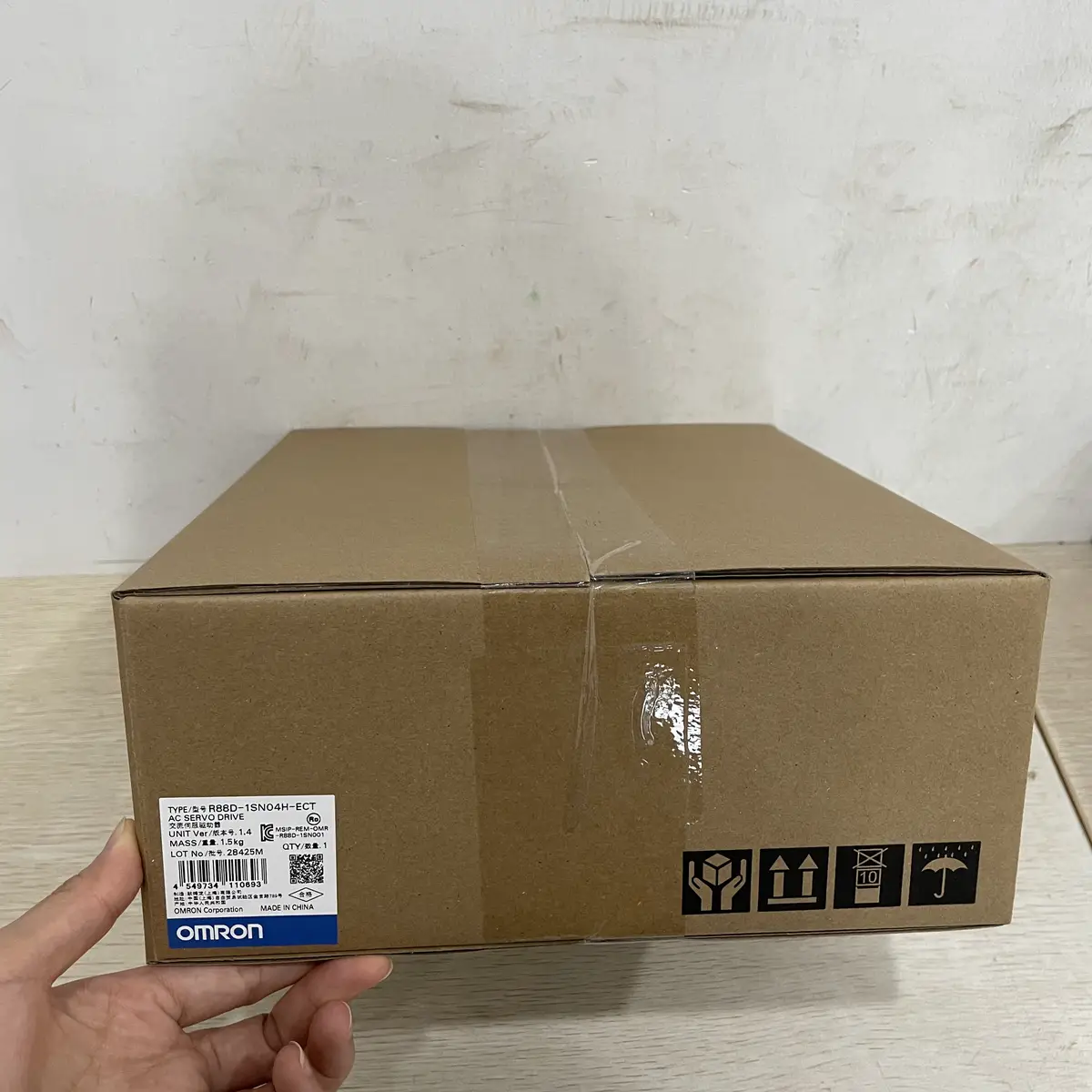

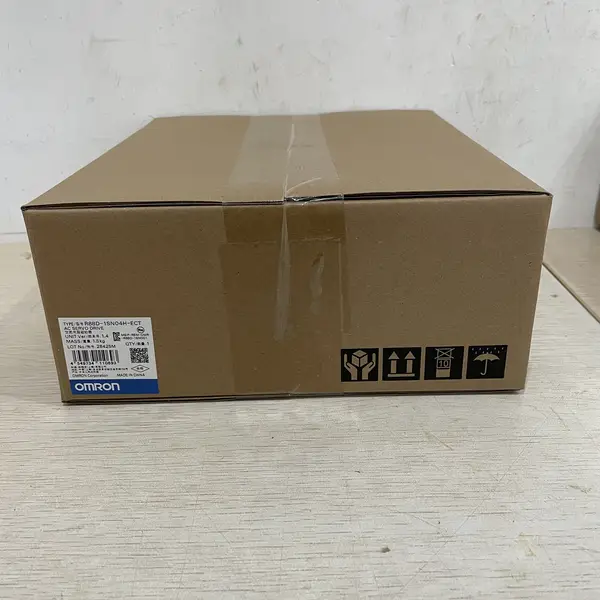

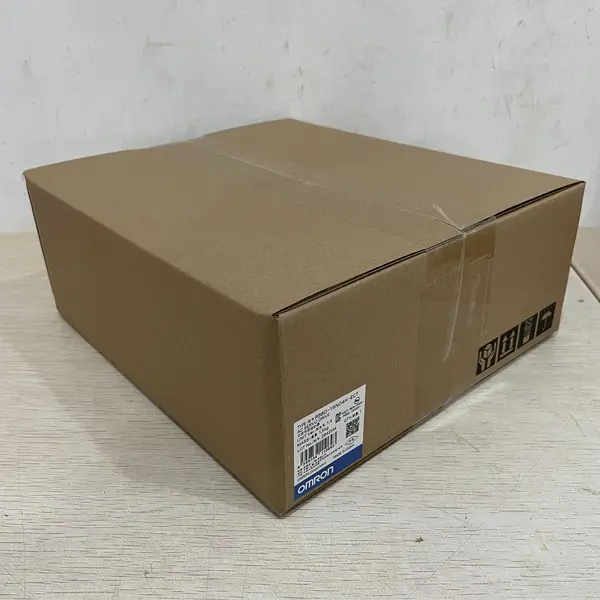

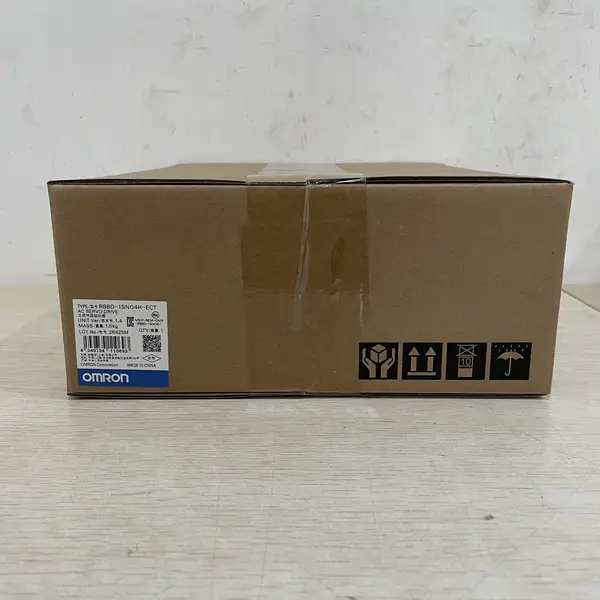

Omron R88D-1SN04H-ECT — 1S Servo 400 W 1-Phase 230 VAC
SKU: R88D-1SN04H-ECTUSD 250.00
1S-series EtherCAT servo drive with 400 W continuous output, single-phase 200 VAC supply, FSoE STO/SS1/SLS safety, 23-bit encoder, 125 µs EtherCAT cycle. Pairs with R88M-1M40030H-S2 servo motor for 1.27 Nm peak-torque applications.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The R88D-1SN04H-ECT is the 400 W mid-power variant in Omron's 1S-series EtherCAT servo drive family — the right pick for single-phase 200-240 VAC installations that need precise positioning or speed control above the 200 W entry point (covered by the R88D-1SN02H-ECT, already done previously in our catalog) and below the 750 W step (R88D-1SN08H-ECT, also in this catalog family). The 1S-series is Omron's flagship servo platform, succeeding the older Accurax G5 series (covered by R88D-KN04H-ECT-Z, already done).
Decoding the R88D-1SN04H-ECT model number
R88D-1SN = R88D 1S-series servo drive; 04 = 400 W rated output (vs 01 = 100 W, 02 = 200 W, 08 = 750 W, 15 = 1.5 kW, 30 = 3 kW, 55 = 5.5 kW); H = 200 VAC class (vs L = 100 VAC class, blank = 400 VAC class); ECT = EtherCAT communications (CoE / CiA 402 drive profile). The full SKU breakdown: R88D-1SN04H-ECT = 1S-series servo drive, 400 W, 200 VAC class, EtherCAT. Sibling products: R88D-1SN01H-ECT (100 W), R88D-1SN02H-ECT (200 W, done previously), R88D-1SN04L-ECT (400 W 100 VAC class), R88D-1SN08H-ECT (750 W), R88D-1SN15H-ECT (1.5 kW), R88D-1SN30H-ECT-06 (3 kW, 3-phase).
Integrated FSoE safety — eliminates external safety wiring
The 1S-series servo drives carry built-in Functional Safety over EtherCAT (FSoE) with three safety functions: STO (Safe Torque Off, IEC 61800-5-2 function 1) cuts motor torque while the drive is enabled (used for guarding-door-coupled stop); SS1 (Safe Stop 1, function 4) decelerates the motor along a controlled ramp to zero speed and then engages STO (used for controlled stop-and-disable); SLS (Safely Limited Speed, function 6) allows the motor to operate but caps the speed at a safe level (used for jog-with-guard-open mode during maintenance).
Motor pairing and torque specs
The R88D-1SN04H-ECT pairs with the R88M-1M40030H-S2 (400 W 3000 RPM incremental encoder S2 shaft variant) by default — this motor delivers 1.27 Nm rated torque (0.4 kW / 3000 RPM / 9550 reduction factor). For 350 % peak torque (4.4 Nm peak) the drive can deliver short bursts for acceleration or de-acceleration. Brake variants: -S2 (no brake, no oil seal — the most common), -BS2 (with brake + no oil seal — for vertical-axis applications where holding torque is needed at stop), -T (with 23-bit multi-turn absolute encoder, no oil seal), -B (with brake).
Key Features
- 1S-series mid-power servo drive
- 400 W continuous rated output
- Single-phase 200-240 VAC supply
- EtherCAT communications
- EtherCAT cycle time 125 µs
- Integrated safety: STO, SS1, SLS over FSoE
- Safety level EN ISO 13849-1 PL d / EN 61508 SIL 2 / EN 62061 SIL 2
- 23-bit battery-less absolute encoder support
- SKU: R88D-1SN04H-ECT
- Series: 1S Servo Drive (R88D-1SN family, EtherCAT)
- Voltage: 200-240 VAC
- I/O: 400 I/O
Best-Fit Applications
- Pick-and-place axis on a packaging line — R88D-1SN04H-ECT drives an R88M-1M40030H-S2 servo motor for the X-axis, 400 W is sufficient.
- Conveyor tracking on a bottling line — the 1S drive receives a master-position value via EtherCAT and uses electronic-gear mode.
- Label-dispensing axis with dancer position-correction — the 1S drive uses touch-probe input to latch the dancer position at high speed.
- Cartesian-X / Y / Z stage for CNC machining — three R88D-1SN04H-ECT drives running R88M-1M40030H-S2 motors coordinated by NJ501-1500 via.
Buying Checklist
- Pick R88D-1SN04H-ECT for 400 W single-phase 200 VAC 1S EtherCAT servo drive
- Pick R88D-1SN02H-ECT for 200 W version
- Pick R88D-1SN08H-ECT for 750 W version
- Pick R88D-1SN15H-ECT for 1.5 kW version
- Pick R88D-1SN10H-ECT for 1 kW 3-phase 200 VAC version
- Pick R88D-KT04H-Z for 400 W position-controller drive
Technical Specifications
| Model | R88D-1SN04H-ECT |
|---|---|
| Series | 1S Servo Drive (R88D-1SN family, EtherCAT) |
| Type | Mid-power servo drive with FSoE safety, 1-Phase 230 VAC supply |
| Rated Output | 400 W (0.4 kW) continuous |
| Peak Output (150 % overload) | 600 W (0.6 kW) for 3 s typical |
| Peak Output (300 % overload) | 1200 W (1.2 kW) for 0.5 s peak |
| Drive Supply Voltage | Single-phase 200-240 VAC, 50/60 Hz |
| Input Voltage Range | 170 to 264 VAC (single-phase) / 200 to 264 VAC (3-phase equivalent) |
| Input Current (continuous at rated output) | 2.6 A rms typical |
| Inrush Current (at power-on) | 5-10× rated, ~200 ms duration |
| Output Voltage | 0 to 240 VAC (variable, PWM 8 kHz carrier; PWM frequency selectable 4/8/16 kHz) |
| Output Frequency | 0 to 500 Hz (with 3000 RPM motor) |
| Max Output Current (continuous) | 2.6 A rms |
| Max Output Current (peak) | 7.8 A rms (300 % overload) |
| EtherCAT Communications Cycle | 125 µs default (configurable 250 µs / 500 µs / 1 / 2 / 4 ms) |
Resources & Downloads
FAQ for R88D-1SN04H-ECT
What is the difference between R88D-1SN04H-ECT and R88D-KN04H-ECT-Z (previous generation)?
Both are 400 W 200 VAC servo drives with EtherCAT communications and 23-bit encoder support, but they span different product generations. R88D-KN04H-ECT-Z is the older Accurax G5 series (already in our catalog) with traditional safety (separate hardware wiring for STO — no FSoE). R88D-1SN04H-ECT (this SKU) is the new 1S series with FSoE (Functional Safety over EtherCAT), 125 µs cycle time (down from 250 µs on G5), battery-less absolute encoder (-T suffix), and embedded brake relay.
Does the R88D-1SN04H-ECT require three-phase supply?
No — this SKU is specifically the single-phase 200-240 VAC variant ('H' suffix). It runs on 1-phase utility power (L, N for 200 VAC single-phase, or L, L for 3-phase 200 VAC if you happen to have 3-phase available). The 200 W / 400 W versions (R88D-1SN02H-ECT, R88D-1SN04H-ECT) are typically single-phase; the 750 W / 1 kW and above (R88D-1SN08H-ECT, R88D-1SN10H-ECT) require 3-phase supply.
What FSoE safety is included with the R88D-1SN04H-ECT?
Three IEC 61800-5-2 safety functions are integrated: STO (Safe Torque Off, function 1) cuts the motor torque without removing DC-bus power — drive re-enables in 200 ms after STO clears. SS1 (Safe Stop 1, function 4) decelerates the motor on a controlled ramp to zero speed, then engages STO — used for controlled stop-and-disable at end-of-cycle.
Can the R88D-1SN04H-ECT support battery-less absolute encoder?
Yes — for batteries-less absolute position retention, the R88D-1SN04H-ECT pairs with R88M-1M40030T-S2 (or -BS2) servo motor that has the 23-bit multi-turn absolute encoder with capacitor-backed memory. The capacitor stores multi-turn data for approximately 7 days without power, sufficient for typical weekend shutdowns and immediate production-resume on Monday without re-homing. For longer power-off periods, the encoder cannot guarantee multi-turn retention; the drive will need to perform a home-return sequence.
