Omron R88D-1SN08H-ECT — 1S Servo Drive, 750 W, EtherCAT
SKU: R88D-1SN08H-ECTUSD 260.00
Omron 1S-series EtherCAT servo drive, 750 W output on 200-240 V single/3-phase input. 23-bit battery-less ABS, STO safety, 125 us cycle.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron R88D-1SN08H-ECT is the 1S-series EtherCAT drive for 200 V 750 W servo motors. Pick it on a new Sysmac build when the cabinet needs a compact 200 V / 750 W servo on the same EtherCAT ring as the NJ / NX motion controller.
The drive accepts single-phase or 3-phase 200-240 VAC main power (170-252 V) at 7.3 A single / 4.0 A 3-phase at 240 V, plus a 24 VDC control supply (21.6-26.4 V) at 600 mA. Output is 0-240 V variable-frequency 3-phase at 4.6 Arms continuous and 16.9 Arms peak. The dedicated absolute encoder port reads 23-bit battery-less ABS encoders (no battery to replace) at up to 6,000 rpm mechanical.

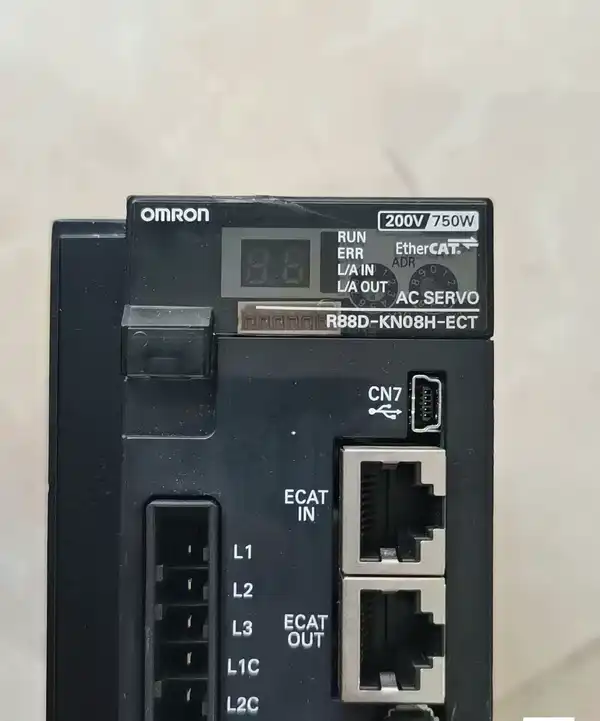

On the front face: OMRON wordmark, RUN / ERR / L/A IN / L/A OUT LEDs, two EtherCAT RJ45 ports (ECAT IN / ECAT OUT) for daisy-chain, an ADR rotary for the drive address, the CN7 mini-USB console port, and a push-in spring terminal block (L1 / L2 / L3 main + L1C / L2C control) on the bottom. EtherCAT runs at 100BASE-TX with a 125 us to 10 ms communications cycle in DC mode (sync with Sync0 event). The CiA 402 drive profile covers cyclic-synchronous position / velocity / torque, profile position / velocity, homing, touch-probe, and torque limit. Sysmac Studio is the configuration environment.
Safety is built in via the hardwired STO input (Safe Torque Off) per EN ISO 13849-1 Cat 3 PL e / EN 61508 SIL 3. For distributed safety over EtherCAT (STO / SS1 / SS2 / SLS / SDI / SOS / SLP), move to the R88D-1SN08H-ECT-S2 (1S-series with FSoE) or the Accurax G5 R88D-KN08H-ECT-Z on existing G5 cabinets.
The paired motor at 750 W 3,000 rpm is R88M-1M75030T (23-bit battery-less ABS). Approvals: CE / UKCA / ULus (IND. CONT. EQ. 7Z45) / TUV / KC / RCM / EAC, China RoHS, SEMI F47 momentary-power-interruption hold at rated output. Weight 2.0 kg, open-chassis IP20 (mount in a IP54 cabinet).
Key Features
- Omron 1S-series EtherCAT AC servo drive (NOT G5 -- the G5 family is R88D-KN[])
- 750 W output power (paired motor: R88M-1M75030T 3,000 rpm 23-bit battery-less ABS)
- Single-phase / 3-phase 200-240 VAC main input (170-252 V), 24 VDC control input (21.6-26.4 V)
- Input current 7.3 A single-phase / 4.0 A 3-phase at 240 V
- Output 0-240 V 3-phase variable-frequency, 4.6 Arms continuous / 16.9 Arms peak
- EtherCAT 100BASE-TX, ECAT IN + ECAT OUT RJ45 daisy-chain ports
- 125 us to 10 ms communications cycle in DC mode (sync with Sync0 event)
- CiA 402 drive profile: cyclic-synchronous position / velocity / torque, profile position / velocity, homing, touch-probe, torque limit
- 23-bit battery-less ABS encoder feedback on the dedicated encoder port
- Safe Torque Off (STO) via hardwired safety input, EN ISO 13849-1 Cat 3 PL e / EN 61508 SIL 3
- Sysmac Studio configuration; push-in spring terminals; IP20 open-chassis (mount in IP54 cabinet)
- CE / UKCA / ULus 7Z45 IND.CONT.EQ. / TUV / KC / RCM / EAC / China RoHS / SEMI F47 ride-through; 2.0 kg; MADE IN CHINA
- SKU: R88D-1SN08H-ECT
- Series: Omron 1S-series AC servo drive, EtherCAT built-in
- I/O: 750 I/O
Best-Fit Applications
- Sysmac NJ / NX cabinet motion axis at 750 W on a 1-phase or 3-phase 200-240 VAC supply
- Packaging, assembly, or pick-and-place machine where the drive sits on the same EtherCAT ring as the motion controller
- Skid-mount machine where the new 1S drives replace older SmartStep 2 / Accurax G5 units at 750 W 200 V
- Scara or delta robot where the 125 us cycle and CiA 402 cyclic-synchronous modes need a 23-bit battery-less encoder
- Battery-free machine upgrade -- the 23-bit battery-less ABS encoder removes the absolute-encoder battery maintenance
- Distributed safety via FSoE (when upgraded to R88D-1SN08H-ECT-S2) or via a separate safety controller
Buying Checklist
- Pick the R88D-1SN08H-ECT when the cabinet needs a 750 W EtherCAT drive in the 1S-series family
- Pick the R88D-1SN02H-ECT instead for a 200 W axis on the same family
- Pick the R88D-1SN04H-ECT instead for a 400 W axis
- Pick the R88D-1SN08H-ECT-S2 when the build also wants FSoE distributed safety (STO / SS1 / SS2 / SLS / SDI / SOS / SLP) over EtherCAT
- Pick the R88D-KN08H-ECT-Z instead when the cabinet is on the Accurax G5 family and like-for-like spare replacement matters
- Pair the drive with R88M-1M75030T (750 W 3,000 rpm 23-bit battery-less ABS motor) for the matching axis
Technical Specifications
| Series | Omron 1S-series AC servo drive, EtherCAT built-in |
|---|---|
| Model | R88D-1SN08H-ECT |
| Output Power | 750 W (3,000-r/min motor class) |
| Main Input | Single-phase / 3-phase 200-240 VAC (170-252 V), 50/60 Hz |
| Main Input Current | 7.3 A single-phase / 4.0 A 3-phase at 240 V |
| Control Input | 24 VDC (21.6-26.4 V), 600 mA |
| Output | 0-240 V 3-phase variable-frequency, 4.6 Arms rated / 16.9 Arms peak |
| Encoder | 23-bit battery-less ABS on dedicated encoder port |
| Cycle / Drive Profile | 125 us to 10 ms DC mode cycle; IEC 61800-7 CiA 402 drive profile |
| Safety | STO via safety input, EN ISO 13849-1 Cat 3 PL e / EN 61508 SIL 3 |
| Mounting / Weight | IP20 open-chassis (mount in IP54 cabinet), 2.0 kg |
| Approvals | CE / UKCA / ULus 7Z45 IND.CONT.EQ. / TUV / KC / RCM / EAC / China RoHS / SEMI F47 momentary-power-interruption hold at rated output |
Resources & Downloads
FAQ for R88D-1SN08H-ECT
Is the R88D-1SN08H-ECT the same as the Accurax G5?
No. The R88D-1SN[] is the Omron 1S-series EtherCAT drive -- the standard 200 V entry in the new 1S line with STO safety. The Accurax G5 family is the R88D-KN[] (e.g. R88D-KN08H-ECT-Z). They share a similar housing but the 1S line adds the 23-bit battery-less ABS encoder, the improved loop control, and simplified push-in terminals. Pick 1S for new Sysmac builds; pick G5 as a like-for-like spare on existing G5 cabinets.
What motor pairs with the R88D-1SN08H-ECT?
The 750 W 3,000-r/min R88M-1M75030T 1S-series servomotor with a 23-bit battery-less ABS encoder is the matching axis. Higher-inertia (low-speed high-torque) variants in the R88M-1M family pair to the same drive at the same power class; confirm the encoder code matches (the battery-less ABS is the B / T suffix on the 1S motor).
Does the R88D-1SN08H-ECT carry functional safety over EtherCAT?
The bare -ECT has STO via the hardwired safety input signal (EN ISO 13849-1 Cat 3 PL e / EN 61508 SIL 3). It does not carry FSoE safety on top -- for distributed safety over EtherCAT (STO / SS1 / SS2 / SLS / SDI / SOS / SLP), step up to the R88D-1SN08H-ECT-S2 or the Accurax G5 R88D-KN08H-ECT-Z. Both add FSoE on top of the basic STO.
What software programs the R88D-1SN08H-ECT?
Sysmac Studio, the same IDE that programs the NJ / NX controller. The drive appears in the Sysmac Studio EtherCAT configuration as a CiA 402 drive profile device, with axis setup, autotuning, and safety parameter download through the tool. No separate drive-only software is required for normal commissioning.
