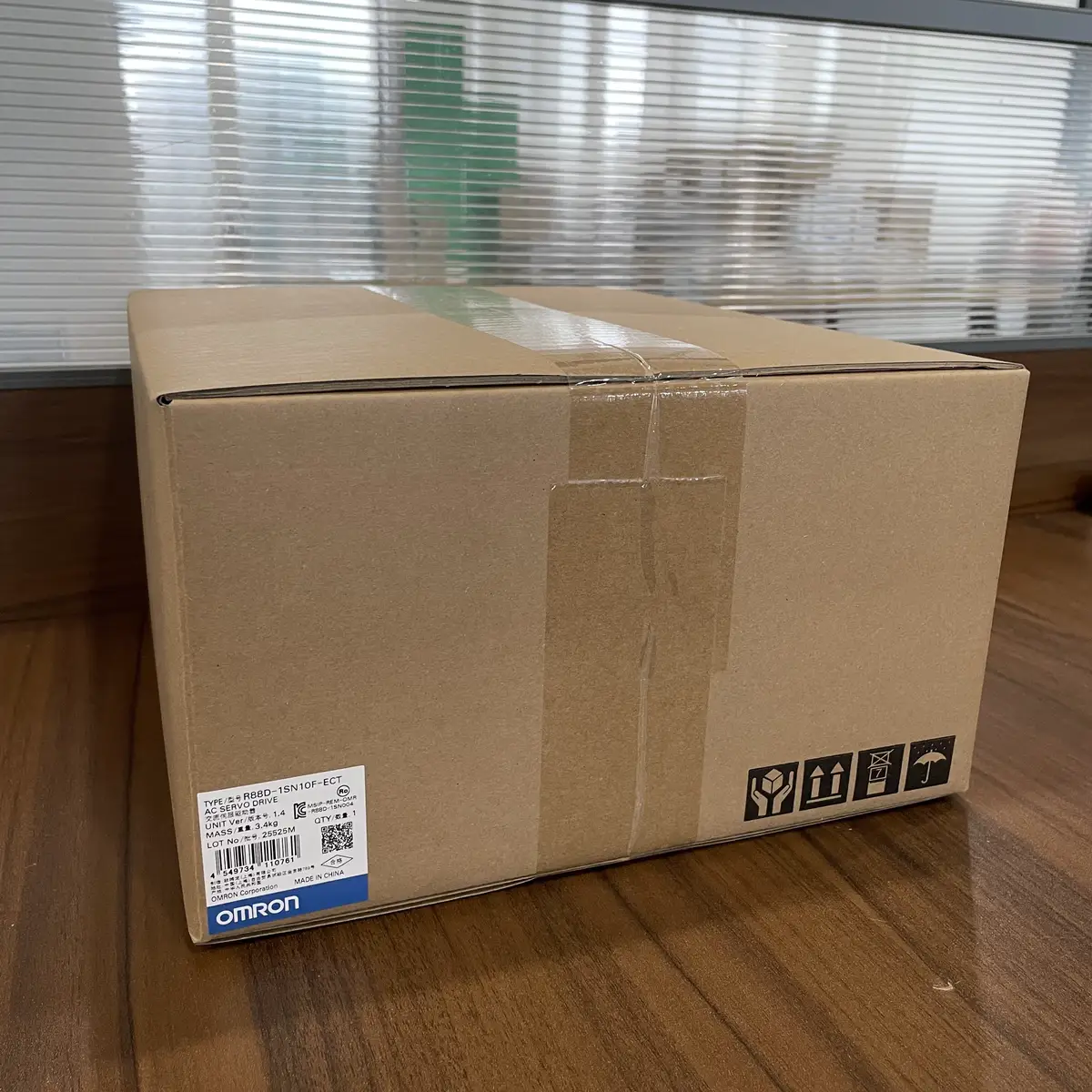

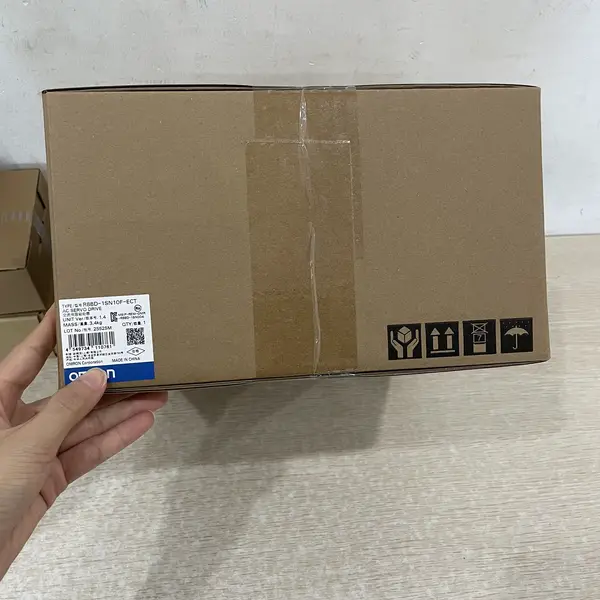

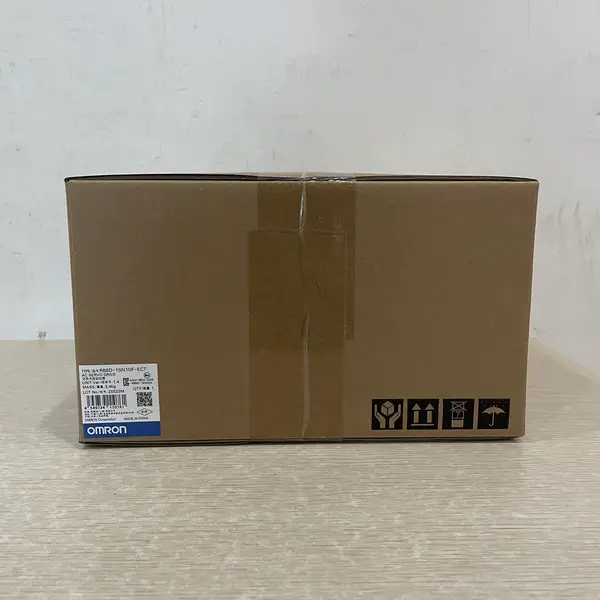

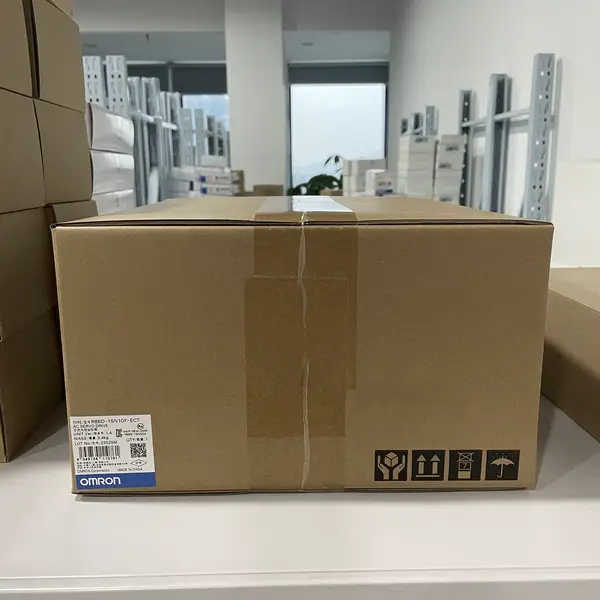

Omron R88D-1SN10F-ECT — 1S Servo Drive, 1 kW, 400V
SKU: R88D-1SN10F-ECTUSD 445.00
Omron R88D-1SN10F-ECT 1S-series EtherCAT servo drive, 1 kW, 3-phase 400 VAC, STO. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron R88D-1SN10F-ECT is a 1 kW member of the 1S-series servo drive family, manufactured by Omron Corporation. Hengyixin Automation ships this drive from Xiamen with the matching motor or PSU pairing recommended in the related products row below.
The drive runs on 3-phase 400 VAC (range 323 to 504 VAC, 50/60 Hz). Rated output is 1 kW at 4.1 A. The command interface is EtherCAT CoE (CAN application layer over EtherCAT), and the drive supports 23-bit absolute encoders on the connected R88M-1S servo motors.
Safety is built in. Network STO reaches PLd / SIL2 and hardwired STO reaches PLe / SIL3. The body is 246 mm tall, 90 mm wide, 236 mm deep, and weighs 3.4 kg. The matching 1 kW motor is the R88M-1M1K520C-S2. For a 1.5 kW version on the same 400 VAC class, pick the R88D-1SN15F-ECT.
Key Features
- 1S-series EtherCAT servo drive, 1 kW rated output, 3-phase 400 VAC supply
- EtherCAT CoE slave, supports 23-bit absolute encoder motors, 4.1 A rated current
- Built-in STO safety: network PLd / SIL2 and hardwired PLe / SIL3
- 246 mm tall x 90 mm wide x 236 mm deep, 3.4 kg, screw-less push-in I/O
- SKU: R88D-1SN10F-ECT
- Series: Omron 1S-series servo drive (R88D-1SN-ECT)
Best-Fit Applications
- Indexing axis on a vertical form-fill-seal packaging machine where the 1 kW covers the film-feed servo and STO
- EtherCAT slave on a multi-axis gantry where the 1S drive daisy-chains on the trunk and an NJ501-1500 PLC handles cyclic sync
- Spare replacement for an Accurax G5 drive on a 400 VAC cabinet where the existing motor and cables carry over
Buying Checklist
- Pick the R88D-1SN10F-ECT for a 1S EtherCAT drive at 1 kW on a 3-phase 400 VAC supply.
- Pick the R88D-1SN08H-ECT instead when the cabinet has 230 VAC single-phase and the motor is 750 W.
- Pick the R88D-1SN15F-ECT instead when the line needs 1.5 kW on the same 400 VAC class.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron 1S-series servo drive (R88D-1SN-ECT) |
| Model / SKU | R88D-1SN10F-ECT |
| Rated Output | 1 kW, 4.1 A rated output current |
| Drive Supply | 3-phase 400 VAC (range 323 to 504 VAC), 50/60 Hz |
| Command Interface | EtherCAT CoE slave |
| Encoder Support | 23-bit absolute (battery-free) |
| Safety Functions | Network STO PLd / SIL2, hardwired STO PLe / SIL3 |
| Matching Motor | R88M-1M1K520C-S2 (1 kW 1S motor) |
| Dimensions (W x H x D) | 90 × 246.4 × 236.05 mm; 3.4 kg |
| Protection | IP20 cabinet mount |
| Operating Temperature | 0 to 55 degC, 1,000 m max altitude |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for R88D-1SN10F-ECT
What supply voltage does the R88D-1SN10F-ECT need?
3-phase 400 VAC at 50/60 Hz. The allowable range is 323 to 504 VAC. For 230 VAC single-phase operation, use the R88D-1SN08H-ECT in the same 1S family.
What motor pairs with the R88D-1SN10F-ECT?
The 1 kW R88M-1M1K520C-S2 is the stock 1S motor match. Other 1 kW 1S motors (different encoder or shaft) work on the same drive.
Does the R88D-1SN10F-ECT have safety functions?
Yes -- Safe Torque Off over EtherCAT at PLd / SIL2 and over the hardwired input at PLe / SIL3. For SS1 and SLS safety on the same drive, use the R88D-1SN10F-ECT-51 variant.
Can the R88D-1SN10F-ECT update firmware in the field?
Yes. Firmware updates run over the USB configuration port using the CX-Drive or Sysmac Studio tool. Plan a brief downtime and back up the parameters before flashing.
