Omron S8VK-T48024 — 480 W 3-Phase PSU, 24 VDC 20 A
SKU: S8VK-T48024USD 152.00
Omron S8VK-T48024 3-phase DIN-rail PSU, 380-480 VAC in, 24 VDC 20 A / 480 W out, 91% efficiency. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron S8VK-T48024 is a 480 W DIN-rail switching power supply from the S8VK-T three-phase family, manufactured by Omron Corporation. Hengyixin Automation ships this power supply from Xiamen.
The supply accepts 380-480 VAC three-phase (allowable 320-576 VAC; DC 450-810 VDC) and delivers a regulated 24 VDC output at 20 A (480 W). Efficiency is 91% typical. The 120% power boost holds the output above 24 VDC for short-term overloads such as motor-start inrushes. Cooling is convection (no fan); inrush current is under 20 A typical.

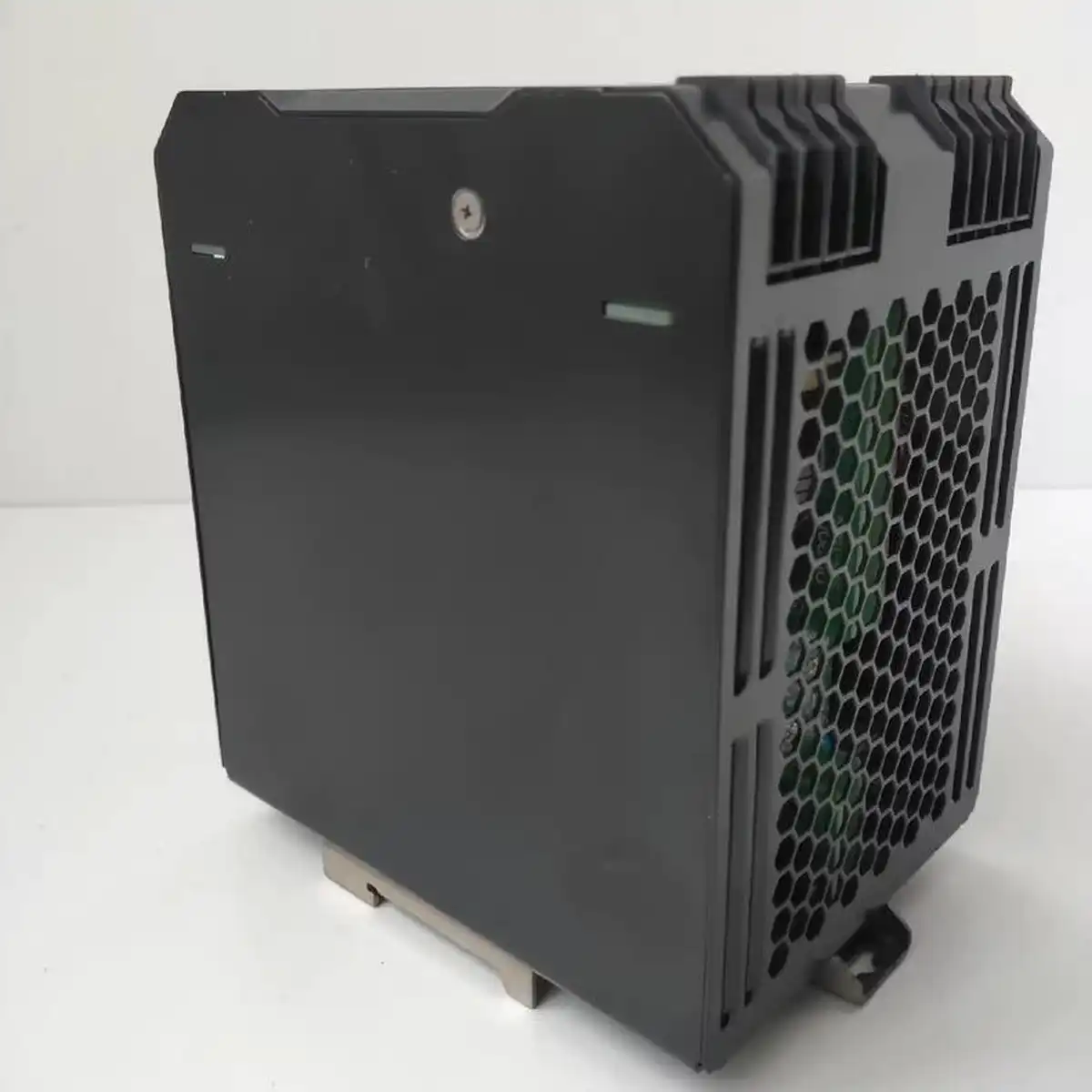

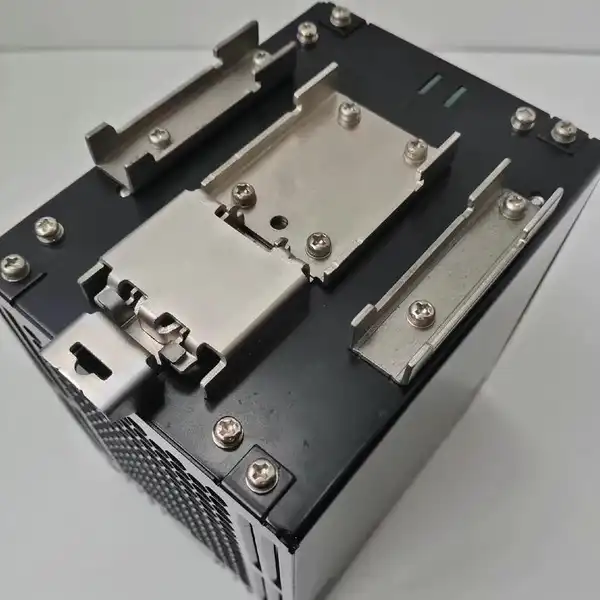

The book-type housing is 95 (W) x 125 (H) x 140 (D) mm and mounts on a DIN rail with a one-hand clip. Screw terminals accept the three-phase input and the 24 VDC output. -40 to +70 C. The S8VK-T24024 sibling is the 240 W three-phase half-size; the S8VK-S48024 is the single-phase 480 W version on the same footprint.
Key Features
- S8VK-T three-phase book-type DIN-rail PSU, 380-480 VAC input (allowable 320-576 VAC; DC 450-810 VDC)
- Regulated 24 VDC at 20 A / 480 W output, 91% typical efficiency, 120% power boost for short-term overloads
- Natural convection cooling (no fan), inrush current under 20 A typical, screw terminals
- 95 (W) x 125 (H) x 140 (D) mm book-type housing, DIN-rail one-hand clip, -40 to +70 C operating
- SKU: S8VK-T48024
- Series: Omron S8VK-T three-phase DIN-rail switching power supply
- Voltage: 380-480 VAC
Best-Fit Applications
- Main 24 VDC bus for a three-phase factory automation panel where the 480 W output feeds several CJ1W I/O racks and a CP1L backplane
- Power supply for a process-skid cabinet that takes 380-480 VAC three-phase directly from the plant distribution without a step-down transformer
- Spare replacement on a marine-class automation cabinet where the previous S8VK-T48024 PSU has reached end of life and the 91% efficiency rating must be preserved
Buying Checklist
- Pick the S8VK-T48024 for a three-phase 380-480 VAC DIN-rail PSU that delivers 24 VDC at 20 A / 480 W on the S8VK-T book-type footprint.
- Pick the S8VK-T24024 instead when the cabinet only needs 240 W at the same 24 VDC / three-phase input.
- Pick the S8VK-S48024 instead when the supply is single-phase 100-240 VAC rather than three-phase 380-480 VAC.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron S8VK-T three-phase DIN-rail switching power supply |
| Model / SKU | S8VK-T48024 |
| Phase | Three-phase input |
| Rated Supply Voltage | 380-480 VAC three-phase (allowable 320-576 VAC; DC 450-810 VDC) |
| Output Voltage | 24 VDC regulated |
| Rated Output Current | 20 A (480 W) |
| Efficiency | 91% typical |
| Power Boost | 120% for short-term overloads |
| Inrush Current | Under 20 A typical |
| Cooling / Terminals | Natural convection (no fan); screw terminals |
| Dimensions / Environment | 95 (W) x 125 (H) x 140 (D) mm, book-type; -40 to +70 C operating, DIN-rail mount with one-hand clip, international industrial and marine approvals |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for S8VK-T48024
What is the Omron S8VK-T48024 used for?
It is the main 24 VDC bus supply for a three-phase factory automation panel. The supply takes 380-480 VAC three-phase directly from the plant distribution and delivers 480 W at 24 VDC with 91% efficiency and 120% short-term power boost.
S8VK-T48024 vs S8VK-S48024 - what is the difference?
Both deliver 480 W at 24 VDC on the same book-type footprint. The S8VK-T48024 takes three-phase 380-480 VAC input; the S8VK-S48024 takes single-phase 100-240 VAC input. Pick the T for plant three-phase distribution and the S for single-phase shops.
Does the S8VK-T48024 accept DC input?
Yes. The allowable DC input range is 450-810 VDC. The same supply works on a rectified DC bus from a three-phase rectifier, which is useful for battery-backed DC distribution.
What is the S8VK-T48024 efficiency?
91% typical at full load. The high efficiency keeps the supply in natural-convection cooling across the full -40 to +70 C operating range without a fan.
