Omron S8VK-S48024 — 480 W 24 VDC, 20 A Slim
SKU: S8VK-S48024USD 160.00
Omron S8VK-S48024 slim DIN-rail PSU, 480 W 24 VDC 20 A, 100-240 VAC input. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

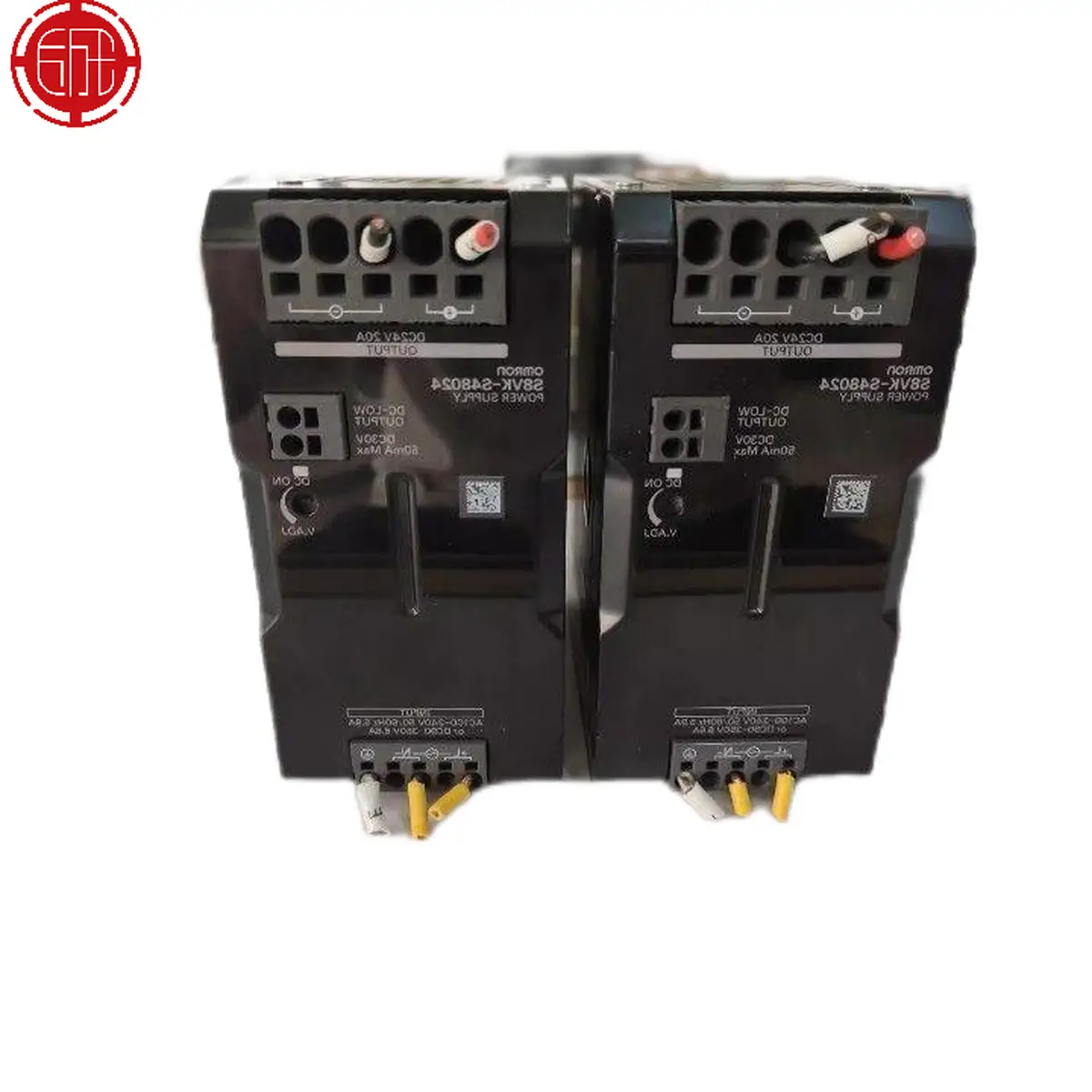

The Omron S8VK-S48024 is a 480 W slim DIN-rail switch-mode power supply in the S8VK-S family, manufactured by Omron Corporation. Hengyixin Automation stocks this controller option board in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
The supply accepts single-phase 100-240 VAC at 50/60 Hz and delivers a regulated 24 VDC at 20 A continuous with a 120 percent power boost to 24 A for 10 s. The slim 60 mm wide footprint leaves room for other DIN-rail components. Operating temperature is -25 to 70 C ambient with derating above 60 C.
The covered enclosure measures 60 mm W x 125 mm H x 150 mm D and weighs 1100 g. Two sets of DC output terminals support parallel and series operation. Compliance covers UL 508, EN 61204-3, CE, and RoHS. The S8VK-G48024 is the same output in the wider general-purpose family.
Key Features
- Slim 60 mm wide DIN-rail PSU with single-phase 100-240 VAC input
- 480 W output, 24 VDC at 20 A continuous, 120 percent power boost to 24 A for 10 s
- Operates from -25 to 70 C ambient with derating above 60 C, double DC output terminals
- 60 mm W x 125 mm H x 150 mm D, 1100 g, UL 508 EN 61204-3 CE RoHS
- SKU: S8VK-S48024
- Series: S8VK-S slim DIN-rail power supply
- Voltage: 24 VDC
Best-Fit Applications
- Single-phase cabinet power on a Sysmac NJ cell where 480 W covers the PLC, NX I/O, and three R88D-1SN servo drives
- 24 VDC bus for a packaging line with a 7-inch HMI, photoelectric sensors, and valve manifold where 20 A continuous covers normal operation
- Spare replacement on a legacy CJ2H line where the original S8VK-S48024 failed and the slim 60 mm width drops onto the same DIN-rail slot
Buying Checklist
- Choose the S8VK-S48024 when the cabinet needs 480 W / 20 A at 24 VDC in a slim 60 mm wide DIN-rail slot.
- Choose the S8VK-G48024 instead when the wider general-purpose footprint is fine and the same 480 W output is needed.
- Choose the S8VK-T48024 instead when the cabinet has three-phase 380-480 VAC and needs 480 W at 24 VDC.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | S8VK-S slim DIN-rail power supply |
| Model / SKU | S8VK-S48024 |
| Output Power | 480 W |
| Output Voltage / Current | 24 VDC at 20 A continuous; 24 A peak for 10 s (120 percent power boost) |
| Input Voltage | Single-phase 100-240 VAC, 50/60 Hz; 90-350 VDC |
| Operating Temperature | -25 to 70 C ambient, derating above 60 C |
| Mounting | DIN rail (TS35/7.5 or TS35/15), covered enclosed case |
| Parallel / Series Operation | Two sets of DC output terminals; up to two units in parallel |
| Protection | Overload, overvoltage, input surge, output short-circuit |
| Certifications | UL 508 listed, EN 61204-3, CE, RoHS |
| Dimensions / Weight | 60 mm W x 125 mm H x 150 mm D, 1100 g |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for S8VK-S48024
What is the difference between S8VK-S48024 and S8VK-G48024?
Both are 480 W / 20 A 24 VDC DIN-rail supplies. The S suffix is the slim 60 mm wide housing; the G suffix is the wider general-purpose housing at 95 mm wide. Choose S when panel depth is tight, G when the wider footprint is acceptable.
Does the S8VK-S48024 accept DC input?
Yes. The supply accepts 90-350 VDC at the input terminals. This lets it ride on a DC bus or backup-battery system for short-term ride-through. The 24 VDC output is still regulated and isolated from the input. The supply accepts 90-350 VDC at the input terminals, which lets it ride on a DC bus or backup-battery system for short-term ride-through during AC mains dropouts.
Can the S8VK-S48024 supply a peak load above 20 A?
Yes. The 120 percent power-boost rating lets the supply deliver up to 24 A for 10 seconds, which covers motor inrush and capacitive-load charging. Outside the 10 s window the supply drops to its continuous 20 A rating. The 120 percent power-boost rating lets the supply deliver up to 24 A for 10 seconds, which covers motor inrush and capacitive-load charging without saturating the supply.
What is the efficiency of the S8VK-S48024?
Around 90 percent typical at full load. The supply runs from -25 to 70 C ambient with derating above 60 C. Compliance covers UL 508, EN 61204-3, CE, and RoHS. Compliance covers UL 508 for industrial control equipment, EN 61204-3 for DC output performance, CE marking for the European market, and RoHS for hazardous-substance restriction.
