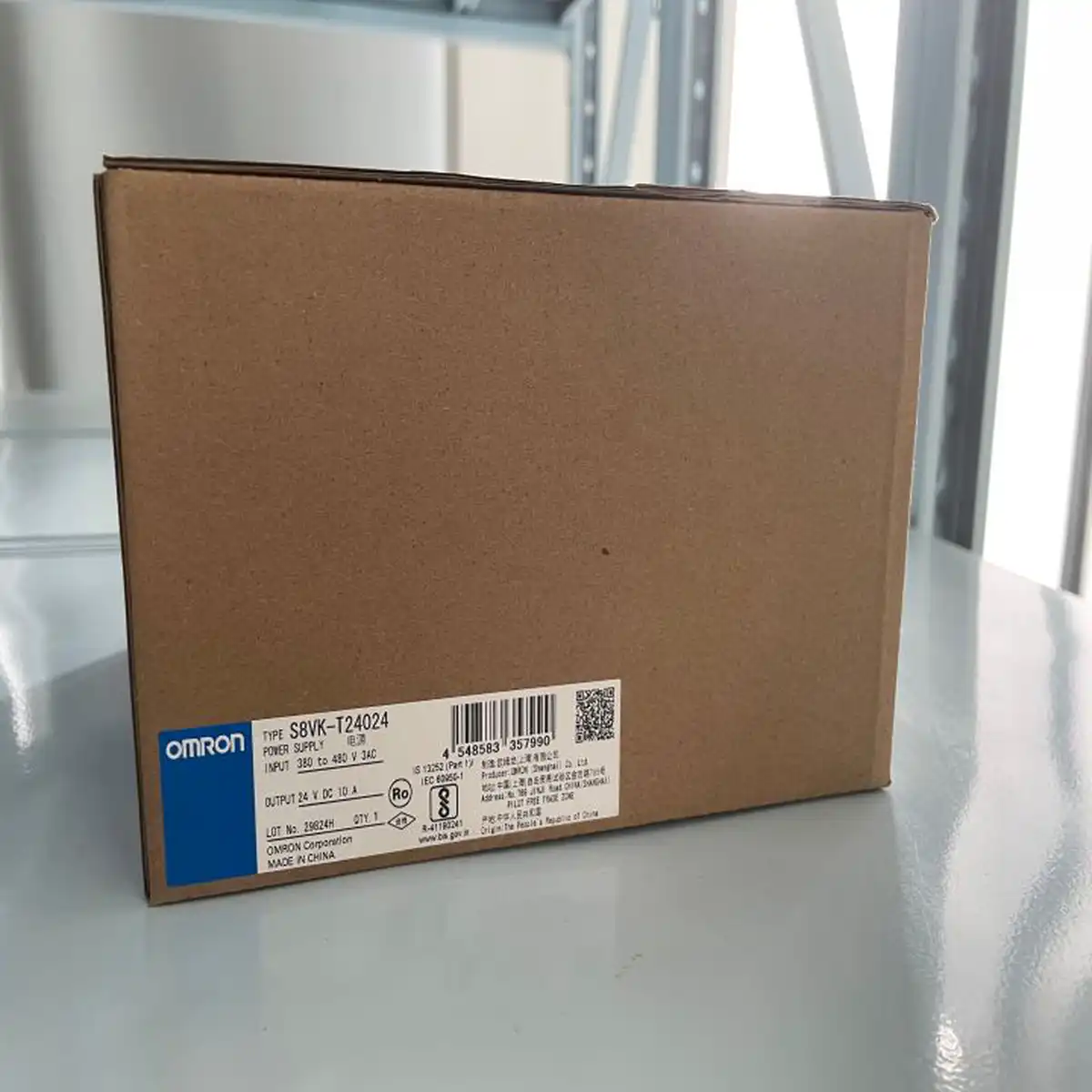

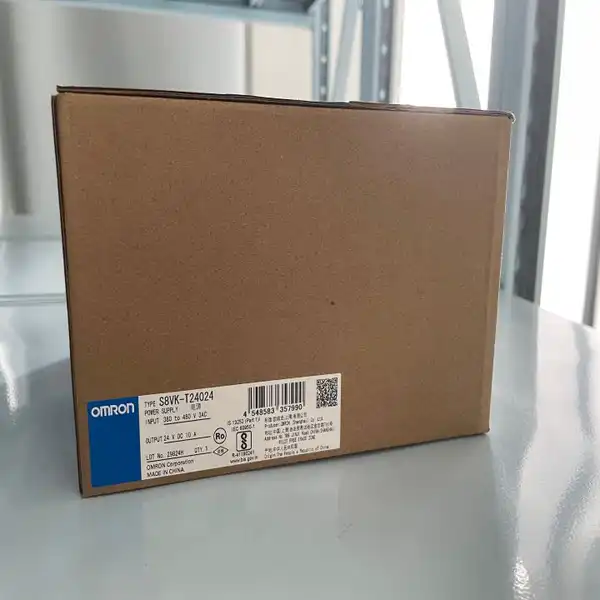

Omron S8VK-T24024 — 240 W 3-Phase PSU, 24 VDC
SKU: S8VK-T24024USD 90.00
Omron S8VK-T24024 3-phase DIN-rail PSU, 240 W 24 VDC 10 A, 380-480 VAC input, -40 to 70 C. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron S8VK-T24024 is a 240 W three-phase DIN-rail switch-mode power supply in the S8VK-T family, manufactured by Omron Corporation. Hengyixin Automation stocks this power supply in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
The supply accepts three-phase 380-480 VAC at 50/60 Hz, or two-phase 340-576 VAC, or 450-810 VDC, and delivers a regulated 24 VDC at 10 A continuous with a 120 percent power boost to 12 A for 10 s. The 89 percent efficiency figure keeps heat dissipation low for fanless operation. Operating temperature is -40 to 70 C ambient with no derating below 60 C.
The covered DIN-rail housing measures 60 mm W x 125 mm H x 140 mm D and weighs 750 g. Two sets of DC output terminals support parallel and series operation. Compliance covers UL 508, EN 61204-3, CE, and RoHS. The S8VK-T12024 is the same family at 120 W / 5 A; the S8VK-G24024 is the single-phase equivalent.
Key Features
- Three-phase 380-480 VAC (or 2-phase 340-576 VAC, or 450-810 VDC) DIN-rail PSU
- 240 W output, 24 VDC at 10 A continuous, 120 percent power boost to 12 A for 10 s
- Fanless operation from -40 to 70 C with no derating below 60 C, 89 percent efficiency
- 60 mm W x 125 mm H x 140 mm D, 750 g, double DC output terminals for parallel/series
- SKU: S8VK-T24024
- Series: S8VK-T compact three-phase input power supply
- Voltage: 24 VDC
Best-Fit Applications
- Three-phase cabinet power on a Sysmac NJ or NX machine cell where the S8VK-T handles 380-480 VAC directly without an external transformer
- 24 VDC bus for a parallel-Drive setup with multiple R88D-1SN drives where 120 percent power boost covers motor regen peaks
- Spare replacement on a CJ2M panel that needs to migrate from single-phase S8VK-G to three-phase S8VK-T for higher cabinet power density
Buying Checklist
- Choose the S8VK-T24024 when the cabinet has three-phase 380-480 VAC and needs 240 W / 10 A at 24 VDC.
- Choose the S8VK-G24024 instead when the cabinet only has single-phase 100-240 VAC and the same 240 W output.
- Choose the S8VK-T48024 instead when the same three-phase input supplies a larger cabinet at 480 W / 20 A.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | S8VK-T compact three-phase input power supply |
| Model / SKU | S8VK-T24024 |
| Output Power | 240 W |
| Output Voltage / Current | 24 VDC at 10 A continuous; 12 A peak for 10 s (120 percent power boost) |
| Input Voltage | Three-phase 380-480 VAC (or 2-phase 340-576 VAC), 50/60 Hz; 450-810 VDC |
| Efficiency | 89 percent typical at full load |
| Operating Temperature | -40 to 70 C ambient, no derating below 60 C |
| Mounting | DIN rail (TS35/7.5 or TS35/15), covered enclosed case |
| Parallel / Series Operation | Two sets of DC output terminals; up to two units in parallel |
| Protection | Overload, overvoltage, input surge, output short-circuit |
| Dimensions / Weight | 60 mm W x 125 mm H x 140 mm D, 750 g |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for S8VK-T24024
Does the S8VK-T24024 accept single-phase input?
No. The S8VK-T is three-phase only and accepts 380-480 VAC across two or three phases. For single-phase input, use the S8VK-G24024, which delivers the same 240 W / 10 A output at 24 VDC from a 100-240 VAC single-phase supply. Note that the supply is fanless.
What is the power-boost rating of the S8VK-T24024?
120 percent of rated output, which is 12 A, for up to 10 seconds. The power boost covers motor inrush and capacitive-load charging without saturating the supply. Outside the 10 s window the supply drops to its continuous 10 A rating with no damage. The three-phase input also accepts two-phase 340-576 VAC and DC input from 450 to 810 VDC, which gives cabinet designers a single SKU for both three-phase and DC-bus installations.
Can two S8VK-T24024 supplies run in parallel for redundancy?
Yes. The S8VK-T has two sets of DC output terminals so two units can be paralleled. For true N+1 redundancy, add an external OR-ing module. Without an OR-ing module, the supplies share current but small voltage differences may still cause uneven loading.
What is the efficiency of the S8VK-T24024?
89 percent typical at full load, which is high for a three-phase DIN-rail supply. Heat dissipation stays low enough for fanless operation from -40 to 70 C ambient. Compliance covers UL 508, EN 61204-3, CE, and RoHS. Compliance covers UL 508 for industrial control equipment, EN 61204-3 for DC output performance, CE marking for the European market, and RoHS for hazardous-substance restriction.
