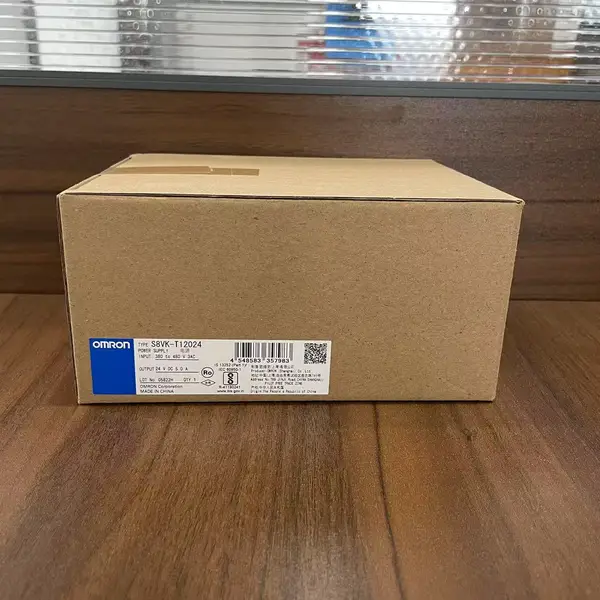

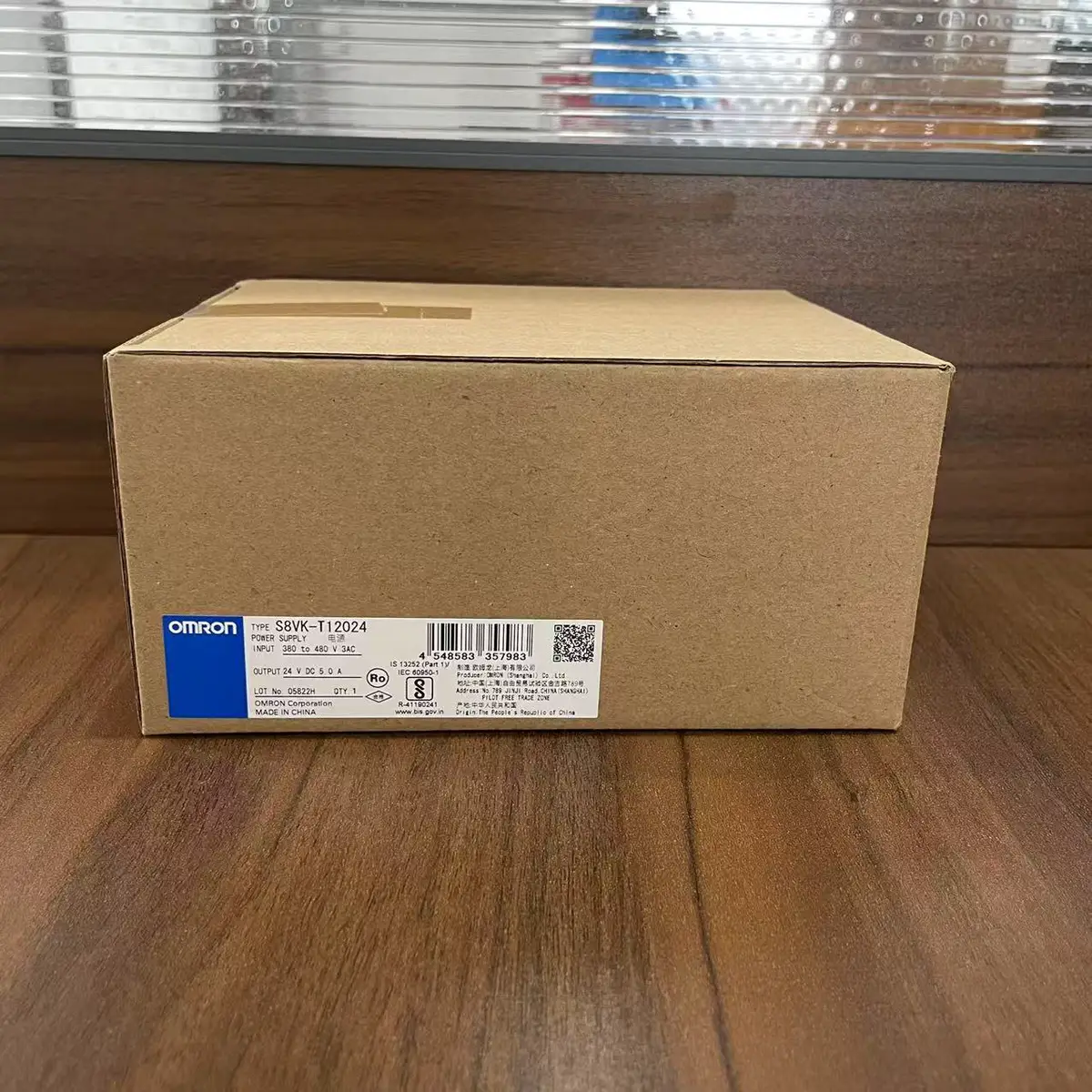

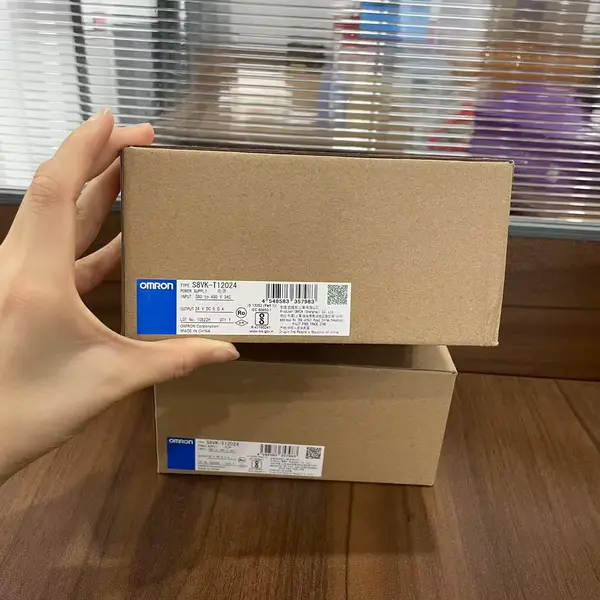

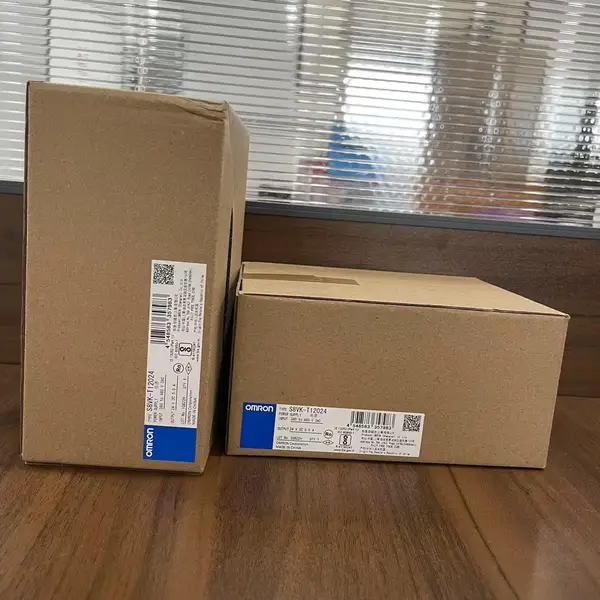

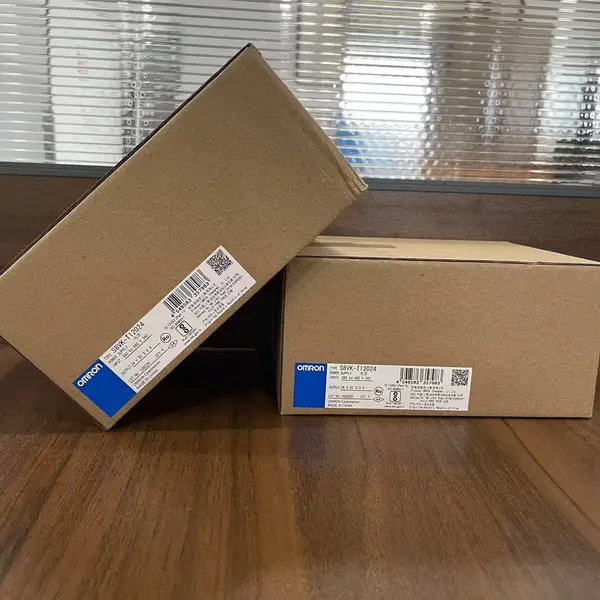

Omron S8VK-T12024 — 120 W 3-Phase PSU, 24 VDC
SKU: S8VK-T12024USD 75.00
Omron S8VK-T12024 3-phase DIN-rail PSU, 120 W 24 VDC 5 A, 380-480 VAC, -40 to 70 C. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron S8VK-T12024 is a 120 W three-phase DIN-rail switch-mode power supply in the S8VK-T family, manufactured by Omron Corporation. Hengyixin Automation stocks this power supply in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
The supply accepts three-phase 380-480 VAC at 50/60 Hz, or two-phase 340-576 VAC, or 450-810 VDC, and delivers a regulated 24 VDC at 5 A continuous with a 120 percent power boost to 6 A for 10 s. The 87 percent efficiency figure keeps heat dissipation low for fanless operation. Operating temperature is -40 to 70 C ambient with no derating below 60 C.
The covered DIN-rail housing measures 40 mm W x 125 mm H x 140 mm D and weighs 600 g. Two sets of DC output terminals support parallel and series operation. Compliance covers UL 508, EN 61204-3, CE, and RoHS. The S8VK-T24024 is the same family at 240 W / 10 A.
Key Features
- Three-phase 380-480 VAC (or 2-phase 340-576 VAC, or 450-810 VDC) DIN-rail PSU
- 120 W output, 24 VDC at 5 A continuous, 120 percent power boost to 6 A for 10 s
- Fanless operation from -40 to 70 C, 87 percent efficiency, double DC output terminals
- 40 mm W x 125 mm H x 140 mm D, 600 g, UL 508 EN 61204-3 CE RoHS
- SKU: S8VK-T12024
- Series: S8VK-T compact three-phase input power supply
- Voltage: 24 VDC
Best-Fit Applications
- Three-phase cabinet power on a CJ2M machine cell where 120 W covers the PLC, HMI, and 16-point I/O without oversizing the PSU
- 24 VDC bus for a small EtherCAT cell with one R88D-1SN02H-ECT drive where 5 A continuous covers normal operation
- Spare replacement on a Sysmac NX102 line where the original single-phase S8VK-G12024 needs migration to three-phase for higher cabinet density
Buying Checklist
- Choose the S8VK-T12024 when the cabinet has three-phase 380-480 VAC and needs 120 W / 5 A at 24 VDC.
- Choose the S8VK-G12024 instead when the cabinet only has single-phase 100-240 VAC and the same 120 W / 5 A output.
- Choose the S8VK-T24024 instead when the cabinet needs 240 W / 10 A on the same S8VK-T family.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | S8VK-T compact three-phase input power supply |
| Model / SKU | S8VK-T12024 |
| Output Power | 120 W |
| Output Voltage / Current | 24 VDC at 5 A continuous; 6 A peak for 10 s (120 percent power boost) |
| Input Voltage | Three-phase 380-480 VAC (or 2-phase 340-576 VAC), 50/60 Hz; 450-810 VDC |
| Efficiency | 87 percent typical at full load |
| Operating Temperature | -40 to 70 C ambient, no derating below 60 C |
| Mounting | DIN rail (TS35/7.5 or TS35/15), covered enclosed case |
| Parallel / Series Operation | Two sets of DC output terminals; up to two units in parallel |
| Protection | Overload, overvoltage, input surge, output short-circuit |
| Dimensions / Weight | 40 mm W x 125 mm H x 140 mm D, 600 g |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for S8VK-T12024
What is the difference between S8VK-T12024 and S8VK-G12024?
Both are 120 W / 5 A 24 VDC DIN-rail supplies. The T suffix is three-phase input (380-480 VAC); the G suffix is single-phase (100-240 VAC). Choose T when the cabinet has three-phase distribution, G when it has single-phase only. The three-phase input also accepts two-phase 340-576 VAC and DC input from 450 to 810 VDC, which gives cabinet designers a single SKU for both three-phase and DC-bus installations.
Does the S8VK-T12024 support parallel redundancy?
Yes. Two S8VK-T12024 supplies can be paralleled via the dual DC output terminals. For true redundancy, add an external OR-ing module. The S8VK-T series also supports series operation to build a 48 VDC bus from two supplies. For true N+1 redundancy where one supply can carry the full load if the other fails, add an external OR-ing module. Without OR-ing, two paralleled supplies share current but small voltage differences may still cause uneven loading.
What is the efficiency of the S8VK-T12024?
87 percent typical at full load. The supply runs fanless from -40 to 70 C ambient without derating below 60 C. Compliance covers UL 508, EN 61204-3, CE, and RoHS. The 87 percent efficiency keeps heat dissipation low enough that the supply runs fanless from -40 to 70 C ambient without derating below 60 C, which simplifies cabinet cooling.
Can the S8VK-T12024 be powered from DC input?
Yes. The supply accepts 450-810 VDC at the input terminals, which lets it ride on a DC bus from a larger rectifier or solar system. The DC input range excludes the 960 W S8VK-T96024, which is AC-only. Compliance covers UL 508 for industrial control equipment, EN 61204-3 for DC output performance, CE marking for the European market, and RoHS for hazardous-substance restriction.
