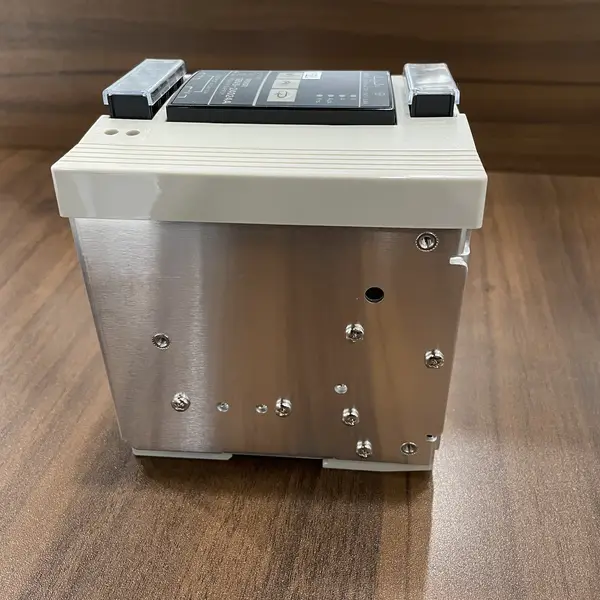

Omron S8VS-24024A — 240 W PSU with Status Display
SKU: S8VS-24024AUSD 192.00
240 W DIN-rail supply with voltage, current and maintenance display. Delivers 24 VDC at 10 A with sinking alarm outputs.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron S8VS-24024A supplies 24 VDC to larger control panels and gives maintenance staff useful readings at the cabinet. Its front display shows output voltage, current, peak current, and an estimate of remaining maintenance time. Two sinking transistor outputs can send low-voltage and maintenance alerts to compatible PLC inputs. This S8VS power supply uses screw terminals, mounts on DIN rail, and accepts a single-phase AC feed or an allowed DC input.
Choosing this 240 W version
Use this model when the steady control load needs more capacity than the 180 W or 120 W versions can provide. The A suffix means it has a maintenance forecast monitor with sinking alarm outputs. S8VS-24024AP provides the same power and display with sourcing outputs, while S8VS-24024B replaces the forecast with a total-run-time monitor. The standard S8VS-24024 leaves out the display and alarm outputs.
Useful information at the panel
A technician can check the present load and review the highest recorded current without attaching a separate meter. The forecast tracks operating time and internal temperature to estimate capacitor aging. It is a maintenance guide, not a guarantee that every type of fault will be predicted. The low-voltage output reports a drop at the supply terminals; it is not a load-level pre-alarm.
Before ordering
Add every normal 24 VDC load and leave sensible room for future I/O or field devices. Confirm the PLC input works with sinking transistor signals; these alarm connections are not dry relay contacts. Do not connect two units in parallel to increase available current. Allow 100 mm of rail width plus cooling space, keep the standard upright mounting position, and check Omron’s reduced load limit if the DC input is below 100 V.
Key Features
- 240 W supply with 24 VDC, 10 A output
- Three-digit status and maintenance display
- Live voltage, current, and peak-current readings
- Maintenance forecast with a settable alert point
- Sinking transistor outputs for low voltage and maintenance
- 100–240 VAC rated input with allowable DC input
- Screw terminals and DIN-rail mounting
- SKU: S8VS-24024A
- Series: S8VS-24024A
- Voltage: 24 VDC
- I/O: 24 I/O
Best-Fit Applications
- Main 24 VDC supply for larger PLC and distributed-I/O cabinets
- Packaging lines needing local current checks and remote voltage alarms
- Assembly systems with many sensors, relays, and control devices
- Remote machine panels maintained during planned service visits
Buying Checklist
- Confirm the combined continuous load stays within 10 A.
- Check the cabinet feed matches the listed AC or DC input range.
- Verify the PLC input accepts sinking transistor alarm signals.
- Choose S8VS-24024AP when sourcing alarm outputs are required.
- Choose a lower-power S8VS model when the load leaves ample spare capacity.
- Allow for 100 mm of rail width, cooling space, and any derating.
Technical Specifications
| Power Rating | 240 W |
|---|---|
| Output Voltage | 24 VDC |
| Output Current | 10 A |
| Input Voltage | 100–240 VAC rated; 85–264 VAC or 80–370 VDC allowable |
| Display | 3-digit LED status and maintenance monitor |
| Alarm Outputs | Sinking transistor; DC LOW and Yrs; 30 VDC, 50 mA max. |
| Connection | Screw terminals |
| Mounting | DIN rail; standard upright position |
| Parallel Operation | Not supported |
| Operating Temperature | -10 to 60 °C; derating applies |
| Dimensions (W × H × D) | 100 × 115 × 125.2 mm |
Resources & Downloads
FAQ for S8VS-24024A
What is the difference between S8VS-24024A and S8VS-24024AP?
The alarm polarity is different. S8VS-24024A has sinking transistor outputs, while S8VS-24024AP has sourcing outputs. Their power rating and maintenance display are otherwise the same. Choose the version that matches the PLC input circuit and common wiring before ordering a replacement.
Can the S8VS-24024A alarm outputs connect to a PLC?
Yes, when the PLC input is compatible with a sinking transistor signal. Separate outputs report low voltage and the maintenance threshold. They are electronic outputs rather than dry relay contacts, so confirm the input common and permitted signal level before connection.
Can two S8VS-24024A supplies be connected in parallel?
No, not to increase the available current. Omron marks parallel operation as unsupported for this model. The datasheet allows backup operation with an external diode, but that is a different arrangement and each supply must be selected for the required load.
