Omron SS-5GL13 — Subminiature Switch, Simulated Roller
SKU: SS-5GL13USD 0.50
SS-series subminiature snap-action switch, SPDT, simulated roller lever, 5 A, solder terminals. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping

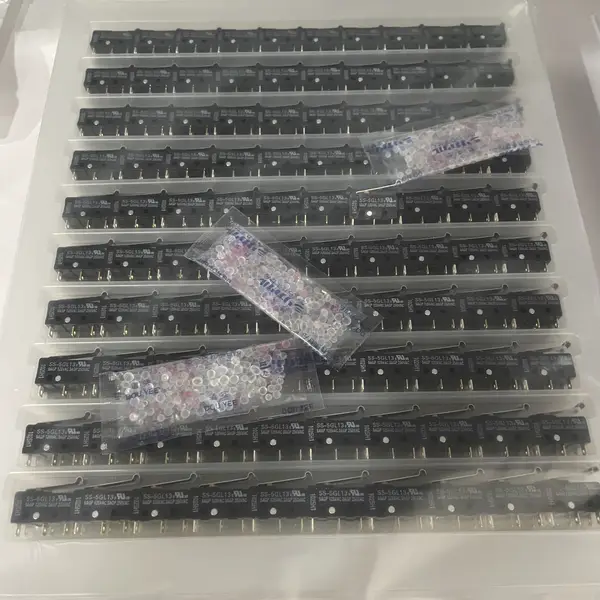

Product Overview
The Omron SS-5GL13 is an SS-series subminiature snap-action switch with a simulated roller lever It is manufactured by Omron Corporation. Hengyixin Automation ships this switch from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The switch is SPDT (single pole double throw) with 5 A at 125 VAC standard rating. The actuator is a simulated roller lever (a curved stainless-steel leaf that gives roller-like low-friction feel without an actual rolling element).
For a higher-current SPDT basic switch, pick the Z-15GQ-B. Key specs: Contact Form SPDT (single pole double throw, Form C); Actuator Simulated roller lever (stainless steel); Contact Rating 5 A at 125 VAC, 3 A at 250 VAC (resistive, standard); Operating Force (OF) 0.49 N max (50 gf); Release Force (RF) 0.06 N min (6 gf); Travel Overtravel 1.0 mm min; movement differential 0.8 mm max; Termination Solder lug; Mechanical / Electrical Life 30,000,000 mechanical; 200,000 electrical at rated load.
Key Features
- SS-series subminiature snap-action switch with simulated roller lever
- SPDT (Form C) contact, 5 A at 125 VAC standard rating, 3 A at 250 VAC
- 0.49 N operating force, 0.06 N release, 1.0 mm overtravel, 19.8 x 6.4 x 10.2 mm body
- Solder lug terminals, 30 million mechanical operations, IP40, -25 to +85 degC
- SKU: SS-5GL13
- Series: Omron SS-series subminiature basic switch
Best-Fit Applications
- End-of-stroke detection on a small pneumatic cylinder where the simulated roller lever gives smooth cam engagement without an actual rolling element
- Door-position feedback on an enclosure where the 19.8 mm body fits the door frame and the SPDT contact feeds both the indicator and the interlock
- Spare drop-in for an OEM panel where the previous micro switch failed and the field wiring is solder-lug SPDT
Buying Checklist
- Pick the SS-5GL13 for a subminiature SPDT switch with a simulated roller lever and a 5 A rating.
- Pick the SS-5GL2 instead when a real hinge roller is needed for a heavier cam engagement.
- Pick the SS-01GL13 instead when the load is microvoltage (0.1 A at 125 VAC) and bifurcated contacts are required.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron SS-series subminiature basic switch |
| Model / SKU | SS-5GL13 |
| Contact Form | SPDT (single pole double throw, Form C) |
| Actuator | Simulated roller lever (stainless steel) |
| Contact Rating | 5 A at 125 VAC, 3 A at 250 VAC (resistive, standard) |
| Operating Force (OF) | 0.49 N max (50 gf) |
| Release Force (RF) | 0.06 N min (6 gf) |
| Travel | Overtravel 1.0 mm min; movement differential 0.8 mm max |
| Termination | Solder lug |
| Mechanical / Electrical Life | 30,000,000 mechanical; 200,000 electrical at rated load |
| Protection / Temperature | IP40; -25 to +85 degC operating; 19.8 x 6.4 x 10.2 mm |
FAQ for SS-5GL13
What is the difference between the SS-5GL13 and the SS-01GL13?
The SS-5GL13 is the standard 5 A at 125 VAC version with rivet contacts. The SS-01GL13 is the microvoltage 0.1 A version with bifurcated crossbar contacts. Both share the same simulated roller lever and body.
Can the SS-5GL13 be used in safety interlocks?
Not on its own. The SS-5GL13 does not have the direct-opening mechanism required by EN ISO 13849-1 for safety interlocks. For a safety-rated limit switch with positive opening, use the D4N or D4B series instead.
What is the operating position of the SS-5GL13?
The operating position is 10.7 plus or minus 0.8 mm from the mounting holes. The free position is 15.5 mm and the overtravel is 1.0 mm min beyond the operating position.
How do I wire the SS-5GL13?
Solder the three leads to the common, normally-open and normally-closed terminals on the bottom of the body. Polarity does not matter on the switch side; it is a mechanical SPDT.
