Omron TL-N10ME1 — Industrial Sensor
SKU: TL-N10ME1USD 13.50
30 × 30.5 × 52.5 mm rectangular inductive proximity sensor, 10 mm unshielded sensing distance, NPN open-collector NO output, pre-wired 2 m oil-resistant PVC cable, 12-24 VDC supply, 500 Hz response, IP67.
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

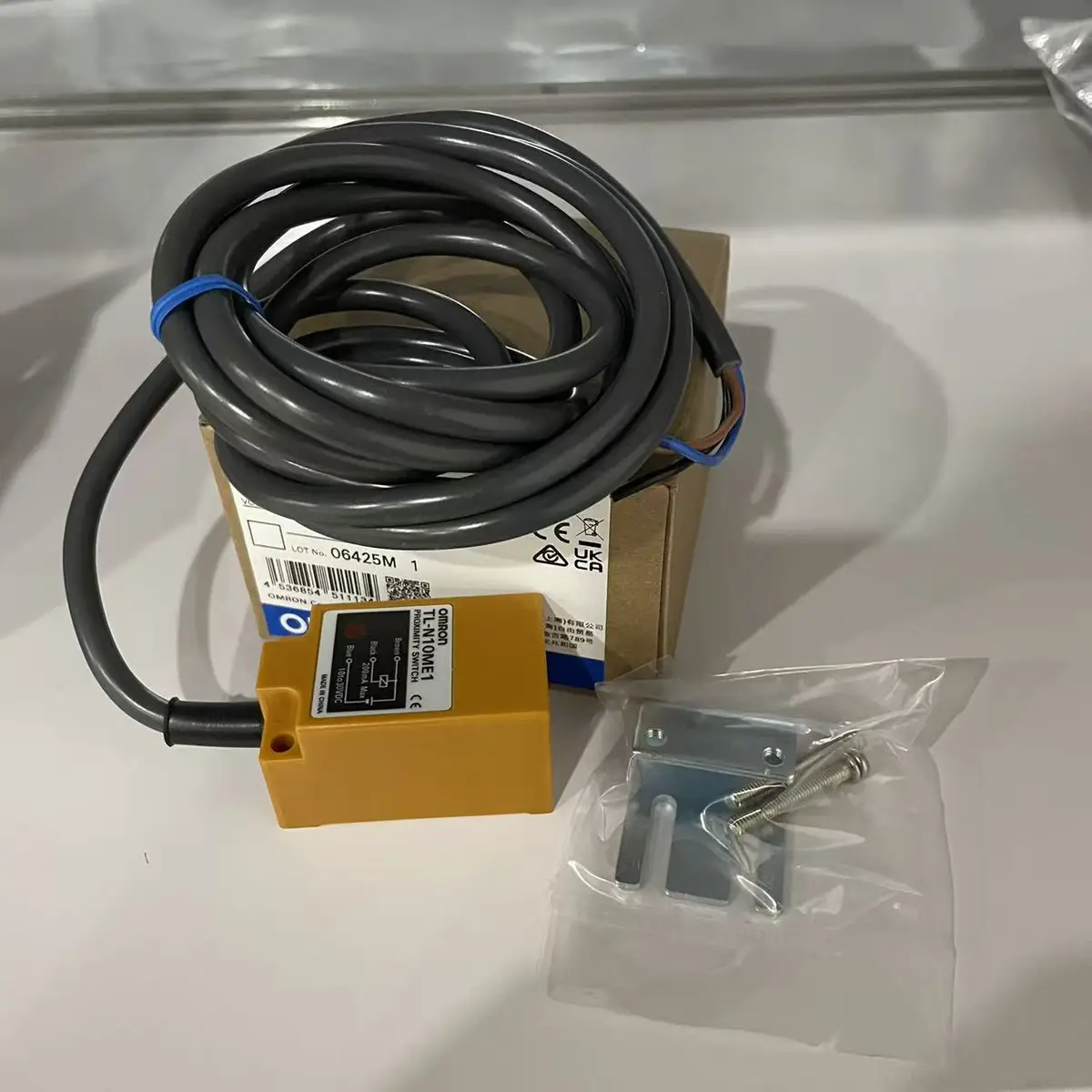

The TL-N10ME1 is the 10 mm-sensing variant of Omron's TL-N rectangular inductive proximity sensor family. The 'rectangular' form factor — 30 × 30.5 × 52.5 mm ABS housing — is the right pick when an M18 cylindrical inductive sensor won't physically fit the installation (e.g., inside a tight fixture pocket or mounted flat against a moving part where the round barrel would be in the way) but the application doesn't need a flat capacitive sensor. The TL-N10ME1 ships pre-wired with a 2 m oil-resistant PVC cable and provides an NPN open-collector normally-open output.
TL-N family decoding
TL-N model code: TL = rectangular inductive family; N = 30 × 30 mm housing (vs Q = 17 × 17 mm compact rectangular, or M = M18 cylindrical, etc.); 10 = sensing distance in mm (5, 7, 10, 12, 20 mm are available; 10 mm is mid-range); M = medium-load / DC 3-wire (E1 suffix is NPN NO, E2 is NPN NC, Y1 is PNP NO, Y2 is PNP NC — although these codes vary by regional datasheet).
Rectangular form-factor advantages
The rectangular 30 × 30 mm form factor offers three advantages over an equivalent M18 cylindrical: (1) flat-mounting — the back face can be flush-mounted against a flat panel or bracket without a through-hole, simplifying installation; (2) cable routing — the cable exits from the bottom or side of the housing, allowing the sensor to be installed in tighter spaces without the cable being trapped behind a round barrel; (3) higher sensing distance in a smaller body — a 10 mm range in a 30 mm rectangular body is similar to M30 cylindrical sensors (which are 30 mm diameter × 80 mm long).
Unshielded vs shielded mounting
The TL-N10ME1 is unshielded (non-flush) — the magnetic field extends beyond the front face of the housing, allowing the sensor to detect targets approaching from any direction (not just directly in front). The shield-side clearance requirement is 0 mm — install directly against any ferrous or non-ferrous bracket with no field-attenuation concern. The shielded TL-N12MD (12 mm range shielded) and TL-N7MD (7 mm range shielded) variants have a metal collar that localizes the field, allowing closer mounting but reducing the sensing range by ~50 %.
Key Features
- 30 × 30.5 × 52.5 mm rectangular inductive proximity sensor
- 10 mm unshielded sensing distance
- NPN open-collector normally-open output
- Pre-wired 2 m oil-resistant PVC cable, 3-conductor
- 10 to 30 VDC operating voltage
- 500 Hz response frequency
- 100 mA max load current
- 10 mA max current consumption
- SKU: TL-N10ME1
- Series: TL-N Rectangular Inductive Proximity Sensors
- Voltage: 10 TO 30 VDC
- I/O: 0 I/O
Best-Fit Applications
- Pneumatic cylinder end-of-stroke detection where the rectangular form factor fits inside a tight fixture — TL-N10ME1 mounted flush against the.
- Parts count on a vibratory feeder bowl — TL-N10ME1 mounted through the bowl rim to detect parts as they exit.
- Conveyor belt splice detection — TL-N10ME1 detects the metal fastener splicing pieces on a fabric conveyor belt, output signals a.
- Carton detection on a packaging conveyor — TL-N10ME1 mounted 10 mm above the line detects the top of each carton.
Buying Checklist
- Pick TL-N10ME1 for 30 mm rectangular inductive sensor with 10 mm unshielded range, NPN NO output, pre-wired 2 m cable
- Pick TL-N5ME1 for 5 mm sensing distance — pick if the target is closer to the sensor face
- Pick TL-N7MD1 for 7 mm shielded — pick for tight bracket mounting
- Pick TL-N10ME2 for NPN NC output — pick for fail-safe 'sensor blocked = ON' logic
- Pick TL-N10MY1 for PNP sourcing output — pick for Siemens / Allen-Bradley / Omron CP/CJ/NX PNP PLCs
- Pick TL-N20MD1 for 20 mm sensing distance — pick if the target is far from the sensor face
Technical Specifications
| Model | TL-N10ME1 2M |
|---|---|
| Series | TL-N Rectangular Inductive Proximity Sensors |
| Type | 30 mm rectangular unshielded, DC 3-wire NPN NO |
| Sensing Distance | 10 mm ±10 % (with iron 30 × 30 × 1 mm target) |
| Setting Distance | 0 to 8 mm (80 % of nominal sensing distance) |
| Differential Travel | 10 % max of sensing distance |
| Standard Sensing Object | Iron, 30 × 30 × 1 mm |
| Operating Voltage | 10 to 30 VDC (12 to 24 VDC ±10 % ripple) |
| Output Type | NPN open-collector, NO (sinking to 0 V when target detected) |
| Load Current | 100 mA max at 30 VDC |
| Residual Voltage | 1.5 V max at 100 mA load |
| Leakage Current | 0.1 mA max |
| Sensing Face Material | ABS plastic |
| Dimensions | 30 × 30.5 × 52.5 mm (W × H × D) |
| Mounting | 2 × M4 mounting holes on base (front face mounting option) |
