Omron W4S1-05B — Industrial Switch, 5-Port, QoS
SKU: W4S1-05BUSD 140.00
Omron W4S1-05B 5-port industrial Ethernet switch, 10/100 BASE-TX, QoS, failure detection. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron W4S1-05B is a 5-port industrial Ethernet switching hub from the W4S1 family, manufactured by Omron Corporation. Hengyixin Automation ships this switch from our Xiamen warehouse with the configuration tool installer and a datasheet PDF included.

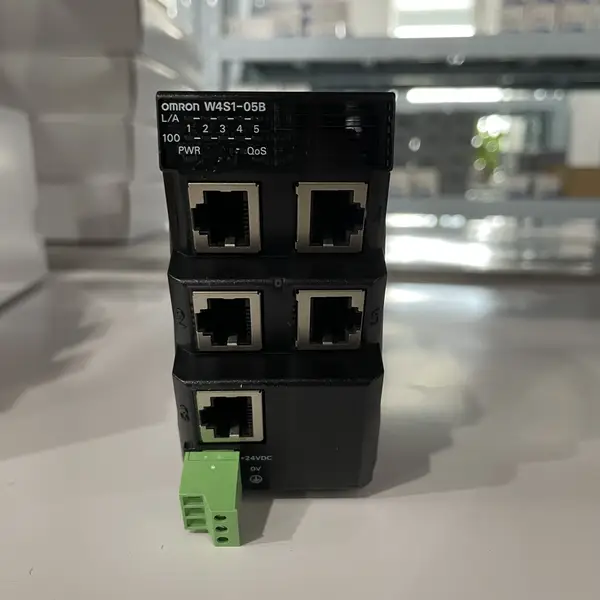

The hub ships with five auto-negotiating 10/100 BASE-TX RJ45 ports. Quality of Service (QoS) prioritises EtherNet/IP control data over background traffic, which keeps the deterministic cycle time of the machine network intact when a video or logging stream runs in parallel.
Failure detection covers broadcast storm and LSI error, with a dedicated alarm output connector on the front. The unit takes 24 VDC at 0.22 A. The body is 90 x 82.6 x 48 mm on a 35 mm DIN rail. Use this hub between the NJ501-1500 Sysmac CPU and the NS5-SQ10B-V2 HMI on a packaging line.
Key Features
- W4S1 industrial 5-port switching hub, 10/100 BASE-TX, RJ45, auto-negotiation
- EtherNet/IP QoS prioritises control data over background traffic
- Broadcast-storm and LSI failure detection with dedicated alarm output
- 24 VDC at 0.22 A, 90 x 82.6 x 48 mm, 35 mm DIN-rail mount
- SKU: W4S1-05B
- Series: Omron W4S1-series industrial switching hub
- Voltage: 24 VDC
Best-Fit Applications
- EtherNet/IP ring on a packaging line where the QoS keeps the control traffic on its deterministic schedule
- Cabinet retrofit where a failed unmanaged switch needs an industrial drop-in replacement with storm detection
- Star hub between an NJ501-1500 CPU, an NS5-SQ10B-V2 HMI and three remote I/O blocks on a flat network
Buying Checklist
- Pick the W4S1-05B for a 5-port industrial Ethernet hub with EtherNet/IP QoS and broadcast-storm failure detection.
- Pick the W4S1-03B instead when the cabinet only needs 3 ports and no failure detection.
- Pick the W4S1-05C instead when the cabinet needs the same 5-port + QoS body but a different power connector orientation.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron W4S1-series industrial switching hub |
| Model / SKU | W4S1-05B |
| Port Count | 5 x 10/100 BASE-TX RJ45, auto-negotiation |
| QoS | EtherNet/IP control data priority over background traffic |
| Failure Detection | Broadcast-storm and LSI error detection; alarm output via dedicated connector |
| Supply Voltage | 24 VDC |
| Current Consumption | 0.22 A |
| Power Consumption | 2.88 W max |
| Indicators | Per-port link / activity LED |
| Operating Temperature | 0 to +55 degC |
| Dimensions / Mounting | 90 (W) x 82.6 (H) x 48 (D) mm; 35 mm DIN rail |
FAQ for W4S1-05B
What is the difference between W4S1-05B and W4S1-05C?
Both are 5-port hubs with EtherNet/IP QoS and failure detection. The W4S1-05B uses the standard Omron power connector. The W4S1-05C uses a different power connector orientation for cabinets with side-mounted wiring ducts. Pick the one whose power connector matches your existing wiring layout.
Does the W4S1-05B need any configuration?
No. The hub is plug-and-play: plug in the 24 VDC supply, land the RJ45 cables, and the LEDs come on. QoS and failure detection are on by default and cannot be tuned from the field. Management is not available.
Is the W4S1-05B suitable for EtherCAT?
No. EtherCAT requires line topology with no store-and-forward delay. The W4S1-05B is for EtherNet/IP and FINS star networks. For EtherCAT, use the NJ501 or NX102 CPU as the master and wire the slaves in daisy-chain.
