Omron NS5-SQ10B-V2 — 5.7 inch TFT HMI, Q-Mode, Ethernet
SKU: NS5-SQ10B-V2USD 410.00
NS-series 5.7-inch TFT colour HMI, 320 x 240, Q-mode operation, Ethernet, black bezel.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

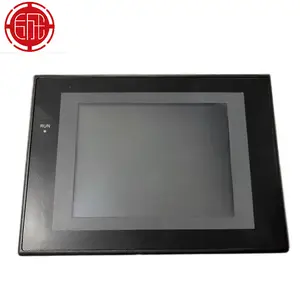

The Omron NS5-SQ10B-V2 is a 5.7-inch TFT colour HMI in the NS series, with a 320 x 240 pixel QVGA display, an Ethernet port, and a black bezel. The 'SQ' in the model code marks Q-mode operation (standard NS-series ladder / function-block screens) and '10B' marks the Ethernet-equipped variant with the black bezel; 'V2' marks the current-generation NS5 hardware. It supports up to four host connections (serial + Ethernet), reads standard Omron Host Link and FINS, and screens are built with CX-Designer. It is the standard pick for small packaging, material-handling, and OEM machines that need a 5.7-inch colour screen at the operator station.
Why TFT QVGA at 5.7 inch
The NS5 line splits by display. The NS5-MQ is STN monochrome; the NS5-SQ is TFT colour with the same QVGA resolution. The NS5-TQ adds an analog touch panel and higher-end display. Pick the NS5-SQ10B-V2 when you need a colour screen with Ethernet and a Q-mode ladder / function-block project. For 3.6-inch displays, drop to the NS3; for 10-12 inch, move up to the NS10 / NS12.
Screen design

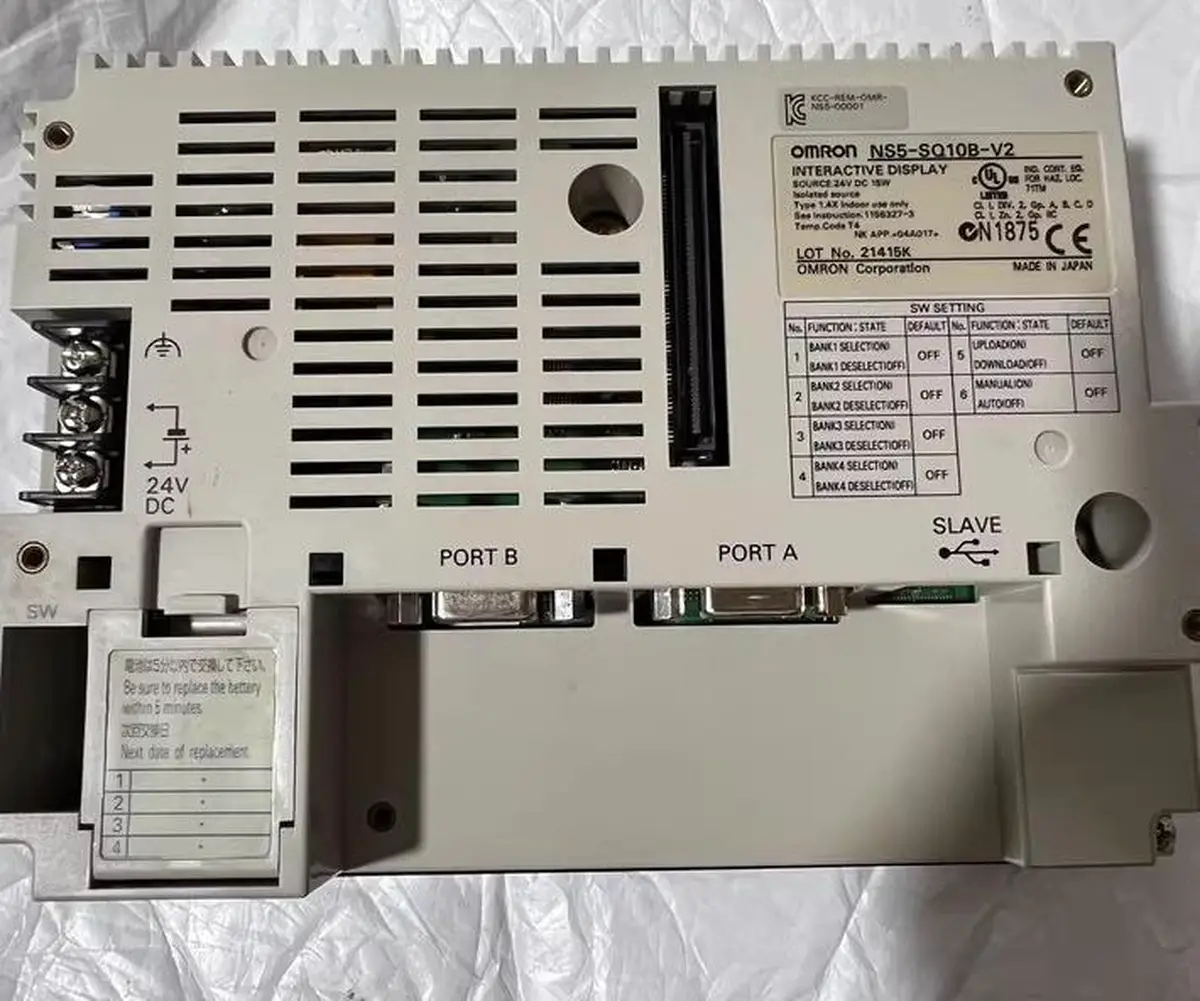

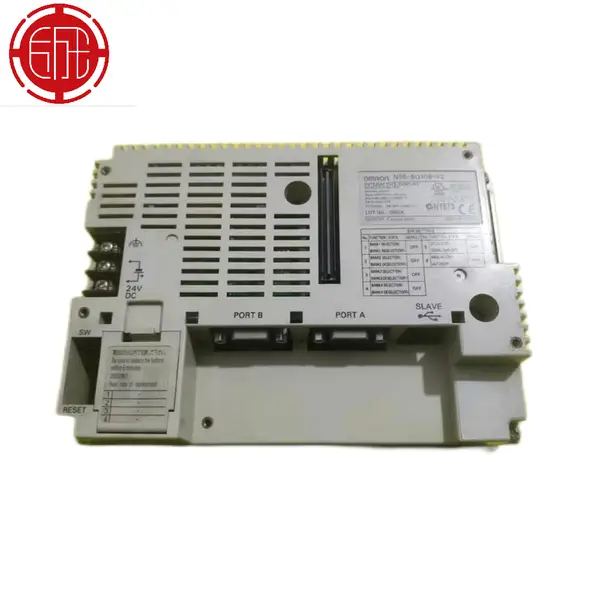

Screens are built with CX-Designer and saved as a project on the HMI. The NS5-SQ10B-V2 supports the standard NS-series component library (buttons, lamps, numeric entry, alarms, recipes, trends) and runs projects up to 20 MB. The Ethernet port supports Host Link, FINS, and the standard NS-series ladder transfer (via CX-Designer). The USB slave port on the bottom is for project upload / download.
Before ordering
Confirm the panel cutout is the standard NS5 size (about 184 x 124 mm). Confirm the host PLC supports either Host Link (serial) or FINS (Ethernet) and that the project is built in CX-Designer for the NS series. Order a 24 VDC supply rated at about 12 W for the HMI. For a replacement of an older NS5-SQ10B (non-V2), the V2 is the current production model.
Key Features
- NS-series 5.7-inch TFT colour HMI
- 320 x 240 QVGA resolution, 65,536-colour display
- Q-mode operation with CX-Designer project software
- Ethernet port plus RS-232C / RS-422 host port
- Black bezel (B suffix), V2 current-generation hardware
- Up to four host connections, FINS and Host Link support
- USB slave port for project upload / download
- SKU: NS5-SQ10B-V2
- Series: NS-series PT (Programmable Terminal)
- Voltage: 24 VDC
Best-Fit Applications
- Operator panel on a small packaging machine with recipe selection
- Status and alarm display on a material-handling conveyor
- Process value and setpoint display on a small oven or bath
- Manual / auto control screen on a pump or compressor skid
- Replacement of an older NS5-SQ10B (non-V2) on the same panel cutout
Buying Checklist
- Choose NS5-SQ10B-V2 for 5.7 inch TFT colour with Ethernet.
- Choose NS5-MQ10B-V2 for 5.7 inch STN monochrome with Ethernet.
- Choose NS10-TV01B-V2 for a 10-inch screen at the same Q-mode.
- Choose NS5-SQ10-V2 for the same screen without Ethernet.
- Confirm the project is built in CX-Designer for the NS series.
- Confirm the panel cutout matches the standard NS5 size of 184 x 124 mm.
Technical Specifications
| Series | NS-series PT (Programmable Terminal) |
|---|---|
| Display | 5.7-inch TFT colour LCD |
| Resolution | 320 x 240 pixels (QVGA) |
| Colours | 65,536 colours |
| Backlight | LED, approx. 50,000 hours half-life |
| Touch Panel | Analog resistive |
| Ethernet Port | 10/100 Base-T (FINS, Host Link) |
| Serial Port | RS-232C / RS-422 host port |
| USB Port | USB slave for project transfer |
| Supply Voltage | 24 VDC +/- 15 % |
| Power Consumption | 12 W max. |
| Operating Temperature | 0 to +50 °C |
Resources & Downloads
FAQ for NS5-SQ10B-V2
Is the NS5-SQ10B-V2 a TFT or STN display?
The NS5-SQ10B-V2 is TFT colour, not STN. The SQ prefix in the NS-series means Q-mode TFT colour; the MQ prefix is STN monochrome. Pick the SQ10B-V2 when a colour screen is needed at the operator station; pick the MQ10B-V2 for monochrome applications.
Can the NS5-SQ10B-V2 connect to a CJ-series PLC over Ethernet?
Yes. The Ethernet port supports FINS over TCP / UDP, which is the standard CJ / NJ Ethernet protocol. Use CX-Designer to define the host PLC IP address, port number, and node number. The serial port can also be used for Host Link to older CJ1 / CS1 PLCs.
Is the V2 a different size from the original NS5?
No. The NS5-SQ10B-V2 fits the same panel cutout and mounting holes as the original NS5-SQ10B (non-V2), so it is a drop-in replacement on the panel door. Projects built for the non-V2 screen transfer directly to the V2 through the CX-Designer software without changes.
