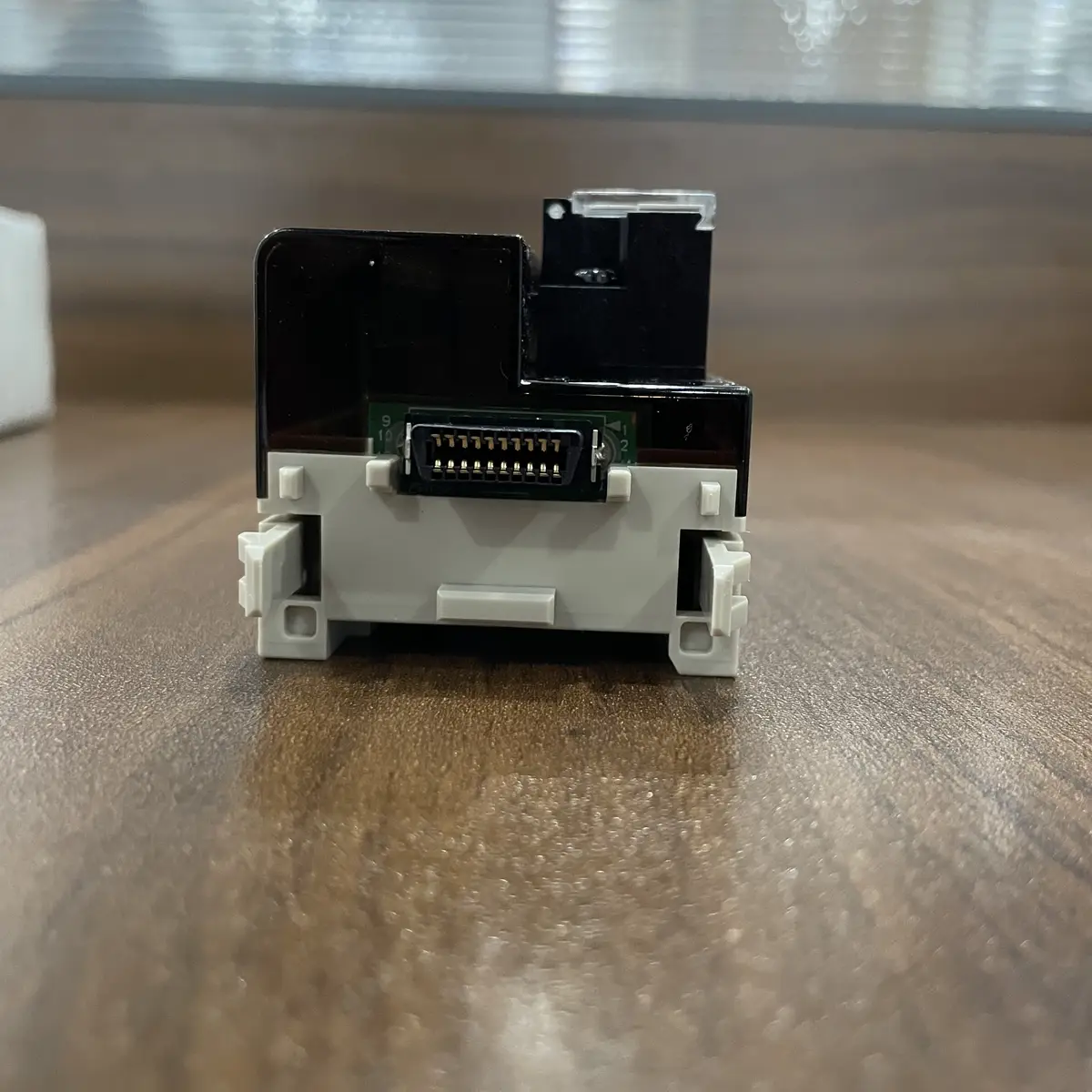

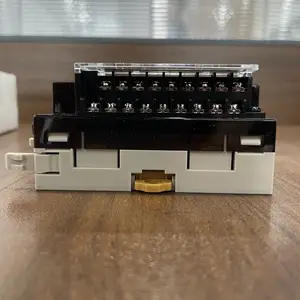

Omron XWT-OD16 — CompoNet 16-Point NPN Output

SKU: XWT-OD16

USD 67.00

CompoNet expansion output unit, 16 NPN outputs at 0.5 A, screw terminal. In stock, China shipping.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

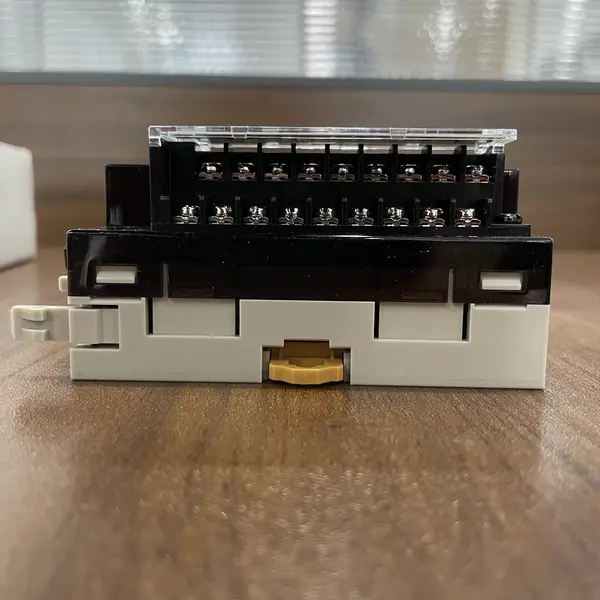

Product Overview

The Omron XWT-OD16 is the CompoNet expansion output unit with 16 NPN outputs It is manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. It mounts on the right side of one CRT1-ID16(-1), CRT1-OD16(-1), CRT1-ROS16, or CRT1-ROF16 Digital I/O Slave and adds 16 NPN outputs at 0.5 A per point, 4.0 A per common. Rated output voltage 24 VDC; residual voltage 1.2 V max; leakage 0.1 mA max. DIN rail mount or M4 screw. -10 to 55 C ambient, 25 to 85 percent humidity. 120 g. Key specs: Output Type 16 NPN (sinking) transistor outputs, 16 outputs per common; Rated Output Current 0.5 A per output point; 4.0 A per common; Rated Output Voltage 24 VDC load (residual 1.2 V max at 0.5 A; leakage 0.1 mA max); Switching Time ON delay 0.5 ms max; OFF delay 1.5 ms max; Communications Power 14 to 26.4 VDC (10 mA max at 24 VDC); I/O Power Supply 20.4 to 26.4 VDC (24 VDC -15 percent / +10 percent), 5 mA max; Connection / Isolation Detachable screw terminal.

Key Features

  • CompoNet expansion output unit with 16 NPN transistor outputs at 0.5 A per point, 4.0 A per common, 16 outputs per common
  • Rated output voltage 24 VDC; residual 1.2 V max; leakage 0.1 mA max; ON delay 0.5 ms max, OFF delay 1.5 ms max
  • Mounts to one CRT1-ID16(-1), CRT1-OD16(-1), CRT1-ROS16, or CRT1-ROF16 Digital I/O Slave on the CompoNet network
  • Detachable screw terminal block, photcoupler isolation, DIN rail mount, -10 to 55 C ambient, 120 g
  • SKU: XWT-OD16
  • Series: XWT CompoNet Expansion Output Unit (CRT1 / DRT2 / GX-series I/O expansion)
  • Voltage: 24 VDC
  • I/O: 20 I/O

Best-Fit Applications

  • Packaging line where one CRT1-OD16-1 CompoNet slave gains 16 extra 24 VDC outputs to drive pneumatic valves and indicator lamps
  • Conveyor cell where the XWT-OD16 sits next to a CRT1-ID16S sensor block and adds 16 outputs without a second network slave
  • Spare replacement on a bottling line where the original XWT-OD16 was lost and the CompoNet node address matches the existing host config

Buying Checklist

  • Pick the XWT-OD16 when the CompoNet slave needs 16 extra NPN outputs at 0.5 A per point on a screw terminal block.
  • Pick the XWT-OD16-1 instead when the loads need PNP (sourcing) outputs instead of NPN (sinking) at the same 0.5 A per point.
  • Pick the XWT-OD08 instead when only 8 extra NPN outputs at 0.5 A per point are needed on the same CompoNet slave.

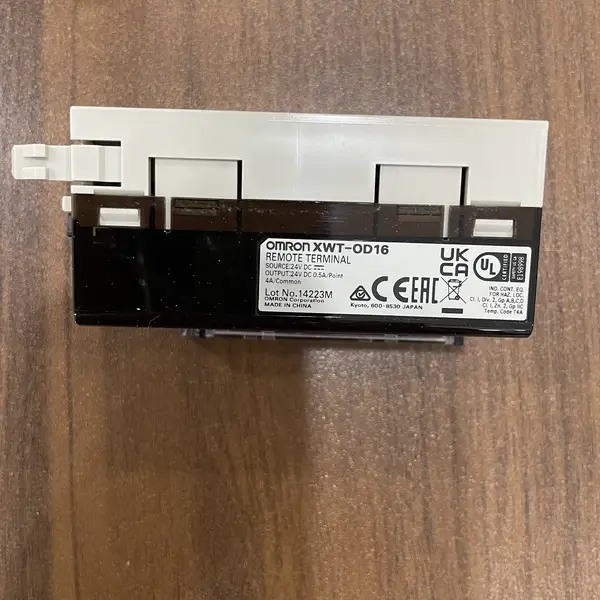

Technical Specifications

Manufacturer Omron Corporation (Japan)
Series XWT CompoNet Expansion Output Unit (CRT1 / DRT2 / GX-series I/O expansion)
Model / SKU XWT-OD16
Output Type 16 NPN (sinking) transistor outputs, 16 outputs per common
Rated Output Current 0.5 A per output point; 4.0 A per common
Rated Output Voltage 24 VDC load (residual 1.2 V max at 0.5 A; leakage 0.1 mA max)
Switching Time ON delay 0.5 ms max; OFF delay 1.5 ms max
Communications Power 14 to 26.4 VDC (10 mA max at 24 VDC)
I/O Power Supply 20.4 to 26.4 VDC (24 VDC -15 percent / +10 percent), 5 mA max
Connection / Isolation Detachable screw terminal block; M3 wiring screws 0.5 Nm; photcoupler isolation; dielectric 500 VAC
Mounting 35-mm DIN rail or M4 screw (depending on host slave)
Dimensions / Approvals 120 g; -10 to 55 C ambient; 25 to 85 percent humidity; CE, cULus Class I Div 2, NK

FAQ for XWT-OD16

What is the Omron XWT-OD16 used for?
It is the CompoNet expansion output unit that mounts to one CRT1 / DRT2 / GX-series Digital I/O Slave and adds 16 NPN outputs at 0.5 A per point. Typical uses are packaging line pneumatic valves and indicator lamps, conveyor outputs on the same CompoNet slave as the sensor block, and spare replacement where the node address matches the host config.
Which CompoNet slaves accept the XWT-OD16?
CRT1-ID16, CRT1-ID16-1, CRT1-OD16, CRT1-OD16-1, CRT1-ROS16, and CRT1-ROF16 Digital I/O Slaves. The XWT-OD16 mounts on the right side of the host slave and draws communications power from the CompoNet trunk. The host slave keeps its own node address; the XWT-OD16 does not get its own node on the network.
XWT-OD16 vs XWT-OD16-1 - what is the difference?
Both are 16-output CompoNet expansion units at 0.5 A per point, 4 A per common. The XWT-OD16 has NPN (sinking) outputs that switch to 0 V; the XWT-OD16-1 has PNP (sourcing) outputs that switch to 24 V. Pick the XWT-OD16 for NPN field devices; pick the XWT-OD16-1 for PNP field devices.
