Omron ZX-EDR5T — ZX-E Inductive Head, 0.5 mm
SKU: ZX-EDR5TUSD 508.00
Omron ZX-EDR5T ZX-E inductive displacement sensor head, 0-0.5 mm, 3 mm cylindrical, IP65. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron ZX-EDR5T is the ZX-E series cylindrical inductive displacement sensor head, manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
It reads the displacement of a magnetic metal target from 0 to 0.5 mm at 1 um resolution when paired with a ZX-EDA amplifier unit at the maximum 4096 average-count setting. Linearity is +/- 0.5 percent F.S. The 3 mm diameter by 18 mm brass body fits tight fixtures.

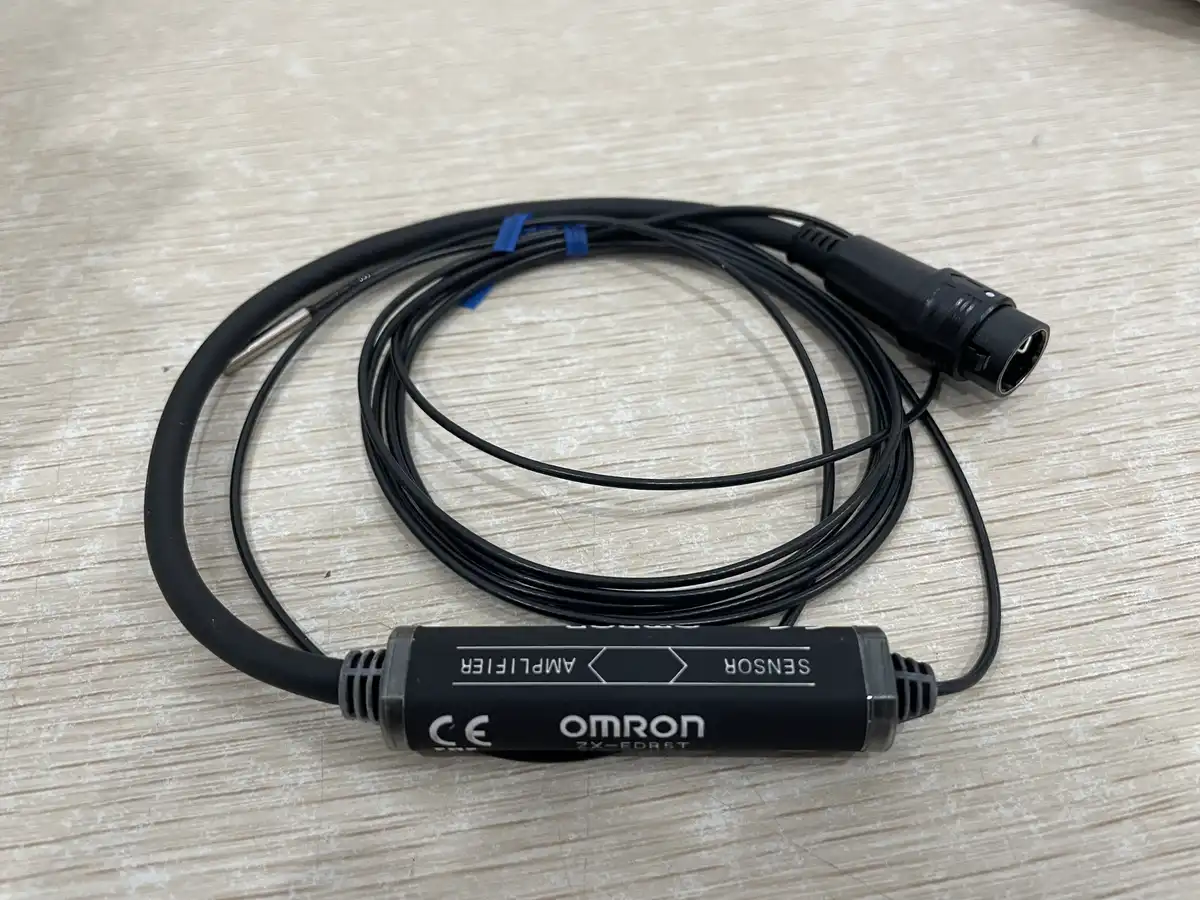

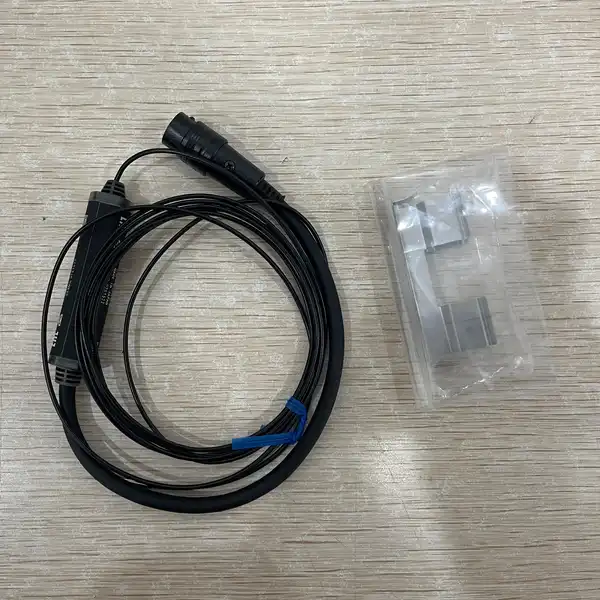

The sensor head is IP65 with a heat-resistant ABS sensing surface and a 2 m connector-relay cable. Operating temperature is 0 to 50 C for the head and -10 to 60 C for the preamplifier. The head needs a ZX-EDA11 or ZX-EDA41 amplifier to deliver a linear output, judgement outputs and timing inputs. For a non-contact proximity sensor at larger distances, use the E2E-X8B1D18-M1.
Key Features
- ZX-E cylindrical inductive displacement sensor head, 0 to 0.5 mm measurement range, 1 um resolution with ZX-EDA amplifier at 4096 averages
- 3 mm diameter x 18 mm body, brass case, heat-resistant ABS sensing surface, IP65 sensor head
- Linearity +/- 0.5 percent F.S., temperature characteristic 0.15 percent F.S. per degree C, magnetic metal target only
- Requires ZX-EDA11 (NPN) or ZX-EDA41 (PNP) amplifier unit for linear output, judgement outputs and timing inputs
- SKU: ZX-EDR5T
- Series: ZX-E Smart Sensors, inductive displacement family
Best-Fit Applications
- Runout check on a turned shaft where the ZX-EDR5T rides 0.5 mm above the journal and outputs 4-20 mA to the PLC
- Thickness measurement on a metal strip where two ZX-EDR5T heads face each other across the strip and the differential reads the gap for SPC trending
- Spare replacement on a press-fit station where the original 3 mm ZX-EDR5T head was damaged and the ZX-EDA amplifier and bracket are kept
Buying Checklist
- Pick the ZX-EDR5T when the fixture needs a 3 mm cylindrical inductive head with 0.5 mm range and a 2 m cable for tight gaps.
- Pick the ZX-ED01T instead when the fixture has 5.4 mm clearance and the application needs 0 to 1 mm of measurement range.
- Pick the ZX-EM07MT instead when the application needs an M18 threaded barrel and 0 to 7 mm of measurement range for a standard through-hole mount.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | ZX-E Smart Sensors, inductive displacement family |
| Model / SKU | ZX-EDR5T |
| Measurement Range | 0 to 0.5 mm |
| Sensing Object | Magnetic metals (S50C reference 18 x 18 x 3 mm); non-magnetic metals have different range and linearity |
| Resolution / Linearity | 1 um (with ZX-EDA amplifier at average count 4096); linearity +/- 0.5 percent F.S. |
| Temperature Characteristic | 0.15 percent F.S. per degree C, including amplifier unit |
| Ambient Temperature | Sensor head 0 to 50 C operating; preamplifier -10 to 60 C; storage -20 to 70 C; 35 to 85 percent humidity |
| Connection | Connector relay cable, standard length 2 m; plugs into a ZX-EDA amplifier unit |
| Materials | Sensor head brass case, heat-resistant ABS sensing surface; preamplifier PES |
| Protection / Vibration | IP65 (sensor head); insulation 50 MOhm min at 500 VDC; dielectric 1000 VAC for 1 minute; vibration 10 to 55 Hz 1.5 mm; shock 500 m/s2 |
| Weight / Dimensions | Approx 120 g packed state; 3 mm diameter x 18 mm length; requires ZX-EDA amplifier unit (ZX-EDA11 NPN or ZX-EDA41 PNP), ZX-series discontinuation effective 2021-01 |
FAQ for ZX-EDR5T
What is the Omron ZX-EDR5T used for?
It is the ZX-E cylindrical inductive displacement sensor head with 0 to 0.5 mm range. Typical uses are runout and concentricity checks on turned shafts, thickness measurements on metal strips with two facing heads, and spare replacements on damaged press-fit stations. The head plugs into a ZX-EDA11 (NPN) or ZX-EDA41 (PNP) amplifier for linear output.
Does the ZX-EDR5T work without an amplifier?
No. The ZX-EDR5T is the sensor head only. It must be paired with a ZX-EDA11 (NPN outputs) or ZX-EDA41 (PNP outputs) amplifier unit to deliver a linear 4 to 20 mA / +/- 5 V signal, three HIGH / PASS / LOW judgement outputs, and timing / zero-reset / hold inputs. The head and amplifier are sold separately.
ZX-EDR5T vs ZX-ED01T - what is the difference?
Both are ZX-E cylindrical inductive sensor heads. The ZX-EDR5T measures 0 to 0.5 mm at 3 mm diameter; the ZX-ED01T measures 0 to 1 mm at 5.4 mm diameter. The ZX-EDR5T is for tight fixtures where only 3 mm clearance is available; the ZX-ED01T is for the common 5.4 mm clearance with double the range.
Is the ZX-EDR5T still in production?
The ZX-E series was placed on discontinuation notice effective January 2021. Hengyixin stocks the ZX-EDR5T for the existing install base and for new builds that specify the part. For new high-precision designs, evaluate the ZX-series successor family or contact Omron for the recommended replacement.
