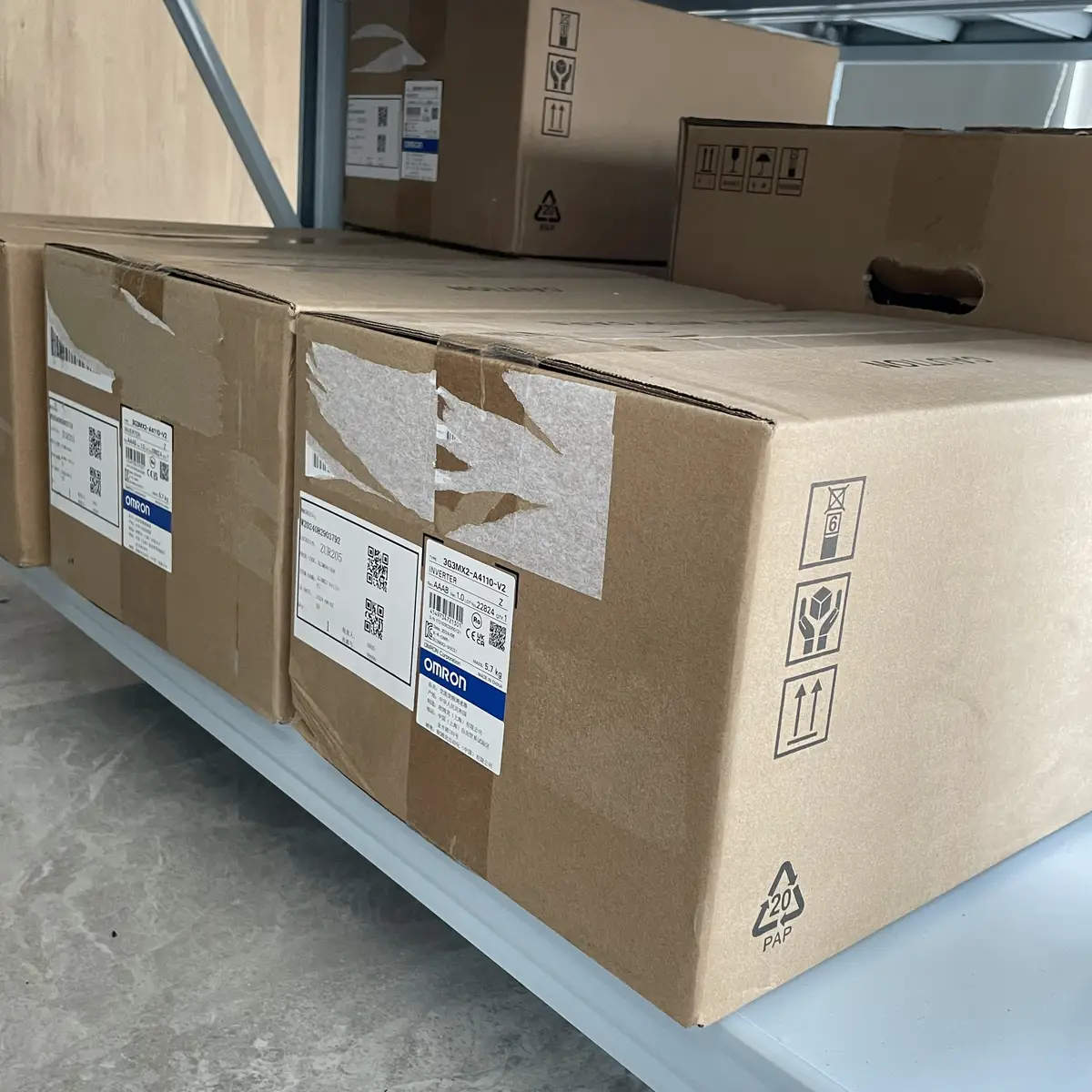

Omron 3G3MX2-A4110-V2 — 11kW MX2 Inverter, 400V
SKU: 3G3MX2-A4110-V2USD 378.00
Omron 3G3MX2-A4110-V2 MX2 inverter delivers 11kW constant-torque / 15kW variable-torque speed control from 400V three-phase input, with sensorless vector mode and 590Hz max output.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The 3G3MX2-A4110-V2 is the 11 kW step in Omron's MX2 V2 lineup — sitting between the 7.5 kW A4075-V2 and the 15 kW A4150-V2 in the 400V three-phase class. The -V2 suffix matters: it identifies the 2024 firmware revision with updated motor auto-tune algorithms and improved low-speed torque. Non-V2 (legacy) drives are still in the field and Omron continues to support them, but new installations should use V2. In normal duty (ND) the A4110-V2 drives 11 kW motors at constant torque; in light duty (LD) it can drive 15 kW motors at variable torque (fans, centrifugal pumps). The rated output current is 24.0 A in ND / 31.0 A in LD. Sensorless vector control gives decent low-speed torque without an encoder feedback card — adequate for most conveyor and pump applications, but for precise low-speed servo-grade holding, you'd step up to a servo drive (R88D-KN or 1S-series). On the input side, the drive takes 3-phase 400 VAC at 50/60 Hz. IP20 rating means panel-mount only — for washdown or outdoor, you need a separate enclosure. For EU CE compliance with harmonic current limits, Omron recommends a 3G3AX-NFI21 line input reactor in front of the drive, sized to the 24 A continuous current. Programming is done via the digital operator on the front panel (basic) or via the CX-Drive / Sysmac Studio software over USB (recommended for parameter backup and cloning). Common commissioning parameters to check: A001 (control source — terminal vs keypad), A002 (run source), b001 (accel time), b002 (decel time), and C001–C007 (multi-function inputs). A common pitfall: the A4110-V2 is rated for 11 kW continuous, but peak load (high inertia start, sticky material) can trip the drive. Set b003 (overcurrent level) to 150% and use the b004 (overcurrent time) parameter to allow the motor to come up to speed. For decel braking, the A4110-V2 has a built-in braking transistor but no braking resistor — you must add a 3G3AX-RB1500 or equivalent external resistor for fast decel of high-inertia loads.
Key Features
- 11kW class inverter for high-load motor applications
- 400V class suitable for industrial three-phase systems
- Variable speed control for process optimization and efficiency
- Supports smooth acceleration/deceleration control behavior
- Suitable for conveyors, pumps, and heavy auxiliary drives
- Reliable MX2 platform for OEM and retrofit projects
- SKU: 3G3MX2-A4110-V2
- Series: 3G3MX2 (MX2)
- Voltage: 380-480VAC
- I/O: 11 I/O
Best-Fit Applications
- Driving 11kW centrifugal pumps in water treatment skid with PID closed-loop pressure control
- Speed control on 11kW belt conveyors in packaging lines for synchronisation with upstream feeders
- Variable speed on 11kW exhaust fans in industrial HVAC with 4-20mA feedback from building automation
- Driving 15kW centrifugal blower in cement production with light-duty rating
Buying Checklist
- 11kW continuous / 15kW variable-torque dual rating gives flexibility for constant and quadratic loads
- Sensorless vector control without encoder gives good low-speed torque for most conveyors and pumps
- 590Hz max output frequency supports high-speed spindle and blower applications
- V2 firmware with improved auto-tune reduces commissioning time on new installations
- IP20 panel-mount form factor is compatible with legacy MX2 mounting holes for retrofit
Technical Specifications
| Model | 3G3MX2-A4110-V2 |
|---|---|
| Series | 3G3MX2 (MX2) |
| Rated Output | 11kW (15 HP) |
| Input Voltage | Three-phase 380-480VAC |
| Output Current | 25A (ND), 22A (HD) |
| Control Method | V/f, Sensorless Vector |
| Built-in EMC Filter | Yes |
| Communication | Modbus RTU |
| Operating Temperature | -10 to +50°C |
| Mounting | Panel mount |
Resources & Downloads
FAQ for 3G3MX2-A4110-V2
What's the difference between 3G3MX2-A4110-V2 and 3G3MX2-A4110-EV2?
The -V2 is the standard model with no EMC filter; the -EV2 has a built-in EN 61800-3 category C2 EMC filter. For EU installations where the drive sits in a residential or light-industrial environment, the -EV2 saves you from buying an external line filter. For industrial panels with their own filtering, the -V2 is the cheaper choice.
Does the 3G3MX2-A4110-V2 need a braking resistor?
For most pump and fan applications (low inertia, gentle decel), no. For high-inertia loads like large flywheels, conveyors running downhill, or rapid-stop applications, yes — the drive has a built-in braking transistor but the resistor is external. Use a 3G3AX-RB1500 or equivalent, sized for the decel energy.
Can the A4110-V2 control a 15kW motor?
Yes, in light-duty (LD) mode the drive is rated 15kW variable torque. Set the drive to LD via parameter C027 = 1, then re-enter motor nameplate data. The drive will accept a 15kW motor on a fan or centrifugal pump where the torque curve is quadratic. Do not use LD with a 15kW constant-torque load like a compressor.
How do I program sensorless vector control on the MX2?
Set A044 = 1 (sensorless vector), then run auto-tune via the motor nameplate data. The drive measures stator resistance and saves it. After auto-tune, low-speed torque typically improves 30–50% vs V/f mode. For applications needing full torque at zero speed, you need an encoder feedback card and a different drive family.
