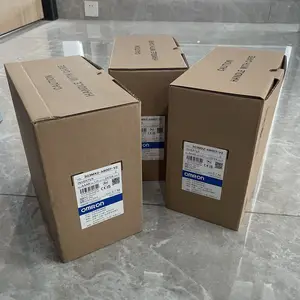

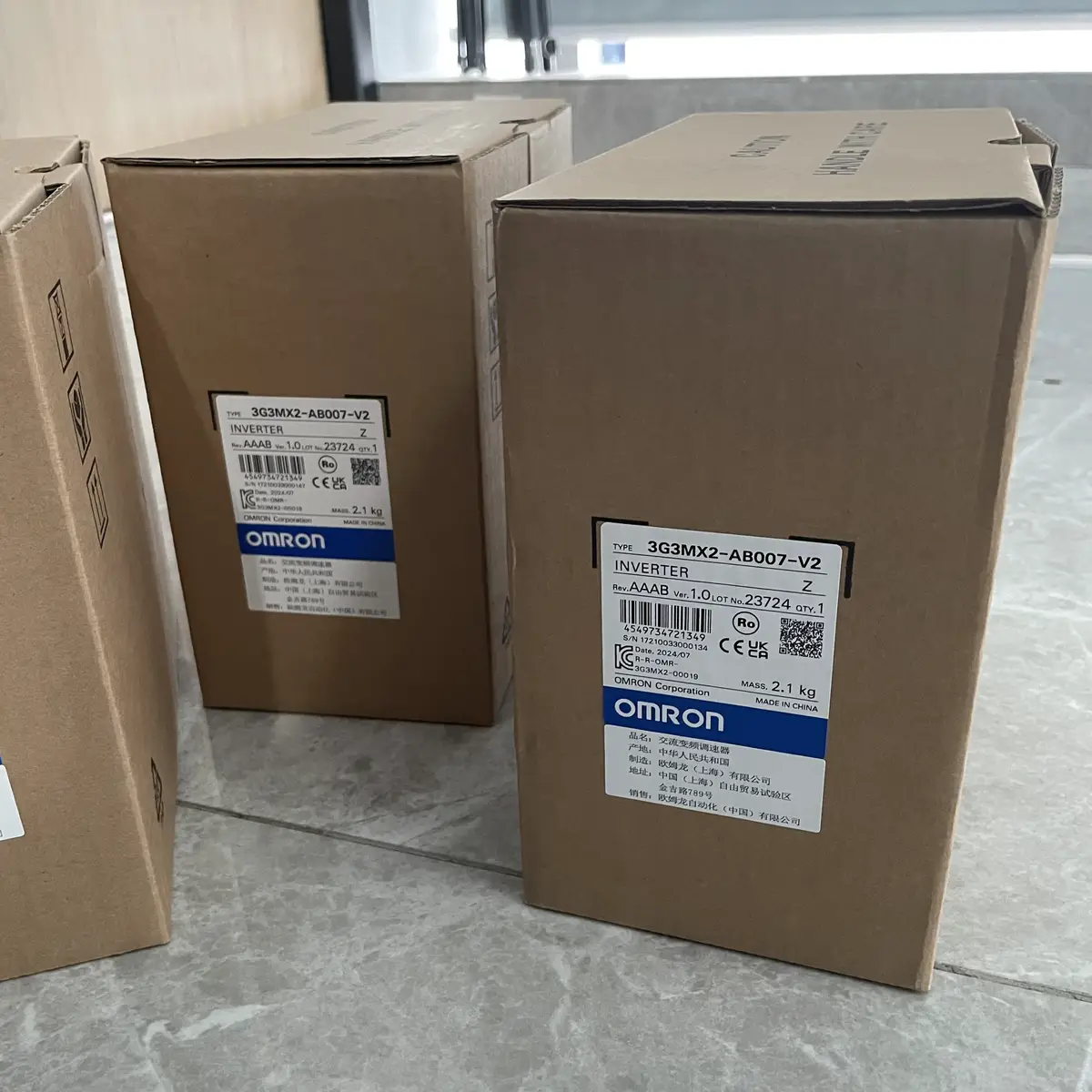

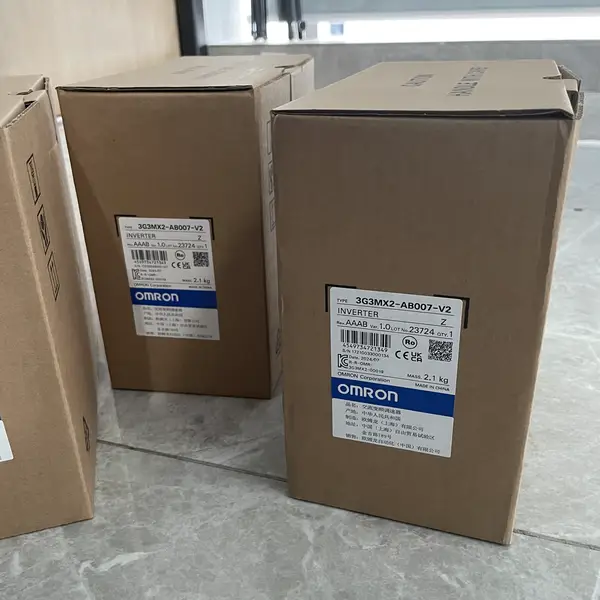

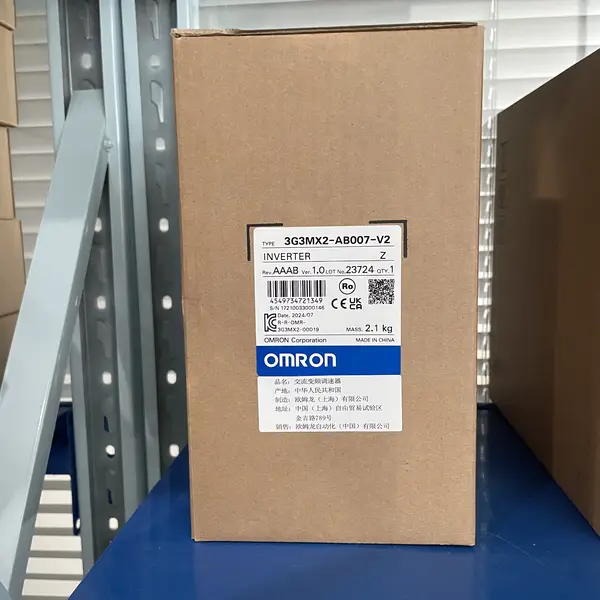

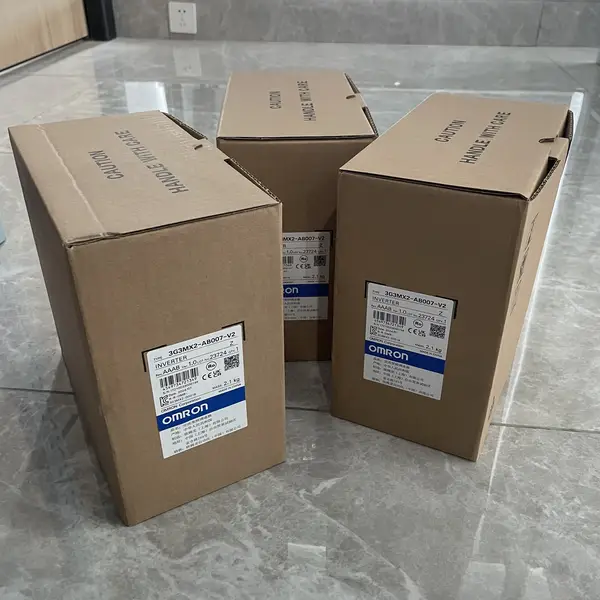

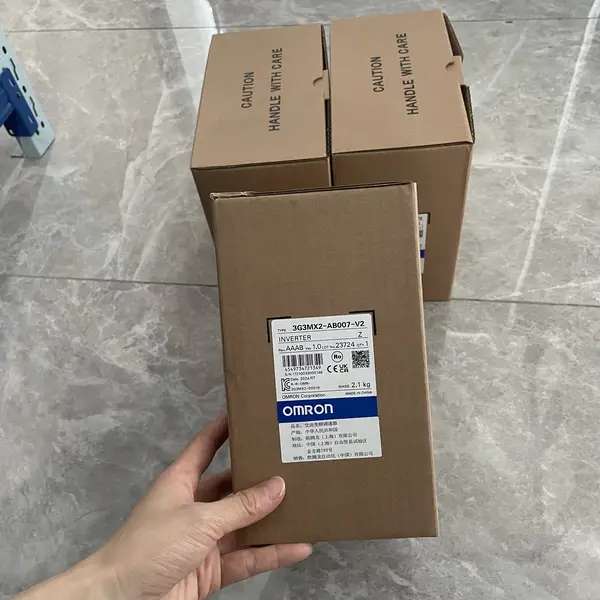

Omron 3G3MX2-AB007-V2 — 0.75 kW VFD, 1-Phase 200 V
SKU: 3G3MX2-AB007-V2USD 168.00
MX2-series 0.75 kW (ND) / 1.1 kW (LD) inverter drive, single-phase 200 VAC input, three-phase 200 VAC output. V2 firmware with sensorless vector control, integrated EMC filter, Modbus RS-485, USB programming. Compact 68 mm wide.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The 3G3MX2-AB007-V2 is the 0.75 kW single-phase-input variant of Omron's MX2-series multi-function compact inverter, designed for use where only single-phase 200-240 VAC mains is available (typical residential / light-commercial installations in EU/US/JP) but a three-phase 230/460 VAC motor is required. The drive accepts 200-240 VAC ±10 % at 50/60 Hz (single-phase only, NOT three-phase — for three-phase input use the 3G3MX2-A4007-V2 sibling) and outputs three-phase 200-240 VAC variable-frequency power to drive an induction motor at 0.75 kW (ND — Normal Duty, 150 % overload for 60 s) or 1.1 kW (LD — Light Duty, 120 % overload for 60 s).
Where the 3G3MX2-AB007-V2 sits in the MX2 family
The 3G3MX2 family splits along four axes: motor power (AB001/0.1kW, AB002/0.2kW, AB004/0.4kW, AB007/0.75kW, AB015/1.5kW, AB022/2.2kW, AB040/4kW), input voltage (AB = single-phase 200V, A2 = single-phase 200V with EMC filter, A4 = three-phase 400V, AB-EV2 = single-phase 200V with V1 firmware with EMC filter), output configuration (variable-frequency three-phase output), and firmware revision (-V2 = current production). The 3G3MX2-AB007-V2 (this SKU) is the 0.75 kW single-phase 200V input with V2 firmware; the V2 firmware is the current revision and replaces the earlier AB007 (V1 / pre-V2 firmware) and AB007-EV2 (V2 with EMC) variants. For 3-phase 400V installations, the 3G3MX2-A4007-V2 is the equivalent 0.75 kW three-phase version.
Single-phase to three-phase conversion and rectifier derating
The 3G3MX2-AB007-V2 is a true single-phase-input VFD — single-phase 200-240 VAC enters the rectifier stage, the rectifier outputs a DC bus at ~ 280-340 VDC, and the inverter section synthesizes three-phase variable-frequency output via IGBTs (insulated-gate bipolar transistors) at 200-240 VAC at 0-590 Hz. The single-phase rectifier is the limiting factor: at 0.75 kW motor output with single-phase 200V input, the input current is roughly 6 A (200V × 6A × √2 / 0.85 efficiency = 1000 W).
V2 firmware features: sensorless vector, PM motor control, integrated EMC filter
The V2 firmware revision (released circa 2018, supersedes the original -V1 firmware) added sensorless vector control that delivers 200 % of rated torque at 0.3 Hz for low-speed heavy-load applications (conveyors, hoists, mixers) — the key advantage over V/f control which cannot maintain torque below ~ 3-5 Hz without speed feedback. V2 firmware also added PM (permanent-magnet) motor control for brushless DC motors without requiring an absolute encoder — the drive reads the motor's back-EMF at standstill to determine rotor position. This is the firmware revision that brought MX2 in line with Siemens G120C / Allen-Baldor VS1SD feature parity.
Key Features
- MX2-series multi-function compact inverter drive
- Single-phase 200-240 VAC ±10 % input at 50/60 Hz
- Output: three-phase 200-240 VAC variable frequency, 0.5 to 590 Hz
- 0.75 kW / 1.1 kW rated motor output
- V2 firmware with sensorless vector control
- PM-motor open-loop control without encoder
- V/f control
- Integrated EMC filter — no external line filter needed under 100 A supply
- SKU: 3G3MX2-AB007-V2
- Series: 3G3MX2 MX2-Series Multi-Function Compact Inverter, V2 firmware
- Voltage: 200 TO 240 VAC
- I/O: 200 I/O
Best-Fit Applications
- Conveyor-belt speed control in a small packaging line — 0.75 kW three-phase induction motor driven by 3G3MX2-AB007-V2, run command from.
- Fan / blower speed control on an HVAC unit — 0.75 kW three-phase fan motor with single-phase 200V supply, PID.
- Pump pressure control in a water-treatment skid — 0.75 kW centrifugal pump with PID on pressure transmitter, sleep-mode function to.
- Mixer speed control in a food-processing batch reactor — 0.75 kW gearmotor with stainless-steel gearbox, sensorless vector for low-speed mixing.
Buying Checklist
- Pick 3G3MX2-AB007-V2 for 0.75 kW single-phase 200V VFD with V2 firmware — V1 firmware replacements / new designs
- Pick 3G3MX2-A4007-V2 for 0.75 kW three-phase 400V VFD — for industrial three-phase installations without single-phase supply
- Pick 3G3MX2-AB004-V2 for 0.4 kW single-phase 200V VFD — for smaller conveyor and pump motors
- Pick 3G3MX2-AB015-V2 for 1.5 kW single-phase 200V VFD — for slightly larger single-phase-supplied installations
- Pick 3G3MX2-AB022-V2 for 2.2 kW single-phase 200V VFD — maximum single-phase size before bridging concerns
- Add 3G3AX-MX2-ECT EtherCAT option board for high-speed network integration with an NJ / NX machine controller
Technical Specifications
| Model | 3G3MX2-AB007-V2 |
|---|---|
| Series | 3G3MX2 MX2-Series Multi-Function Compact Inverter, V2 firmware |
| Type | Sensorless vector / V/f AC inverter for 3-phase 200V induction motors |
| Motor Power (ND) | 0.75 kW |
| Motor Power (LD) | 1.1 kW |
| Rated Input Voltage | Single-phase 200 to 240 VAC ±10 % (180 to 264 VAC), 50/60 Hz |
| Number of Input Phases | 1-phase (NOT 3-phase — use A4 family for 3-phase input) |
| Rated Input Current | 8.2 A (ND) / 9.4 A (LD) at 200 VAC input |
| Rated Output Voltage | 3-phase 200 to 240 VAC (proportional to input) |
| Rated Output Current (ND) | 5.0 A |
| Rated Output Current (LD) | 6.0 A |
| Output Frequency Range | 0.1 to 590 Hz |
| Output Frequency Resolution | 0.01 Hz |
| Speed Control Range | 1:100 (sensorless vector), 1:20 (V/f) |
| Overload Capacity (ND) | 150 % for 60 s, 200 % for 3 s |
Resources & Downloads
FAQ for 3G3MX2-AB007-V2
What does the V2 firmware add over the original 3G3MX2-AB007 (V1)?
The V2 firmware revision added three significant features beyond the original V1: (1) sensorless vector control (open-loop vector control using the motor's electrical model to estimate rotor flux angle, delivering 200 % of rated torque at 0.5 Hz for low-speed high-torque applications like hoists and mixers — V/f control needs an encoder to do the same); (2) PM (permanent-magnet) motor open-loop control, including standstill start capability, for sinusoidal-back-EMF brushless motors without requiring an encoder (the drive reads the rotor's resting.
Can a single-phase-input VFD really drive a three-phase motor?
Yes — that's the entire purpose of the AB family (and the equivalent 240V series from other VFD vendors). The drive's input rectifier stage accepts single-phase AC and produces a DC bus (~ 280-340 VDC for a 200V input); the inverter section synthesizes three-phase AC at variable frequency from the DC bus via three pairs of IGBTs (one high-side and one low-side per phase).
What is sensorless vector control and when do I need it?
Sensorless vector control is a motor-control algorithm that estimates the rotor's magnetic flux angle from the motor's electrical model (winding resistance, inductance, and measured current/voltage). With the rotor angle known, the drive can control torque and flux independently — delivering rated torque at zero speed and holding the motor shaft against a constant load without rotating.
How do I wire Modbus RTU to the 3G3MX2-AB007-V2?
Wire the 3G3MX2-AB007-V2's RS-485 Modbus terminal block as follows: terminal SP (Send-Positive) → cable shield via twisted pair to PLC / HMI / master RS-485 device A terminal; terminal SN (Send-Negative) → cable shield via twisted pair to master RS-485 device B terminal; terminal RP (Receive-Positive) → not used on this drive (only on 3G3MX2 with dual RS-485 ports); terminal SN → connects to common ground; on multi-drop configurations (up to 32 slaves per master), add a 120 Ω termination.
