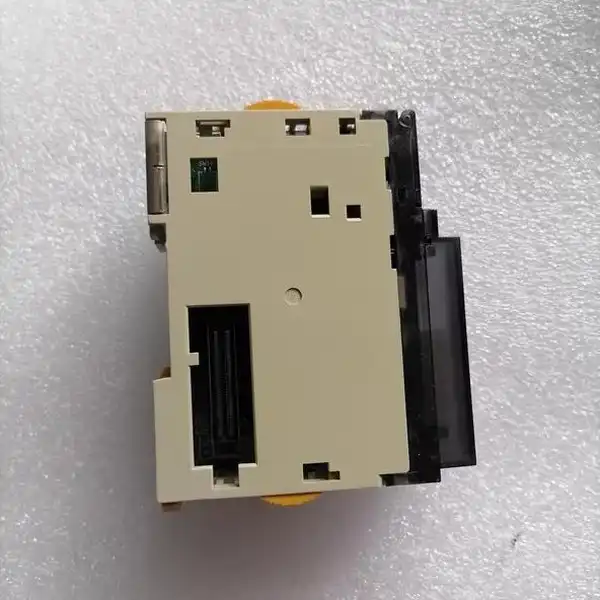

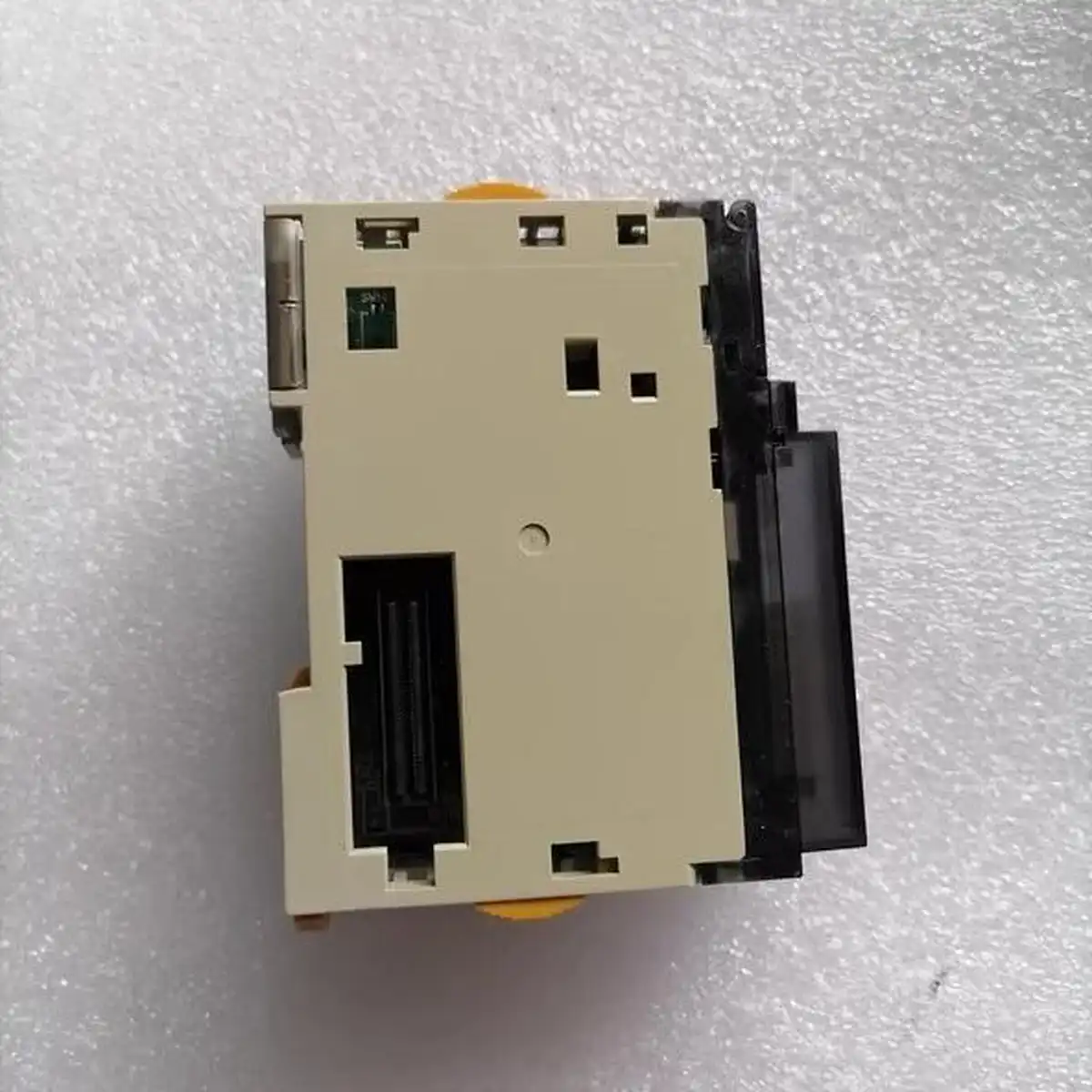

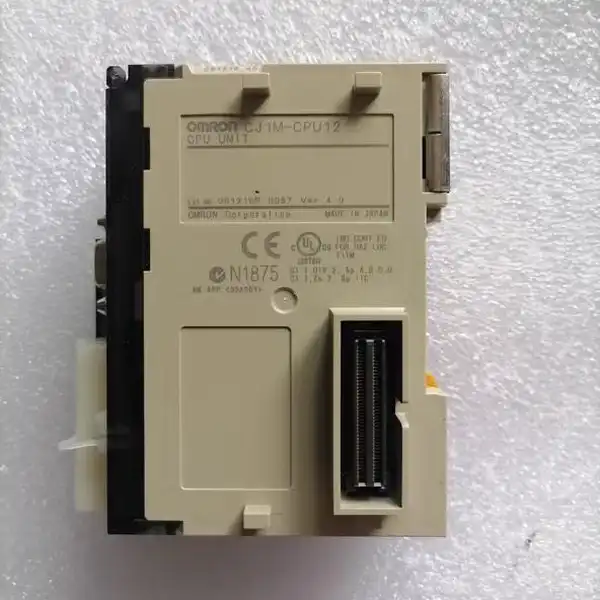

Omron CJ1M-CPU12 — 10K-Step CPU, 320 I/O, No Built-in I/O
SKU: CJ1M-CPU12USD 135.00
CJ1M-series CPU with 10K-step program, 32K-word data, 320 I/O on a 10-slot CPU rack, RS-232C + peripheral port.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CJ1M-CPU12 is the no-built-in-I/O head of the CJ1M-CPU1[] family -- a 90 H x 31 W x 65 D mm modular CPU for the CJ-series rack with 10K-step program capacity, 32K-word data area, 0.1 us basic-instruction execution time, and a 320 I/O / 10-slot CPU rack limit. The CJ1M-CPU12 has no Ethernet port (pick the CJ1M-CPU12-ETN for built-in 100Base-TX) and no built-in I/O (pick the CJ1M-CPU22 for 10 inputs / 6 outputs + 2 high-speed counters + 2 pulse outputs at 100 kHz). The CJ1M series is discontinued as of March 2021 per the Omron catalog.
Where the CJ1M-CPU12 fits
Pick the CJ1M-CPU12 for a small modular machine with 320 or fewer I/O points, no expansion rack, and a single RS-232C port for an NB-series HMI or Host Link polling. The 10K step program covers the typical multi-page machine program; the 32K-word data memory holds the recipe and alarm buffers for a small packaging or filling line. The 0.1 us basic instruction handles 4-axis stepper / pulse control through a CJ1W-NC position control unit when needed. Pick the CJ1M-CPU13 instead for 640 I/O and one expansion rack; pick the CJ1M-CPU22 instead for built-in I/O and 100 kHz pulse output.
Serial and memory options
The CJ1M-CPU12 has a built-in RS-232C port and a built-in peripheral port. The RS-232C port supports Host Link, NT Link, no-protocol, and CompoWay/F Serial Gateway. The peripheral port supports CX-Programmer upload and a Programming Console. Add a CJ1W-SCU21-V1 / SCU41-V1 for two more serial ports (RS-232C + RS-422/485 each) with protocol macro support. Add a CJ1W-CIF11 RS-422A adapter for RS-422 peripheral port. The optional CJ1W-BAT01 battery is required for retained memory and the real-time clock.
Before ordering
Confirm the cabinet can accept the discontinued (March 2021) CJ1M line and that like-for-like spare stock is available. Confirm the supply is a CJ1W-PA202 / PA205R (AC) or CJ1W-PD022 / PD025 (DC) on the leftmost slot. Confirm the CX-Programmer version is 9.6 or later. For new builds, pick the CP2E (slim 24 VDC) or NX102 (EtherCAT) instead -- the CJ1M line is a like-for-like spare, not a new platform.
Key Features
- CJ1M-series CPU unit (CJ1M-CPU1[] head, no built-in I/O)
- 10K-step program capacity, 32K-word data area (DM 32K words, EM none)
- 320 I/O points max, 10 mountable Units on the CPU rack (no expansion rack on CPU11/12/21/22)
- Basic instruction 0.10 us / special instruction 0.15 us, overhead 0.5 ms min
- Built-in RS-232C port (Host Link / NT Link / no-protocol / CompoWay/F Serial Gateway)
- Built-in peripheral port for CX-Programmer upload and Programming Console
- Compact flash memory card slot for user program backup, autoboot, and program replacement during run
- CJ1W-BAT01 battery (sold separately) for retained memory and real-time clock
- 288 tasks (32 cyclic + 256 interrupt), approx 400 instructions (3-digit function codes)
- Programming: CX-Programmer 9.6 or later (ladder / SFC / ST / function blocks)
- DIN Track mount, 90 H x 31 W x 65 D mm, 130 g or less
- Discontinued March 2021 (per Omron catalog header) -- pick like-for-like spare stock
- SKU: CJ1M-CPU12
- Series: CJ-series CJ1M CPU Units
- I/O: 320 I/O
Best-Fit Applications
- Small modular machine with 320 or fewer I/O points on a 10-slot CJ-series rack
- Packaging line with one CJ-series HMI on the built-in RS-232C port and one peripheral Programming Console
- Filling line with a CJ1W-BAT01 battery for retained recipes and the built-in RTC
- Existing CJ1M control panel where the like-for-like spare CPU is the CJ1M-CPU12
- OEM skid that needs a compact 31 mm wide modular CPU with RS-232C + CX-Programmer upload
Buying Checklist
- Pick CJ1M-CPU12 for a 10K-step / 320 I/O modular CPU with RS-232C and no built-in I/O.
- Pick CJ1M-CPU13 instead when 640 I/O and one expansion rack are needed.
- Pick CJ1M-CPU12-ETN instead when built-in 100Base-TX Ethernet for SCADA / NB-HMI is required.
- Pick CJ1M-CPU22 instead when 10 built-in inputs / 6 outputs + 100 kHz 2-axis pulse output are needed.
- Pick CP2E-N40DT-D instead for a new build (the CJ1M line is discontinued March 2021).
- Add the CJ1W-BAT01 battery for retained memory + RTC, and a CJ1W-SCU21-V1 / SCU41-V1 for two extra serial ports.
Technical Specifications
| Series | CJ-series CJ1M CPU Units |
|---|---|
| Model | CJ1M-CPU12 (CJ1M-CPU1[] head, no built-in I/O) |
| Program Capacity | 10K steps |
| Data Memory | 32K words (DM 32K words, EM none) |
| Max I/O Points | 320 I/O points on the CPU rack |
| Mountable Units | 10 Units on the CPU rack (no expansion rack) |
| Execution Time | Basic 0.10 us min / Special 0.15 us min |
| Overhead | 0.5 ms min |
| Built-in I/O | None (use CJ1M-CPU22 for built-in I/O + pulse) |
| Serial Ports | Built-in RS-232C + built-in peripheral port |
| Battery | CJ1W-BAT01 (sold separately) for retained memory + RTC |
| Memory Card | Compact Flash card (MS-DOS format), user program + autoboot |
| Programming | CX-Programmer 9.6 or later (ladder / SFC / ST / function blocks) |
| Tasks | 288 (cyclic 32 + interrupt 256) |
| Approx Instructions | 400 (3-digit function codes) |
| Mount | DIN Track (screw mounting not possible) |
| Dimensions | 90 H x 31 W x 65 D mm |
| Weight | 130 g or less |
| Operating Temperature | 0 to 55 C |
| Approvals | UL 508 / CSA / cUL / CE / Lloyds / NK |
| Discontinued | March 2021 (per Omron catalog header) |
Resources & Downloads
FAQ for CJ1M-CPU12
Is the CJ1M-CPU12 still in production?
No. The CJ1M-CPU12 is part of the CJ1M-CPU1[] family which Omron discontinued in March 2021. The current pick for a new build is the CP2E (slim 24 VDC PLC) or the NX102 (EtherCAT controller). The CJ1M-CPU12 remains the right pick for a like-for-like spare on an existing CJ1M control panel; check with a stocking distributor for new-old-stock availability.
What is the difference between CJ1M-CPU11, CPU12, and CPU13?
All three are the no-built-in-I/O head of the CJ1M-CPU1[] family. The CPU11 has 5K steps and 160 I/O. The CPU12 has 10K steps and 320 I/O. The CPU13 has 20K steps, 640 I/O, and one expansion rack support. Pick the CPU11 for the smallest program and the smallest I/O; pick the CPU12 for the typical small machine; pick the CPU13 for the deeper machine with a second rack. The -ETN suffix on each adds built-in 100Base-TX Ethernet.
Can the CJ1M-CPU12 do pulse output?
Not by itself. The CJ1M-CPU12 is the no-built-in-I/O head -- it has no built-in pulse output. Pick the CJ1M-CPU22 instead for 100 kHz 2-axis pulse output plus 10 input / 6 output built-in I/O. For a pulse-output build on the CJ1M-CPU12, add a CJ1W-NC213 / NC233 / NC413 / NC433 position control unit on the CPU rack -- the CJ1M-CPU12 has the 0.1 us basic instruction time and the backplane bandwidth for a 4-axis pulse build via the NC units.
What power supply does the CJ1M-CPU12 need?
The CJ1M-CPU12 is the CPU head only -- the supply sits in the leftmost slot of the CPU rack. For an AC cabinet, pick the CJ1W-PA202 (14 W, 100-240 VAC free-voltage, 2.8 A at 5 VDC / 0.4 A at 24 VDC) or the CJ1W-PA205R (25 W, 100-240 VAC, 5 A at 5 VDC / 0.8 A at 24 VDC with a RUN contact). For a 24 VDC cabinet, pick the CJ1W-PD022 (4.6 A at 5 VDC) or the CJ1W-PD025 (6 A at 5 VDC). Match the supply to the total 5 VDC draw of the rack.
