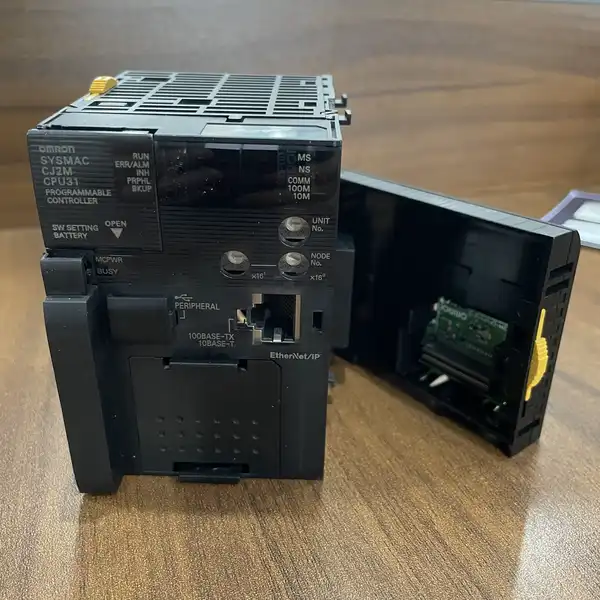

Omron CJ2M-CPU31 — front view of the CJ2M CPU3x showing the Omron model label, the RUN / ERROR / INH LED indicators, the seven-segment display, the USB Type-B programming port and the EtherNet/IP RJ45 port along the lower face

Omron CJ2M-CPU31 — CJ2M CPU, 5K Steps, EtherNet/IP

SKU: CJ2M-CPU31

USD 260.00

Omron CJ2M-CPU31 CJ2M CPU with built-in EtherNet/IP, 5K-step program, 64K data memory, option board slot. In stock.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron CJ2M-CPU31 is the entry unit in the CJ2M CPU3x lineup, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.

Program capacity is 5K steps plus 20K steps of function-block memory. Data memory is 64K words, split as 32K words DM plus 32K words EM in one bank. The CPU addresses up to 2560 local I/O across 40 mountable units and three expansion racks. Basic LD instruction execution is 0.04 microseconds. Built-in ports are EtherNet/IP and USB, plus an option board slot for CP1W-CIF01 (RS-232C) or CP1W-CIF11 / CP1W-CIF12-V1 (RS-422A/485).

Current draw is 5 V at 0.7 A. The unit is 90 x 62 x 84.5 mm and weighs 190 g. Programming runs in CX-Programmer. For the same 5K steps without EtherNet/IP, pick the CJ2M-CPU11. For more program, pick the CJ2M-CPU32 (10K steps) or CJ2M-CPU34 (30K steps). Add a CJ2M-MD211 for high-speed counter and pulse outputs.

Key Features

  • CJ2M CPU3x with 5K-step program plus 20K-step function-block memory
  • 64K-word data memory (DM 32K + EM 32K x 1 bank), 0.04 us LD instruction execution
  • Built-in EtherNet/IP and USB ports; option board slot for CP1W-CIF01 / CIF11 / CIF12-V1
  • 2560 I/O points across 40 units and 3 expansion racks, 5 V 0.7 A, 90 x 62 x 84.5 mm, 190 g
  • SKU: CJ2M-CPU31
  • Series: Omron CJ2M-series CPU Unit (CPU3x line, built-in EtherNet/IP)
  • I/O: 2560 points

Best-Fit Applications

  • Compact packaging machine where the cabinet needs EtherNet/IP for the HMI and the program is under 5K steps
  • Spare CPU drop-in for a CJ2M rack where the field bus is EtherNet/IP and a CP1W-CIF11 fills the option board slot
  • Small cell controller wired to a CJ1W-PA202 power supply and a handful of CJ1W-ID211 input units on the same rack

Buying Checklist

  • Pick the CJ2M-CPU31 for the entry CJ2M CPU3x with built-in EtherNet/IP and an option board slot for serial comms.
  • Pick the CJ2M-CPU32 instead when 10K steps of program capacity is enough and the rest of the spec is the same.
  • Pick the CJ2M-CPU11 instead when the cabinet has no EtherNet/IP and the option board slot is not needed.

Technical Specifications

Manufacturer Omron Corporation (Japan)
Series Omron CJ2M-series CPU Unit (CPU3x line, built-in EtherNet/IP)
Model / SKU CJ2M-CPU31
Program Capacity 5K steps + 20K steps function-block memory
Data Memory 64K words (DM 32K words + EM 32K words x 1 bank)
LD Execution Time 0.04 us (basic instruction)
Local I/O / Mountable Units 2560 points / 40 units / 3 expansion racks
Built-in Communication EtherNet/IP (RJ45) + USB; option board slot for CP1W-CIF01 / CIF11 / CIF12-V1
Current Consumption 5 VDC, 0.7 A
Compatible I/O Family CJ1W-series Basic I/O, Special I/O, and CPU Bus Units
Programming Software CX-Programmer (CX-One suite)
Dimensions / Weight 90 (H) x 62 (W) x 84.5 (D) mm; 190 g

FAQ for CJ2M-CPU31

What is the difference between CJ2M-CPU31 and CJ2M-CPU11?
Both have 5K steps of program. The CPU31 is on the CPU3x line with built-in EtherNet/IP and an option board slot. The CPU11 is on the CPU1x line with RS-232C + USB only and no option board slot.
How much current does the CJ2M-CPU31 draw?
0.7 A at 5 VDC from the rack power supply. Add 0.005 A, 0.030 A or 0.075 A when the CP1W-CIF01, CIF11 or CIF12-V1 option board is fitted.
Does the CJ2M-CPU31 support expansion racks?
Yes. Up to three expansion racks through a CJ1W-IC101 I/O control unit on the right side of the CPU and CJ1W-II101 interfaces on each expansion rack.
