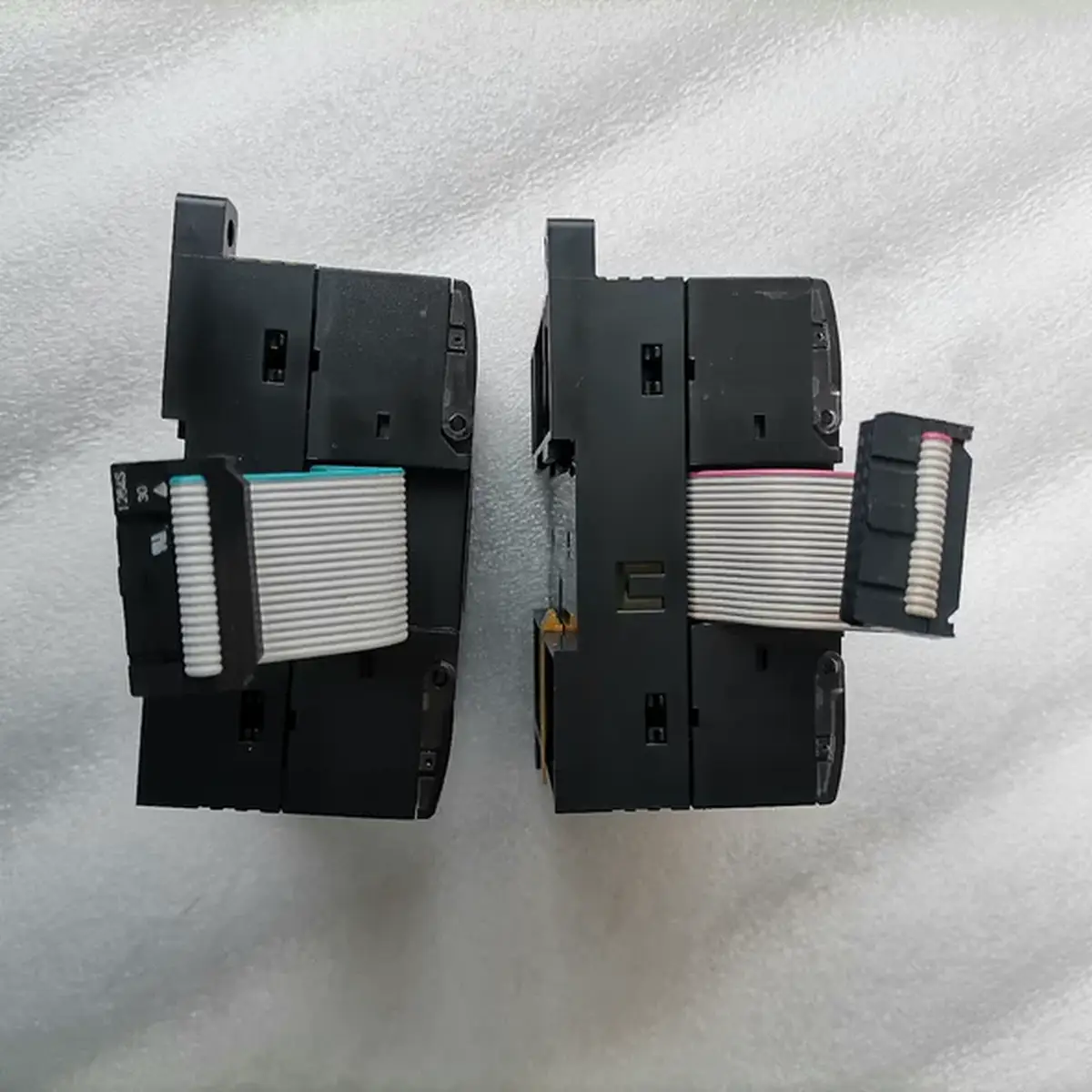

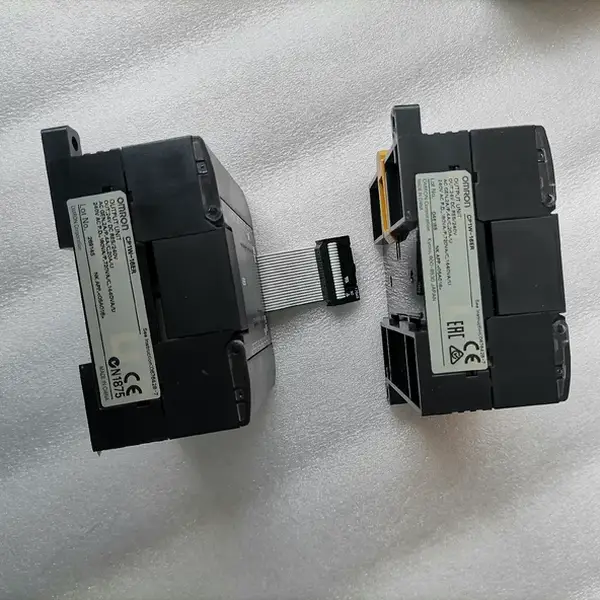

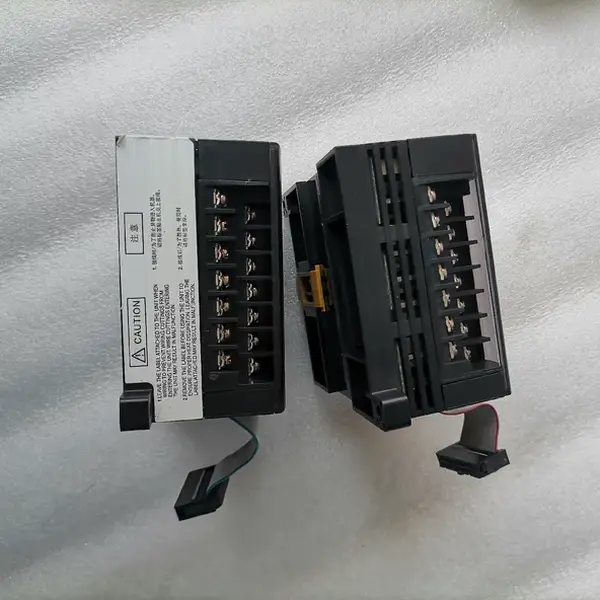

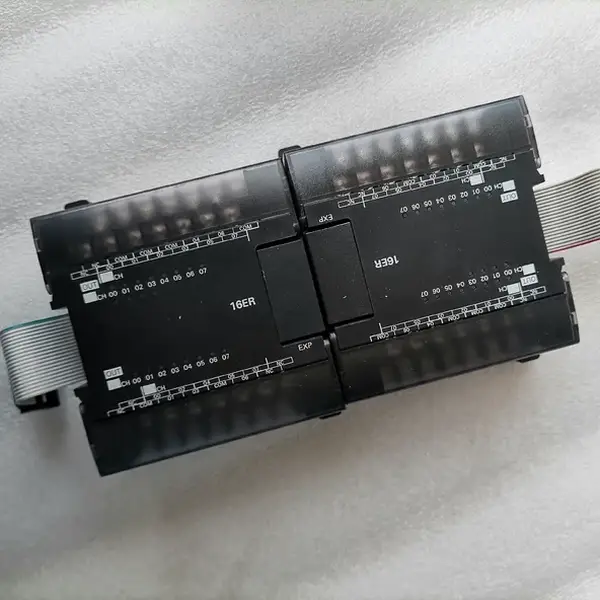

Omron CP1W-16ER — 16-Point Relay Output Expansion
SKU: CP1W-16ERUSD 60.00
Omron CP1W-16ER 16-point relay output expansion for CP1E/CP1L/CP1H, 2 A per point, 5-250 VAC. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CP1W-16ER is a 16-point relay output expansion unit for the CP1W I/O family, manufactured by Omron Corporation. Hengyixin Automation stocks this relay in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
The unit adds sixteen SPST-NO relay outputs to a CP1E, CP1L or CP1H CPU. Each output switches 2 A at 5 to 250 VAC or 5 to 30 VDC, with a 15 ms ON/OFF time. Relay service life is 150,000 operations on a resistive 24 VDC load and 20 million mechanical.
Current draw is 5 V at 0.042 A and 24 V at 0.090 A. Body is 86 x 90 x 50 mm, 280 g. Each CPU accepts up to three expansion units in any mix. For 24 inputs and 16 PNP transistor outputs on the same I/O bus, pick the CP1W-40EDT1. For 32 PNP outputs at 0.3 A, pick the CP1W-32ET1.
Key Features
- 16-point SPST-NO relay output expansion for CP1E, CP1L and CP1H CPUs
- 2 A per point at 5-250 VAC or 5-30 VDC, 15 ms ON/OFF, 150,000 electrical operations
- Mounts on CPU right-side expansion port, up to 3 expansion units per CPU
- 5 V 0.042 A and 24 V 0.090 A current draw, 86 x 90 x 50 mm, 280 g, DIN rail mount
- SKU: CP1W-16ER
- Series: Omron CP1W I/O expansion unit
- I/O: 16 I/O
Best-Fit Applications
- Adding 16 relay-driven solenoid valves to a CP1L-M40DR-A on a multi-station filling skid in a plant
- Spare expansion for a CP1E-N40DR-D retrofit where the original 16 outputs are full and the next 16 must switch 230 VAC loads
- Pairing with the CP1W-40EDT1 on the same CPU so the relay outputs switch mains voltage while the inputs and transistor outputs drive 24 VDC devices
Buying Checklist
- Pick the CP1W-16ER for a 16-point relay output expansion on a CP1E, CP1L or CP1H CPU.
- Pick the CP1W-40EDT1 instead when the cabinet needs 24 inputs and 16 PNP transistor outputs at 0.3 A per point.
- Pick the CP1W-8ET1 instead when only 8 PNP transistor outputs are needed and the second expansion slot must stay free.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron CP1W I/O expansion unit |
| Model / SKU | CP1W-16ER |
| Module Type | Digital output, relay SPST-NO |
| Output Points | 16 outputs, no inputs |
| Contact Rating | 2 A per point at 5-250 VAC or 5-30 VDC |
| Min. Switchable Load | 5 VDC, 10 mA |
| Response Time | 15 ms ON/OFF max |
| Relay Service Life | 150,000 operations electrical (resistive 24 VDC); 20 million mechanical |
| Current Consumption | 5 VDC 0.042 A; 24 VDC 0.090 A |
| Compatible CPUs | CP1E (E30/40/60, N30/40/60, S30/60), CP1L, CP1H |
| Dimensions (W x H x D) | 86 × 90 × 50 mm; 280 g |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for CP1W-16ER
Which Omron CPUs does the CP1W-16ER work with?
CP1E E30/40/60, N30/40/60 and S30/60 CPUs; CP1L M, L and EM/EL types; and CP1H X, Y and XA types. The CP1E E14/20, N14/20 and slim N□□S CPUs do not support expansion units at all.
How many CP1W-16ER units can one CPU take?
Up to three expansion units in any mix of CP1W digital, analog and communication modules. The total is constrained by the 5 V and 24 V current budget on the rack power supply, not by the expansion port itself.
What is the relay life on the CP1W-16ER?
150,000 operations on a resistive 24 VDC load and 20 million operations mechanical, per the CP1W-16ER datasheet. Inductive AC loads at cos phi = 0.4 drop the electrical life to about 100,000 operations.
Does the CP1W-16ER need configuration in CX-Programmer?
No. CP1W digital I/O units are auto-recognised by the CPU on power-up and the I/O addresses are assigned by slot position. The expansion unit shows up in the CX-Programmer I/O table without manual setup.
Can the CP1W-16ER switch 230 VAC solenoid coils?
Yes, up to 2 A per point at 250 VAC. For inductive AC loads, fit an RC snubber across the coil to extend relay life past the datasheet minimum.
