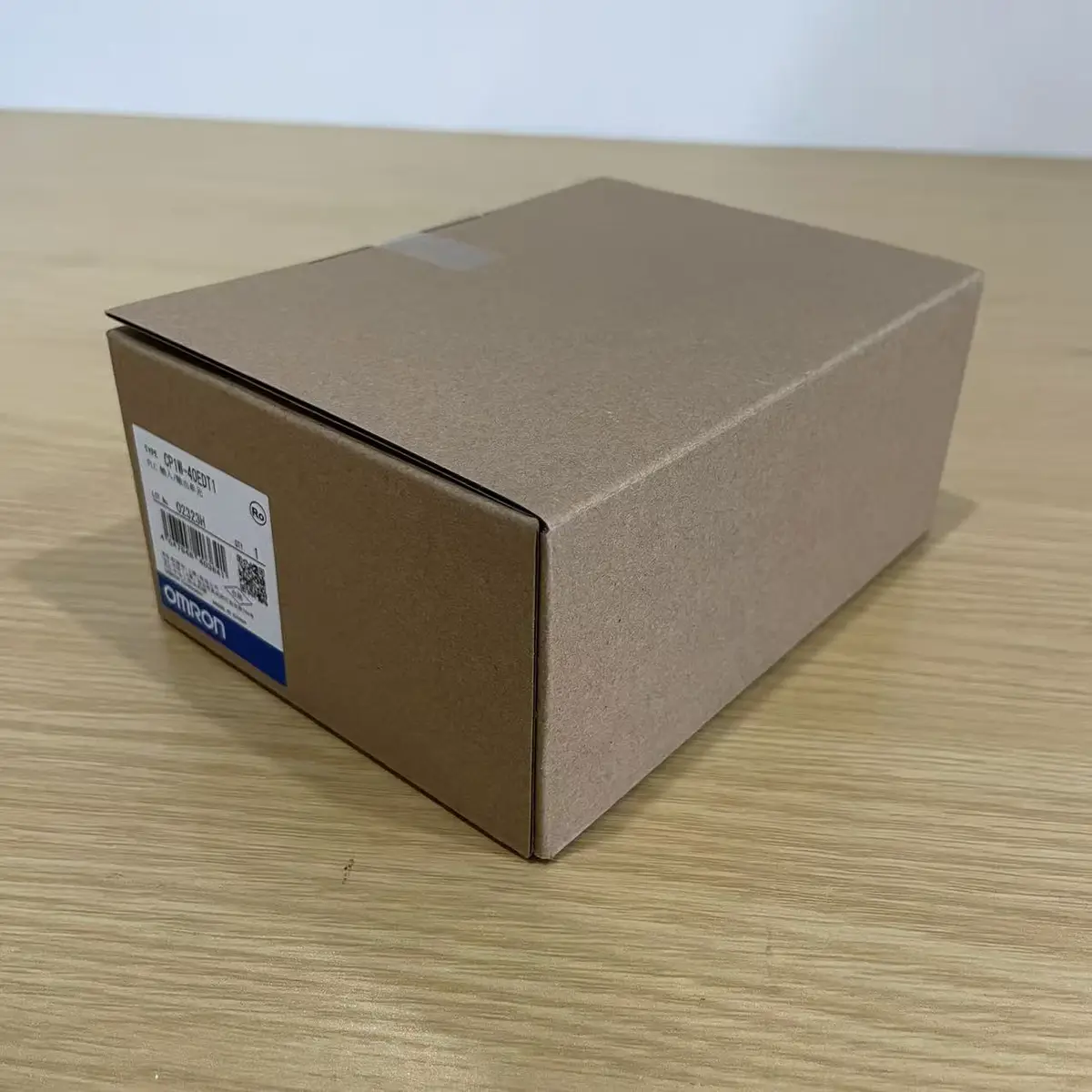

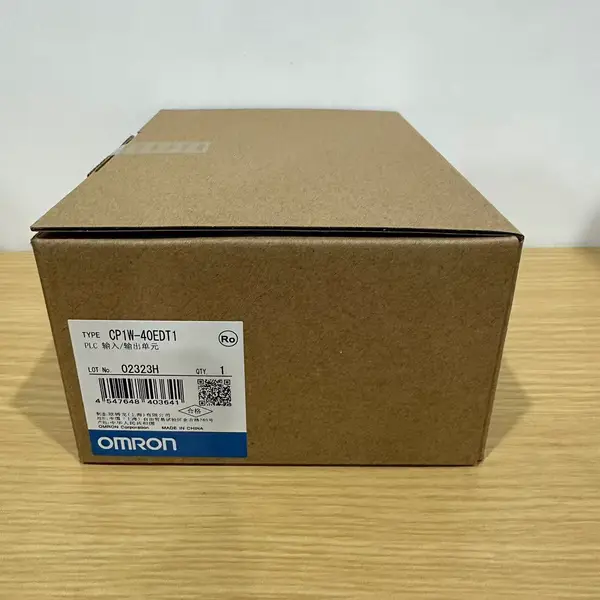

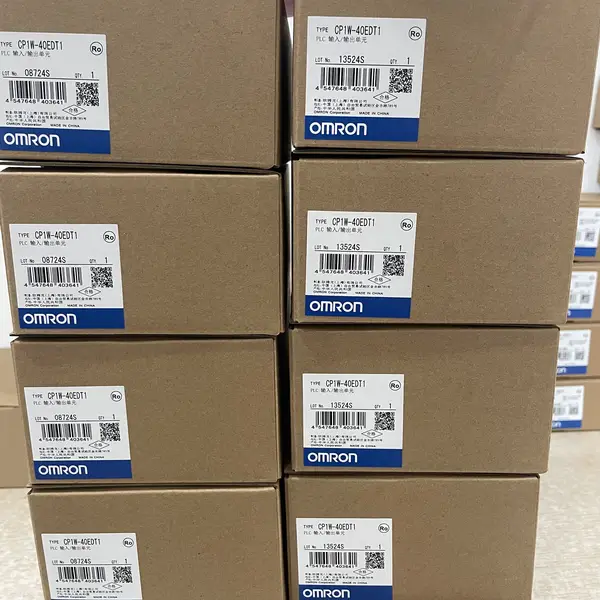

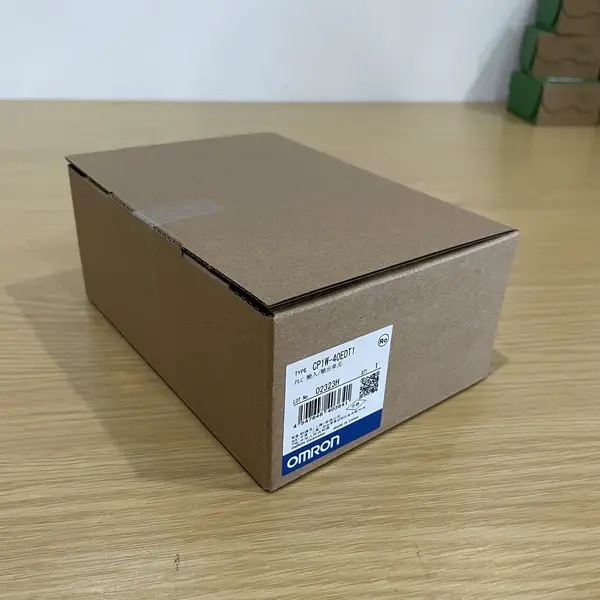

Omron CP1W-40EDT1 — 24-In / 16 PNP-Out Expansion
SKU: CP1W-40EDT1USD 88.00
Omron CP1W-40EDT1 CP1 I/O expansion, 24 DC inputs, 16 PNP outputs 0.3 A, 0-32 ms input filter. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CP1W-40EDT1 is a 40-point digital I/O expansion unit for the CP1 series PLC platform, manufactured by Omron Corporation. Hengyixin Automation stocks this I/O expansion unit in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. Specifications on this page were checked against Omron's CP-series I/O Unit documentation.
The unit adds 24 DC inputs (24 VDC, PNP or NPN configurable) and 16 PNP sourcing transistor outputs (0.3 A per point, 4.5 to 30 VDC permitted) to a CP1E, CP1L, or CP1H CPU. Input ON/OFF response is configurable from 0 to 32 ms in CX-Programmer; output ON response is 0.1 ms and OFF is 1 ms. Screw terminal block. The unit draws 0.16 A on the 5 VDC CP1 expansion bus and needs no external 24 V supply.
Up to three CP1W expansion units chain to the right of the CPU on the same bus; a CP1H host allows 160 I/O points maximum. The CP1W-40EDR sibling is the relay-output version of the same 24/16 body; the CP1W-20EDT1 is the 12-in / 8-out half-size.
Key Features
- CP1-series digital I/O expansion unit, 24 DC inputs (PNP / NPN configurable) and 16 PNP sourcing transistor outputs
- 0.3 A per output at 4.5 to 30 VDC, 0.1 ms ON / 1 ms OFF output response, photocoupler isolation, screw terminal block
- 0 to 32 ms configurable input filter via CX-Programmer, 20.4 to 26.4 VDC permitted input voltage, ON 14.4 VDC / OFF 5.0 VDC
- Bus-powered from the CP1E, CP1L, or CP1H CPU on 5 VDC 0.16 A; up to 3 units chain to 160 I/O points max on a CP1H host
- SKU: CP1W-40EDT1
- Series: Omron CP1-series digital I/O expansion (CP1W bus)
- Voltage: 20.4 TO 26.4 VDC
Best-Fit Applications
- I/O expansion on a CP1L-EM30DT-D controlled packaging machine that needs 24 sensor inputs and 16 solenoid outputs beyond the CPU's 30 built-in points
- Spare replacement on a CP1H-X40DR-A panel that previously had two CP1W-40EDR relay modules and now needs a faster transistor-output module on the same bus
- Remote expansion on a long conveyor where the CP1W-CN811 extension cable carries the CP1W-40EDT1 up to 8 m from the CP1E-N30DT-D CPU
Buying Checklist
- Pick the CP1W-40EDT1 for a 24-in / 16-PNP-out digital expansion unit that bus-mounts on a CP1E, CP1L, or CP1H CPU.
- Pick the CP1W-40EDR instead when the same 24-in / 16-out body is needed with mechanical relay outputs at 2 A switching.
- Pick the CP1W-20EDT1 instead when the cabinet only needs 12 DC inputs and 8 PNP outputs on a tighter bus-mount unit.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron CP1-series digital I/O expansion (CP1W bus) |
| Model / SKU | CP1W-40EDT1 |
| Digital Inputs | 24 points, 24 VDC, PNP / NPN configurable, 5 mA typical input current, 4.7 kΩ input impedance |
| Input Voltage / Threshold | Permitted 20.4 to 26.4 VDC, ON 14.4 VDC min, OFF 5.0 VDC max |
| Input Filter | Configurable 0 to 32 ms in CX-Programmer (default 8 ms), plus 16 ms hardware delay |
| Digital Outputs | 16 PNP sourcing transistor outputs, 0.3 A per point, 0.9 A per common, 3.6 A per unit |
| Output Rating | Permitted voltage 4.5 to 30 VDC, ON response 0.1 ms, OFF response 1 ms, residual 1.5 V max, leakage 0.1 mA max |
| Isolation | Photocoupler isolation between inputs, outputs, and internal bus |
| Bus Power | 5 VDC 0.16 A from the CP1 expansion bus (no separate 24 V supply required) |
| Connection / Mounting | Fixed screw terminal block, 35 mm DIN-rail mount |
| Dimensions / Environment | 90 (H) x 150 (W) x 50 (D) mm, approximately 320 g, IP20, 0 to +55 °C operating, -20 to +75 °C storage |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for CP1W-40EDT1
What is the Omron CP1W-40EDT1 used for?
It is the 40-point digital I/O expansion unit for the CP1 series PLC platform. It adds 24 DC inputs and 16 PNP sourcing transistor outputs to a CP1E, CP1L, or CP1H CPU on the CP1 expansion bus without needing a separate 24 V supply.
CP1W-40EDT1 vs CP1W-40EDR - what is the difference?
Both have 24 DC inputs and 16 outputs in the same 150 x 90 x 50 mm body. The CP1W-40EDT1 has 16 PNP sourcing transistor outputs at 0.3 A and 0.1 ms ON response; the CP1W-40EDR has 16 mechanical relay outputs at 2 A with 10 ms switching. Pick the EDT1 for fast solenoid switching and the EDR for high-current AC loads.
Does the CP1W-40EDT1 need a separate power supply?
No. The CP1W-40EDT1 draws 0.16 A on the 5 VDC CP1 expansion bus from the host CPU. There is no separate 24 VDC power input on the CP1W-40EDT1; field devices are powered from the same 24 VDC supply that feeds the CPU's input terminals.
How many CP1W-40EDT1 units can connect to a CP1L?
A CP1L CPU hosts one CP1W expansion unit directly. If more I/O is needed, an additional CP1W unit can be chained off the first via the CP1W-CN811 extension cable, for up to two CP1W expansion units per CP1L. A CP1H CPU hosts up to three CP1W expansion units for 160 I/O points maximum.
What is the input filter range on the CP1W-40EDT1?
0 to 32 ms, configured per input in CX-Programmer under the PLC Setup. The default is 8 ms; bump it to 16 or 32 ms on noisy long-cable inputs to stop contact-bounce and EMI false triggers. The filter adds to a 16 ms hardware delay.
