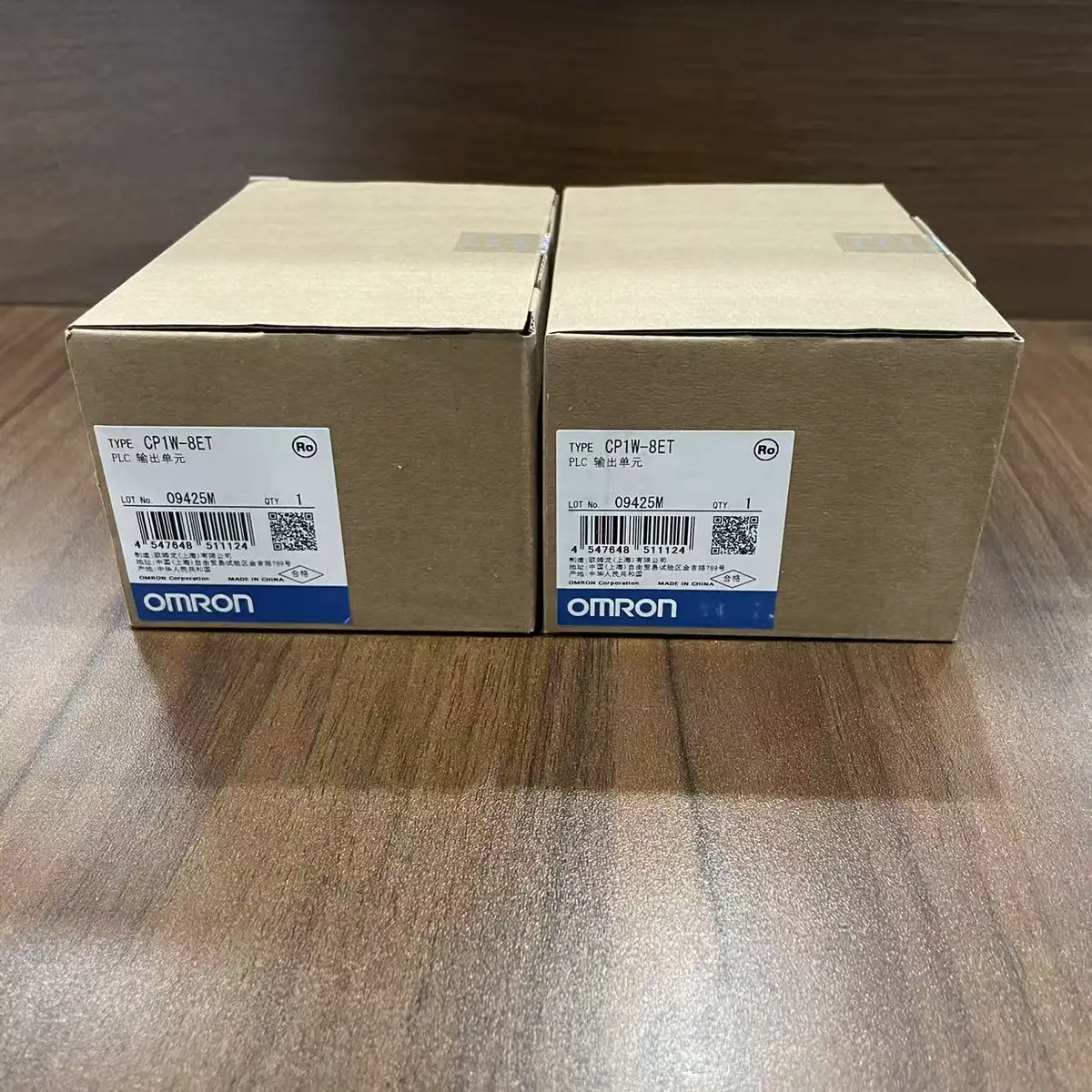

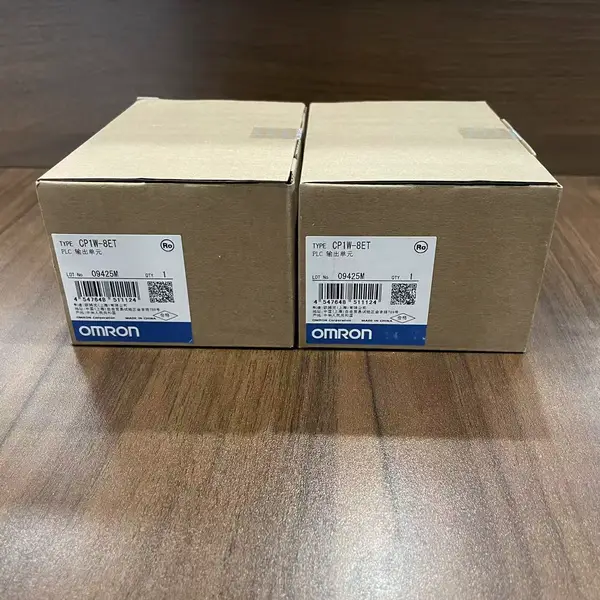

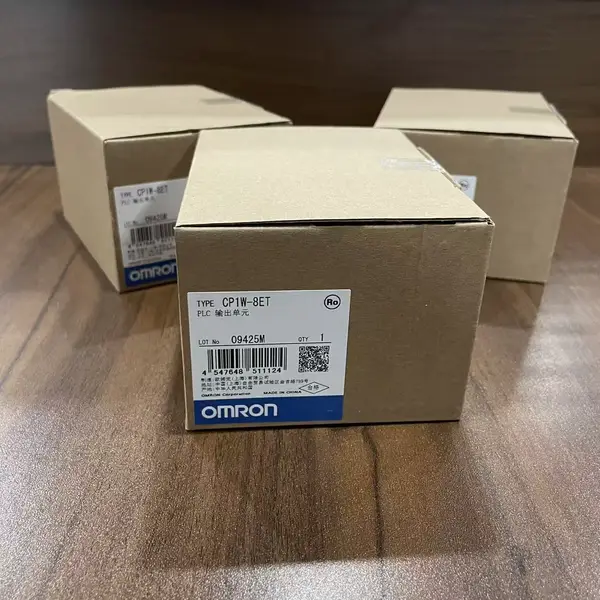

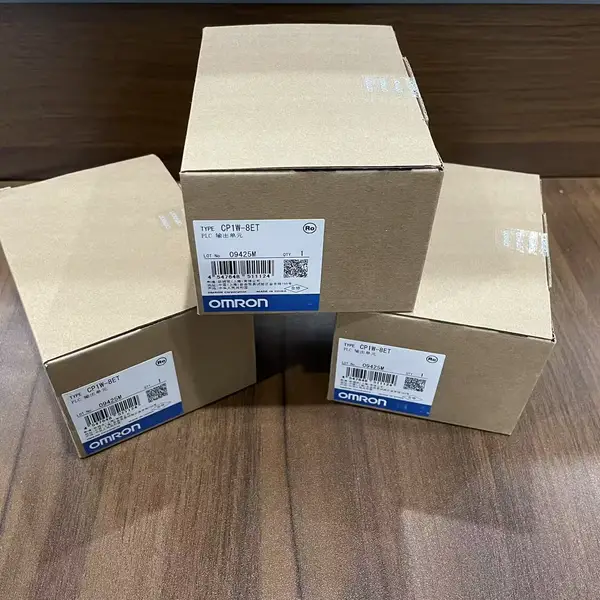

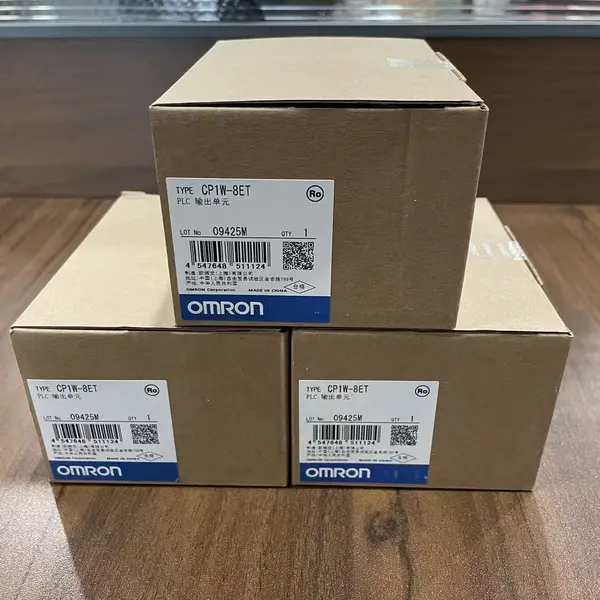

Omron CP1W-8ET — 8-Point NPN Output Expansion
SKU: CP1W-8ETUSD 35.00
CP1W 8-point NPN sink transistor output expansion for CP1L / CP1H / CP1E / NSJ CPUs, 0.3 A per point, 4.5-26.4 VDC, 0.1 ms response.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CP1W-8ET is an 8-point NPN (current-sinking) transistor output expansion unit for the CP1W series. It bolts onto the right side of a CP1E / CP1L / CP1H / NSJ CPU via the flat CP1W-CN811 I/O connecting cable, adding 8 fast digital outputs to small cabinets that need a few more outputs than the CPU supplies. Each output switches a 4.5-26.4 VDC load at up to 0.3 A per point, with a 0.1 ms ON / 0.4 ms OFF response. Pick the 8ET when the PLC expects sinking inputs on the load side, the default for CP1E-N___DT-D and CP1L-M___DT-D CPUs.
Where it fits in the CP1W expansion lineup
The CP1W expansion line is split by point count and output type. CP1W-8ET is the 8-point NPN sink transistor output. CP1W-8ET1 is the PNP (current-sourcing) twin. CP1W-16ER is the 16-point relay output for mixed AC and 24 VDC loads. CP1W-20EDT / CP1W-40EDT mix 24 VDC inputs with 16 / 32 transistor outputs in a wider body. Pick the 8ET when you need a small sink-output block to add to an existing CP-series CPU.
Choosing sink (NPN) vs source (PNP)
The CP1W-8ET is NPN sinking output - the transistor pulls the load to 0 V while the load's other terminal goes to the positive DC rail. The CP1W-8ET1 PNP source output does the opposite - it sources the positive rail to the load while the load's other terminal returns to 0 V. Match the expansion to the CPU body - a DT (sink) or DT1 (source) CPU pairs with the same-polarity expansion. Mixing polarities requires careful common-rail wiring.
Before ordering
Confirm the CPU is a CP1E / CP1L / CP1H / NSJ or CPM2A with a free CP1W expansion port. If total load exceeds 1.6 A on the 8ET common, step to a wider 20EDT or 40EDT. Mount on a DIN-rail (TR35-15Fe IEC 60715). Wire the load to the removable M3 terminal block with 0.25 mm stranded wire and a ferrule. Connect the CP1W-CN811 cable, power on, and the 8 output points appear in CX-Programmer automatically.
Key Features
- CP1W series 8-point digital OUTPUT expansion unit
- NPN current-sinking transistor outputs (8ET = sink)
- Each output: 0.3 A max at 4.5-26.4 VDC load
- 1.6 A max per common (8 points shared common)
- 0.1 ms ON / 0.4 ms OFF response time
- 0.1 mA max output leakage
- Removable M3 screw terminal block
- Flat CP1W-CN811 connecting cable (sold separately)
- DIN-rail or panel mount, 90 x 66 x 50 mm body
- Compatible with CP1E / CP1L / CP1H / NSJ / CPM2A PLCs
- SKU: CP1W-8ET
- Series: CP1W digital expansion unit
- Voltage: 4 VDC
- I/O: 8 I/O
Best-Fit Applications
- Adding 8 solenoid outputs to a CP1L-EL20DR-D control cabinet
- Driving small 24 VDC relays from a CP1E-N40DR-A PLC
- Spare outputs for indicator lamps on a labelling machine
- Extra pump or cylinder outputs on a small parts-feeder panel
- Output block on a CP1H-X40DR-A machine retrofitted to a sensor-heavy design
Buying Checklist
- Confirm the CPU is a CP-series (CP1E / CP1L / CP1H / NSJ / CPM2A) with a free CP1W expansion port.
- Choose CP1W-8ET1 for PNP source output to match a DT1 (sourcing) CPU body polarity.
- Choose CP1W-16ER for 16-point relay outputs when the load is mixed AC mains and 24 VDC.
- Choose CP1W-20EDT when both extra inputs and 16 sink outputs are needed in one slot.
- Verify total load current per common stays below 1.6 A before adding more output points.
- Confirm the CP1W-CN811 connecting cable is on hand before installation.
Technical Specifications
| Series | CP1W digital expansion unit |
|---|---|
| Output Points | 8 sinking (NPN) transistor outputs |
| Load Voltage | 4.5 to 26.4 VDC |
| Output Current | 0.3 A per point, 1.6 A per common max |
| Response Time | ON 0.1 ms max / OFF 0.4 ms max |
| Leakage Current | 0.1 mA max |
| Connection | Removable M3 screw terminal block |
| Required Cable | CP1W-CN811 (sold separately, 80 mm right-to-left) |
| Dimensions | 90 x 66 x 50 mm (H x W x D) |
| Mounting | DIN-rail (TR35-15Fe IEC 60715) or M4 panel screws |
| Operating Temperature | 0 to 55 degC |
| Compatible CPUs | CP1E, CP1L, CP1H, NSJ, CPM2A |
Resources & Downloads
FAQ for CP1W-8ET
What is the difference between CP1W-8ET and CP1W-8ET1?
The CP1W-8ET is NPN (current-sinking) output - the transistor pulls the load to 0 V. The CP1W-8ET1 is PNP (current-sourcing) output - the transistor switches the positive rail to the load. Match the polarity to the CPU: a DT (sink) CPU pairs with the 8ET, a DT1 (source) CPU pairs with the 8ET1.
Does the CP1W-8ET need a CP1W-CN811 cable?
Yes. The CP1W-8ET does not bus to the CPU directly. A flat CP1W-CN811 connecting cable (sold separately, 80 mm long) is required to bridge the unit to the CPU or to the previous CP1W expansion module. CX-Programmer is not required to commission the unit - the I/O appears in the CPU's I/O table automatically once the cable is connected.
How many CP1W-8ET units can I mount on one CPU?
Up to 3 CP1W expansion units on a CP1E / CP1L / CP1H CPU, with a ceiling of 15 input words and 15 output words occupied across all CP1W expansions. A CP1L EM40DT1-D can host three 8ET units (24 sink outputs total) within its 160-point budget; a CP1H can host up to seven CP1W expansions but the I/O count ceiling is the same.
