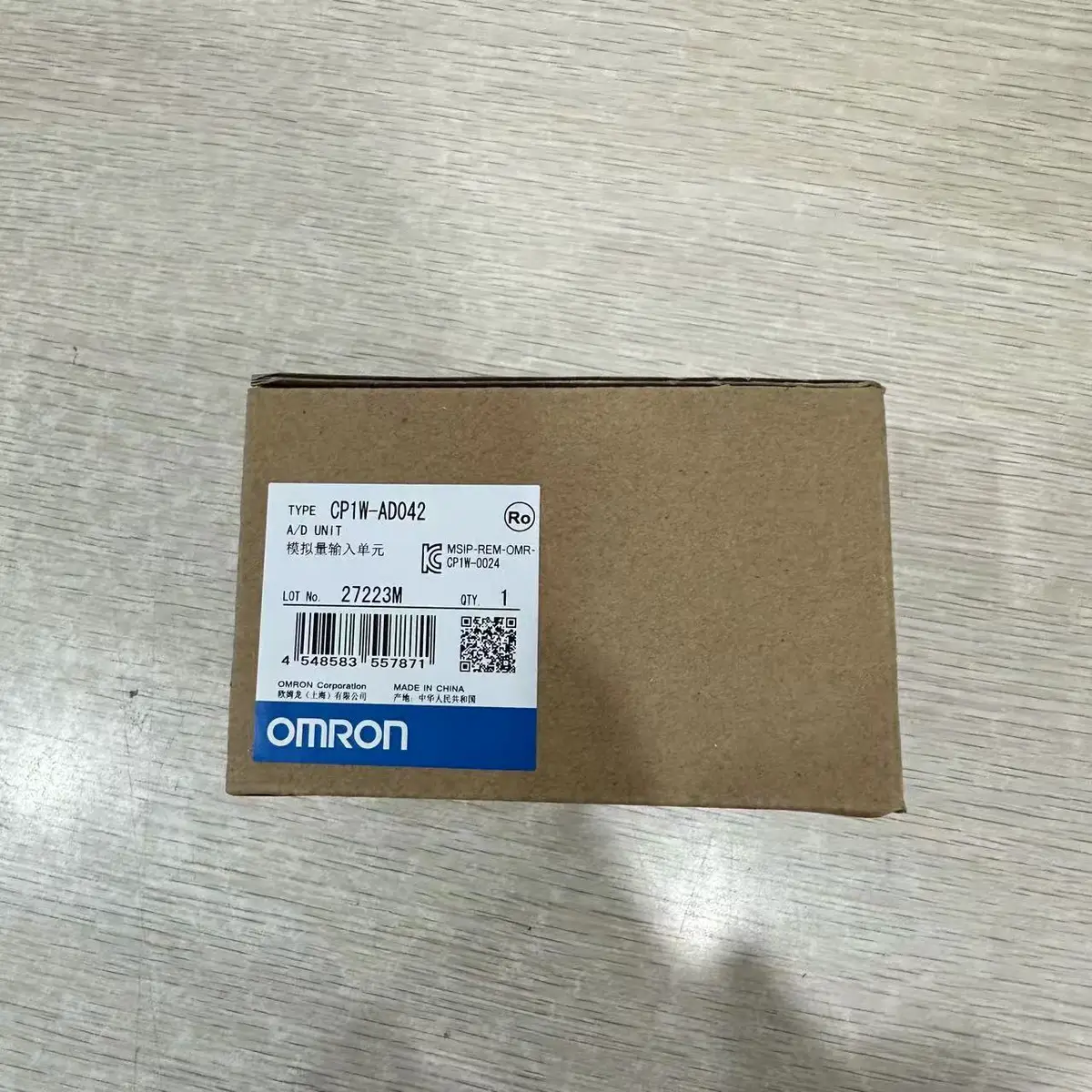

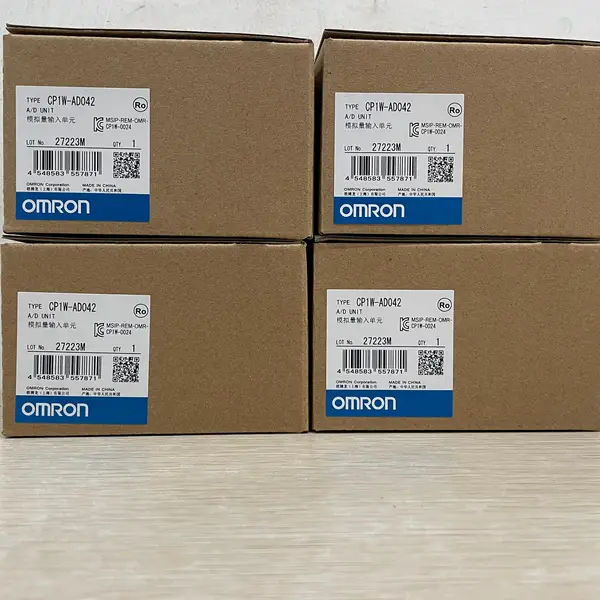

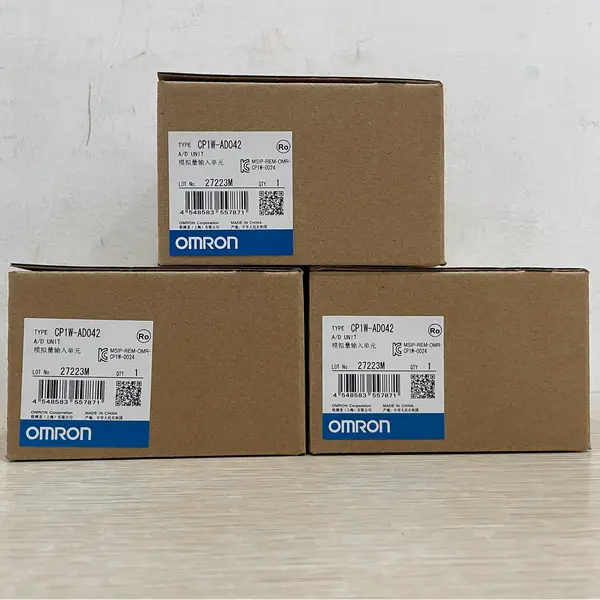

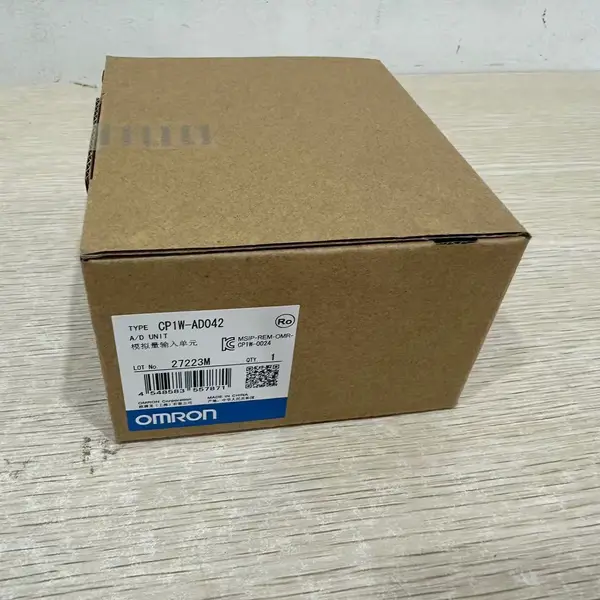

Omron CP1W-AD042 — 4-Channel Analog Input Expansion, 14-Bit
SKU: CP1W-AD042USD 86.00
CP-series expansion unit, 4 analog inputs (4-20 mA, 0-20 mA, 0-5 V, 1-5 V, 0-10 V, ±10 V), 14-bit resolution. Connects to CP1L / CP1E PLCs via the expansion I/O bus. ±0.2 % full-scale accuracy, 1 ms conversion time per point.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The CP1W-AD042 is the standard 4-channel analog input expansion unit for Omron's CP-series small PLCs (CP1L and CP1E). Each of the 4 inputs accepts any of the six standard industrial signal ranges — 4 to 20 mA, 0 to 20 mA, 1 to 5 V, 0 to 5 V, 0 to 10 V, and -10 to +10 V — independently configured per channel via DIP switches on the side of the module. Resolution is 14-bit (effective 13-bit + sign, 14-bit unipolar / 14-bit bipolar including sign bit), giving 16384 discrete counts per bipolar range.
Where the CP1W-AD042 fits in the CP1W analog family
The CP1W analog family splits along three axes: input count (2 / 4 inputs), output count (0 / 2 / 4 outputs), and combination (in-only, out-only, in+out combo). The CP1W-AD042 (this SKU) is in-only with 4 inputs. The 2-input sibling is the CP1W-AD041 (12-bit, slower conversion — preferred for legacy installations where AD041 has been already installed and re-wiring is undesirable). The combination input+output is the CP1W-MAD42 (4 inputs + 2 outputs, 12-bit, DIP-switched ranges — used when both AI and AO are needed in one module) or the CP1W-MAD44 (4 inputs + 4 outputs, 12-bit, newer revision).
Wiring, DIP-switch setup, and the 250 Ω / 100 Ω current-sense resistor
Wiring uses a removable M3 screw terminal block (CP1W-AD042 ships with the terminal block wired to 4 analog input channels + 24 VDC supply). The input channels are differential inputs (V+/V-) with a dedicated common (AG) terminal — keep analog wiring at least 100 mm away from AC power wiring, VFD cables, and motor wiring. For 4-20 mA and 0-20 mA current inputs, the input is wired across the V+ and V- terminals — no external sense resistor is required because the CP1W-AD042 has an internal 250 Ω sense resistor on each current input channel (DIP-switched to enable).
Conversion formula, scaling, and the 6000/60000 PV scaling
The CP1W-AD042 stores the converted analog value in allocated DM area words (default: D200 to D203 for inputs 1-4, configurable in CX-Programmer). For 0-10 V unipolar, the full-scale 0 to 10 V maps to 0000 to 6000 hex (0-6144 raw binary codes), giving 6144 discrete levels for a 10 V span. For ±10 V bipolar, the -10 to +10 V maps to 8000 to 7FFF hex (-32768 to +32767 raw codes), giving the full 14-bit bipolar resolution.
Key Features
- 4-channel analog input expansion unit for CP1L / CP1E PLCs
- 6 user-selectable input ranges per channel via DIP switches: 4-20 mA, 0-20 mA, 1-5 V, 0-5 V, 0-10.
- Differential inputs with dedicated analog common terminal
- 14-bit resolution
- 1 ms conversion time per channel
- Accuracy ±0.2 % of full scale at 25 °C, ±0.4 % over 0 to 55 °C
- Internal 250 Ω current-sense resistor for 4-20 mA / 0-20 mA inputs — no external resistor required
- Average processing 1 to 128 samples per channel — configurable via CX-Programmer
- SKU: CP1W-AD042
- Series: CP1W Analog I/O Expansion Units
- I/O: 4 I/O
Best-Fit Applications
- Tank-level measurement on a water-treatment skid — 2 pressure transmitters and 2 flow meters wired to CP1W-AD042 inputs, scaled in.
- Multi-zone temperature monitoring on a plastic-extrusion line — 4 thermocouples or 4-wire RTDs wired via CP1W-TS001, acquisition rate 4 ms.
- Pressure and flow supervision in a hydraulic press — 4-20 mA pressure transducer on input 1, 4-20 mA flow meter.
- Weighing system on a batching line — 4 load cells with 0-10 V excitation outputs wired to CP1W-AD042 inputs, CP1L.
Buying Checklist
- Pick CP1W-AD042 for 4 analog inputs on a CP1L/CP1E at 14-bit resolution with full signal-range support
- Pick CP1W-AD041 for legacy 12-bit 4-channel AI
- Pick CP1W-MAD42 for 4 AI + 2 AO in one module — saves a slot when both directions are needed
- Pick CP1W-MAD44 for 4 AI + 4 AO 12-bit — denser than MAD42
- Pick CP1W-TS001 / TS002 for thermocouple or RTD temperature inputs
- Pick CP1W-ADB21 for 2 high-precision AI
Technical Specifications
| Model | CP1W-AD042 |
|---|---|
| Series | CP1W Analog I/O Expansion Units |
| Type | 4-channel analog input expansion unit (Option Board / Expansion Unit) |
| Number of Analog Inputs | 4 |
| Number of Analog Outputs | 0 |
| Resolution | 14-bit (16384 discrete codes for bipolar, 6144 for unipolar) |
| Input Signal Ranges | 0-5 V, 1-5 V, 0-10 V, ±10 V, 0-20 mA, 4-20 mA (DIP-switch selectable per channel) |
| Input Type | Differential (V+ / V- per channel) with AG common |
| Input Impedance | Voltage: 1 MΩ min; Current: 250 Ω (internal sense resistor) |
| Output Scaling (raw codes) | -10 to +10 V: F830 to 07D0 hex (-2000 to +2000 BCD); 0-10 V / 4-20 mA: 0000 to 1770 hex (0 to 6000 BCD) |
| Wire Range | 0.2 to 1.5 mm² (AWG 24 to 16) |
| 5 VDC Current Consumption | 80 mA |
| 24 VDC Current Consumption | 50 mA |
| Operating Temperature | 0 to +55 °C |
| Dimensions (W × H × D) | 85 × 90 × 31 mm |
Resources & Downloads
FAQ for CP1W-AD042
Can the CP1W-AD042 mix voltage and current inputs on different channels?
Yes — each of the 4 input channels has its own DIP switch on the side of the module that selects the input range independently. Channel 1 could be 4-20 mA (DIP switch setting A), channel 2 could be 0-10 V (DIP switch setting B), channel 3 could be ±10 V (DIP switch setting C), and channel 4 could be 0-5 V (DIP switch setting D) — any combination is permitted.
What's the difference between CP1W-AD042 and CP1W-AD041?
The CP1W-AD042 (this SKU) is the current-generation 4-channel AI with 14-bit resolution and 1 ms per-channel conversion time. The CP1W-AD041 is the legacy 4-channel AI with 12-bit resolution and a slower conversion time (also 1 ms per channel, but the 12-bit resolution gives only 4096 discrete levels vs the AD042's 16384).
Can I scale the raw analog value to engineering units in the CP1L?
Yes — the standard approach is to use the CP1L's SCL2 (scaling) instruction in ladder logic. The raw value 0000 to 6000 hex (0 to 24576 decimal, or 0 to 6000 BCD depending on signal range) maps to engineering unit low and high — for a 4-20 mA pressure transmitter with 0-300 PSI span, the scaling is: zero-scale = 0000 hex raw / 0 PSI, full-scale = 1770 hex raw (6000 BCD) / 300 PSI.
Does the CP1W-AD042 work with the discontinued CP1L-M series?
Yes — the CP1W-AD042 is fully compatible with the CP1L-L (legacy), CP1L-J (legacy), CP1L-M (legacy, discontinued 2027-06-30), and CP1L-EM (current production). The expansion flat-cable connection is identical across all CP1L sub-series, and the analog I/O allocation in CX-Programmer is the same DM-area mapping.
