Omron CP1W-TS001 — 2-Ch Thermocouple Input
SKU: CP1W-TS001USD 90.00
CP-series temperature input expansion, 2 thermocouple channels (K or J), 12-bit, 250 ms / 2 pts, 0.5% FS accuracy.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

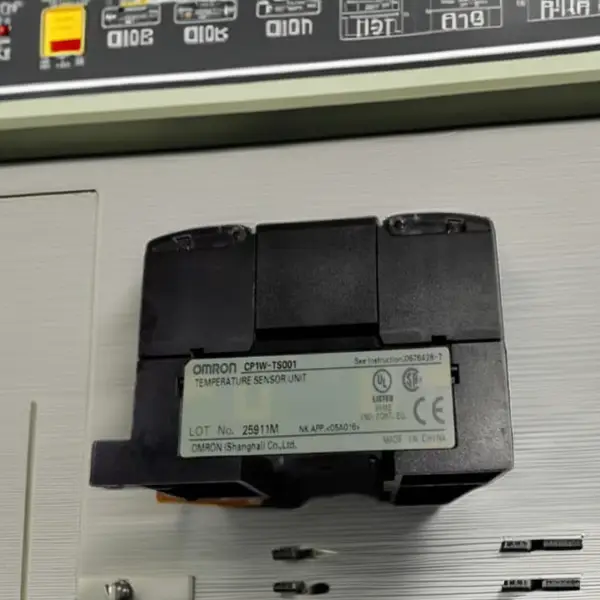

The Omron CP1W-TS001 is the 2-channel thermocouple input expansion unit for the CP1E, CP1L, and CP1H PLC families. It is manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. Each channel accepts a type K or type J thermocouple (the same type must be used for both inputs on a single module), and converts the millivolt signal to a 12-bit binary value in 250 ms. The TS001 differs from its 4-point sibling TS002 by accepting 2 instead of 4 thermocouples. The rotary switch on the front face selects K or J and the temperature range; the module has no scaling parameters, the ladder program does the engineering conversion. Key specs: Model CP1W-TS001; Input Type Thermocouple, type K or type J (same type for both inputs); Number of Inputs 2 channels, 2 CH allocated; Resolution 12-bit, 0.1 degC or 0.1 degF; Conversion Time 250 ms for 2 input points; Accuracy The larger of +/- 0.5% of indicated value or +/- 2 degC, +/- 1 digit; K Range -200.0 to +1300.0 degC (-300 to +2300 degF); J.
Key Features
- 12-bit resolution, 250 ms conversion time for 2 input points
- 5 VDC 40 mA + 24 VDC 59 mA from the CP1 I/O bus
- Compatible with CP1E, CP1L, CP1H CPUs via CP1W-CN811 expansion cable
- CP-series 2-channel thermocouple input expansion (type K or type J switchable)
- SKU: CP1W-TS001
- Series: CP1W temperature sensor input expansion
Best-Fit Applications
- Replacement for a legacy C200H-TS001 module in a panel migration.
- Oven temperature monitoring on a small heat-treat furnace with K probes.
- Heat-seal bar temperature feedback on a packaging machine with J probes.
Buying Checklist
- Choose CP1W-TS002 when 4 thermocouple channels are needed in the same DIN slot.
- Choose CP1W-ADB21 + external temperature transmitter when the cabinet already uses 4 to 20 mA signals from head-mounted transmitters.
- Confirm the thermocouple type is K or J only - for Pt100 / JPt100 resistance thermometers, choose CP1W-TS101 (2-ch) or CP1W-TS102 (4-ch).
Technical Specifications
| Model | CP1W-TS001 |
|---|---|
| Series | CP1W temperature sensor input expansion |
| Input Type | Thermocouple, type K or type J (same type for both inputs) |
| Number of Inputs | 2 channels, 2 CH allocated |
| Resolution | 12-bit, 0.1 degC or 0.1 degF |
| Conversion Time | 250 ms for 2 input points |
| Accuracy | The larger of +/- 0.5% of indicated value or +/- 2 degC, +/- 1 digit |
| K Range | -200.0 to +1300.0 degC (-300 to +2300 degF) |
| J Range | -100.0 to +850.0 degC (-100 to +1500 degF) |
| Isolation | Photocoupler between all temperature input signals |
| Current Consumption | 5 VDC 40 mA max, 24 VDC 59 mA max |
| Dimensions / Weight | 86 x 90 x 50 mm, 250 g; 0 to 55 degC operating |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for CP1W-TS001
What is the difference between CP1W-TS001 and CP1W-TS002?
Both accept K or J thermocouples and run at the same 250 ms conversion cycle per channel-group. The TS001 reads 2 inputs and allocates 2 CH; the TS002 reads 4 inputs and allocates 4 CH. The TS001 fits a small machine that only needs two probes; the TS002 fits a multi-zone oven or heat-seal bar where four probes are needed. Pick TS002 when more channels are needed but thermocouples are still the sensor type.
Can the CP1W-TS001 read Pt100 RTDs?
No - the TS001 only accepts K and J thermocouples. For Pt100 or JPt100 resistance thermometers, use CP1W-TS101 (2 channels) or CP1W-TS102 (4 channels). The TS101 and TS102 share the same housing, wiring, and CP1W-CN811 expansion cable as the TS001 but have different input circuits and accuracy specifications.
What thermocouple wire should I use with the CP1W-TS001?
Use the correct thermocouple extension wire for the type - K-type wire for K probes, J-type for J probes - and run it in shielded cable back to the TS001 screw terminals. The shield should be grounded at the PLC end only. Standard copper signal wire picks up the same thermocouple effect at the junction, which adds a degree or more of error to the reading.
How accurate is the CP1W-TS001 at high temperatures?
Accuracy is the larger of plus or minus 0.5 percent of indicated value or plus or minus 2 degC, plus or minus 1 digit across the K or J range. At 1000 degC the 0.5 percent term is plus or minus 5 degC, so the plus or minus 2 degC term dominates. Below -100 degC on type K, tolerance widens to plus or minus 4 degC plus 1 digit.
