Omron CP1W-MAB221 — PLC Controller
SKU: CP1W-MAB221USD 83.00
CP1L analog option board: 2 analog inputs (0–10 V at 1/4000 or 0–20 mA at 1/2000 resolution) plus 2 analog outputs at 0–10 V, 1/4000 resolution. Mounts in CP1L-EM or CP1L-EL option board slot 1 or 2.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The CP1W-MAB221 is an analog I/O option board that plugs into option-board slot 1 or slot 2 of a CP1L-EM or CP1L-EL CPU unit, adding two analog inputs and two analog outputs without taking up a slot on the CP1W expansion bus. The two inputs are software-configurable per channel for 0–10 V (resolution 1/4000, ~2.5 mV per step) or 0–20 mA (resolution 1/2000, ~10 µA per step); the two outputs are fixed-range 0–10 V (resolution 1/4000).
Why this SKU and not CP1W-MAD42, CP1W-ADB21, or CP1W-DAB21V
The CP1W-MAB221 is one of four analog option boards in the CP1L family. CP1W-ADB21 is input-only (2 analog inputs, same 1/4000 voltage and 1/2000 current resolution as the MAB221). CP1W-DAB21V is output-only (2 analog outputs, 0–10 V or 0/4–20 mA jumper-selectable per channel, 1/6000 resolution). CP1W-MAB221 is the I/O combo board (2 in + 2 out). The CP1W-MAD42 is a different class entirely — it is a full CP1W expansion I/O unit (not an option board) that mounts on the CP1W expansion bus and provides 4 inputs and 2 outputs at 1/12000 resolution with bipolar ±10 V ranges.
Installing in the option board slot and wiring

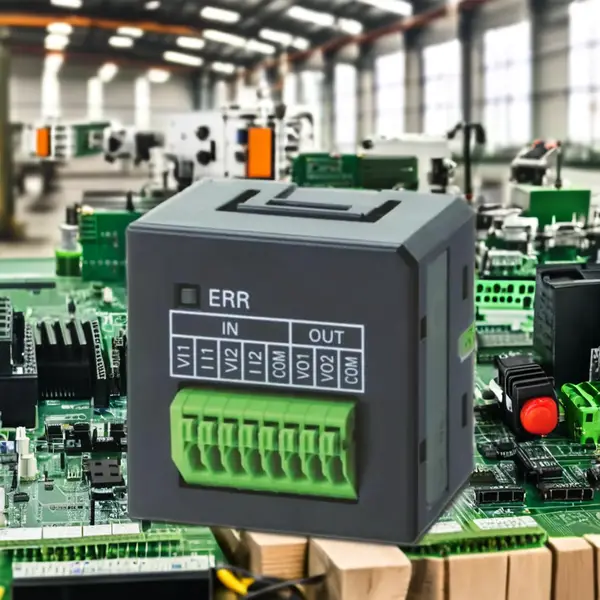

The CP1W-MAB221 snaps into option-board slot 1 or slot 2 of the CP1L CPU. Both slots are identical — the slot-1/slot-2 distinction only matters for serial option boards (CP1W-CIF01/11/12-V1) where slot 1 is the RS-232C port. You can fit one analog option board in each of the two slots if needed, for a maximum of 4 analog inputs and 4 analog outputs per CPU. Wiring uses a removable screw-terminal block on the front of the CPU (input terminals V1/I1+/I1− and V2/I2+/I2−, output terminals V OUT1+ / V OUT1− and V OUT2+ / V OUT2−).
When the CP1W-MAB221 is the wrong choice
Three common pitfalls. First, the analog option boards only fit the CP1L-EM and CP1L-EL CPUs (the -EL20DR-D, -EM30DT-D, -EM40DT1-D etc.) — they do not fit the smaller CP1L-L, CP1L-M, or CP1L-J CPUs, and they cannot be retrofitted to CP1E. Second, the outputs are voltage-only (0–10 V) — if you need a 4–20 mA output signal to drive an industrial valve positioner or a panel meter, you need the CP1W-DAB21V or an external signal converter.
Key Features
- Analog I/O option board for CP1L-EM and CP1L-EL CPU units
- 2 analog inputs: 0–10 V or 0–20 mA per channel
- 2 analog outputs: 0–10 V, 1/4000 resolution, ±0.6 % FS accuracy at 25 °C
- Plugs into option-board slot 1 or slot 2 of the CP1L CPU
- Conversion time ~1 ms per enabled channel
- Removable screw-terminal block on the CPU front panel
- Cannot be used with CP1L-J, CP1L-L, CP1L-M, or CP1E CPUs
- Operating temperature 0 to +55 °C
- SKU: CP1W-MAB221
- Series: CP1W (CP1L option board)
- Voltage: 0 TO 10 V
- I/O: 2 I/O
Best-Fit Applications
- Reading a 0–10 V pressure transducer on a small pneumatic test stand running on a CP1L-EM
- Adding two thermocouple-free analog inputs to a CP1L-EM-controlled packaging line for tank-level monitoring
- Driving a 0–10 V proportional valve command from a CP1L-EL in a dosing skid
- Closed-loop tension control on a CP1L-EM-driven unwind stand using load cell input + dancer output
Buying Checklist
- Pick CP1W-MAB221 when you need 2 analog inputs AND 2 analog outputs on a CP1L-EM or CP1L-EL CPU
- Pick CP1W-ADB21 if you only need analog inputs
- Pick CP1W-DAB21V if you only need analog outputs
- Pick CP1W-MAD42 when you need 4 inputs and 2 outputs at 1/12000 resolution with bipolar ranges — note it uses a CP1W expansion slot, not an option.
- The MAB221 cannot be combined with CP1W-CIF41, CP1W-DAM01, or CP1W-ME05M in the same CPU
- Verify your CPU is a CP1L-EM@@D or CP1L-EL@@D — the MAB221 does not fit CP1L-J, CP1L-L, CP1L-M, or CP1E
Technical Specifications
| Model | CP1W-MAB221 |
|---|---|
| Series | CP1W (CP1L option board) |
| Type | Analog I/O option board |
| For Use With | CP1L-EM@@D and CP1L-EL@@D CPU units only |
| Analog Inputs | 2 channels, software-selectable range |
| Input Voltage Range | 0 to 10 V DC (resolution 1/4000, ~2.5 mV) |
| Input Current Range | 0 to 20 mA (resolution 1/2000, ~10 µA) |
| Analog Outputs | 2 channels, fixed voltage range |
| Output Voltage Range | 0 to 10 V DC (resolution 1/4000) |
| Output Current Drive | Voltage output only — no current output |
| Mounting | CPU option-board slot 1 or slot 2 (plugs into CPU) |
| Terminal Type | Removable screw-terminal block on CPU front |
| Operating Temperature | 0 to +55 °C |
| Dimensions | Plugs inside the CP1L CPU — no external footprint |
Resources & Downloads
FAQ for CP1W-MAB221
Is the CP1W-MAB221 a 1-output or 2-output module?
It is a 2-output module. The older catalog descriptions that read '2-Input 1-Output' are incorrect — the MAB221 has 2 analog inputs and 2 analog outputs. If you only need outputs, the CP1W-DAB21V is the dedicated 2-channel analog output board; if you only need inputs, the CP1W-ADB21 is the dedicated 2-channel input board.
Which CPU units can the CP1W-MAB221 be used with?
The CP1W-MAB221 fits only the CP1L-EM and CP1L-EL CPU units — models like CP1L-EM30DT-D, CP1L-EM40DT1-D, CP1L-EL20DR-D. It cannot be installed in the CP1L-J, CP1L-L, or CP1L-M CPUs (those do not have option-board slots), and it is not compatible with CP1E series CPUs. The board plugs into either option-board slot 1 or slot 2 of the CPU.
What is the resolution of the CP1W-MAB221 analog inputs?
Voltage inputs (0–10 V range) have 1/4000 resolution, or about 2.5 mV per step. Current inputs (0–20 mA range) have 1/2000 resolution, or about 10 µA per step. Output resolution on the 0–10 V outputs is also 1/4000. Overall accuracy is ±0.6 % of full scale at 25 °C. For higher resolution you need the CP1W-MAD42 (1/12000, 4 inputs + 2 outputs), which is a full expansion unit instead of an option board.
Can the CP1W-MAB221 output a 4–20 mA signal?
No — the MAB221 outputs are fixed 0–10 V only and cannot source a 4–20 mA current loop signal directly. If you need a current output (for a panel meter, valve positioner, or VFD speed reference that expects 4–20 mA), use the CP1W-DAB21V output option board instead — it has jumper-selectable voltage or current output per channel — or add an external voltage-to-current converter on the field side.
