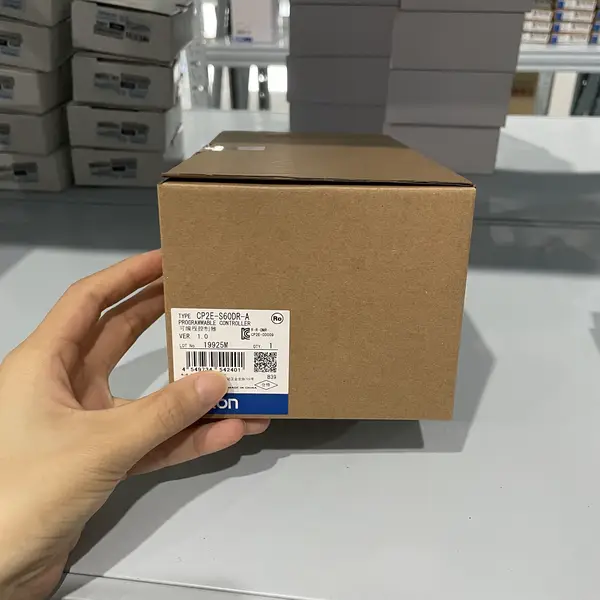

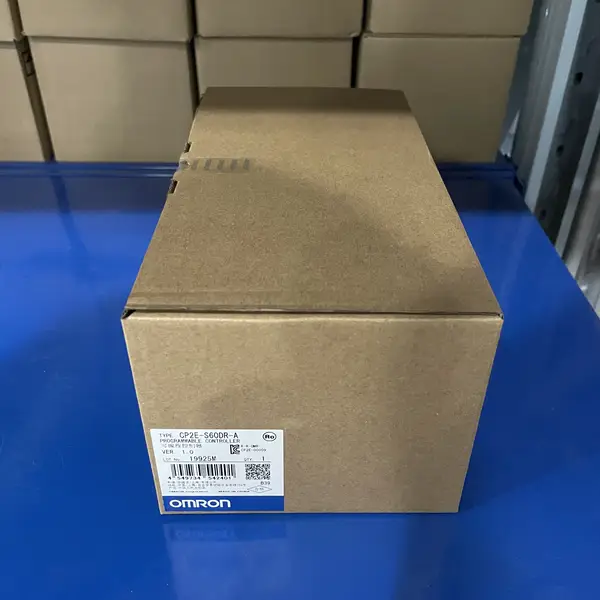

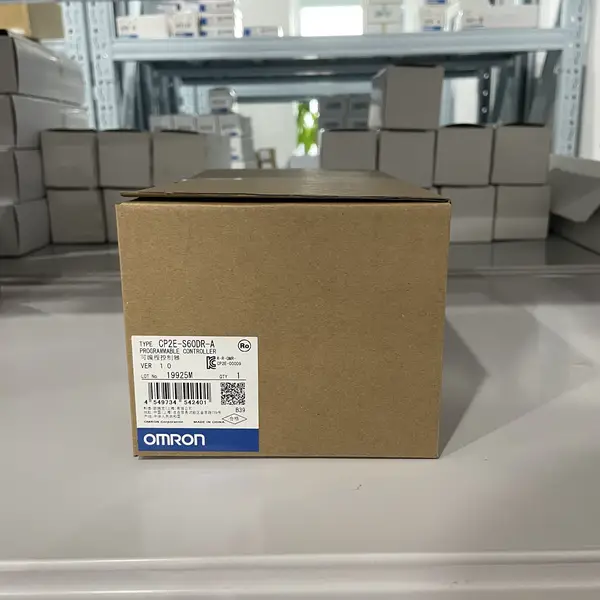

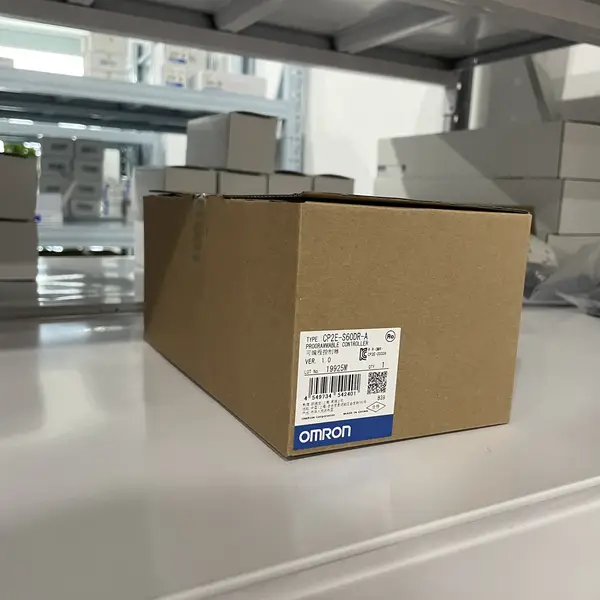

Omron CP2E-S60DR-A — 60-I/O PLC, Relay, AC Supply
SKU: CP2E-S60DR-AUSD 160.00
60-I/O PLC, 36 inputs / 24 relay outputs, USB + RS-232C + RS-485. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CP2E-S60DR-A is a CP2E standard compact PLC with 60 built-in I/O It is manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
Built-in I/O is 36 DC inputs (PNP or NPN, sink or source) and 24 relay outputs at 2 A each. Program capacity is 8K steps and data memory is 8K words.
Body size is 195 x 90 x 80 mm at 890 g. Key specs: Built-in I/O 36 DC inputs + 24 relay outputs (2 A per point); Program Capacity 8K steps; Data Memory 8K words; Logic Execution 0.23 us per LD instruction; Communication Ports USB (programming), RS-232C, RS-485; Max Local I/O 180 points with 3 CP1W expansion units; High-Speed Counters 6 channels, 100 kHz max; Auxiliary 24 VDC Output 300 mA for sensor power.
Key Features
- CP2E S-type 60-I/O PLC, 36 DC inputs + 24 relay outputs (2 A)
- 8K steps program, 8K words data, 0.23 us LD execution
- USB, RS-232C and RS-485 ports; no Ethernet
- 100-240 VAC supply, scales to 180 I/O with 3 expansion units
- SKU: CP2E-S60DR-A
- Series: CP2E S-type compact PLC
- Voltage: 100-240 VAC
- I/O: 36 I/O
Best-Fit Applications
- Retrofit of an older CPM1A or CP1E machine where the same 8K-step program and I/O wiring move straight over.
- Building automation panel controlling lighting circuits, exhaust fans and circulation pumps with the relay outputs.
- Standalone packaging machine with 36 sensors feeding the inputs and 24 relays driving solenoid valves and indicator stacks.
Buying Checklist
- Choose the CP2E-N60DR-A instead when the cabinet has Ethernet and needs SCADA connectivity.
- Choose the CP2E-S30DT-D instead when 30 I/O is enough and you want NPN transistor outputs.
- Check that a CP1W-AD042 or CP1W-DA021 analogue option board is needed for temperature or speed control.
Technical Specifications
| Series | CP2E S-type compact PLC |
|---|---|
| Built-in I/O | 36 DC inputs + 24 relay outputs (2 A per point) |
| Program Capacity | 8K steps |
| Data Memory | 8K words |
| Logic Execution | 0.23 us per LD instruction |
| Communication Ports | USB (programming), RS-232C, RS-485 |
| Max Local I/O | 180 points with 3 CP1W expansion units |
| High-Speed Counters | 6 channels, 100 kHz max |
| Auxiliary 24 VDC Output | 300 mA for sensor power |
| Supply Voltage | 100-240 VAC, 50/60 Hz |
| Dimensions | 195 x 90 x 80 mm (H x W x D), 890 g |
| Operating Temperature | -20 to 60 degC, battery-free backup |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for CP2E-S60DR-A
Does the CP2E-S60DR-A have Ethernet?
No - the S-type is RS-232C and RS-485 only with no Ethernet port on the CPU. For built-in Ethernet, choose the CP2E-N60DR-A or the smaller CP2E-N40DR-A and CP2E-N30DR-A. The N-type adds a 100 Mbps Ethernet port for SCADA, NB HMI over Ethernet, and Modbus-TCP polling on the same CPU.
How many expansion units can the CP2E-S60DR-A take?
Up to 3 CP1W expansion units, bringing total I/O to 180 points. The CP1W-AD042 adds 4 analog inputs and the CP1W-DA021 adds 2 analog outputs. The CP1W-CIF11 adds an RS-422A/485 port, and the CP1W-ME05M adds an EEPROM memory cassette.
What software programs the CP2E-S60DR-A?
CX-Programmer as part of CX-One Lite V4 handles ladder and function block programming for the CP2E. Upload the project over the USB port. The CP2E also supports structured text and FB programming. Projects from older CP1E PLCs open in the same editor without conversion.
What is the maximum relay switching life?
Mechanical life is 20 million operations minimum; electrical life is 100,000 operations at the rated 2 A 250 VAC / 2 A 24 VDC load. For high-cycle inductive loads, add a snubber or use a CP1W-OD212 transistor output expansion instead of the built-in relays.
