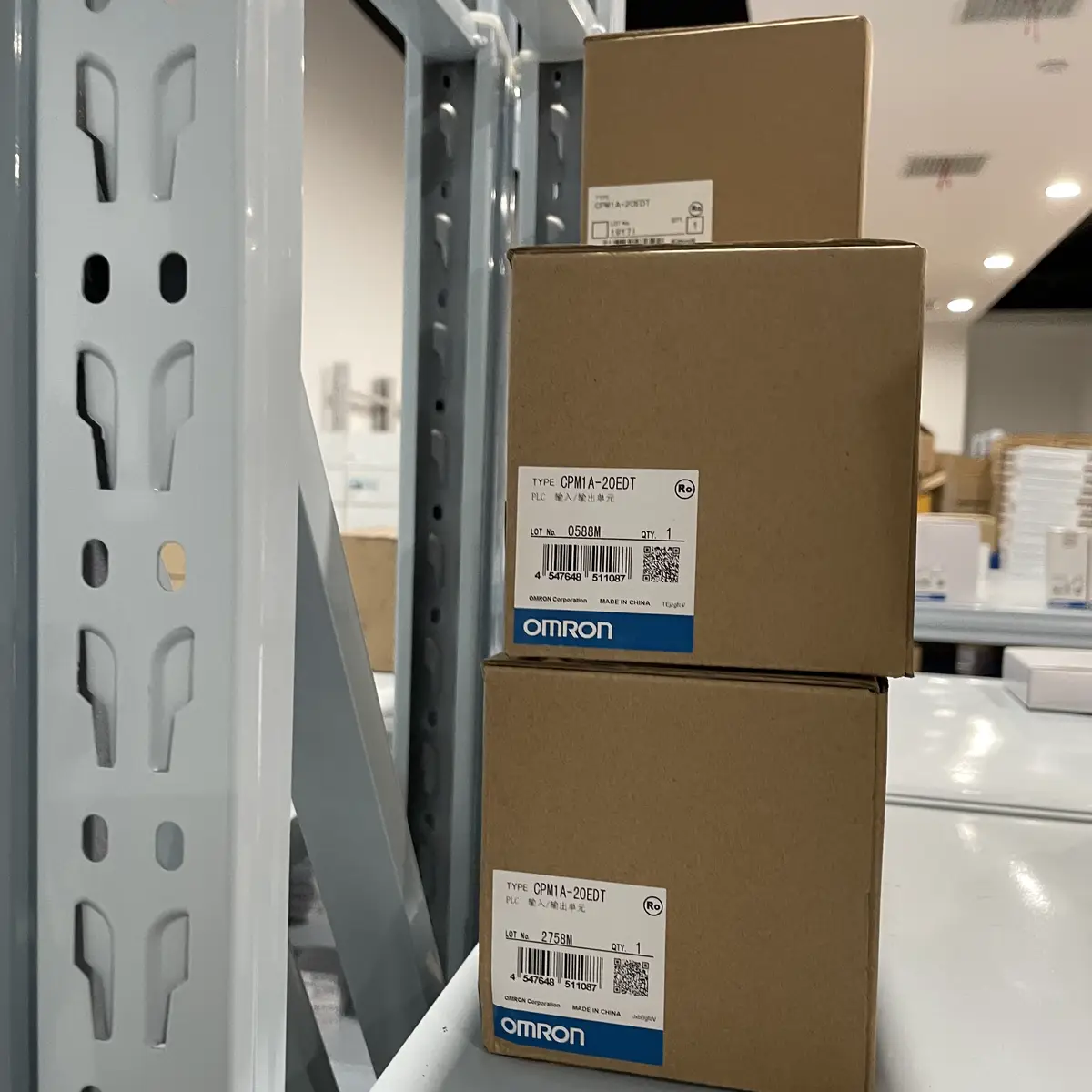

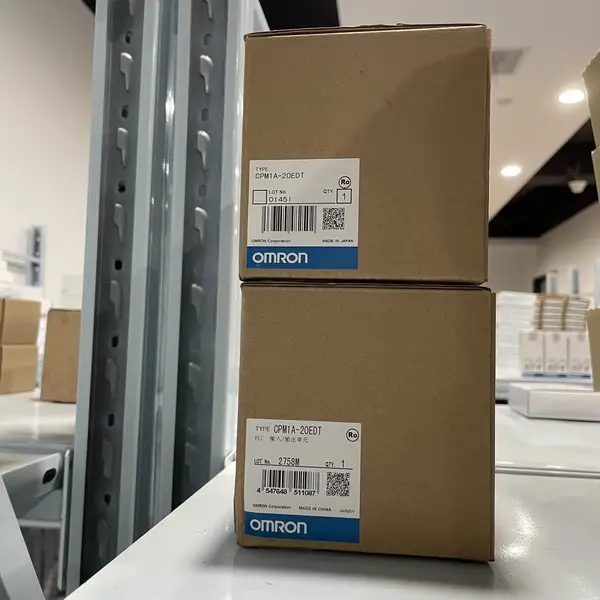

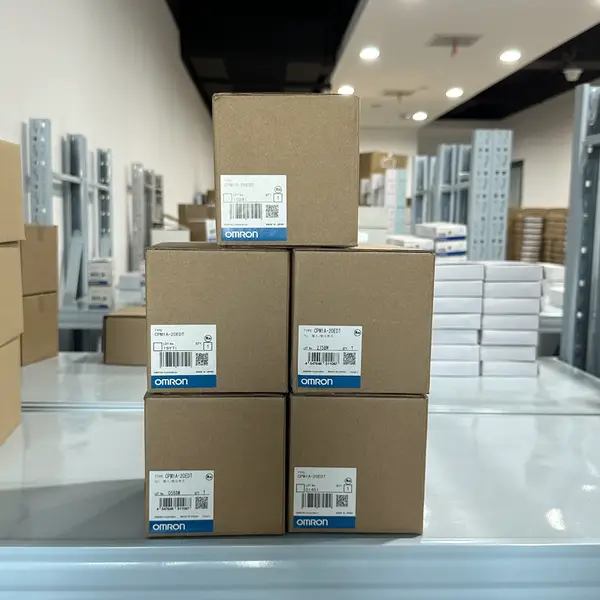

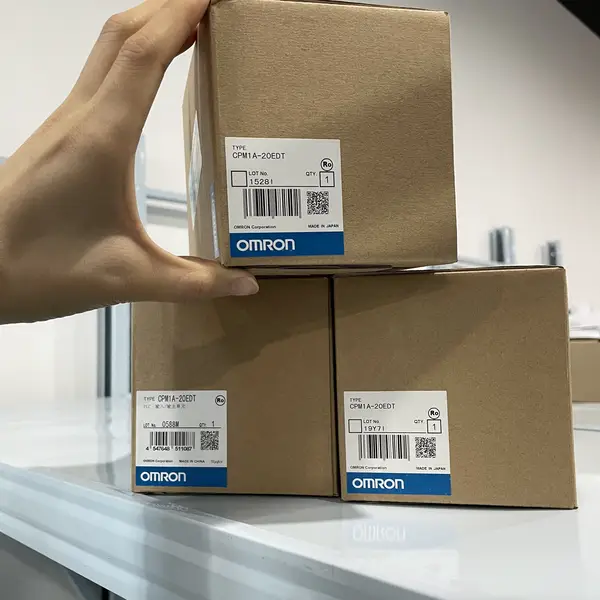

Omron CPM1A-20EDT — CPM1A 20-Pt Expansion, NPN
SKU: CPM1A-20EDTUSD 62.00
Omron CPM1A-20EDT CPM1A-series 20-point expansion I/O unit, 12 DC inputs + 8 NPN outputs, 24 VDC. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron CPM1A-20EDT is the CPM1A-series 20-point expansion I/O unit, manufactured by Omron Corporation. Hengyixin Automation stocks this I/O expansion unit in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
It adds 12 DC inputs (24 VDC, sink/source compatible, 15 ms response) and 8 NPN sourcing transistor outputs (300 mA per point, 1 ms response) to a CPM1A CPU. It chains off the CPU's expansion port with a flat ribbon cable; up to 3 expansion units can stack behind one CPU for up to 100 total I/O points.
24 VDC supply, 1.5 W power consumption, photo isolation 2.3 kV AC between input and output. M3 screw terminals. 86 x 90 x 49 mm, 300 g. Operating 0 to 55 C. Compatible with CPM1A-10CDR-A-V1, CPM1A-20CDR-A-V1, and CPM1A-30CDT-D-V1 CPUs only - NOT with CP1E, CP1L, or CJ. For the relay-output sibling pick CPM1A-20EDR. For the modern CP1 equivalent at 20-I/O pick CP1W-20EDT.
Key Features
- CPM1A-series Expansion I/O Unit with 20 I/O points: 12 DC inputs (24 VDC sink/source) and 8 NPN sourcing transistor outputs at 300 mA per point
- 15 ms input response and 1 ms output response, photo isolation 2.3 kV AC between input and output groups
- Chains off a CPM1A CPU expansion port via flat ribbon cable; up to 3 expansion units stack behind one CPU for up to 100 total I/O points
- 24 VDC supply, 1.5 W power consumption, M3 screw terminals, 86 x 90 x 49 mm, 300 g, 0 to 55 C operating temperature
- SKU: CPM1A-20EDT
- Series: CPM1A-series Expansion I/O Unit for CPM1A-series CPU
- I/O: 20 points
Best-Fit Applications
- Adding 12 photo-eye inputs and 8 solenoid outputs to a CPM1A-30CDT-D-V1 retrofit on a packaging line where the original PLC was under-sized
- Spare replacement on a CPM1A-20CDR-A-V1-controlled conveyor cell where the original expansion was lost in a long-term maintenance cycle
- Spare part for a filling machine that uses two CPM1A-20EDT expansions to drive 16 solenoid valves from the CPU
Buying Checklist
- Pick the CPM1A-20EDT when the existing CPU is CPM1A-series and the loads need NPN (sourcing) transistor outputs at 300 mA.
- Pick the CPM1A-20EDR instead when the loads need relay outputs at 2 A instead of 300 mA transistor outputs on the same 20-I/O body.
- Pick the CP1W-20EDT instead when the system is on a modern CP1L or CP1H CPU and needs 20-I/O expansion at 24 DC in / 16 NPN out.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | CPM1A-series Expansion I/O Unit for CPM1A-series CPU |
| Model / SKU | CPM1A-20EDT |
| Total I/O | 20 points; 12 DC inputs + 8 NPN sourcing transistor outputs |
| Input Specs | 24 VDC nominal; sink/source compatible; input current 5 mA typical; ON response 15 ms max / OFF response 15 ms max |
| Output Specs | 8 NPN sourcing transistor outputs; 24 VDC; 300 mA per point; ON response 1 ms max / OFF response 1 ms max |
| Isolation | Photo isolation 2,300 VAC for 1 min between input group, output group, and CPU internal circuit |
| Connection | M3 screw terminals; flat ribbon expansion cable to CPU (supplied with the unit) |
| Supply / Power | 24 VDC supply (same as CPM1A CPU); 1.5 W power consumption; supply range 20.4 to 26.4 VDC |
| Expansion | Up to 3 expansion units stack behind one CPM1A CPU; up to 100 total I/O points with expansion |
| Environment | Operating 0 to 55 C ambient; storage -20 to 75 C; humidity 10 to 90 percent non-condensing; IP20 |
| Dimensions / Weight | 86 (W) x 90 (H) x 49 (D) mm; 300 g; CE, UL, CSA |
FAQ for CPM1A-20EDT
What is the Omron CPM1A-20EDT used for?
It is the CPM1A-series Expansion I/O Unit with 20 I/O points (12 DC inputs and 8 NPN transistor outputs). Typical uses are adding 12 photo-eye inputs and 8 solenoid outputs to a CPM1A-30CDT-D-V1 retrofit, spare replacement on a CPM1A-20CDR-A-V1-controlled conveyor cell, and spare part for a small filling machine that uses two CPM1A-20EDT expansions to drive 16 solenoid valves.
Is the CPM1A-20EDT compatible with CP1E or CP1L?
No. The CPM1A-20EDT is for the CPM1A series only - it connects to a CPM1A CPU via the dedicated flat ribbon expansion cable. CP1E / CP1L / CP1H / CJ-series CPUs need their own expansion units: CP1W-8ET, CP1W-16ER, CP1W-20EDT, CP1W-40EDT for CP1L / CP1H; CJ1W-ID211, CJ1W-OD212 for CJ.
How many CPM1A-20EDT units can connect to one CPM1A CPU?
Up to 3 expansion units of any CPM1A I/O mix (CPM1A-8ED, CPM1A-20EDT, CPM1A-20EDR) chain off a single CPM1A CPU for up to 100 total I/O points. The 20-I/O CPM1A CPU allows 1 expansion; the 30-I/O CPU allows 2 expansions; the 40-I/O CPU allows 3 expansions. Order the CPM1A expansion ribbon cable with each unit.
What is the output current rating of the CPM1A-20EDT?
300 mA per output point, 24 VDC. Output response is 1 ms max ON / 1 ms max OFF, suitable for pneumatic solenoids, small DC relays, and indicator lamps. For 2 A relay outputs on the same 20-I/O body pick the CPM1A-20EDR. For higher transistor current pick the modern CP1W-20EDT (24 DC in / 16 NPN out at 0.3 A).
