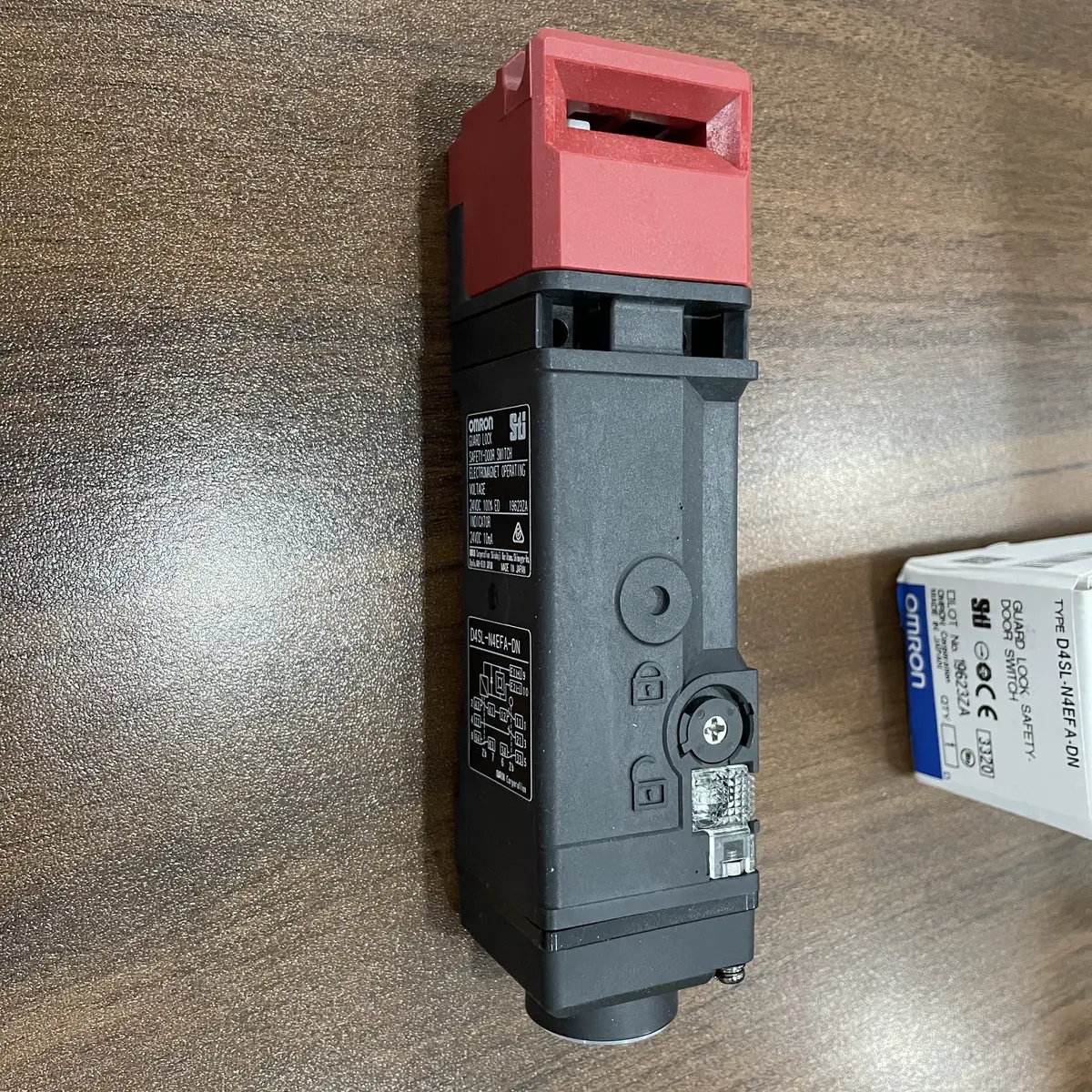

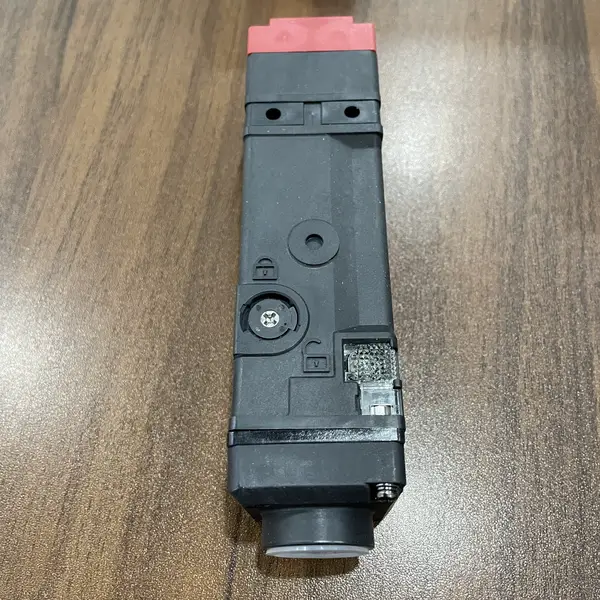

Omron D4SL-N4EFA-DN — Solenoid-Lock Safety Switch, 4P
SKU: D4SL-N4EFA-DNUSD 68.00
D4SL-N compact 4-contact solenoid-locking safety-door switch, plastic head, mechanical lock / solenoid release, 1300 N, 24 VDC, M20.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron D4SL-N4EFA-DN is the 4-contact model in the D4SL-N compact solenoid-locking safety-door switch family. The head accepts an operation key (D4SL-K1 / K2 / K3 / K5, sold separately) and the solenoid locks the key in place when the cabinet door is closed. The "A" suffix is the lock code: mechanical lock with solenoid RELEASE. The default state is LOCKED -- the door stays locked if power to the cabinet is lost, so operators cannot open the guard on a machine that has stopped but still has a hazardous flywheel or a capacitor bank to discharge.
Why the 4-contact model is the common pick
The 4-contact form (2NC/1NO door + 1NC/1NO lock monitor, all slow-action with certified direct opening on the NCs per EN 60947-5-1) is enough wiring for a Cat 3 / PL d dual-channel safety circuit -- one NC channel for the door position, one NC for the lock monitor, the NO for a non-safety monitor signal, and the remaining NC for redundancy. Step up to the 5-contact (3NC+2NC/1NO) or 6-contact (3NC+3NC) when the upstream safety controller (G9SA-301, G9SP-N20S) wants two channels per door for Cat 4 / PL e.
Why the A code vs the C code matters
Pick the A code (mechanical lock with solenoid release -- this SKU) when the door must stay locked during a power loss -- the standard pick for a vertical-spindle press, a robot cell, a hydraulic accumulator bank, a centrifuge, a high-inertia flywheel. Pick the C code (solenoid lock with mechanical release) instead when the door must UNLOCK during a power loss -- a fire-egress enclosure, a maintenance-only interlock where a trapped operator must be able to exit without mains power. The D4SL-N4EFA-DN does not unlock on power loss.
Before ordering
Order the operation key (D4SL-K1 for horizontal insertion, K2 for vertical, K3 for adjustable, K5 for angled) at the same time -- the switch is incomplete without it. Match the conduit to the cabinet -- the bare D4SL-N4EFA-B is Pg13.5, the -DN is M20 (this SKU), the -D4N is G1/2. Pair the switch with a G9SA-301, G9SP-N20S, or the equivalent safety controller for the dual-channel Cat 3 / PL d or Cat 4 / PL e circuit.
Key Features
- D4SL-N-series compact solenoid-locking safety-door switch
- 4-contact slow-action (2NC/1NO + 1NC/1NO) with certified direct opening on the NCs per EN 60947-5-1
- Plastic head with standard resin release key (E code = horizontal mounting)
- Mechanical lock with solenoid RELEASE (A code -- fail-safe LOCK on power loss)
- 24 VDC solenoid, 0.20 A (4-contact) / 4.8 W with internal constant-current switchover
- Orange operation LED on AC/DC 10-115 V input, ~10 mA draw
- 1300 N minimum holding force on the operation key
- M20 conduit entry (the -D suffix; -B is Pg13.5, -D4 is G1/2, -C is M12 connector)
- IP67 rated for direct water-spray environments
- EN ISO 14119 type 1 interlock, EN 60947-5-1, GS-ET-19, EN 60204-1
- TUV SUD / UL / CQC (CCC) / KOSHA approved, 1 million mechanical operations
- Operation key D4SL-K1 / K2 / K3 / K5 sold separately (REQUIRED)
- SKU: D4SL-N4EFA-DN
- Series: D4SL-N4EFA-DN
- Voltage: 24 VDC
Best-Fit Applications
- Locking a guard door on a vertical-spindle press where the door must stay locked on power loss
- Robot-cell access interlock where the cell must remain closed during capacitor discharge
- Hydraulic-press guard door with Cat 3 / PL d dual-channel safety circuit
- High-inertia flywheel or centrifuge guard with hazardous coast-down time
- Locking interlock on a parts-load station where the door stays locked during the machine cycle
- Spare-card replacement on a D4SL-N panel with a failed switch and matching key already in service
Buying Checklist
- Pick D4SL-N4EFA-DN for the 4-contact D4SL-N with fail-safe LOCK on power loss (mechanical lock with solenoid release).
- Pick D4SL-N4CFA-DN instead when the door must UNLOCK on power loss (solenoid lock with mechanical release, fire-egress use).
- Pick the 5-contact D4SL-N5EFA-DN or 6-contact D4SL-N6EFA-DN when the upstream safety controller needs more channels for Cat 4 / PL e.
- Pick the metal-head D4SL-N4RFA-DN for higher impact environments (forging, stamping, foundry).
- Pick the G1/2 conduit D4SL-N4EFA-D4N for North-American cabinet threading, or the Pg13.5 D4SL-N4EFA-B for European cabinets.
- Order the operation key (D4SL-K1 / K2 / K3 / K5) at the same time -- the switch is incomplete without it.
- Pair the switch with a G9SA-301 / G9SP-N20S safety controller for the dual-channel Cat 3 / PL d or Cat 4 / PL e circuit.

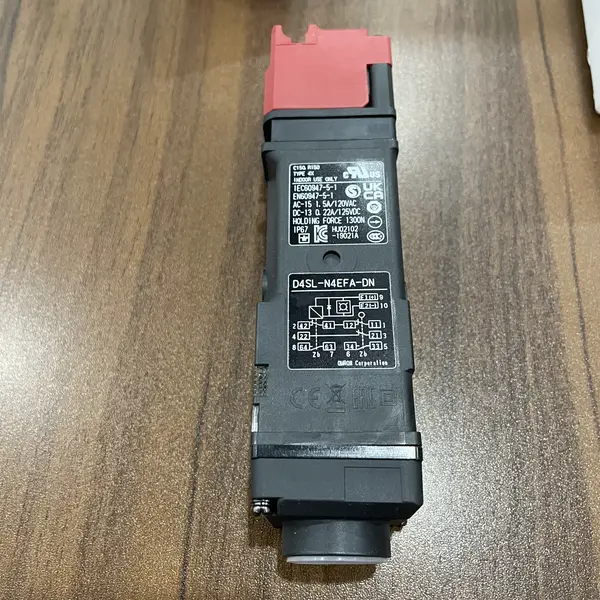

Technical Specifications
| Contact Configuration | 4 slow-action, 2NC/1NO + 1NC/1NO |
|---|---|
| Direct Opening | Certified on the NC contacts per EN 60947-5-1 |
| Lock Type | Mechanical lock with solenoid release (A code, fail-safe LOCK on power loss) |
| Solenoid Voltage | 24 VDC (+10 % / -15 %), 0.20 A, 4.8 W |
| Holding Force | 1300 N minimum |
| Indicator | Orange LED, AC/DC 10-115 V, ~10 mA draw |
| Conduit | M20 (D suffix; -B is Pg13.5, -D4 is G1/2, -C is M12) |
| Head Material | Plastic (F code; R / M / G is metal) |
| Operating Temperature | -10 to +55 C, IP67 |
| Mechanical Life | 1 million operations minimum |
| Approvals | TUV SUD / UL / CQC (CCC) / KOSHA / EN ISO 14119 / EN 60947-5-1 |
| Operation Key | D4SL-K1 / K2 / K3 / K5 sold separately (REQUIRED) |
Resources & Downloads
FAQ for D4SL-N4EFA-DN
Does the D4SL-N4EFA-DN achieve Cat 4 / PL e by itself?
No. One switch with single-channel wiring cannot achieve Cat 4 / PL e -- that category requires two channels of wiring from the safety input device PLUS the D4SL's certified direct-opening contacts PLUS an upstream safety controller that monitors both channels. With the 4-contact D4SL-N4EFA-DN, a typical Cat 3 / PL d circuit is one NC channel for the door position and one NC channel for the lock monitor, fed into a G9SA-301 or equivalent. For Cat 4 / PL e, step up to the 6-contact D4SL-N6EFA-DN with two channels per door.
What is the difference between the A code and the C code?
Lock direction. The A code is mechanical lock with solenoid RELEASE: the default state is LOCKED, the solenoid must be energised to release the lock, and the door stays locked if power is lost. The C code is solenoid lock with mechanical release: the default state is UNLOCKED, the solenoid must be energised to engage the lock, and the door unlocks if power is lost. Pick A for hazardous machinery (the common pick); pick C for fire-egress enclosures where a trapped operator must be able to exit without mains power.
Does the operation key ship with the switch?
No. The operation key (D4SL-K1 horizontal / K2 vertical / K3 adjustable / K5 angled) is a separate line item and must be ordered at the same time -- the switch is incomplete without the key. The K1 is the common pick for a hinged door on the horizontal plane; the K3 is the adjustable pick when the door alignment varies; the K2 is for vertical insertion (a sliding guard).
What conduit size does the D4SL-N4EFA-DN use?
M20. The D suffix in the model code is the M20 conduit entry. The bare D4SL-N4EFA-B is Pg13.5 for European cabinet threading; the D4SL-N4EFA-D4N is G1/2 for North-American threading. The connector-style siblings are the D4SL-N4EFG-D (M20 with an integrated connector) and the D4SL-N4EFC-DN (M12 connector). All other specifications are identical to this SKU.
Similar Products
Explore related Omron models often viewed alongside this product.
