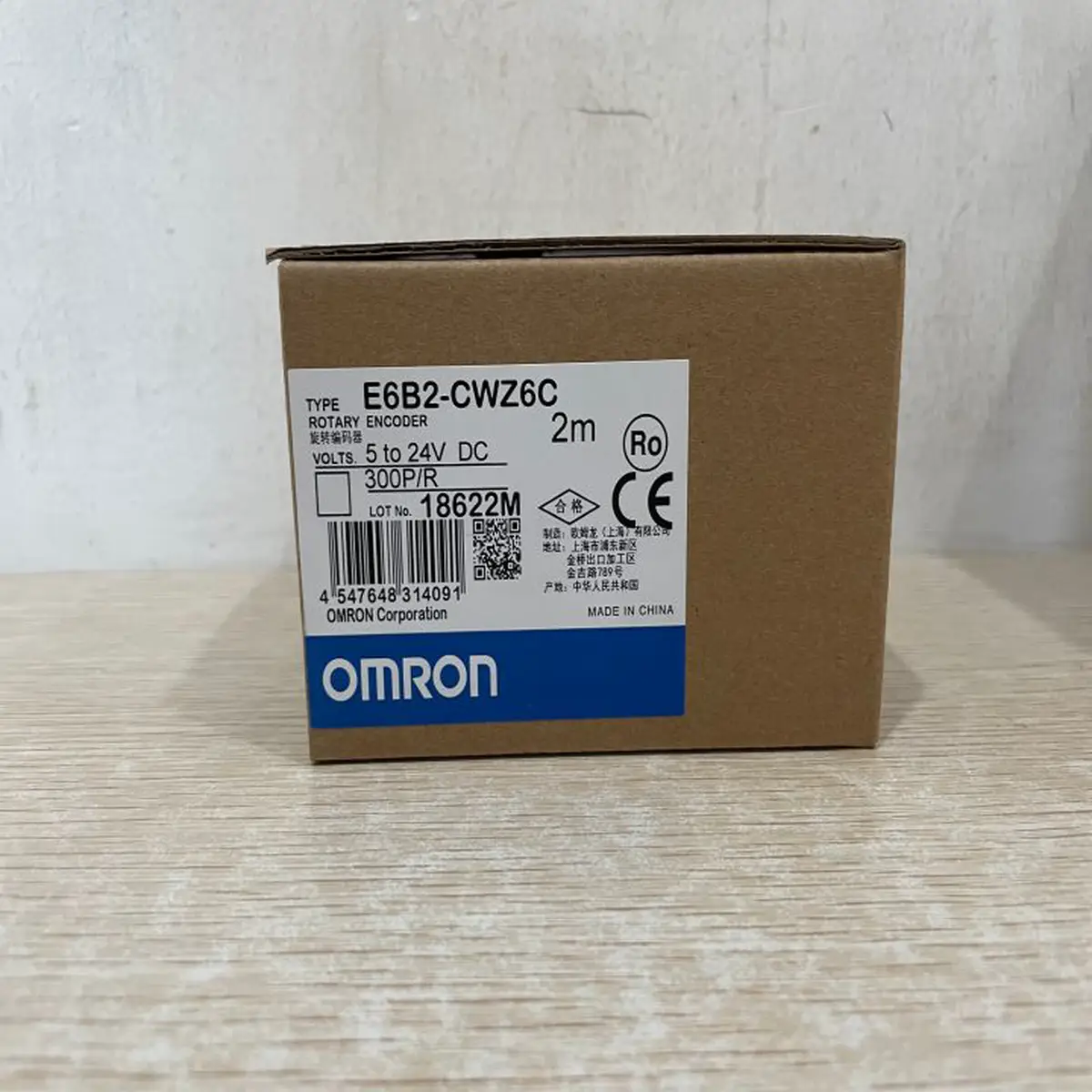

Omron E6B2-CWZ6C 300P-R 2M — front face of the brown Omron retail carton on a wooden bench showing the E6B2-CWZ6C model label with the Chinese-character name, the 2m cable marking, the 5 to 24V DC supply, the 300P/R resolution, the LOT No. 18622M, the GS1 barcode 4 547648 314091, the CE and KC certifications, and the blue Omron Corporation brand strip

Omron E6B2-CWZ6C 300P-R 2M — 40 mm Encoder, NPN, 2 m

SKU: E6B2-CWZ6C 300P- R 2M

USD 32.00

Omron E6B2-CWZ6C 300P-R 2M 40 mm incremental rotary encoder, 300 PPR, complementary NPN open-collector, 2 m cable. In stock, China shipping.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron E6B2-CWZ6C 300P-R 2M is the E6B2-C-series 40 mm incremental rotary encoder with a 2 m pre-wired cable, manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.

It has a 6 mm solid shaft and delivers 300 pulses per revolution on phases A, B and Z. The CWZ6C suffix means 5 to 24 VDC supply with a complementary NPN open-collector output (A and inverted-A, B and inverted-B, Z and inverted-Z). Maximum response frequency 100 kHz; maximum rotation 6,000 RPM. Load voltage 30 VDC max, sink current 35 mA max, draw 80 mA max.

The 40 mm body is ABS with a SUS420J2 stainless steel shaft. Starting torque 0.98 mN m max, radial load 30 N. The 2 m PVC cable is oil-resistant. IP50, -10 to +70 C. Built-in load short-circuit and reverse-connection protection. For 2000 P/R pick E6B2-CWZ6C 2000P-R; for a 50 mm body pick E6C2-CWZ6C 1024P-R 2M.

Key Features

  • E6B2-C-series 40 mm incremental rotary encoder with 6 mm solid shaft and 300 pulses per revolution on A / B / Z phases
  • Complementary NPN open-collector output, 5 to 24 VDC supply, 100 kHz max response frequency, 6,000 RPM max rotation
  • 30 VDC max load, 35 mA max sink current, 0.4 V residual voltage, 80 mA max current draw, built-in short-circuit and reverse-connection protection
  • 40 mm ABS body, SUS420J2 stainless steel shaft, 0.98 mN m max starting torque, 30 N radial / 20 N thrust, 2 m pre-wired PVC cable, IP50
  • SKU: E6B2-CWZ6C 300P- R 2M
  • Series: E6B2-C-series 40 mm incremental rotary encoder, solid shaft, pre-wired
  • Voltage: 5 TO 24 VDC

Best-Fit Applications

  • Cut-to-length conveyor where a 200 mm measuring wheel rides on the web and the 300 P/R signal cuts every 0.67 mm of linear travel
  • Indexing-table position feedback on a rotary indexing machine where the Z index pulse re-arms the home position once per turn
  • Spare replacement on a small AC motor that needs a 5 to 24 VDC NPN signal into an NJ501-1300 high-speed counter for speed regulation

Buying Checklist

  • Pick the E6B2-CWZ6C 300P-R 2M when the project needs 300 P/R from a 40 mm NPN encoder on a 2 m cable.
  • Pick the E6B2-CWZ6C 2000P-R instead when the application needs 6.7 times the resolution for precision positioning or cut-to-length on a small wheel.
  • Pick the E6C2-CWZ6C 1024P-R 2M instead when the panel space allows a 50 mm body and the application needs 1024 P/R at the same NPN output.

Technical Specifications

Manufacturer Omron Corporation (Japan)
Series E6B2-C-series 40 mm incremental rotary encoder, solid shaft, pre-wired
Model / SKU E6B2-CWZ6C 300P-R 2M
Resolution 300 pulses per revolution on phases A, B and Z
Output Type Complementary NPN open-collector (A and inverted-A, B and inverted-B, Z and inverted-Z)
Supply Voltage 5 to 24 VDC (-5 to +15 percent), 80 mA max; ripple 5 percent p-p max
Load Rating 30 VDC max load voltage; 35 mA max sink current; 0.4 V max residual voltage; built-in short-circuit and reverse-connection protection
Response / Speed 100 kHz max response frequency; 6,000 RPM max rotation; 0.98 mN m max starting torque
Shaft / Cable 6 mm solid shaft; 30 N radial load, 20 N thrust load; 2 m pre-wired PVC cable, oil-resistant, radial cable exit
Construction 40 mm ABS housing; SUS420J2 stainless steel shaft; CE; RoHS
Protection / Environment IP50; operating temperature -10 to +70 C (no icing); storage -25 to +85 C; humidity 35 to 85 percent
Compliance Conforms to EN 60947-5-2; CE; RoHS; counter face mates with high-speed counter inputs on CP1H, CP1L, NJ, NX, CJ2 PLCs and 1S / Accurax G5 servo drives

FAQ for E6B2-CWZ6C 300P- R 2M

What is the Omron E6B2-CWZ6C 300P-R 2M used for?
It is the E6B2-C-series 40 mm incremental rotary encoder with 300 pulses per revolution and a complementary NPN open-collector output. Typical uses are cut-to-length conveyors with a measuring wheel, indexing-table home-position feedback on a rotary machine, and spare replacement on a small AC motor for speed regulation into an NJ-series high-speed counter.
What does the CWZ6C suffix mean?
C = complementary output (each phase has both an NPN and an inverted-NPN transistor). W = 5 to 24 VDC supply. Z6 = A, B and Z phases. C = NPN open-collector (the alternate E would be PNP). The complementary outputs let the encoder sink current in both directions of each phase, which gives better noise immunity than single-ended NPN over a 2 m cable.
Can the E6B2-CWZ6C 300P-R 2M drive a 24 VDC PLC input?
Yes. The supply range is 5 to 24 VDC and the load voltage rating is 30 VDC max, so the encoder sinks the PLC input voltage through the A and B outputs. Sink current is rated 35 mA max per output, which covers most 24 VDC PLC counter inputs on the CP1L, CP1H, NJ, NX and CJ2 families. For a 5 VDC PLC, the encoder still works within the 5 to 24 VDC range.
What is the maximum cable length for the E6B2-CWZ6C 300P-R 2M?
The 2 m pre-wired cable is the standard drop. For longer runs, use shielded twisted-pair cable and keep the total under about 20 m before the NPN pulse edges start to round off from line capacitance. For longer cable runs or high-noise cabinets, step up to the line-driver E6B2-CWZ6E (RS-422A differential output) for 50 m plus.
Is the E6B2-CWZ6C 300P-R 2M still in production?
Yes. The E6B2-C-series is still the general-purpose 40 mm incremental encoder that Omron lists as an active product. For harsh-environment applications (IP67, oil-mist, food-grade) step up to the E6C3-C-series or the E6H-C-series with the same body diameter and a higher IP rating.
