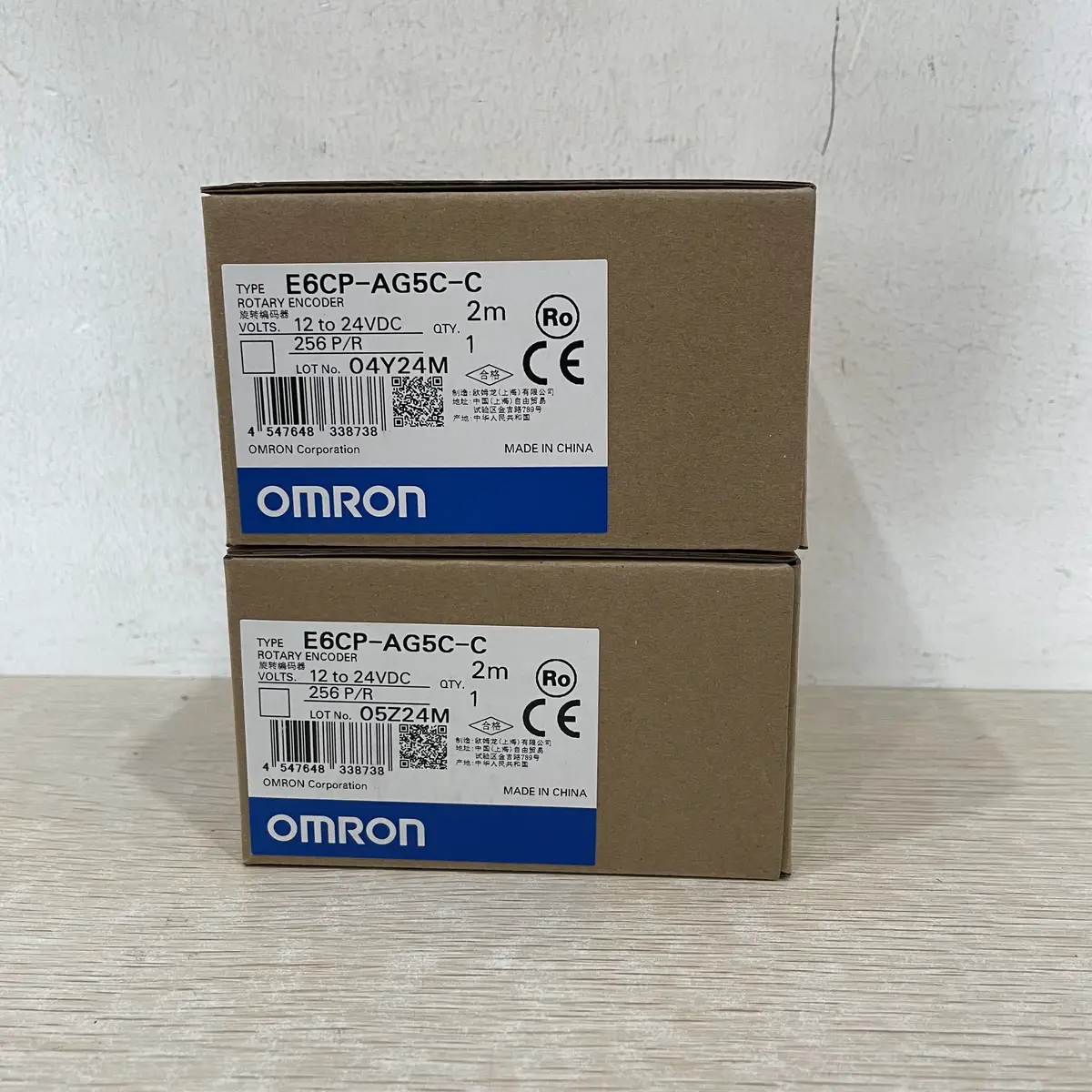

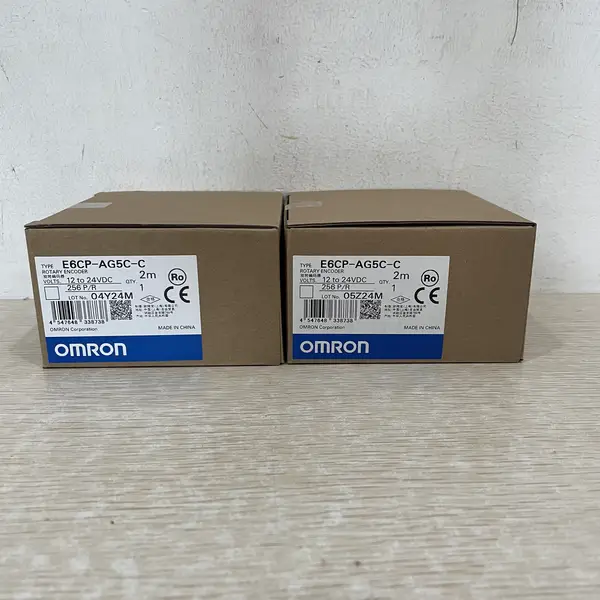

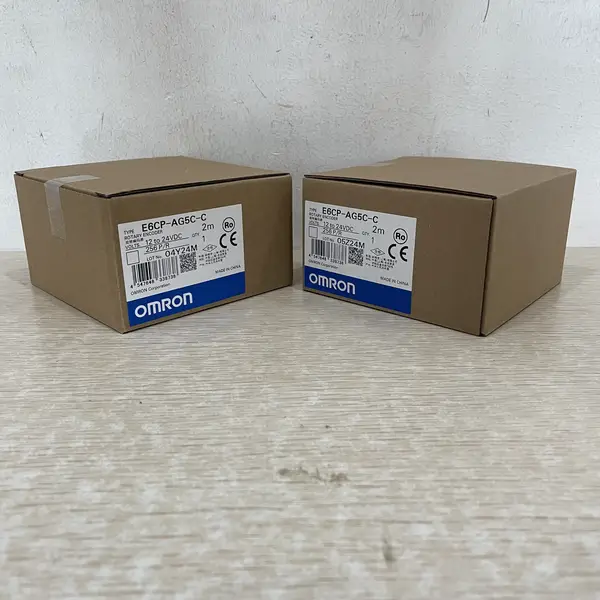

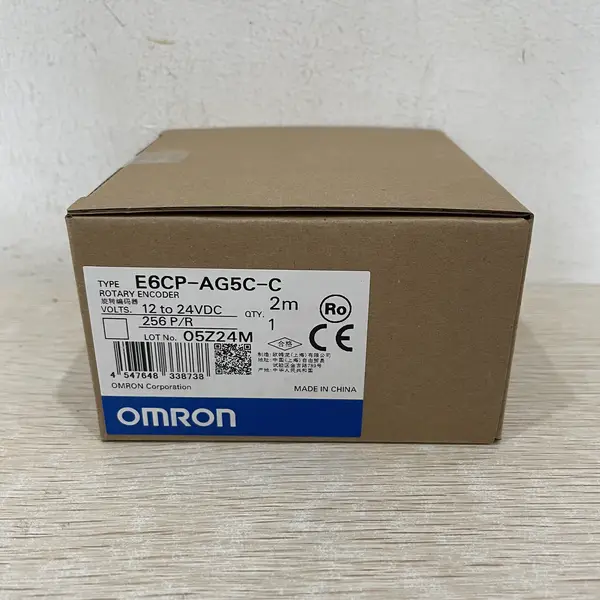

Omron E6CP-AG5C-C 256P-R 2M — 50 mm Absolute Encoder
SKU: E6CP-AG5C-C 256P-R 2MUSD 63.00
Omron E6CP-AG5C-C 256P-R 2M 50 mm absolute encoder, 8-bit, 12-24 VDC, Gray code, H8PS connector. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E6CP-AG5C-C 256P-R 2M is a 50 mm absolute rotary encoder with a dedicated H8PS cam positioner connector, manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
It outputs 256 (8-bit) positions per revolution in Gray code from an NPN open-collector stage on a 12 to 24 VDC supply, drawing 70 mA max. Maximum response is 5 kHz and maximum speed is 1000 r/min. Accuracy is ±1 degree and direction of rotation is CW from the shaft end. The shaft is a 6 mm D-type flatted end on a 50 mm ABS body.
The 2 m pre-wired cable terminates in a connector that fits only the Omron H8PS cam positioner; it cannot be used on the E6CP-AG3C or E6CP-AG5C variants. Starting torque is 0.98 mN.m max. The E69-C06B plastic coupling or E69-C06M metal coupling are sold separately. For the non-H8PS sibling pick the E6CP-AG5C 256P-R.
Key Features
- E6CP-A series 50 mm optical absolute encoder, 8-bit (256) Gray code output, 12 to 24 VDC supply
- NPN open-collector output (28 VDC applied max, 16 mA sink max, 0.4 V residual), 70 mA current consumption
- 5 kHz maximum response, 1000 r/min maximum permissible speed, ±1 degree accuracy, CW output direction
- Pre-wired 2 m cable with H8PS cam positioner connector, 6 mm D-type flatted shaft, IP50 ABS body, E69-C06B coupling pair
- SKU: E6CP-AG5C-C 256P-R 2M
- Series: E6CP-A series general-purpose absolute rotary encoder, 50 mm plastic body
- Voltage: 12 TO 24 VDC
Best-Fit Applications
- Cam timing on an H8PS-8BF DC24V 8-output cam positioner where the E6CP-AG5C-C 256P-R 2M feeds absolute shaft angle to the 8 cam profiles
- Rotary indexing table where the E6CP-AG5C-C 256P-R 2M retains absolute position through power-off so the next cycle starts on the same index without homing
- Bottling-line spare replacement where the older E6CP-AG3C 256P/R 2M upgrades to the E6CP-AG5C-C 256P-R 2M for 24 VDC and H8PS fit
Buying Checklist
- Pick the E6CP-AG5C-C 256P-R 2M for a 50 mm 256-position Gray-code absolute encoder with H8PS cam positioner connector and 2 m cable.
- Pick the E6CP-AG5C 256P-R 2M instead when the encoder feeds a non-H8PS counter and the H8PS-only connector is not needed.
- Pick the E6B2-CWZ6C 300P-R instead when the panel needs a 40 mm incremental encoder at 300 P/R rather than 50 mm absolute.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | E6CP-A series general-purpose absolute rotary encoder, 50 mm plastic body |
| Model / SKU | E6CP-AG5C-C 256P-R 2M |
| Resolution / Code | 256 divisions per revolution (8-bit) Gray code |
| Supply Voltage | 12 to 24 VDC (-10 percent to +15 percent), ripple 5 percent p-p max; 70 mA max current |
| Output | NPN open collector, applied voltage 28 VDC max, sink current 16 mA max, residual voltage 0.4 V max, rise/fall 1 us max, negative logic (high = 0, low = 1) |
| Response / Speed | Maximum response frequency 5 kHz; maximum permissible speed 1000 r/min; accuracy ±1 degree max |
| Shaft / Body | 6 mm D-type flatted end, 10 mm shaft length, radial load 29.4 N max, thrust load 19.6 N max; ABS plastic body, IP50 |
| Mechanical | Starting torque 0.98 mN.m max; moment of inertia 1 x 10^-6 kg.m² max |
| Cable / Connector | Pre-wired 2 m cable with H8PS cam positioner connector (only compatible with H8PS, not other E6CP variants) |
| Environment | -10 to 55 C operating (no icing), -25 to 85 C storage, 35 to 85 percent humidity (no condensation); vibration 10 to 55 Hz 1.5 mm double amplitude, shock 1000 m/s² |
| Accessories | E69-C06B plastic shaft coupling, E69-C06M metal shaft coupling, E69-C68B / E69-C610B different-end couplings, E69-2 servo mounting bracket, E69-DF5 / DF10 / DF20 extension cables |
FAQ for E6CP-AG5C-C 256P-R 2M
What is the Omron E6CP-AG5C-C 256P-R 2M used for?
It is the E6CP-A-series 50 mm absolute rotary encoder with 256 (8-bit) Gray code output on a 12 to 24 VDC supply. The cable terminates in a connector for the H8PS cam positioner only. Typical uses are cam timing on H8PS positioners, absolute position feedback on rotary indexing tables where the encoder must retain angle through power-off, and spare replacements on legacy bottling lines.
E6CP-AG5C-C 256P-R 2M vs E6CP-AG5C 256P-R 2M - what is the difference?
Both are 50 mm 256-position 12 to 24 VDC Gray-code absolute encoders. The 'C' suffix on the -AG5C-C indicates the cable terminates in the H8PS cam positioner connector; the bare -AG5C has only a pre-wired cable without that connector. The -AG5C-C is the only E6CP-A variant that fits the H8PS. Pick the -AG5C-C for H8PS, pick the -AG5C for any non-H8PS counter.
What shaft coupling pairs with the E6CP-AG5C-C 256P-R 2M?
E69-C06B (plastic) or E69-C06M (metal). Both are 6 mm to 6 mm couplings rated for parallel offset up to 0.1 mm and angular offset up to 1 degree. For different-end shaft diameters, pick the E69-C68B (6 to 8 mm) or E69-C610B (6 to 10 mm). The E69-2 servo mounting bracket is the standard bracket for the E6CP family.
What is the maximum cable length for the E6CP-AG5C-C 256P-R 2M?
The factory pre-wired cable is 2 m. For longer runs, add an E69-DF5 (5 m), E69-DF10 (10 m), or E69-DF20 (20 m) extension cable between the encoder and the H8PS cam positioner. The H8PS connector is on the encoder end, so the extension only adds length between the E69-DF[nn] block and the H8PS controller. Total practical length is 25 m before signal rise time degrades the 5 kHz response.
