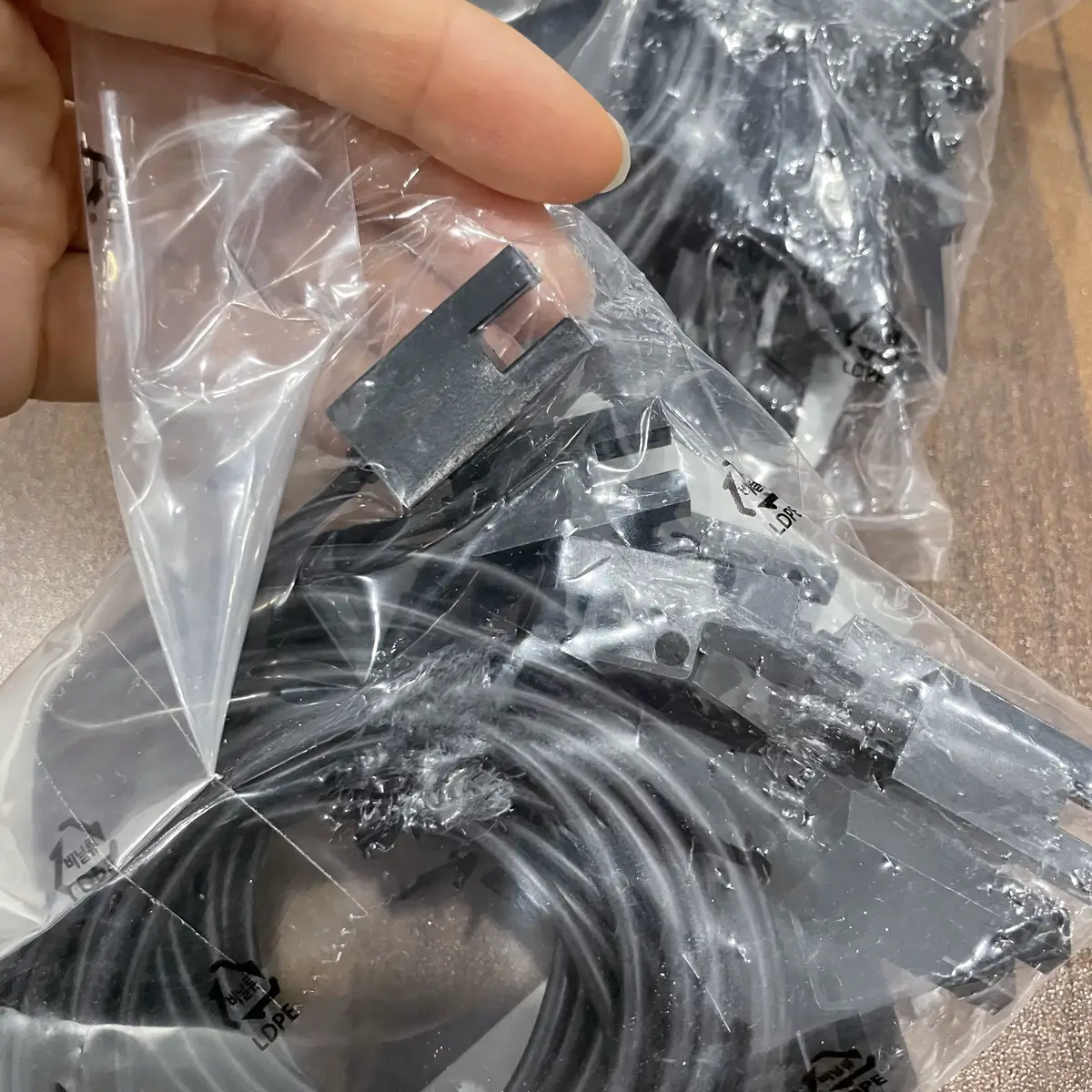

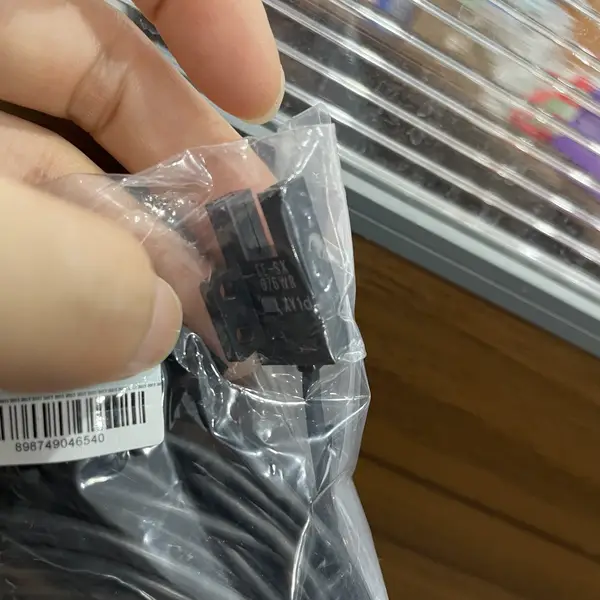

Omron EE-SX676-WR 1M — Close-Mount Slot Sensor, 5 mm
SKU: EE-SX676-WR 1MUSD 8.00
Omron EE-SX676-WR 1M close-mount slot photomicrosensor, 5 mm slot, NPN, Dark/Light-ON, 1 m robot cable. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron EE-SX676-WR 1M is a close-mount slot photomicrosensor from the EE-SX67 family, manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The emitter and receiver face each other across a 5 mm slot. The close-mount body is shallower than the standard T-shape, which lets it sit where the bracket is tight against an actuator. Output is NPN open-collector, Dark-ON or Light-ON selected by the L terminal. Response frequency is 1 kHz typical.
Supply is 5 to 24 VDC, 100 mA max load, 35 mA consumption. The black PBT case weighs about 4 g. A 1 m flexible 4-conductor robot cable exits the body. Operating temperature is -25 to +55 degC; the unit is IP50 for inside-cabinet use. For a standard T-shape body on the same electrical spec, pick the EE-SX672-WR. For an L-shape body, pick the EE-SX674-WR 1M.
Key Features
- EE-SX67 close-mount slot photomicrosensor, 5 mm slot width
- NPN open-collector output, Dark-ON / Light-ON selectable via L terminal
- 5-24 VDC supply, 100 mA max load, 1 m flexible 4-conductor robot cable
- PBT housing, 28.2 x 13.2 x 13.7 mm, IP50, -25 to +55 degC
- SKU: EE-SX676-WR 1M
- Series: Omron EE-SX67-series photomicrosensor (slot, close-mount)
- Voltage: 5 TO 24 VDC
Best-Fit Applications
- End-of-stroke flag on a small pneumatic cylinder where the close-mount body fits between the rod and the head without changing the cylinder
- Label-edge detection on a print-and-apply head where the 5 mm slot accepts the label web and the 1 kHz response catches the printed edge
- Tab-presence check on a feeder track where the close-mount body sits inside the bracket and the NPN output drives a CP1W high-speed input
Buying Checklist
- Pick the EE-SX676-WR 1M for a close-mount 5 mm slot sensor with NPN output and a 1 m robot cable.
- Pick the EE-SX672-WR instead when the bracket has room for the standard T-shape body on the same electrical spec.
- Pick the EE-SX674-WR 1M instead when the bracket needs an L-shape slot orientation.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron EE-SX67-series photomicrosensor (slot, close-mount) |
| Model / SKU | EE-SX676-WR 1M |
| Sensing Method | Through-beam slot, close-mount body |
| Slot Width | 5 mm |
| Output | NPN open-collector, Dark-ON / Light-ON selectable |
| Response Frequency | 1 kHz min, 3 kHz typical |
| Light Source | Infrared LED, 940 nm |
| Supply Voltage | 5 to 24 VDC |
| Load Current | 100 mA max |
| Connection | 1 m flexible 4-conductor robot cable |
| Protection / Material | IP50; PBT case, PC cover; -25 to +55 degC; ~4 g |
FAQ for EE-SX676-WR 1M
How small a target can the EE-SX676-WR 1M detect?
Down to 0.8 mm opaque at the optical centre. The slot width is 5 mm so the target only needs to block the emitter beam at the centre line. Thin wires and transparent objects will not trigger the sensor.
Can the EE-SX676-WR 1M run on 5 VDC?
Yes. The unit runs on 5 to 24 VDC, so it can sit directly on a 5 V logic supply or a 24 V PLC input. Residual voltage is 0.4 V max at 40 mA load and 0.8 V max at 100 mA load.
What does the WR suffix mean?
WR marks the robot-grade flexible cable. The standard EE-SX676 ships with a PVC cable; the WR variant uses a more flexible conductor bundle for moving-cable carriers on pick-and-place heads and feeders.
How is Dark-ON / Light-ON selected?
By the L terminal. Leave L disconnected for Dark-ON (output ON when the beam is broken). Connect L to +V for Light-ON (output ON when the beam is received). Never connect L to 0 V.
