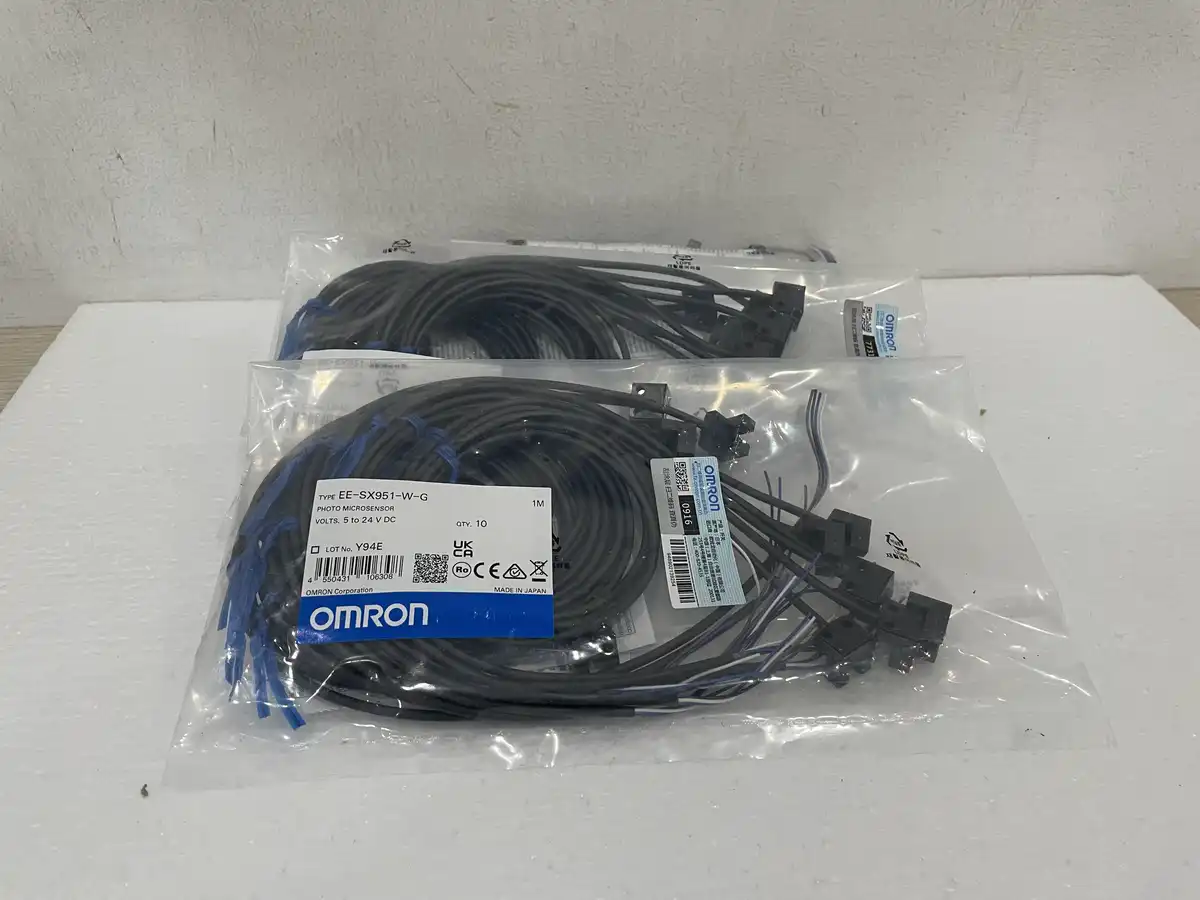

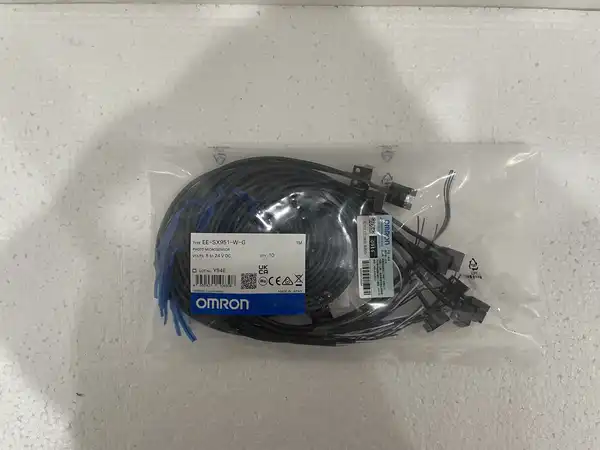

Omron EE-SX951-W-G 1M — Slot Photo Sensor, 5 mm
SKU: EE-SX951-W-G 1MUSD 4.50
Omron EE-SX951-W-G 1M L-shaped slot photo microsensor, 5 mm slot, NPN, 1 m cable. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron EE-SX951-W-G 1M is an L-shaped slot-type photomicrosensor, manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.

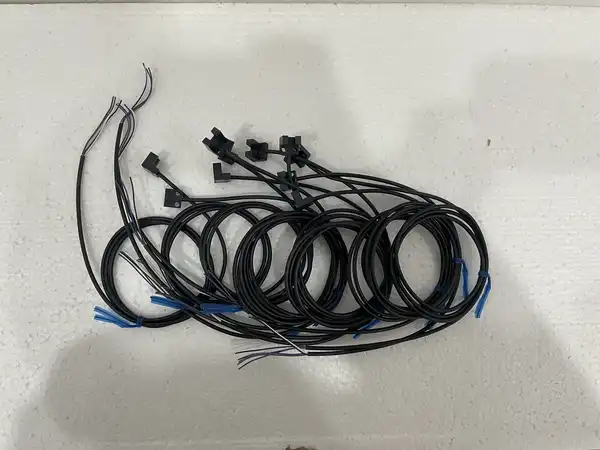

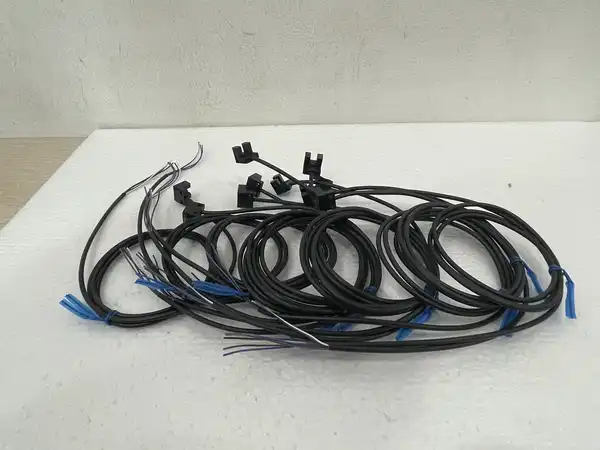

The sensor is a through-beam pair built into an L-shaped plastic body with a fixed 5 mm slot width. The emitter is an infrared LED at 940 nm. Output is an NPN open-collector transistor switchable between Dark-ON and Light-ON from the wiring. Response time is 0.5 ms, giving a 1 kHz maximum switching rate.
Supply voltage is 5 to 24 VDC at 15 mA. Load current is up to 50 mA with short-circuit protection on the output. The pre-wired 1 m cable ends in flying leads. The body is 13.4 x 12 x 12 mm, weighs about 15 g in the package, and carries IP50 protection. The operating range is -25 to 55 degC.
Key Features
- EE-SX95 L-shaped slot photomicrosensor, 5 mm fixed slot width, 940 nm infrared
- NPN open-collector output, Dark-ON or Light-ON selectable, 1 kHz max switching
- 5 to 24 VDC supply, 15 mA current, 50 mA load, short-circuit protected
- 1 m pre-wired cable, 13.4 x 12 x 12 mm body, IP50, -25 to 55 degC
- SKU: EE-SX951-W-G 1M
- Series: Omron EE-SX95-series photomicrosensor
- Voltage: 5 TO 24 VDC
Best-Fit Applications
- Label-detection flag on a packaging line where a thin tab breaks the 5 mm slot and the 0.5 ms response catches the label
- Home-position sensor on a small pick-and-place actuator where the L-shape fits the corner bracket and the 1 m cable lands on the input card
- Spare part on a maintenance shelf for EE-SX670 or EE-SX674 retrofits that need the same 5 mm slot and NPN output
Buying Checklist
- Pick the EE-SX951-W-G 1M for a 5 mm L-shaped slot sensor with NPN output and a 1 m cable.
- Pick the EE-SX951-W-G instead when the cabinet needs a longer 2 m cable (different SKU on the same family).
- Pick the EE-SX674 instead when the slot has to be a deeper 14 mm U-shape on a wider tab.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron EE-SX95-series photomicrosensor |
| Model / SKU | EE-SX951-W-G 1M |
| Shape | L-shaped slot type (fork) |
| Slot Width | 5 mm fixed |
| Light Source | Infrared LED, 940 nm |
| Sensing Method | Through-beam with slot (transmissive) |
| Output | NPN open collector, Dark-ON / Light-ON selectable |
| Supply Voltage | 5 to 24 VDC +/-10% |
| Current Draw | 15 mA max |
| Response / Frequency | 0.5 ms max, 1 kHz max switching |
| Cable / Protection | 1 m pre-wired, IP50, 13.4 x 12 x 12 mm |
FAQ for EE-SX951-W-G 1M
What is the slot width of the EE-SX951-W-G 1M?
5 mm fixed. The slot is moulded into the L-shaped body and the gap accepts tabs or flags up to about 4.5 mm wide.
How is Dark-ON or Light-ON selected?
By wiring the load on the brown wire (Light-ON) or the black wire (Dark-ON). The sensor has two NPN outputs, one of each polarity.
Can the EE-SX951-W-G 1M run on 5 VDC?
Yes. The supply range is 5 to 24 VDC. At 5 VDC the load voltage and the sensor supply match, which is convenient for retrofits onto legacy 5 V PLC inputs.
What is the difference between EE-SX951 and EE-SX674?
EE-SX951 is the L-shape slot with a 5 mm gap. EE-SX674 is the L-shape slot with a wider 14 mm gap. Pick the wider slot when the flag or tab is too thick for a 5 mm gap.
