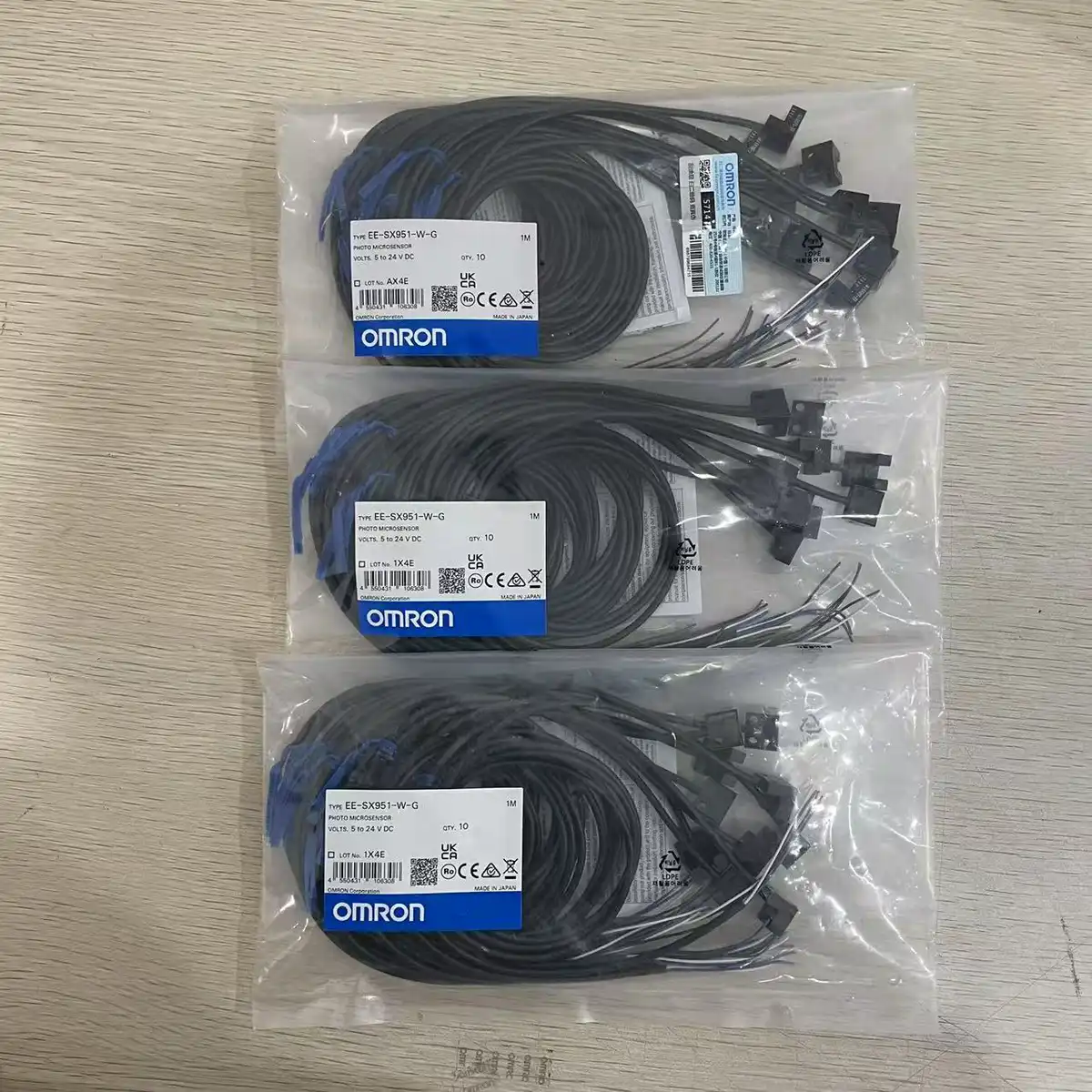

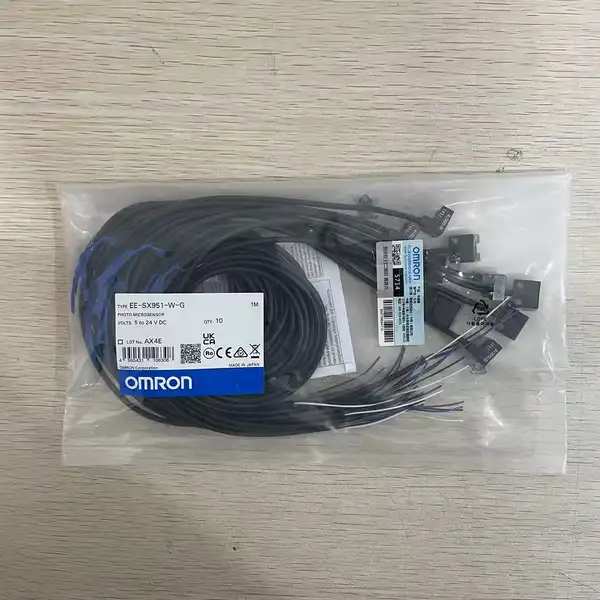

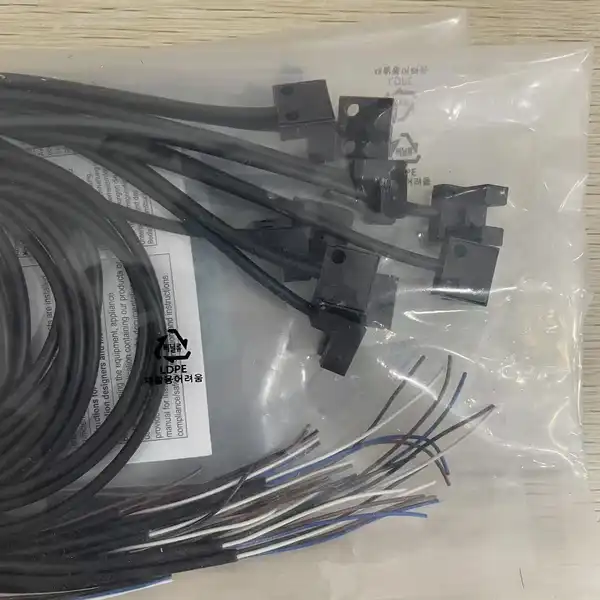

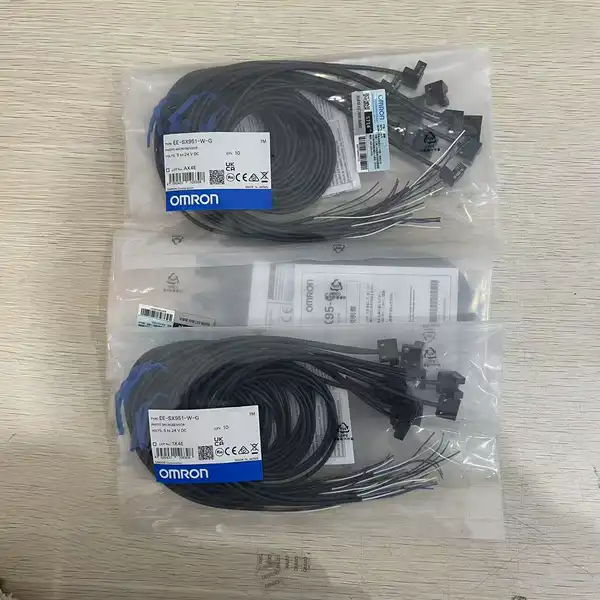

Omron EW-SX951-W-G — EE-SX951-W — 5 mm Slot
SKU: EW-SX951-W-GUSD 8.00
EE-SX951-W slot photomicrosensor, 5 mm slot, NPN, 5-24 VDC, 1 m pre-wired. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron EE-SX951-W is an L-shaped slot photomicrosensor from the EE-SX95 series It is manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The slot is 5 mm wide and 6.5 mm deep. That is the deepest slot in the EE-SX95 family and helps the flag clear the base in vibrating feeders.
The EE-SX674 is the through-beam version; the EE-SX670 is the same L-shape with Dark-ON fixed output. Key specs: Sensing Method Through-beam slot type, L-shaped body; Slot Width 5 mm; Slot Depth 6.5 mm; Light Source Infrared LED, 940 nm peak wavelength; Supply Voltage 5 to 24 VDC +/-10%, ripple 10% max; Current Consumption 15 mA maximum; Control Output NPN open-collector, 50 mA max; Light-ON / Dark-ON selectable; Connection Pre-wired 4-core vinyl cable, 1 m standard.
Key Features
- EE-SX95-series L-shaped slot photomicrosensor, 5 mm slot width, 6.5 mm slot depth
- NPN open-collector output, 5 to 24 VDC, 50 mA load, selectable Light-ON / Dark-ON
- Infrared 940 nm LED emitter, 1 kHz response, IP50, 13.4 x 12 x 10 mm body
- 1 m pre-wired 4-core vinyl cable; load short-circuit protection built in
- SKU: EW-SX951-W-G
- Series: EE-SX95-series photomicrosensor
- Voltage: 5 TO 24 VDC
Best-Fit Applications
- Spare replacement on a legacy EE-SX951-W install where the L-shape and 1 m cable match the panel cutout
- Home-position sensing on a pick-and-place actuator where the 6.5 mm slot depth tolerates vibration-induced play
- Detecting tab presence on a packaging line where a 5 mm opaque flag interrupts the slot every cycle
Buying Checklist
- Choose the EE-SX951-W when the slot is 5 mm and the panel calls for an L-shaped NPN photomicrosensor with a 1 m pre-wired cable.
- Choose the EE-SX670 instead when the same L-shape is fine but the application only needs Dark-ON fixed output.
- Choose the EE-SX674 when a longer slot depth helps clear larger flags and the through-beam emitter is in a separate body.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | EE-SX95-series photomicrosensor |
| Model / SKU | EE-SX951-W (listed by some distributors as EE-SX951-W-G) |
| Sensing Method | Through-beam slot type, L-shaped body |
| Slot Width | 5 mm |
| Slot Depth | 6.5 mm |
| Light Source | Infrared LED, 940 nm peak wavelength |
| Supply Voltage | 5 to 24 VDC +/-10%, ripple 10% max |
| Current Consumption | 15 mA maximum |
| Control Output | NPN open-collector, 50 mA max; Light-ON / Dark-ON selectable |
| Connection | Pre-wired 4-core vinyl cable, 1 m standard |
| Protection / Dimensions | IP50; 13.4 (W) x 12 (H) x 10 (D) mm; two M3 mount holes |
FAQ for EW-SX951-W-G
What is the slot width on the EE-SX951-W?
5 mm slot width and 6.5 mm slot depth in an L-shaped body. That is the deepest slot in the EE-SX95 family and helps prevent the flag from contacting the slot base in vibrating feeders. The flag should be opaque and at least 1.8 x 0.8 mm to break the beam cleanly every cycle.
EE-SX951-W vs EE-SX670 - what is the difference?
Both are L-shaped 5 mm slot NPN photomicrosensors. The EE-SX951-W has selectable Light-ON / Dark-ON output over two wires; the EE-SX670 has Dark-ON fixed output only. Choose the 951-W when the cabinet logic may switch polarity; choose the 670 when the Dark-ON-only output is acceptable and the wiring is simpler.
Can the EE-SX951-W drive a 24 VDC PLC input?
Yes. The NPN open-collector output switches up to 50 mA at 24 VDC. Wire OUT1 or OUT2 to the PLC digital input and tie the common to 0 V. Built-in short-circuit protection absorbs wiring mistakes without damaging the sensor or the PLC input card.
What is the EE-SX951-W response time?
Response frequency is 1 kHz minimum (3 kHz typical), which corresponds to roughly 1 ms response time per slot interrupt. That covers most packaging and indexing applications running under 60 picks per minute. For higher speeds above 5 kHz, look at the EE-SX674-WR family instead.
