Omron G2R-2-SNI DC24(S) — DPDT Relay, 24 VDC, 5 A
SKU: G2R-2-SNI DC24(S)USD 3.00
Omron G2R-2-SNI DC24(S) plug-in DPDT relay, 5 A, 24 VDC coil, LED + lockable test. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

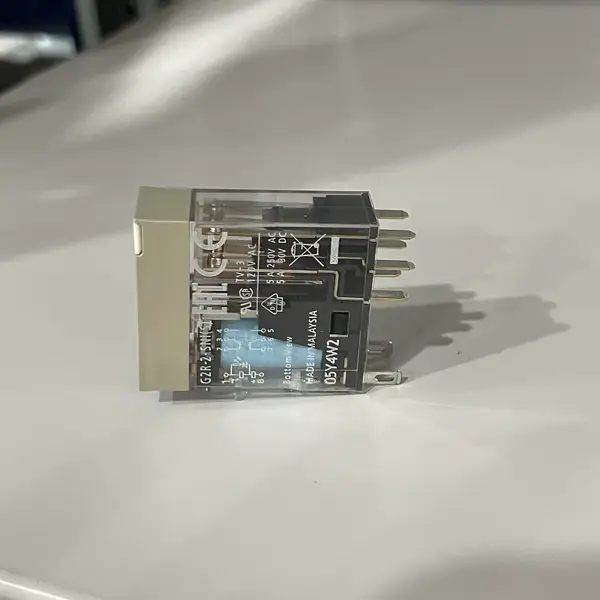

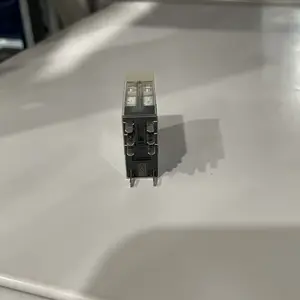

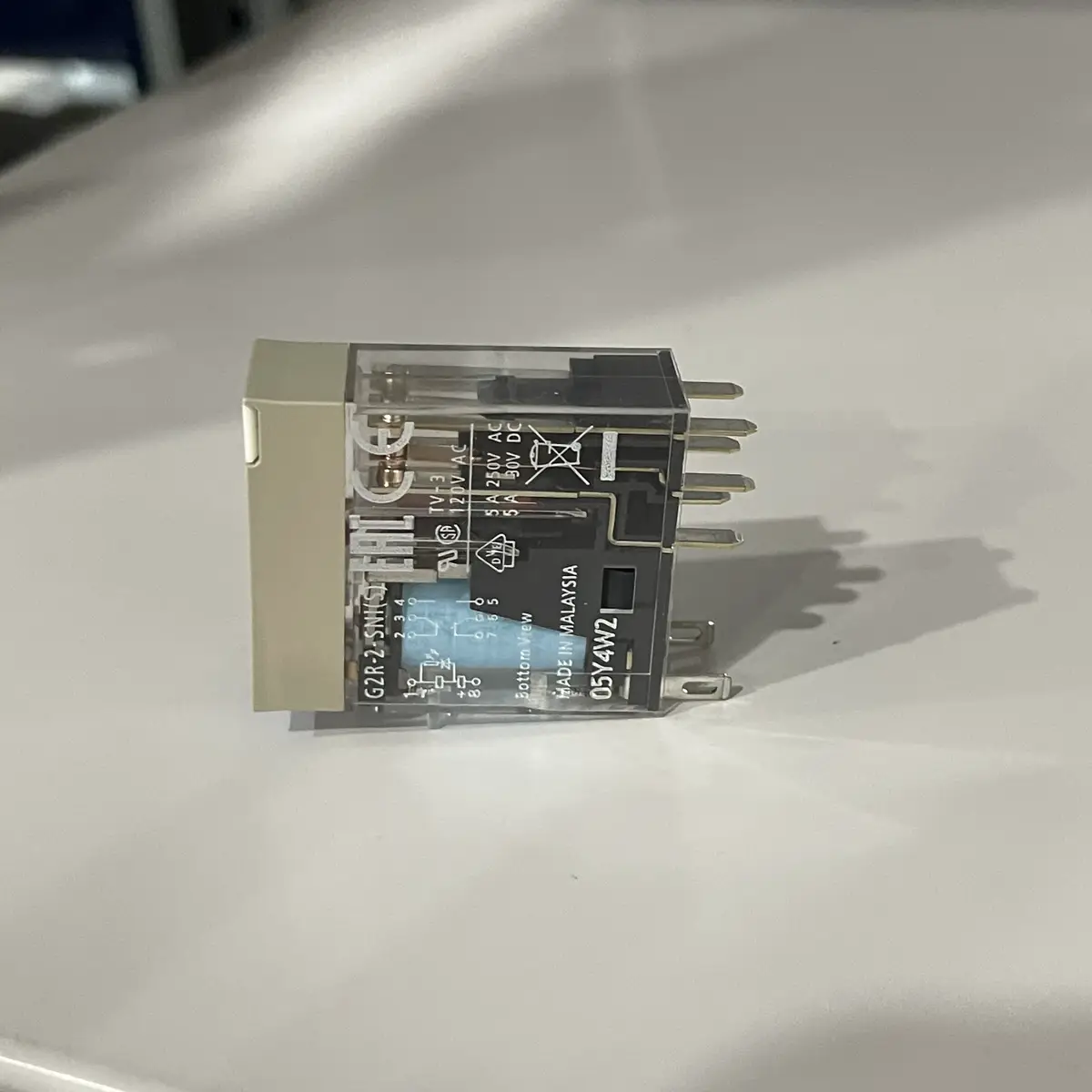

The Omron G2R-2-SNI DC24(S) is an 8-pin plug-in DPDT relay, manufactured by Omron Corporation. Hengyixin Automation stocks this relay in Xiamen and ships within 3-5 business days in original Omron packaging with the lot code visible. Specs verified against the G2R-_-S datasheet at industrial.omron.eu and the DigiKey Z6246-ND product page.
The relay has two change-over contacts rated 5 A at 250 VAC or 30 VDC resistive. Coil voltage is 24 VDC at 21.6 mA (1113 ohm). Must-operate is 70% of nominal (16.8 VDC); must-release is 15% (3.6 VDC). Operate time is 15 ms and release time is 10 ms.

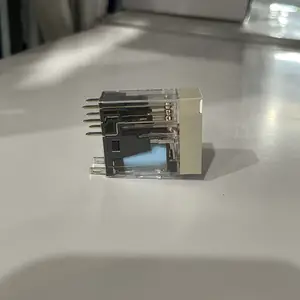

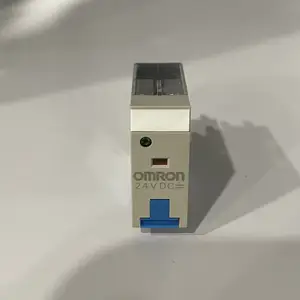

The clear case carries a mechanical flag indicator and an LED indicator, plus a lockable test button for bench commissioning. The 8-pin blade base fits the P2RFZ-08-E screw terminal socket or the P2RF-08-PU push-in / P2RF-08-S screwless variants. Switching capacity is 1250 VA / 150 W resistive. Operating temperature is -40 to 70 degC. Sibling G2R-2-SND DC24(S) drops the lockable test button for the same 5 A DPDT body and coil rating.
Key Features
- G2R-series plug-in DPDT relay, 5 A rated, 8-pin blade base
- 24 VDC coil at 21.6 mA (1113 ohm), 15 ms operate, 10 ms release
- LED indicator plus mechanical flag plus lockable test button
- Fits P2RF-08-PU (push-in) or P2RF-08-S (screwless) socket, -40 to 70 degC
- SKU: G2R-2-SNI DC24(S)
- Series: Omron G2R-series general-purpose plug-in relay
- Voltage: 24 VDC
Best-Fit Applications
- Interface relay between a 24 VDC PLC output and a 230 VAC solenoid on a conveyor starter box
- Spare replacement for a G2R-2-SND DC24(S) on a maintenance shelf where the new install also needs the lockable test button
- Control relay on a building-management panel where the LED and mechanical flag give a quick visual check across 24 relays
Buying Checklist
- Pick the G2R-2-SNI DC24(S) for a DPDT plug-in relay with LED, mechanical flag, and lockable test button on a 24 VDC coil.

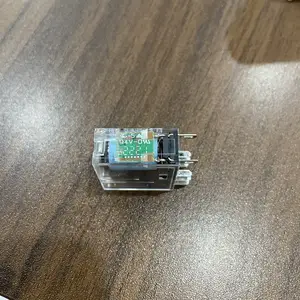

- Pick the G2R-2-SND DC24V instead when the cabinet does not need the lockable test button.
- Pick the G2R-2-SNI 24VAC(S) instead when the panel PLC outputs 24 VAC instead of 24 VDC.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron G2R-series general-purpose plug-in relay |
| Model / SKU | G2R-2-SNI DC24(S) |
| Contact Form | DPDT (2 form C), AgSnIn contacts |
| Rated Load | 5 A at 250 VAC or 30 VDC resistive |
| Coil Voltage | 24 VDC, 21.6 mA, 1113 ohm |
| Must Operate / Release | 70% max (16.8 VDC) / 15% min (3.6 VDC) |
| Operate / Release Time | 15 ms max / 10 ms max |
| Indicators | LED + mechanical flag, lockable test button |
| Sockets | P2RF-08-PU push-in or P2RF-08-S screwless |
| Switching Capacity | 1250 VA / 150 W resistive |
| Dimensions / Temperature | 29 (H) x 13 (W) x 35.5 (D) mm, -40 to 70 degC |
Resources & Downloads
FAQ for G2R-2-SNI DC24(S)
What is the difference between G2R-2-SNI and G2R-2-SND?
The I suffix marks the full-option variant (LED + mechanical indicator + lockable test button). The D suffix drops the lockable test button. Both share the same 5 A DPDT contact set and the same 24 VDC coil.
What socket fits the G2R-2-SNI DC24(S)?
P2RF-08-PU for push-in wiring or P2RF-08-S for screwless clamp wiring. The 8-pin blade foot is the same on both sockets.
What is the maximum switching capacity of the G2R-2-SNI DC24(S)?
1250 VA / 150 W on a resistive load. On an inductive load (cos phi 0.4) it drops to 500 VA / 90 W. The maximum switching voltage is 380 VAC / 125 VDC.
Can the G2R-2-SNI DC24(S) replace a G2R-2-SNI 24VAC(S)?
No. The DC24(S) coil needs 24 VDC; the 24VAC(S) coil needs 24 VAC at higher current. Swapping them will not pull in. Confirm the coil marking before substituting.
What is the mechanical life of the G2R-2-SNI DC24(S)?
10 million operations minimum mechanical, 100,000 operations minimum electrical at the rated 5 A load. At lower loads the electrical life extends accordingly.
