Product Overview

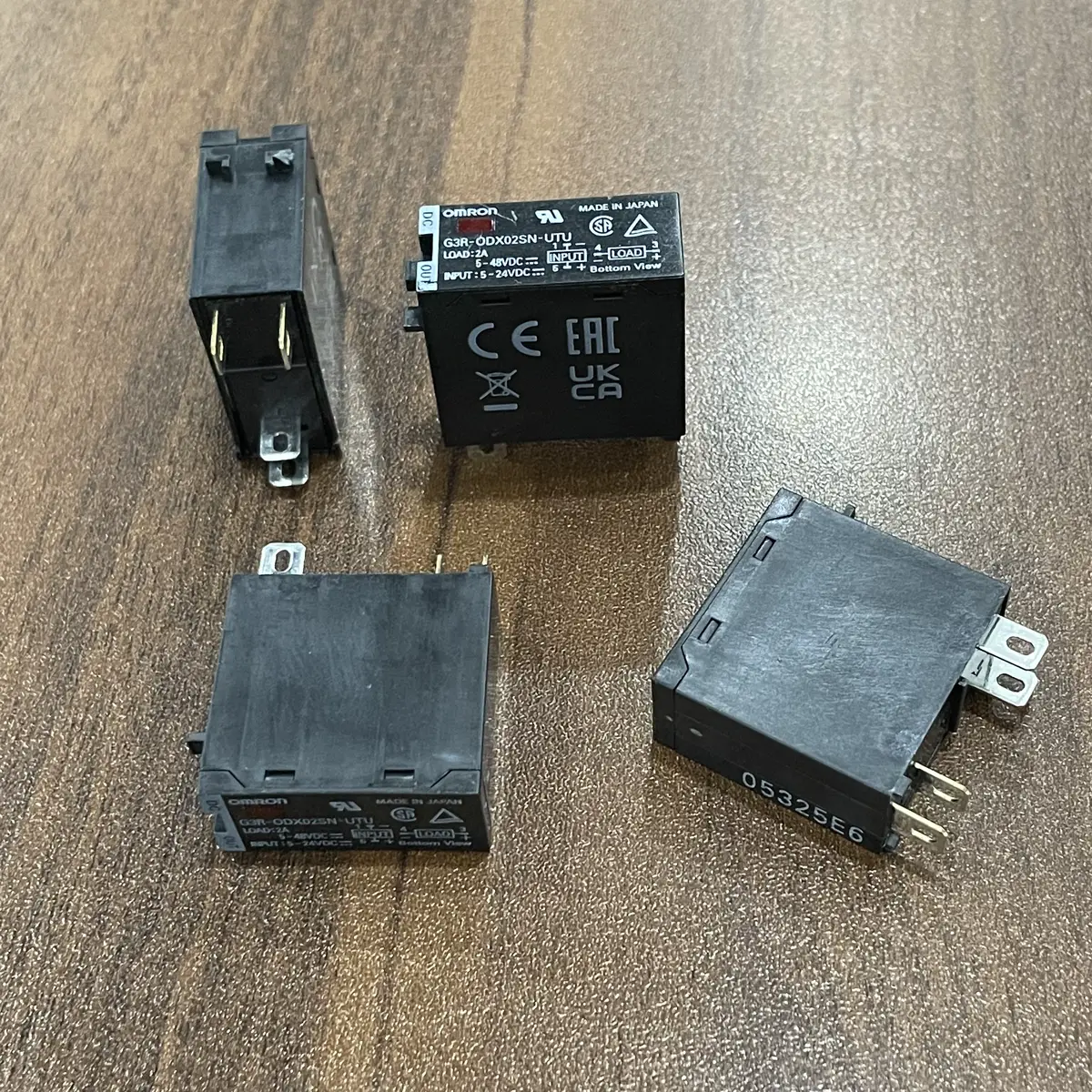

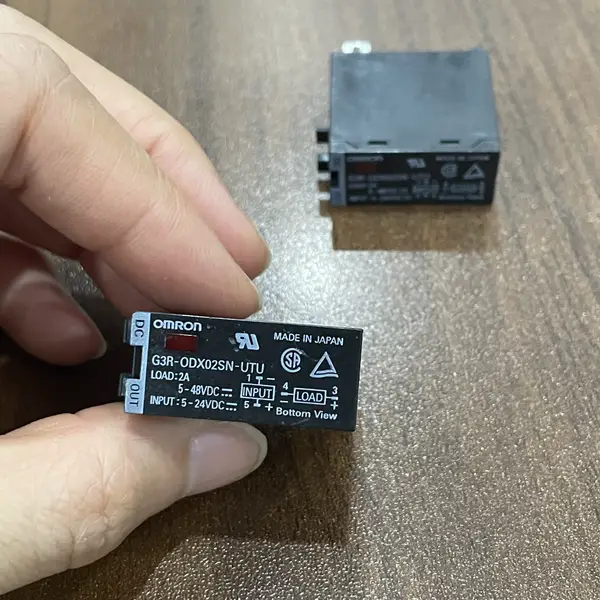

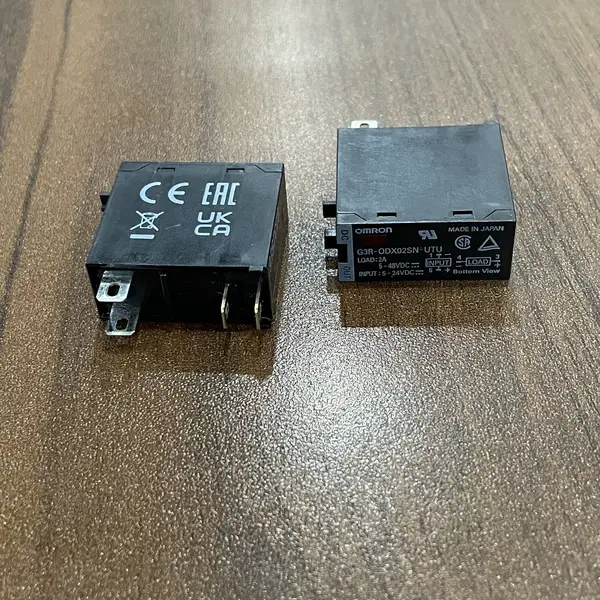

The Omron G3R-ODX02SN-UTU DC5-24V is a 1-pole DC-output solid state relay from the G3R family, manufactured by Omron Corporation. Hengyixin Automation stocks this solid-state relay in Xiamen and ships within 3-5 business days in original Omron packaging with the lot code visible.
The relay switches a DC load of 4 to 60 VDC at up to 2 A. The 5-pin plug-in body drops onto a P2RFZ-05-E socket or a DIN-rail mount base. Control input is 5 to 24 VDC at 8 mA max. The unit must operate above 4 V and release below 1 V. Zero-cross switching keeps the inrush down on resistive DC loads.
Photocoupler isolation gives 4000 VAC dielectric between input and output. The operation LED on top shows the input state. The 13 x 29 x 28 mm body weighs about 18 g. Operating range is -30 to +80 degC. For an AC-output SSR on the same 5-pin body, pick the G3R-OAX02SN-UTU DC5-24V. For a 25 A AC SSR on the G3PE body, use the G3PE-225B DC12-24V.
Key Features
- G3R DC-output solid state relay, 1-pole, 2 A at 4-60 VDC load
- Zero-cross switching, photocoupler isolation, 4000 VAC dielectric
- 5-24 VDC input at 8 mA, must-operate 4 V, must-release 1 V
- 5-pin plug-in on P2RFZ-05-E socket, operation LED, -30 to +80 degC
- SKU: G3R-ODX02SN-UTU DC5-24V
- Series: Omron G3R-series solid state relay (plug-in)
- Voltage: 4 TO 60 VDC
Best-Fit Applications
- Solenoid valve bank on a 24 VDC pneumatic manifold where the photocoupler blocks the coil back-EMF
- DC heater band on a small extruder where the 2 A rating covers a low-wattage band and the plug-in socket speeds the swap
- Spare replacement on a battery-cycling rig where the old SSR failed short and the G3R drops onto the same P2RFZ-05-E socket
Buying Checklist
- Pick the G3R-ODX02SN-UTU DC5-24V for a 5-pin plug-in DC SSR at 2 A, 4-60 VDC load, 5-24 VDC input.
- Pick the G3R-OAX02SN-UTU DC5-24V instead when the load is 24-240 VAC on the same 5-pin body.
- Pick the G3F-203SN-VD instead when the panel needs a 3 A DC SSR on a screw-terminal zero-cross body.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron G3R-series solid state relay (plug-in) |
| Model / SKU | G3R-ODX02SN-UTU DC5-24V |
| Load Type | DC switching, 1-pole, SPST-NO |
| Rated Load Voltage | 4 to 60 VDC |
| Rated Load Current | 2 A max (no heat sink) |
| Switching Mode | Zero-cross |
| Input Voltage | 5 to 24 VDC |
| Input Current | 8 mA max |
| Must-Operate / Release | 4 V max operate; 1 V min release |
| Isolation | Photocoupler, 4000 VAC dielectric |
| Dimensions / Weight | 13 (W) x 29 (H) x 28 (D) mm; about 18 g |
FAQ for G3R-ODX02SN-UTU DC5-24V
Can the G3R-ODX02SN-UTU DC5-24V switch AC loads?
No. The D in the part number marks DC output only. For AC loads on the same 5-pin plug-in body, use the G3R-OAX02SN-UTU DC5-24V (24-240 VAC).
What socket does this relay use?
The P2RFZ-05-E 5-pin plug-in socket. The socket mounts on a DIN rail or with screws and gives a clean wiring layout for the input and the load.
Does the G3R-ODX02SN-UTU DC5-24V need a heat sink?
No. At 2 A the SSR is rated for direct panel or DIN-rail mount without a heat sink. For higher current, switch to a G3NA or G3PE body.
