Omron NA5-12W101B-V1 — 12.1" WXGA Widescreen HMI, Sysmac
SKU: NA5-12W101B-V1USD 1350.00
12.1-inch widescreen TFT colour touchscreen HMI, 1280 × 800 WXGA resolution, 16.7M colours, dual Ethernet + 3 USB + RS-232, Sysmac Studio programming, IP65 front, black bezel, part of Sysmac platform.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

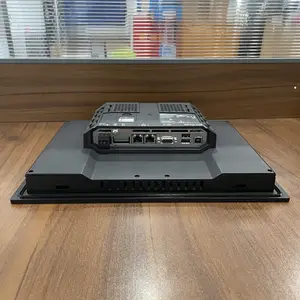

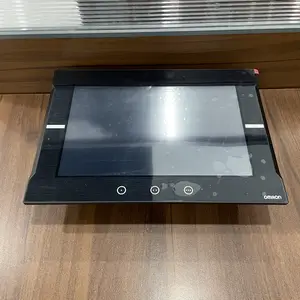

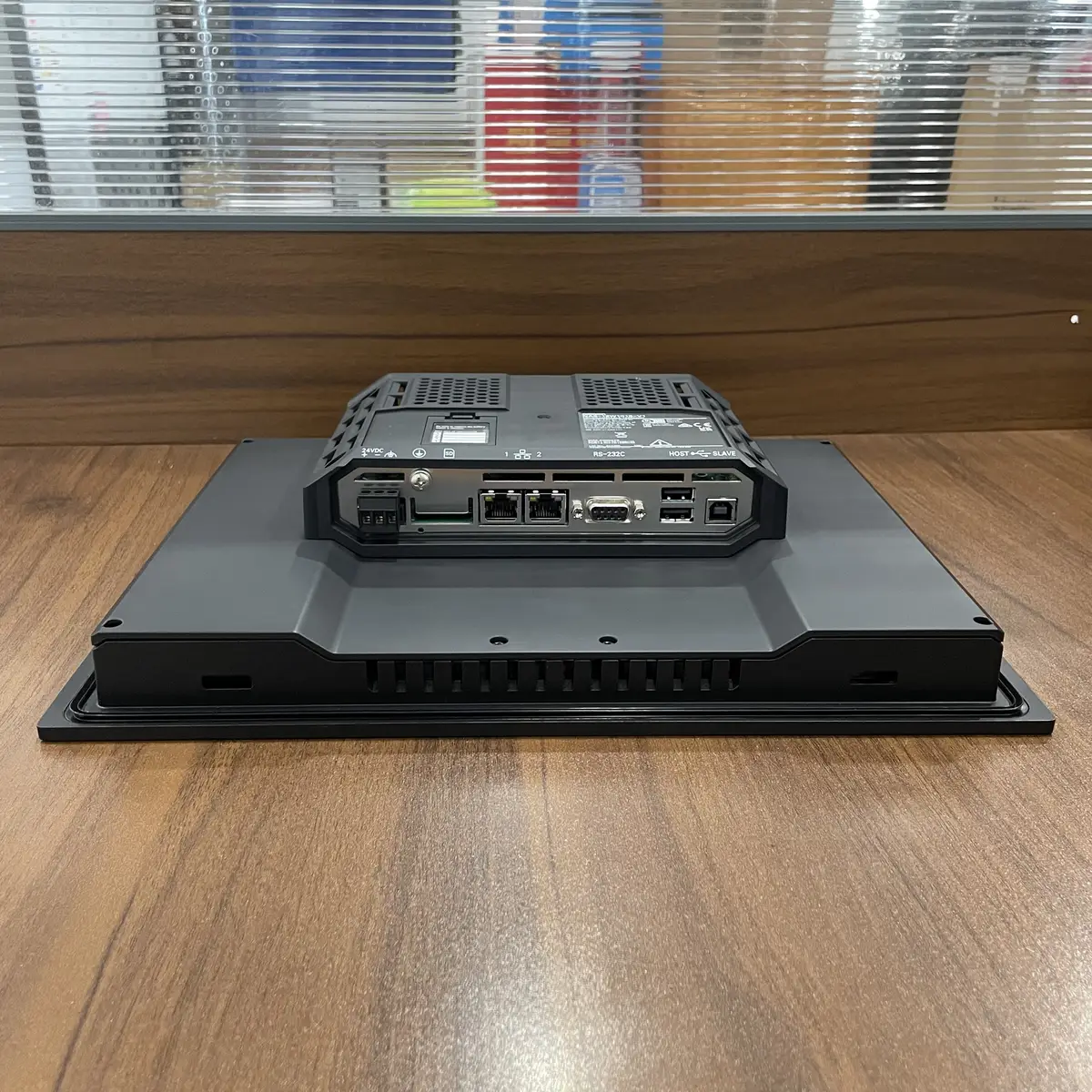

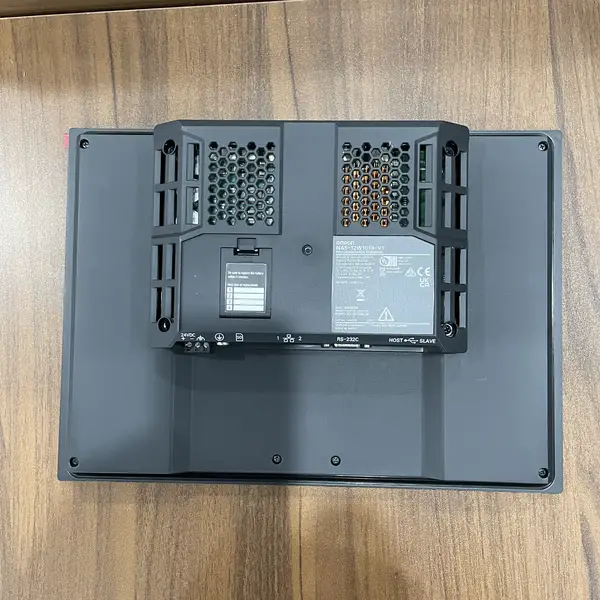

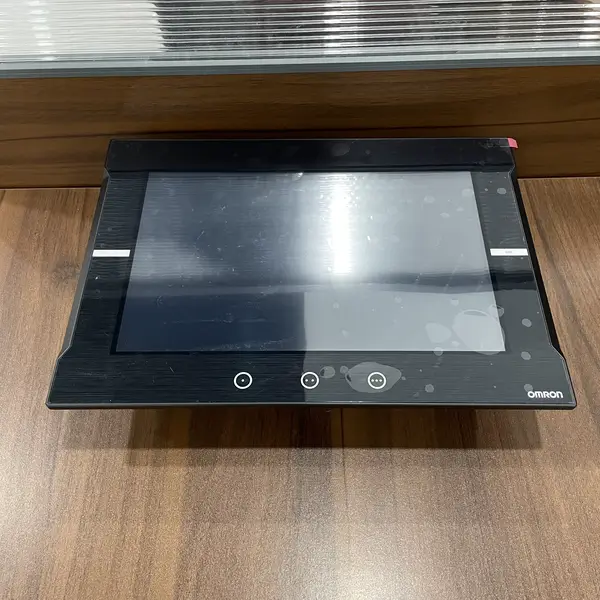

The NA5-12W101B-V1 is the 12.1-inch widescreen model of Omron's NA-series programmable terminals, the high-end HMI family in the Sysmac automation platform designed to pair with NJ501, NX102, and NX1P controllers. It pairs a 12.1-inch WXGA TFT colour LCD (1280 × 800, 16.7 million simultaneous colours) with a multi-touch analog-resistive touch overlay, dual 10/100 Base-TX Ethernet ports for separate plant and control networks, three USB ports (host for keyboard / mouse / memory stick, slave for direct PC connection), and one RS-232C port for legacy device support. The 50,000-hour LED backlight and IP65 front face make the NA5 suitable for continuous-operation panels in factory environments.
Where the NA5 fits in the Sysmac HMI lineup
The NA5 family has four widescreen sizes: NA5-7W (7 inch 800 × 480), NA5-9W (9 inch 800 × 480), NA5-12W (12 inch 1280 × 800), and NA5-15W (15 inch 1280 × 800). Within each size, the -W101B-V1 is the standard widescreen black-bezel variant, and -W101S-V1 is the silver-bezel variant for white or grey enclosures. The -P variants add a protective front sheet for harsher environments. The NA5 is the recommended replacement for the discontinued NS series (NS5, NS8, NS10, NS12) and runs alongside the NB series.
Application in a typical Sysmac line
The NA5-12W101B-V1 typically sits in the operator panel of a packaging line or assembly cell, connected to an NJ501-1400 or NX102-1200 controller via Ethernet. The dual Ethernet ports allow one network for the controller (EtherCAT / EtherNet/IP) and a separate network for MES / SCADA / remote access, with the HMI acting as a bridge or as a tagged data viewer on both. The 12.1-inch widescreen is comfortable for displaying trend graphs, alarm histories, and recipe banks side-by-side without scrolling, with 1280 × 800 resolution giving crisp text and graphics.
Key Features
- 12.1-inch widescreen TFT colour LCD, 1280 × 800 resolution
- 16.7 million simultaneous colours, 50,000-hour LED backlight
- Multi-touch analog resistive touch screen
- Dual 10/100 Base-TX Ethernet ports
- 3 USB ports
- 1 RS-232C port for legacy device support
- IP65 front face, 0 to +50 °C operating temperature
- Black bezel, 24 VDC supply
- SKU: NA5-12W101B-V1
- Series: NA5 (Sysmac widescreen HMI)
- Voltage: 24 VDC
Best-Fit Applications
- Operator panel on a packaging line with recipe management, alarm logs, and trend graphs
- Central status dashboard for a multi-line packaging or assembly cell
- Recipe management on a batch process with multi-touch gesture support
- Process HMI on a water-treatment skid with real-time trend display
Buying Checklist
- Pick NA5-12W101B-V1 for 12.1-inch widescreen black-bezel HMI in the Sysmac platform
- Pick NA5-12W101S-V1 if you need a silver bezel for white / grey enclosures
- Pick NA5-9W001B-V1 for 9-inch widescreen at a smaller panel cutout
- Pick NA5-7W001B-V1 for the smallest 7-inch widescreen size
- Pick NA5-15W101B-V1 for the largest 15-inch widescreen size
- Program the NA5 and the controller in a single Sysmac Studio project for integrated debugging
Technical Specifications
| Model | NA5-12W101B-V1 |
|---|---|
| Series | NA5 (Sysmac widescreen HMI) |
| Type | TFT colour multi-touch HMI |
| Display Size | 12.1 inch widescreen |
| Resolution | 1280 × 800 (WXGA) |
| Number of Colors | 16,770,000 (24-bit) |
| Backlight | LED, 50,000 hours |
| Touch Panel | Multi-touch analog resistive (2-point) |
| Supply Voltage | 24 VDC |
| Operating Temperature | 0 to +50 °C |
| External Dimensions (W×H×D) | Approximately 291 × 220 × 52 mm |
| Certifications | UL, CSA, CE, KC |
Resources & Downloads
FAQ for NA5-12W101B-V1
What is the difference between NA5-12W101B-V1 and NA5-12W101S-V1?
The B suffix means black bezel; the S suffix means silver bezel. Electronics and specifications are identical. Pick the B for dark-coloured enclosures and industrial panels; pick the S for white or grey cabinets and OEM machine builders who want a premium look.
Can the NA5-12W101B-V1 connect to a non-Sysmac PLC?
Yes — the NA5 supports Modbus TCP and standard EtherNet/IP connections to third-party controllers, in addition to the native Sysmac connection to NJ / NX controllers. The RS-232C port supports Host Link and Modbus RTU for legacy PLCs. Programming is still done in Sysmac Studio, but the variable tags from the third-party controller can be imported and mapped to HMI objects.
Is the NA5-12W101B-V1 still in production?
Production is planned to end on 2026-09-30, but the NA5 series is not yet on the product discontinuation list. Stock remains available through authorised distributors like Hengyixin, and the NA5 will continue to be supported for service and expansion of installed lines for several years after the production end date.
How is the NA5 different from the NB series?
The NA5 is the higher-end Sysmac-family HMI with widescreen, multi-touch, 16.7M colour, dual Ethernet, and Sysmac Studio integration. The NB is the value-tier HMI with 4:3 aspect ratio, 65k colour, single Ethernet, and NB-Designer programming. The NA5 is the right pick for new Sysmac designs; the NB is the right pick for installations with existing NB projects or for cost-sensitive serial-only panels.
