Part of the Omron NA Series Programmable Terminals series — see the full model table, lifecycle status and replacement parts.

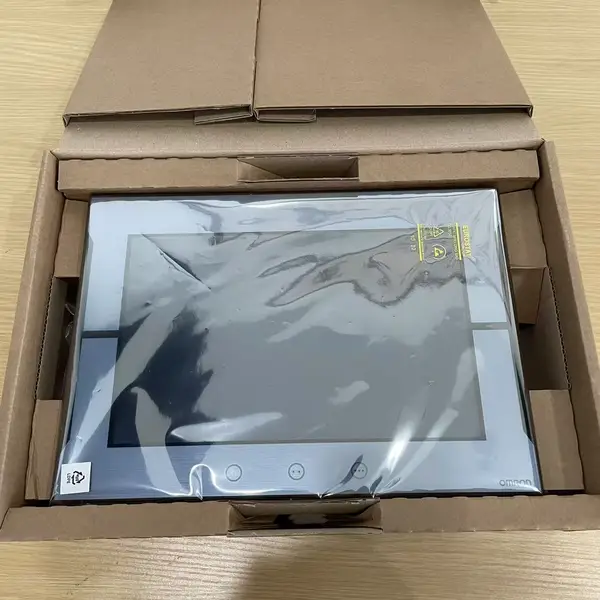

Omron NA5-12W101S-V1 — front view of the 12.1-inch widescreen HMI showing the silver bezel, the TFT LCD touchscreen, the RUN LED on the lower right corner, the three function keys with blue LED indicators below the screen and the Omron NA-Series product mark

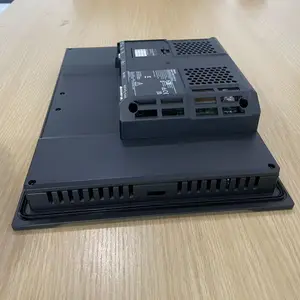

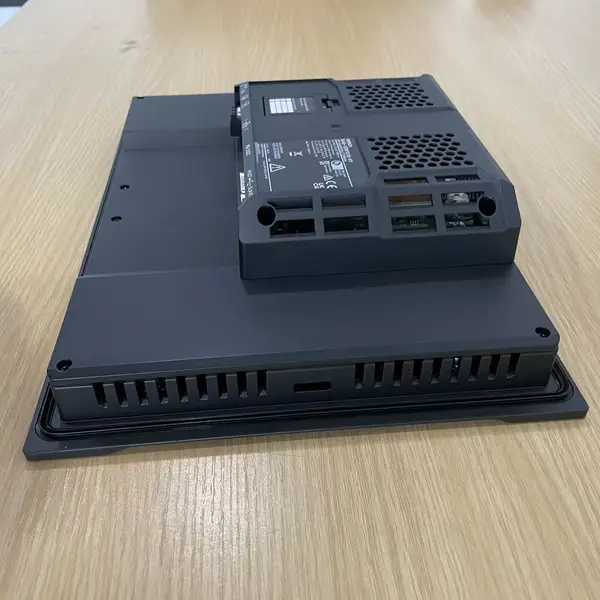

Omron NA5-12W101S-V1 — NA HMI, 12.1 in, Silver

SKU: NA5-12W101S-V1

USD 1605.00

Omron NA5-12W101S-V1 NA Sysmac HMI, 12.1 in widescreen TFT, 1280 x 800, 2 Ethernet, 3 USB, silver bezel. In stock.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron NA5-12W101S-V1 is a 12.1-inch widescreen programmable terminal from the NA Sysmac HMI series, manufactured by Omron Corporation. Hengyixin Automation ships this HMI panel from Xiamen with the Sysmac Studio project file on a USB drive included.

The display is a 12.1-inch TFT LCD at 1280 x 800 with 16,770,000 colors (24-bit full colour) and a 50,000-hour LED backlight. The touch screen is analog resistive. The front face is IP65 and the bezel is silver. Three function keys with blue LED indicators sit below the screen.

Connectivity is 2 Ethernet ports (10/100/1000), 3 USB ports (2 host + 1 slave for Sysmac Studio), 1 RS-232C port, and 1 SD/SDHC card slot. The HMI runs on 24 VDC and weighs 2.3 kg. Note: the -V1 variant ended production on 30 September 2026; the -V2 is the current line and adds a longer 100,000-hour backlight and a brighter LED indicator. For a 15-inch panel in the same family, pick the NA5-15W101B-V1.

Key Features

  • NA Sysmac HMI, 12.1-inch widescreen TFT LCD, 1280 x 800, 16.7M colours, silver bezel
  • Analog resistive touch, 3 function keys with blue LED indicators, IP65 front
  • 2 Ethernet (10/100/1000) + 3 USB (2 host + 1 slave) + 1 RS-232C + 1 SD/SDHC slot
  • 24 VDC supply, 50,000-hour LED backlight, 256 MB user memory, 340 x 244 mm front face
  • SKU: NA5-12W101S-V1
  • Series: Omron NA-series Sysmac Programmable Terminal

Best-Fit Applications

  • Mid-size machine overview where the 12.1-inch widescreen shows the process schematic and recipe list on the same page as the alarm summary
  • Spare HMI drop-in for an existing NA cell where the previous NA5-12W101S-V1 failed and the Sysmac Studio project loads from the SD card slot
  • OEM panel build where the silver bezel matches the cabinet finish and the dual Ethernet ports separate the plant network from the machine network

Buying Checklist

  • Pick the NA5-12W101S-V1 for a 12.1-inch widescreen NA-series HMI with a silver bezel.
  • Pick the NA5-12W101S-V2 instead when the cabinet needs the current-production variant with a 100,000-hour backlight.
  • Pick the NA5-15W101S-V1 instead when the panel needs a larger 15.4-inch screen at the same 1280 x 800 resolution.

Technical Specifications

Manufacturer Omron Corporation (Japan)
Series Omron NA-series Sysmac Programmable Terminal
Model / SKU NA5-12W101S-V1
Display 12.1-inch TFT LCD, 1280 x 800, 16,770,000 colors (24-bit)
Effective Display Area 261 x 163 mm
Touch Panel Analog resistive membrane, 16,384 x 16,384, 1,000,000 operations
Backlight LED, 50,000 hours min, 200 brightness levels
Ethernet Ports 2 x 10/100/1000 BASE-T (RJ45)

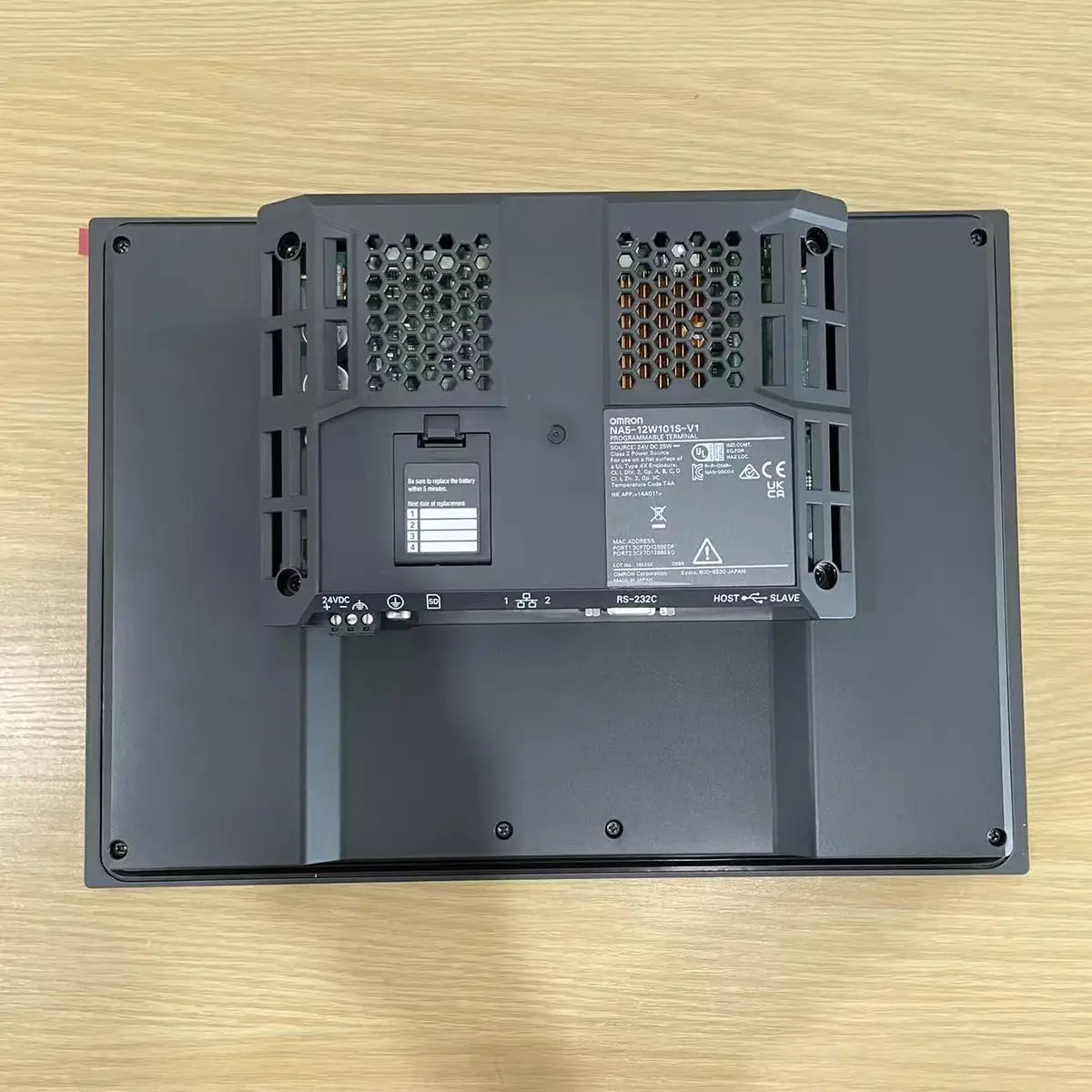

USB / Serial / SD 3 USB (2 host Type-A + 1 slave Type-B); 1 RS-232C (DB9); 1 SD/SDHC slot
Function Keys 3 inputs (capacitance), each with blue LED indicator
User Memory 256 MB
Protection / Dimensions IP65 front; 340 (W) x 244 (H) mm front, 63.1 mm depth; 2.3 kg; 24 VDC supply

FAQ for NA5-12W101S-V1

Is the NA5-12W101S-V1 still in production?
Production of the -V1 ended on 30 September 2026; the -V2 is the current line. The -V2 adds a longer 100,000-hour backlight and a brighter LED indicator. The -V1 is still supported as a spare for existing NA cells.
How is the NA5-12W101S-V1 programmed?
Through Sysmac Studio over the USB slave port. The same Sysmac Studio project covers the NJ/NX PLC and the NA HMI; variables are shared without manual mapping.
Can the NA5-12W101S-V1 connect to a non-Omron PLC?
Yes, over Ethernet using FINS, Modbus-TCP or the OPC-UA server built into the HMI. For legacy Omron PLCs without Ethernet, use the RS-232C port with Host Link or NT Link.
Does the NA5-12W101S-V1 support VNC?
Yes. The NA HMI ships with a built-in VNC server that allows remote viewing from a PC or tablet on the same network. Enable VNC under the HMI's System Menu and connect from any VNC client.
