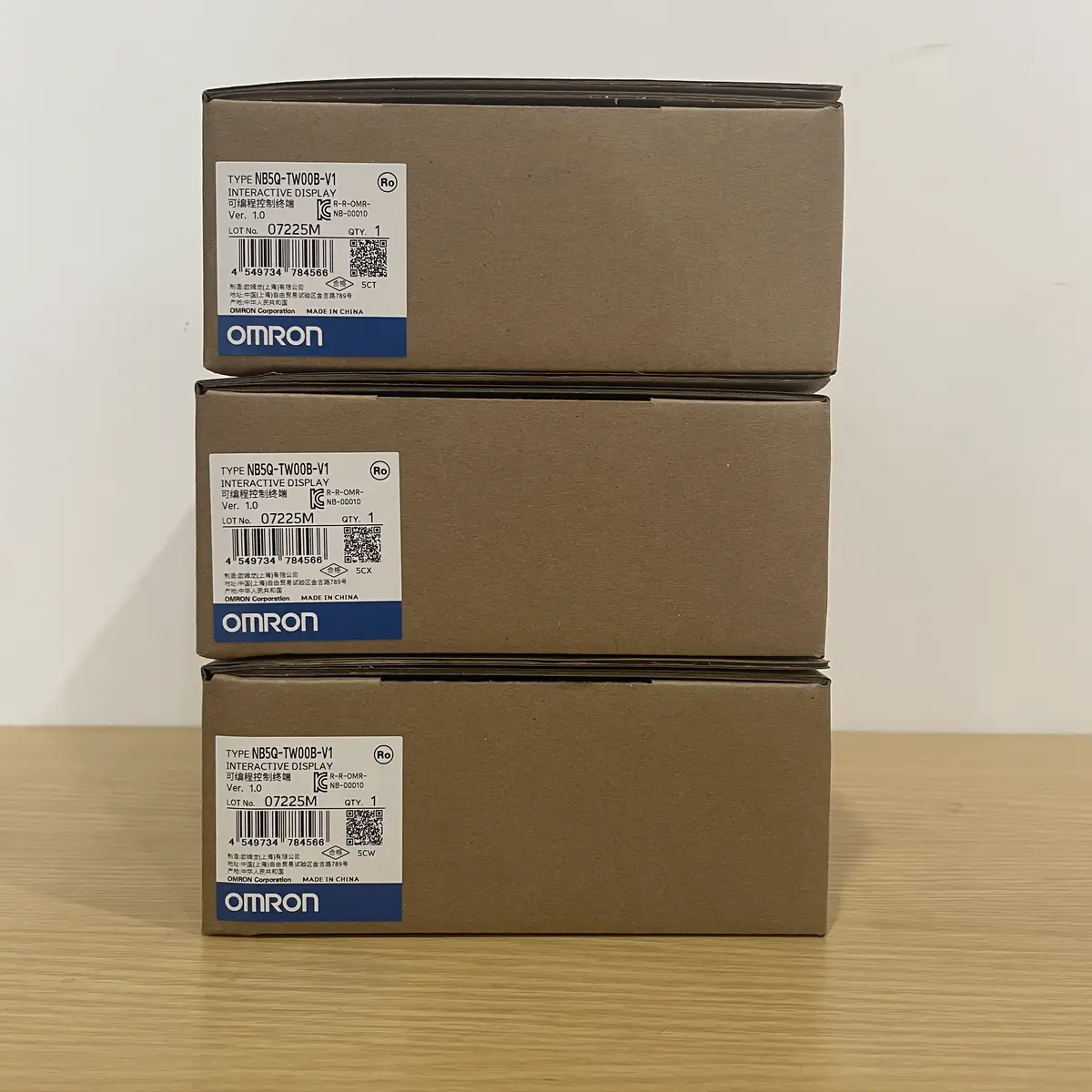

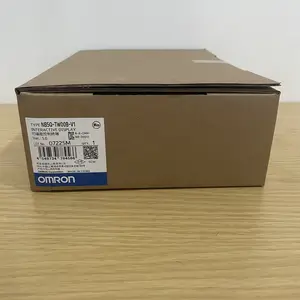

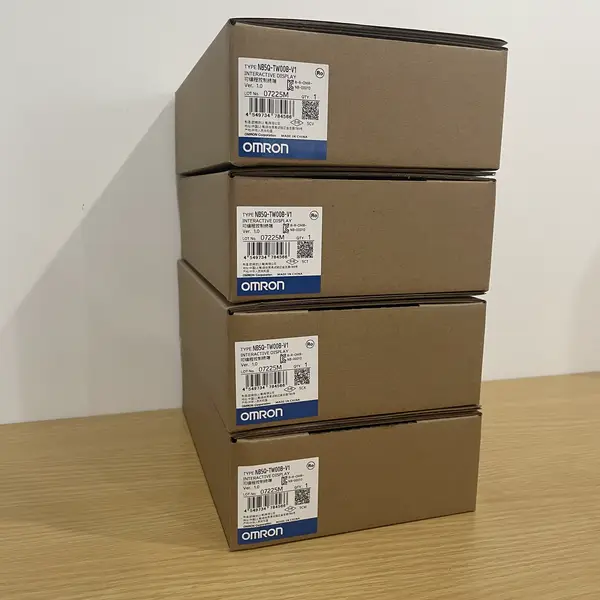

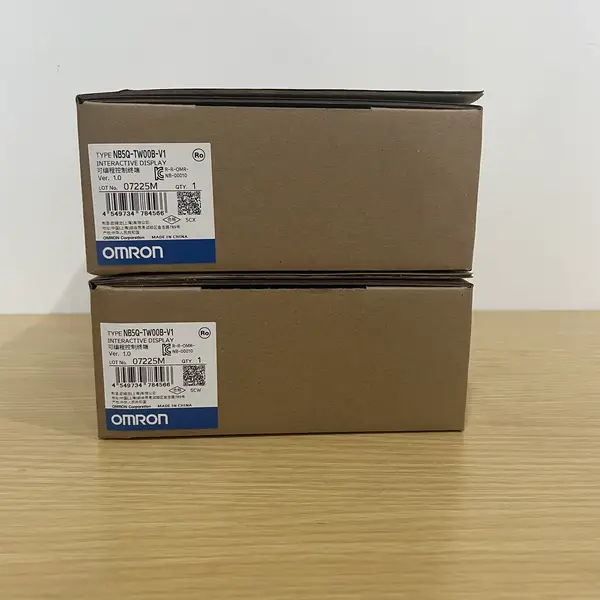

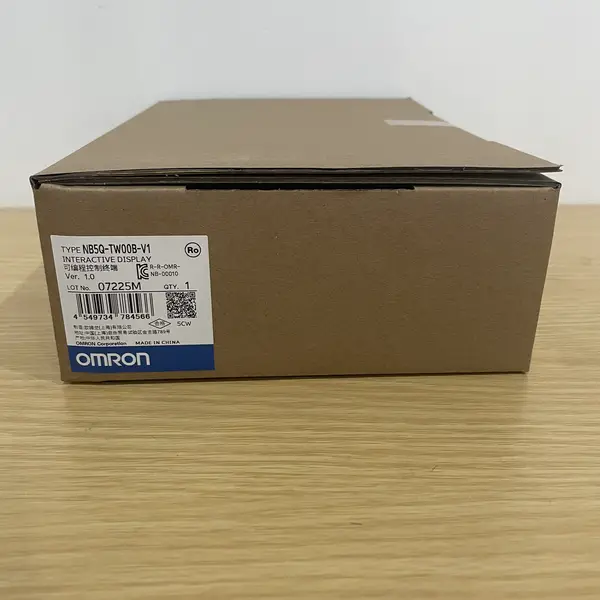

Omron NB5Q-TW00B-V1 — 5.6" HMI, Serial, 128 MB
SKU: NB5Q-TW00B-V1USD 152.00
NB5Q 5.6-inch TFT color HMI, 320x234 QVGA, 128 MB memory, RS-232C + RS-422/485 serial + USB-B slave, no Ethernet, NB-Designer.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NB5Q-TW00B-V1 is the 5.6-inch QVGA-class HMI in the NB-series with two serial ports and no Ethernet. The 320 x 234 pixel TFT color LCD fits a tight panel cutout where a 7-inch NB7W would not, and the 128 MB internal project memory covers the typical multi-page machine program. The two serial ports (RS-232C + RS-422/485) on the bottom face let the panel talk to an Omron CP1 / CP2E / CJ2 PLC on one port and a temperature controller, inverter, or barcode scanner on the other -- useful for a small packaging or filling line where one HMI supervises multiple field devices. The USB Type-B slave is for PC project upload only.
What the V1 revision changes
The -V1 suffix is a hardware / firmware revision of the same NB5Q-TW00B SKU -- the current active catalog entry. A project built for the TW00B runs unchanged on the TW00B-V1, and the NB-Designer operation manual covers both revisions in the same document. The V1 is the recommended pick for any new build or a like-for-like spare replacement on a panel that already runs the TW00B.
Where the stripped serial-only fits
Pick the TW00B-V1 (this SKU) when the panel sits on a stand-alone machine with no factory Ethernet, and the field devices speak serial. Pick the TW01B-V1 instead when the panel needs Ethernet for SCADA polling or remote upload -- the TW01B-V1 adds Ethernet and a USB host for memory-stick recipe transfer. Pick the NB3Q-TW01B when the panel cutout is tighter and a 3.5-inch display is enough.
Before ordering
Confirm the supply is 24 VDC -- the NB-series is 24 VDC only; for AC supply, look at the older NS-series NS5-SQ10B-V2. Confirm the cutout is 172.4 x 131 mm. Confirm the field device protocol -- Host Link / FINS on RS-232C for an Omron PLC, Modbus RTU on RS-422/485 for a third-party temperature controller or inverter.
Key Features
- NB-series 5.6-inch TFT color LCD programmable terminal, V1 hardware / firmware revision
- 320 x 234 pixel QVGA-class display, 65,536 colors, 50,000-hour white LED backlight
- 128 MB internal project memory, analog resistive touch with 1,000,000 cycle life
- Two serial ports -- RS-232C + RS-422/485 on the bottom face for PLC + field device
- One USB 2.0 Type-B slave for PC project upload (no USB host, no memory-stick recipe)
- No Ethernet port -- serial-only NB5Q; the TW01B-V1 sibling adds Ethernet + USB host
- NB-Designer drag-and-drop programming with Smart Active Parts (SAP) library for Omron PLCs
- 24 VDC supply at ~5 W, IP65 front panel (NOT IP65F / IP67), beige housing
- 184 W x 142 H x 46 D mm body, 172.4 x 131 mm panel cutout, ~620 g
- CE / UL / KC / RCM approved, 0 to +50 C operating
- SKU: NB5Q-TW00B-V1
- Series: NB5Q-TW00B-V1
Best-Fit Applications
- Stand-alone packaging machine panel with one PLC and one temperature controller on two serial ports
- Small filling line with one PLC, one VFD, and a barcode scanner -- all on RS-232C / RS-485
- Tight-panel retrofit on a machine originally built with an NS5 / NT-series 5.7-inch HMI
- Multi-page recipe / alarm / maintenance screen for a small OEM machine
- Spare replacement for an existing NB5Q-TW00B panel on a long-running machine
Buying Checklist
- Pick NB5Q-TW00B-V1 for a 5.6-inch QVGA HMI with two serial ports + USB-B slave and no Ethernet, V1 revision.
- Pick NB5Q-TW01B-V1 instead when the panel needs Ethernet for SCADA / remote upload and a USB host for memory-stick recipe transfer.
- Pick NB3Q-TW01B when the panel cutout is tighter and a 3.5-inch display is enough.
- Pick NB7W-TW01B-V1 when the application needs a 7-inch WVGA display with Ethernet + USB host.
- Pick NB-Designer version 1.40 or later to program the NB-series (the V1 revision is supported in the same project file as the non-V1).
- Confirm the supply is 24 VDC -- the NB-series is 24 VDC only; for AC supply, look at the older NS-series NS5-SQ10B-V2.
Technical Specifications
| Display | 5.6-inch TFT color LCD, 320 x 234 pixel, 65,536 colors |
|---|---|
| Backlight | White LED, 50,000-hour half-life |
| Touch | Analog resistive, 1,000,000 cycle life |
| Memory | 128 MB internal project memory |
| Serial Ports | 1 x RS-232C + 1 x RS-422/485 on the bottom face |
| USB | 1 x USB 2.0 Type-B slave for PC project upload only |
| Ethernet | None (the stripped serial-only SKU) |
| Programming | NB-Designer drag-and-drop with Smart Active Parts library |
| Supply | 24 VDC at ~5 W |
| Front Panel | IP65 (NOT IP65F / IP67), beige housing |
| Dimensions | 184 W x 142 H x 46 D mm, panel cutout 172.4 x 131 mm, ~620 g |
| Operating Temperature | 0 to +50 C |
Resources & Downloads
FAQ for NB5Q-TW00B-V1
What is the difference between NB5Q-TW00B-V1 and NB5Q-TW01B-V1?
The TW00B-V1 is the stripped serial-only NB5Q -- two serial ports (RS-232C + RS-422/485) plus a USB-B slave, no Ethernet, no USB host. The TW01B-V1 adds Ethernet and a USB host (Type-A) for memory-stick recipe transfer. Both share the same 5.6-inch 320 x 234 display, 128 MB memory, beige housing, IP65 front, and 24 VDC supply. Pick the TW00B-V1 for a stand-alone serial-only panel; pick the TW01B-V1 when the panel sits on a factory Ethernet network.
What does the -V1 suffix mean on the NB5Q-TW00B-V1?
V1 is a hardware / firmware revision of the same NB5Q-TW00B SKU. The V1 is the currently-active catalog entry that replaces the older non-V1 part. A project built for the non-V1 TW00B runs unchanged on the TW00B-V1, and the NB-Designer operation manual covers both revisions. The V1 is the right pick for a new build or a like-for-like spare replacement on a panel that already runs the TW00B.
Can the NB5Q-TW00B-V1 talk to a non-Omron PLC?
Yes, via Modbus RTU on the RS-422/485 port or RS-232C port. The NB-Designer driver library covers Omron Host Link / FINS, Mitsubishi MC Protocol, Modbus RTU master / slave, and several temperature-controller / inverter / barcode-scanner drivers. The 128 MB project memory is enough for multi-vendor panels with several pages of mixed-protocol tags. For Ethernet connectivity to a non-Omron PLC, step up to the NB5Q-TW01B-V1.
What is the panel cutout for the NB5Q-TW00B-V1?
172.4 W x 131 H mm. The NB5Q is the 5.6-inch class (184 x 142 mm outer bezel). The NB3Q is the 3.5-inch class (119 x 93 mm cutout), the NB7W is the 7-inch class (192 x 138 mm cutout), and the NB10W is the 10.1-inch class (258 x 174 mm cutout). All four sizes share the NB-Designer project file, so a project moves between panel sizes without rework as long as the target panel has the features the project calls for.
