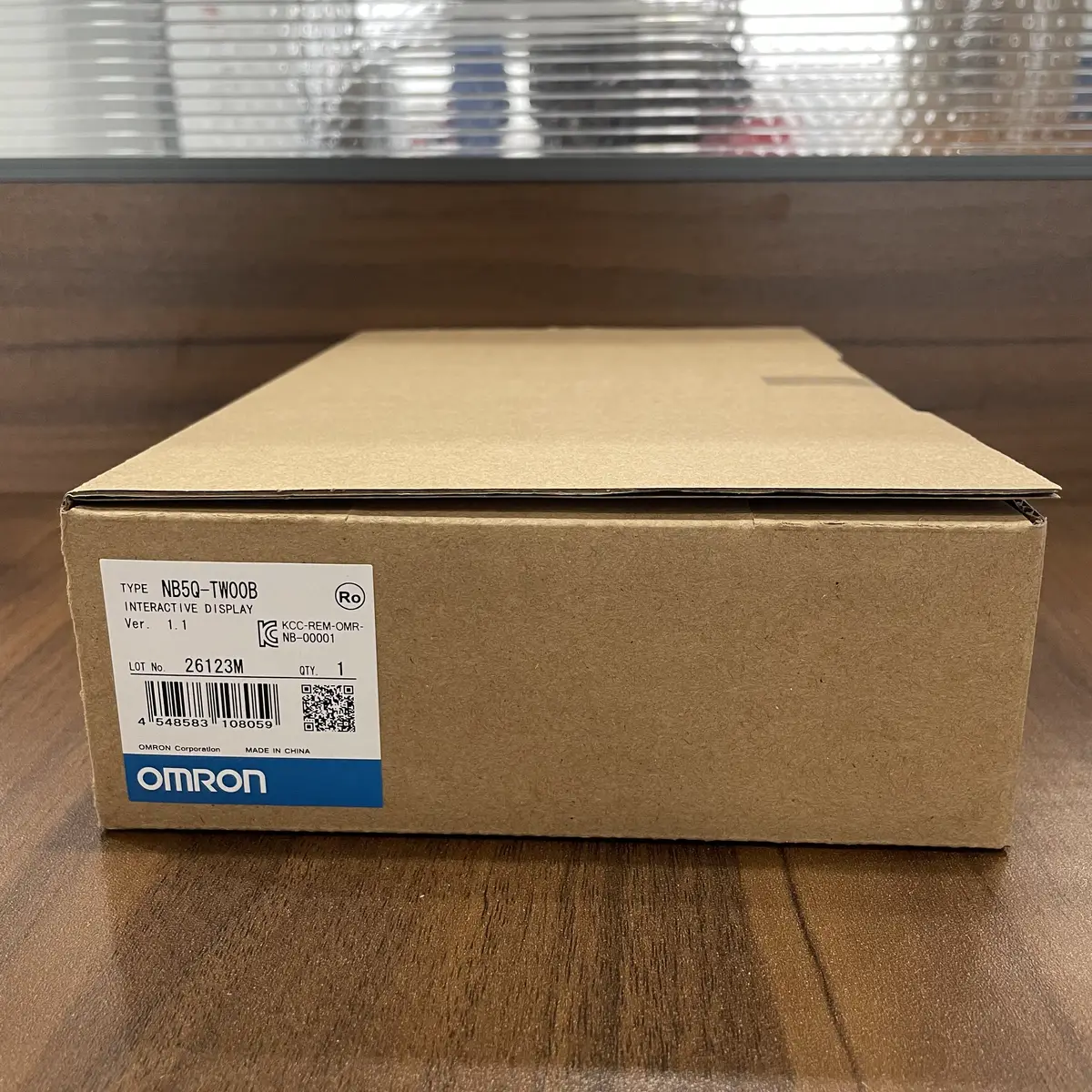

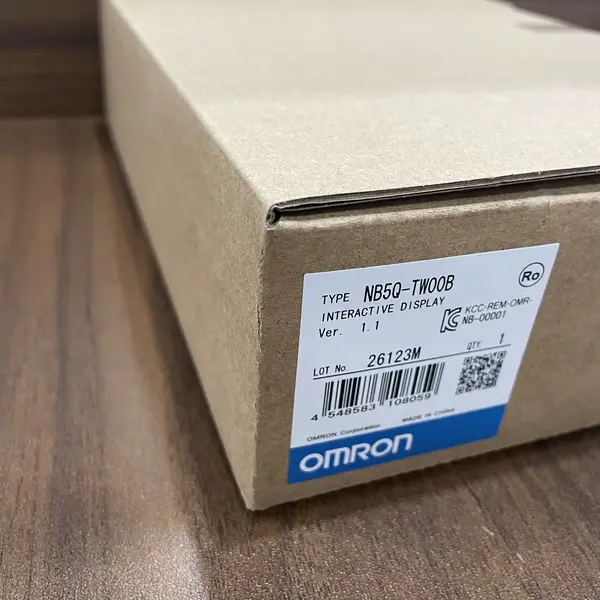

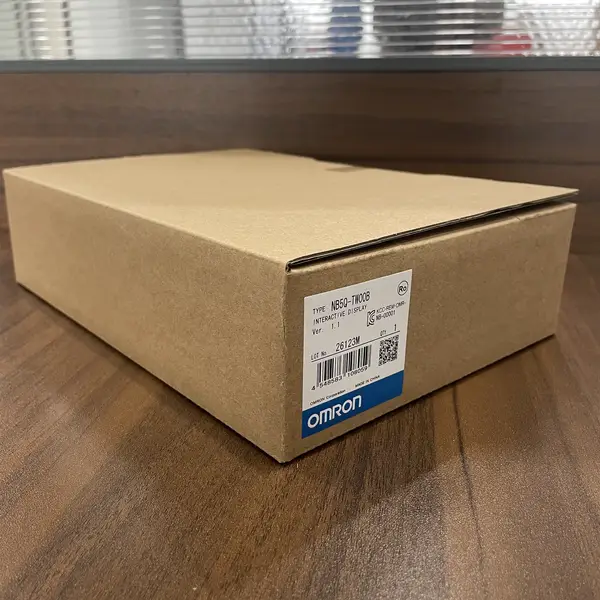

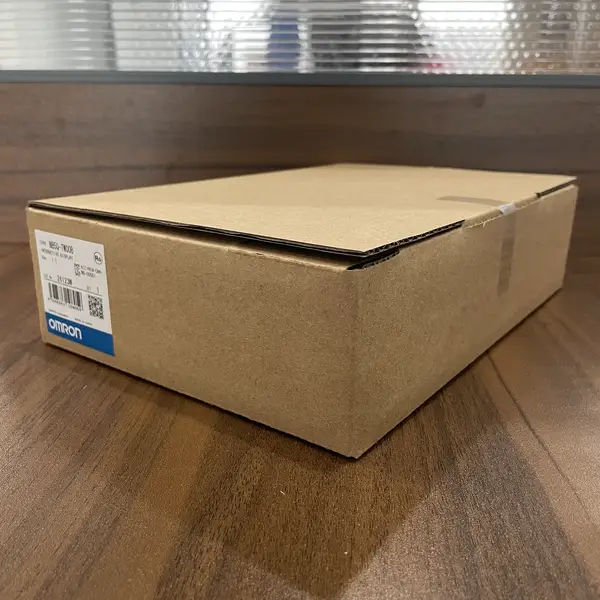

Omron NB5Q-TW00B — 5.6" TFT HMI, No Ethernet
SKU: NB5Q-TW00BUSD 145.00
5.6 inch QVGA TFT color HMI with 128 MB memory, RS-232C serial and USB slave (no Ethernet). 24 VDC, IP65 front panel.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NB5Q-TW00B is the no-Ethernet entry of the NB-series 5-inch HMI line. It carries a 5.6-inch TFT color LCD at 320 x 240 QVGA with 65 536 colours, 128 MB of project memory, and the same NB-Designer programming software used across the rest of the NB family. The 00 in the code means no Ethernet port and no USB host - communication is RS-232C serial and USB slave only. Pick the NB5Q-TW00B when the HMI sits at the machine and talks to one PLC over a serial cable, with no network drop needed.
Where the TW00B fits in the NB family
The NB-series 5-inch HMI comes in three versions. TW00B has RS-232C plus USB slave and no Ethernet - the lowest cost. TW01B adds an Ethernet port and USB host so a USB stick can upload projects or log data without a PC. TW00B-V1 is the current model code for the same TW00B specification. All three use the same NB-Designer software and project format, so a screen moves freely between them. For most small machine builds that just need a screen to view status and change setpoints, the TW00B is enough.
Why 5 inches and TFT
The 5-inch class is the smallest size where TFT color makes a visible difference over the older STN monochrome screens. The NB5Q TFT shows recipes, alarms, and trend graphs in 65 536 colours with a wide viewing angle, so the operator can read the screen from the side of the machine without losing contrast. Below 5 inches, the NB3Q-TW00B at 3.5 inches; above, the NB7W-TW01B at 7 inches and the NB10W-TW01B at 10 inches. The 5-inch size fits between the NB3Q for tight panels and the NB7W when the operator needs a bigger keypad or alarm area.
Before ordering
Confirm the controller has an RS-232C serial port - most Omron CP1 / CJ / NJ CPUs use RS-232C for NB-Designer screen transfer. Wire the NB5Q-TW00B to the same 24 VDC rail as the PLC and confirm a USB cable for screen upload. If Ethernet is needed for remote monitoring or multi-drop networks, step up to the NB5Q-TW01B.
Key Features
- NB-series programmable terminal (PT / HMI)
- 5.6 inch TFT color LCD, 320 x 240 QVGA resolution
- 65536 colors, LED backlight (typ. 50,000 h lifetime)
- 128 MB internal project memory
- RS-232C serial + USB slave (no Ethernet, no USB host)
- 24 VDC supply, NB-Designer drag-and-drop programming software
- IP65 front panel when properly mounted
- Black housing, 184 x 142 mm panel cutout
- CE / UL / KC approvals, 0 to 50 degC operating
- Compatible with CP1 / CJ / NJ / NX-series PLCs via Host Link / FINS / Modbus RTU
- SKU: NB5Q-TW00B
- Series: NB-series programmable terminal (PT / HMI)
- Voltage: 24 VDC
Best-Fit Applications
- Local operator panel on a small packaging machine that talks to a CP1L or CP2E PLC over RS-232C.
- Status display and recipe selector on a small filling or labelling machine that has no factory network.
- Standalone HMI for a CP1E-N30 with no Ethernet - the NB5Q-TW00B uses the same serial cable.
- Replacement for an older NS5 or NT31-series HMI in a retrofit, with the same NB-Designer project tools.
- Compact visualisation where the NB3Q is too small and a 7-inch panel is too big.
Buying Checklist
- Choose NB5Q-TW01B-V1 when the HMI needs Ethernet or a USB host port for memory-stick project upload.
- Choose NB3Q-TW00B when 5 inches is too big for the panel - the 3.5-inch sibling uses the same NB-Designer software.
- Choose NB7W-TW01B when the operator needs a 7-inch screen for trend graphs or larger buttons.
- Confirm the PLC has an RS-232C port - most Omron CP-series CPUs do, but CP1L-L (low-end) does not.
- Allow for the NB-Designer software download on a PC - the HMI ships with NB-Designer on USB stick in the box.
Technical Specifications
| Series | NB-series programmable terminal (PT / HMI) |
|---|---|
| Display | 5.6 inch TFT color LCD, 320 x 240 QVGA, 65536 colors, LED backlight |
| Memory | 128 MB internal project memory |
| Communication | RS-232C serial + USB slave (no Ethernet, no USB host) |
| Programming | NB-Designer drag-and-drop software (free download) |
| Supply Voltage | 24 VDC (operating range 20.4 to 27.6 VDC) |
| Front Protection | IP65 (when properly mounted on a panel) |
| Panel Cutout | 184 x 142 mm, 0 to 50 degC operating |
| Housing Color | Black |
| Approvals | CE / UL / KC |
Resources & Downloads
FAQ for NB5Q-TW00B
What is the difference between NB5Q-TW00B and NB5Q-TW01B?
Both are 5.6-inch QVGA TFT color HMIs with the same 128 MB memory and NB-Designer project tools. The TW00B has RS-232C serial and USB slave only - no Ethernet, no USB host. The TW01B-V1 adds an Ethernet port and a USB host port so a USB stick can upload projects without a PC. Pick TW00B when the HMI sits at the machine and talks to one PLC over a serial cable. Pick TW01B-V1 for Ethernet or USB memory-stick data logging.
Which Omron PLCs work with the NB5Q-TW00B?
Any Omron PLC with an RS-232C serial port - CP1E, CP1L, CP1H, CP2E, CP2E-N, CJ1, CJ2, and NJ series. Use Host Link (SYSWAY) for the older CP1-series, FINS for CJ / NJ, or Modbus RTU for non-Omron PLCs. The NB5Q-TW00B does not connect over Ethernet, so an NJ-series PLC needs a CJ1W-SCU21-V1 serial option board or an NB5Q-TW01B HMI instead.
Can I upload a project to the NB5Q-TW00B over USB?
Only via the USB slave port with a USB cable connected to a PC running NB-Designer - the TW00B does not have a USB host port. To upload projects from a USB memory stick without a PC, step up to the NB5Q-TW01B which adds a USB host port on the side of the unit.
