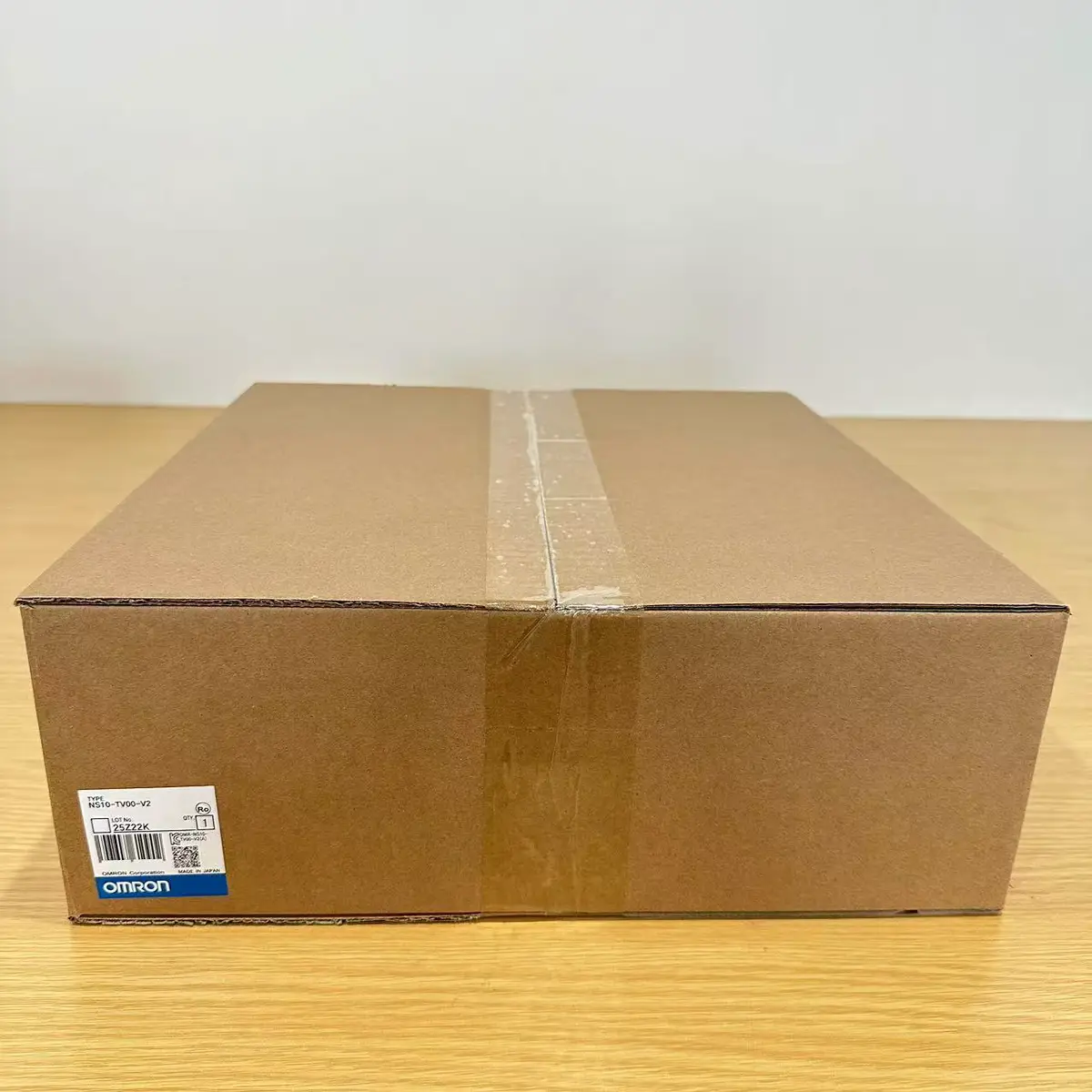

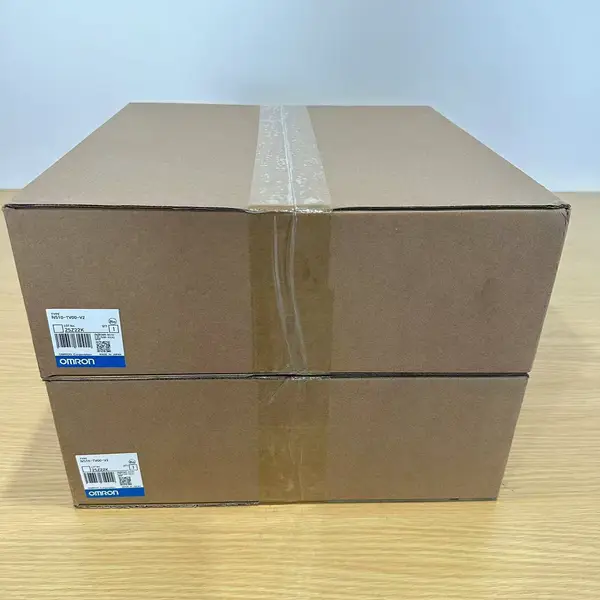

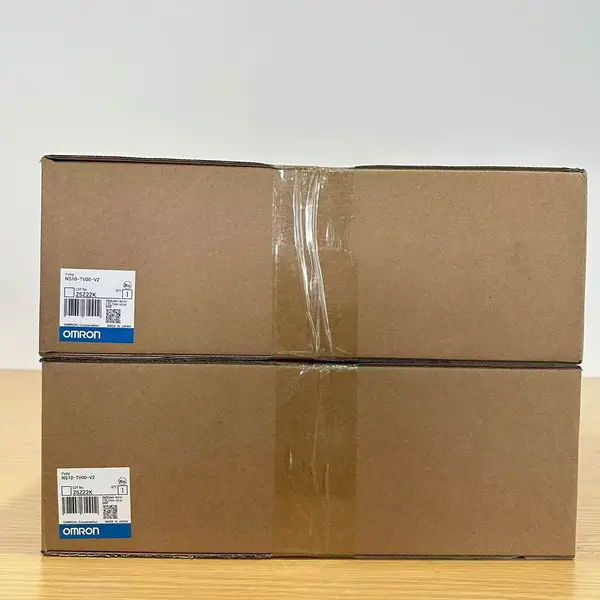

Omron NS10-TV00-V2 — 10.4" TFT HMI, No Ethernet
SKU: NS10-TV00-V2USD 725.00
10.4-inch TFT color NS-series touch HMI, 640x480, 60 MB memory, RS-232C + RS-422/485, no Ethernet, IP65 front panel.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NS10-TV00-V2 is a 10.4-inch TFT color touch HMI from the NS series, designed as an operator-interface terminal for CJ / CS / NJ / NX PLCs. The screen runs at 640 x 480 (VGA) with a true-color TFT panel and LED backlight, and stores up to 60 MB of project data — enough for complex screens, recipes, alarms, and trending on a mid-sized machine.
When this SKU is the right pick
Pick the NS10-TV00-V2 when you want a 10-inch TFT NS terminal and the controller talks over a serial cable. The "V00" suffix means no Ethernet — the terminal has RS-232C and RS-422/485 only. For the same panel with Ethernet (so you can talk to NJ/NX PLCs over EtherNet/IP or share screens across multiple terminals), pick the NS10-TV01-V2 instead. For a black bezel, add the B suffix (NS10-TV00B-V2 or NS10-TV01B-V2).
What sits behind the 10-inch screen
The NS-series design software is NS-Designer, sold as part of the CX-One bundle. Smart Active Parts (SAP library) give you pre-built widgets for Omron PLCs — inverters, temperature controllers, and other Omron devices — without writing ladder for the screen. The terminal supports the standard NS-series screen features: alarms, recipes, trending, multi-language (up to 42 languages on screen, 8 in the editor), and the SAP fault-troubleshooting library.
Before ordering
Confirm the controller side has the matching serial port. For Host Link on a CJ/CS, the NS10 talks to the CPU serial port directly. For an NJ/NX, use the NS10-TV01-V2 (with Ethernet) over EtherNet/IP. The panel cuts into a control-cabinet door and needs IP65 sealing around the cut-out.
Key Features
- 10.4-inch TFT color LCD with LED backlight
- 640 x 480 (VGA) resolution
- 60 MB project memory — room for complex screens and recipes
- RS-232C + RS-422/485 serial — no Ethernet on this SKU
- White (ivory) bezel — pick the B suffix for black
- IP65 front panel for cabinet-door mounting
- Smart Active Parts (SAP) library for Omron PLCs, inverters, and temperature controllers
- Multi-language display (up to 42 on screen, 8 in the editor)
- SKU: NS10-TV00-V2
- Series: NS series programmable terminal (PT)
- Voltage: 24 VDC
Best-Fit Applications
- Operator panel for a CJ/CS PLC on a packaging line where only serial Host Link is needed
- Mid-sized machine HMI with recipe storage (60 MB is enough for several hundred recipes)
- Trending and alarm display on a process skid using NS-Designer + Smart Active Parts
- Multi-language operator interface on an OEM machine shipped to EU + APAC (42 on-screen languages)
- Cabinet-door-mounted terminal for a stand-alone machine station
Buying Checklist
- Choose NS10-TV00-V2 for a 10-inch NS TFT HMI with serial only; pick NS10-TV01-V2 if you need Ethernet.
- Pick the B suffix (NS10-TV00B-V2) for a black bezel if the cabinet front is dark.
- Plan a 24 VDC supply sized for the panel; typical draw is around 25 W at 24 VDC.
- For an 8-inch panel, look at NS8-TV00-V2; for 12-inch, NS12-TS01-V2; for 15-inch, NS15-TX01B-V2.
- Buy NS-Designer (or the CX-One bundle) for screen development — the terminal ships without programming software.
Technical Specifications
| Model | NS10-TV00-V2 |
|---|---|
| Series | NS series programmable terminal (PT) |
| Screen Size | 10.4 inch diagonal |
| Display Type | TFT color LCD, LED backlight |
| Resolution | 640 x 480 (VGA) |
| Colors | 32,768 (true-color TFT) |
| Touch Panel | Analog resistive |
| Memory | 60 MB project memory |
| Serial Ports | RS-232C + RS-422/485 |
| Ethernet | No (the "00" suffix; pick NS10-TV01-V2 for Ethernet) |
| USB | USB 1.1 slave for project transfer |
| Supply Voltage | 24 VDC ±15% |
| Front Panel Protection | IP65 (when properly mounted) |
| Operating Temperature | 0 to +50 °C |
Resources & Downloads
FAQ for NS10-TV00-V2
What is the difference between NS10-TV00-V2 and NS10-TV01-V2?
NS10-TV00-V2 has serial (RS-232C + RS-422/485) only — no Ethernet. NS10-TV01-V2 adds an Ethernet port for EtherNet/IP and screen sharing on a network. Pick TV00 for a stand-alone Host Link terminal on a CJ/CS PLC; pick TV01 when the controller side is an NJ/NX or you need multiple terminals on one PLC.
Is the NS10-TV00-V2 screen TFT or STN?
TFT. The "T" in the NS10-T model code means TFT color LCD. NS-series monochrome and STN panels use a different prefix (NS5-MQ for STN monochrome, for example). The NS10-T family is always TFT color with LED backlight.
What software is needed to program the NS10-TV00-V2?
Omron NS-Designer, sold standalone or as part of the CX-One FA integration suite. CX-One also includes CX-Programmer and the Smart Active Parts library for Omron inverters, temperature controllers, and other devices.
How much project memory does the NS10-TV00-V2 have?
60 MB of project memory — enough for several hundred full screens, a recipe database with thousands of entries, multi-language strings, and on-screen trend logs. For very large applications, a CF card can extend the storage.
