Omron NS8-TV01-V2 — 8.4" SVGA TFT HMI with Ethernet
SKU: NS8-TV01-V2USD 725.00
8.4-inch VGA 640×480 TFT colour touchscreen HMI with built-in Ethernet 10/100 Base-TX, dual RS-232C, USB master/slave, 60 MB screen memory, CX-Designer programming, ivory bezel.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

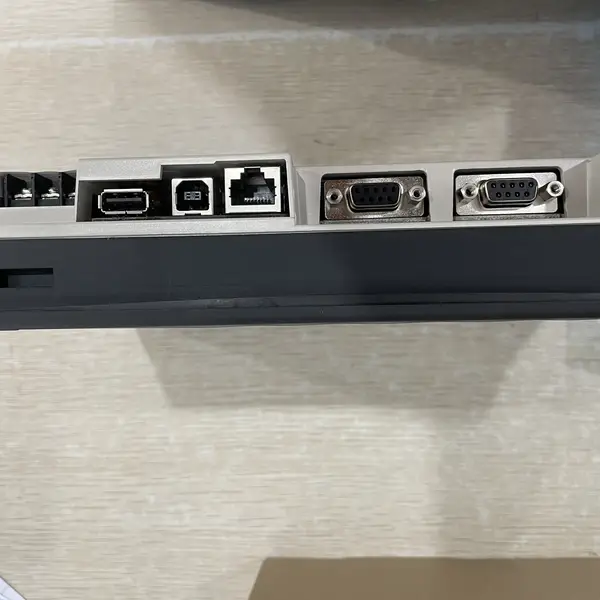

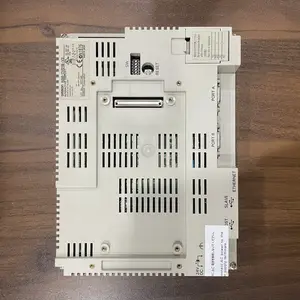

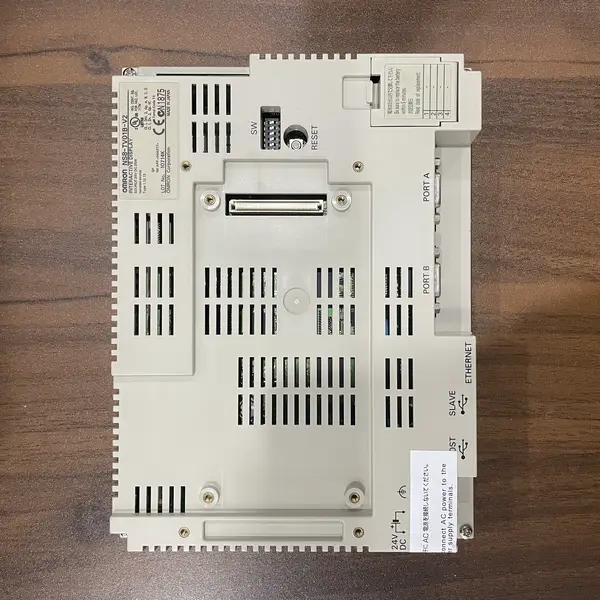

The NS8-TV01-V2 is the 8.4-inch Ethernet-enabled model of Omron's NS-series programmable terminals. It pairs a 640×480 VGA TFT colour LCD (32,768 simultaneous colours) with a matrix-resistive touch overlay, 60 MB of dedicated screen memory, and a built-in 10/100 Base-TX Ethernet port for connection to a CJ2, NJ, or NX PLC over EtherNet/IP or FINS. Two RS-232C ports handle legacy Host Link / NT Link connections and a barcode reader or recipe bank, while the USB master and slave ports allow project transfer from a memory stick or direct screen editing from a laptop.
What the TV01 suffix adds over the TV00
The defining difference between NS8-TV01-V2 and NS8-TV00-V2 is Ethernet: only the TV01 (and TV01B black-bezel) variants include the 10/100 Base-TX port. The TV01 also supports the optional NS-CLK21 Controller Link Interface Unit for high-speed PLC-to-PLC messaging on a dedicated 2 Mbps Controller Link network — a feature the TV00 cannot use. If your CX-Designer project needs to download over Ethernet, push alarm e-mails to an SMTP server, or serve a web page through the built-in Web Server function, you must use a TV01 (or TV01B) unit.
Programming and runtime
Projects are built in CX-Designer (version 3.0 or later for V2 units), part of the CX-One suite. CX-Designer supports Smart Active Parts — pre-built objects for alarm logs, trend graphs, recipe banks, and ladder-monitor I/O display — so you can stand up an operator screen with live PLC I/O without writing any script. The Ladder Monitor function (with the optional NS-CLK21 and a compatible controller) lets maintenance staff read the controller program from the HMI without a laptop, with I/O comments extracted at build time.
Practical selection and panel considerations
This NS8 fits an 8.4-inch panel cutout (170.9 × 128.2 mm display area, front bezel 230 × 170 mm). The TFT panel with LED backlight is rated 0 to +50 °C ambient, IP65 from the front once mounted with the included gasket, and UL / CSA / CE certified. Note that the entire NS series has been moved to Omron's product discontinuation list, with the NA5-9W001B-V1 (9-inch widescreen) as the recommended replacement. Stocking the NS8-TV01-V2 today is a perfectly good choice for keeping existing lines running, but new designs should evaluate the NA5 family and Sysmac Studio migration path.
Key Features
- 8.4-inch SVGA 640 × 480 TFT colour LCD with LED backlight
- Matrix-resistive touch screen, 32,768 simultaneous colours
- Built-in 10/100 Base-TX Ethernet port
- Two RS-232C ports for Host Link, NT Link, or barcode readers
- USB master for memory-stick project transfer, USB slave for direct PC connection
- 60 MB screen memory and Type-M memory-card slot for hot-swap projects
- Ladder Monitor function with NS-CLK21 Controller Link option
- NS-CA002 RGB/Video Input Unit support for live video overlay
- SKU: NS8-TV01-V2
- Series: NS8 (V2 generation)
- Voltage: 24 VDC
- I/O: 002 I/O
Best-Fit Applications
- Operator panel on a packaging line station with recipe bank and alarm history
- HMI at the central station of a water-treatment skid with trend graphs
- Maintenance engineer station reading CJ2 ladder logic via Ladder Monitor over Controller Link
- Existing line retrofitted to add Ethernet connectivity to a legacy CJ1M without a PLC CPU swap
Buying Checklist
- Pick NS8-TV01-V2 when you need Ethernet and an 8.4-inch screen; pick NS8-TV00-V2 when Ethernet is not required and you want to save cost
- Pick NS8-TV01B-V2 instead when the panel is dark-coloured and the ivory bezel would clash
- Verify your controller supports NT Link / Ethernet — NJ, NX, CJ2, and CP1H are direct fits; some legacy controllers need a serial-only connection
- Order the NS-CLK21 separately if you plan to use Ladder Monitor; it is not bundled with the NS8
- Order the NS-CA002 only if you need live video overlay — the NS8 will run fine without it
- Plan a NA5-9W001B-V1 evaluation if this is a new design — the NS series is being discontinued
Technical Specifications
| Model | NS8-TV01-V2 |
|---|---|
| Series | NS8 (V2 generation) |
| Type | TFT colour programmable terminal (HMI) |
| Display Size | 8.4 inch diagonal |
| Display Area | 170.9 × 128.2 mm |
| Resolution | 640 × 480 (VGA) |
| Colors | 32,768 colours |
| Backlight | LED |
| RGB/Video Input | Optional via NS-CA002 expansion unit |
| Supply Voltage | 24 VDC |
| Operating Temperature | 0 to +50 °C |
| Certifications | UL, CSA, CE |
Resources & Downloads
FAQ for NS8-TV01-V2
What is the difference between NS8-TV01-V2 and NS8-TV00-V2?
Only the TV01 and TV01B variants include the built-in 10/100 Base-TX Ethernet port; the TV00 / TV00B have no Ethernet and connect to the PLC only by RS-232C. The TV01 also supports the optional NS-CLK21 Controller Link Interface Unit for high-speed PLC-to-PLC messaging and Ladder Monitor. If you need Ethernet, alarm e-mail, web server, or Controller Link, you must use a TV01 variant.
Can the NS8-TV01-V2 connect to an NJ or NX controller over Ethernet?
Yes — the built-in Ethernet port supports FINS / EtherNet/IP communication to NJ, NX, NX1P, and any CJ2 / CS1 with an Ethernet module. Set the PLC IP address in CX-Designer's host configuration, choose either EtherNet/IP (cyclic tag access) or FINS (message-based), and download the project. Connection to multiple controllers is supported by registering up to 32 hosts.
What programming software does the NS8-TV01-V2 use?
CX-Designer, included in Omron's CX-One suite. V2-generation NS units require CX-Designer version 3.0 or later. Projects can be downloaded via Ethernet, USB, serial, or a Type-M memory card. CX-Designer also exports a runtime package that can be sent to a USB stick for stand-alone installation on machines without a network.
Is the NS8-TV01-V2 still in production?
The NS series has been moved to Omron's product discontinuation list with the NA5-9W001B-V1 (9-inch widescreen Sysmac HMI) as the recommended replacement. Existing NS8 stocks remain available through authorised distributors like Hengyixin for service and expansion of installed lines, but new long-life-cycle designs should evaluate the NA5 family and Sysmac Studio migration path.
